Peak Scientific Infinity 1032 Bedienungsanleitung

Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-Infinity1032&33

Inchinnan Business Park F: +44 (0)141 812 8200 Rev. 1

Inchinnan, PA4 9RE W: www.peakscientific.com

Scotland, UK E: info@peakscientific.com Page Page 1 of 5

Installation Guide –Infinity 1032 & 1033 Generator

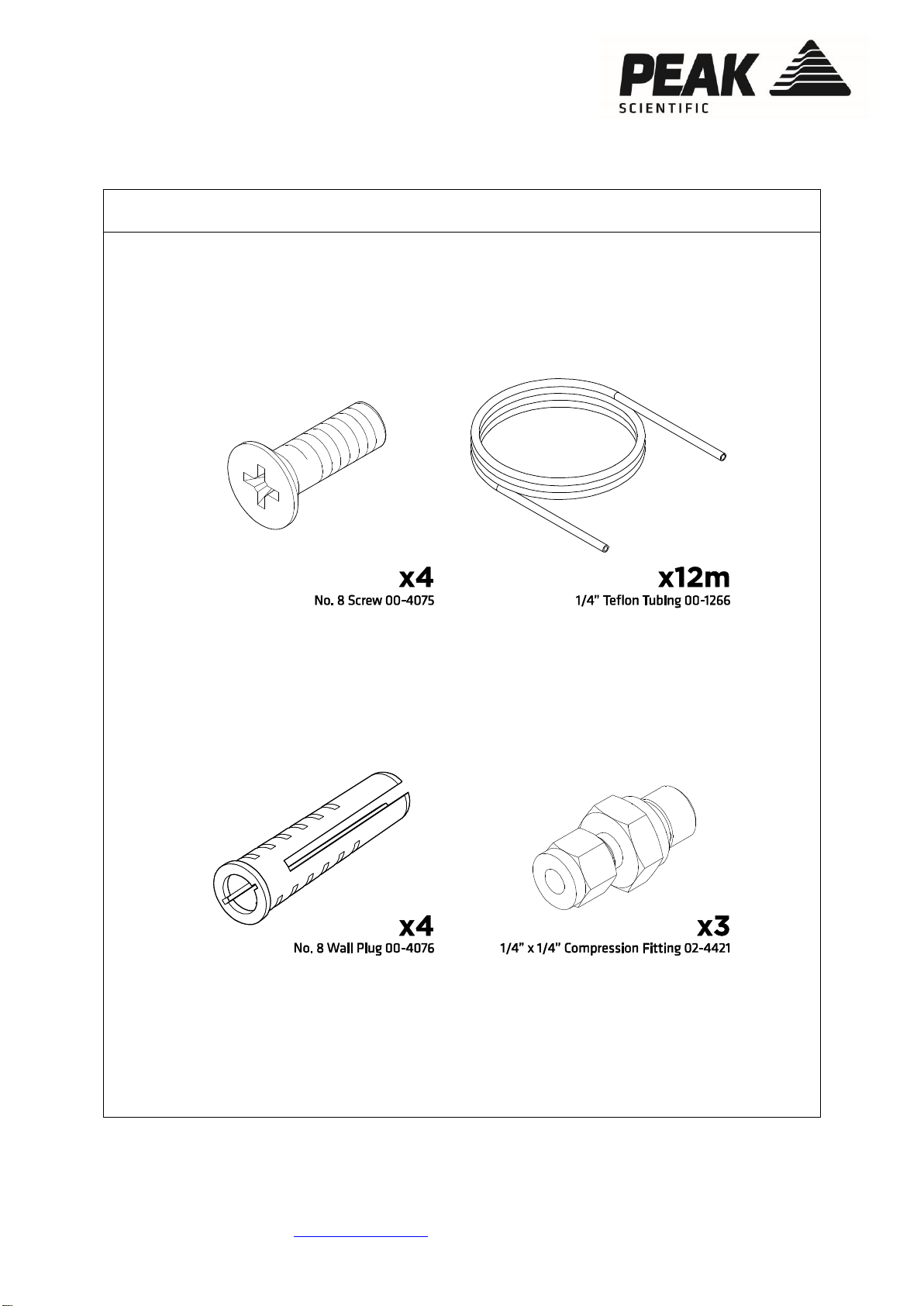

FITTINGS KIT

Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-Infinity1032&33

Inchinnan Business Park F: +44 (0)141 812 8200 Rev. 1

Inchinnan, PA4 9RE W: www.peakscientific.com

Scotland, UK E: info@peakscientific.com Page Page 2 of 5

INSTALLATION

Unpack the generator from

the shipping crate and place

on a flat surface.

The generator can be wall

mounted, shown above

are the distances required

between fittings.

Using the wall plugs and

screws provided, mount the

generator to the wall in the

desired location.

Select the ¼” compression fittings and attach

to the ‘CURTAIN’ ’SOURCE’ and ‘EXHAUST’

ports. It is recommended that PTFE tape is

applied to the threads to ensure a leak-tight fit.

Select the ¼” Teflon Tube and connect to

the ‘CURTAIN’ ’SOURCE’ and

‘EXHAUST’ ports. If using the compression

fitting ensure the internal olive is crimped

securely.

¼” Teflon

Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-Infinity1032&33

Inchinnan Business Park F: +44 (0)141 812 8200 Rev. 1

Inchinnan, PA4 9RE W: www.peakscientific.com

Scotland, UK E: info@peakscientific.com Page Page 3 of 5

Connect the other end of the Teflon Tube

to the instrument gas inputs; again ensure

the fittings are securely fastened.

Attach house air supply to BA filter at left side

of generator. Ensure valve on filter is at the

open position.

CONGRATULATIONS

Your PEAK SCIENTIFIC gas generator is now fully installed, operational and ready to

supply gas on demand to your instrument.

Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-Infinity1032&33

Inchinnan Business Park F: +44 (0)141 812 8200 Rev. 1

Inchinnan, PA4 9RE W: www.peakscientific.com

Scotland, UK E: info@peakscientific.com Page Page 4 of 5

General Notes

* The 12m length of Teflon tube supplied in the fittings kit is to allow the

generator to be installed adjacent to the instrument it is supplying. If the generator is

to be installed further away from the instrument then attention needs to be paid to

pressure drops that could occur. The maximum distance away from the instrument

the generator can be placed still using 6mm (4mm internal diameter) or ¼” (3/16”

internal diameter) tubing is 10m. For further information relating to tubing lengths

please refer to the user manual.

For all other technical specifications, operating instructions, service

requirements, contact details and trouble shooting, please refer to

the user manual contained on the CD supplied in the fittings kit.

Please keep this for future reference.

28.

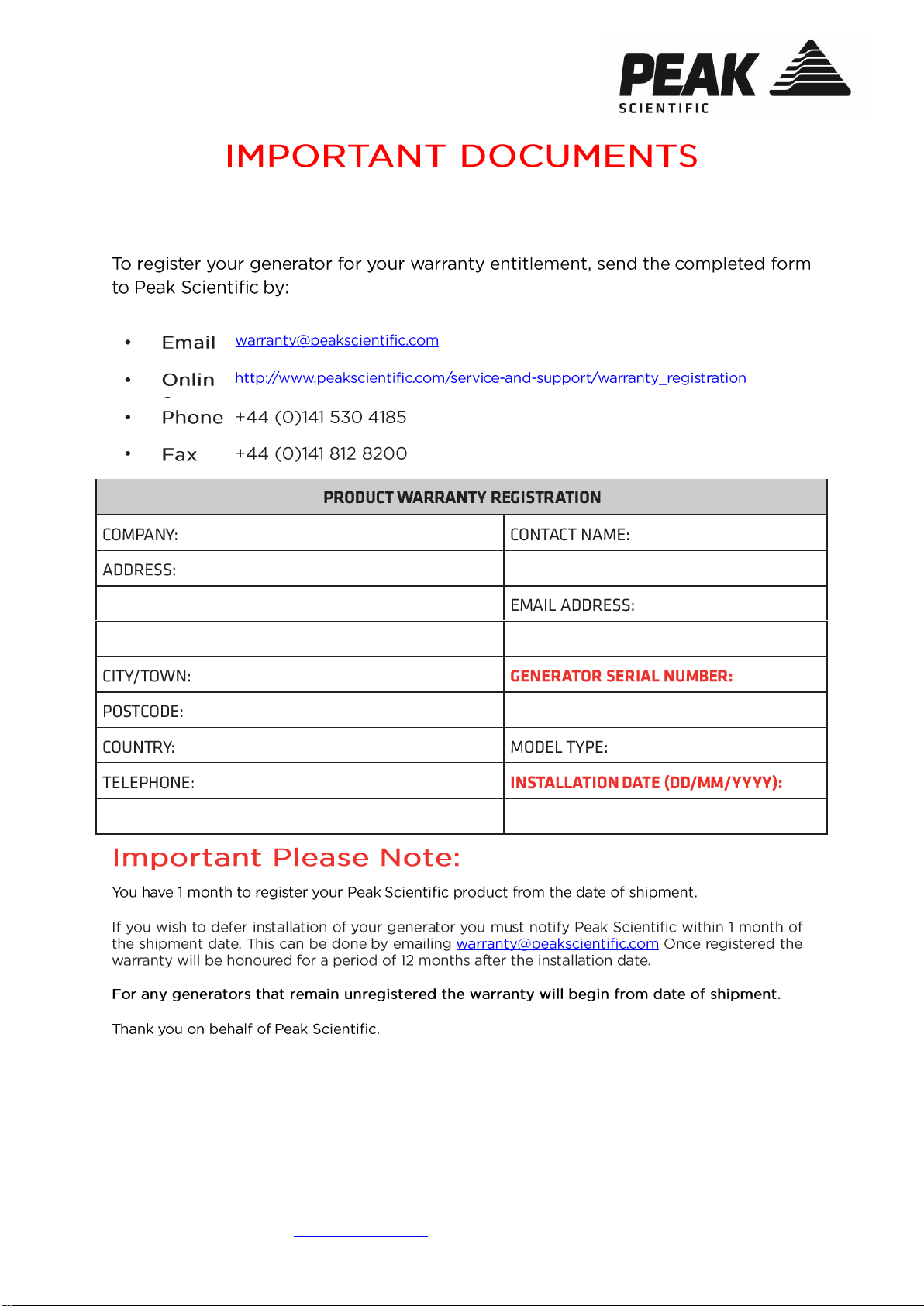

It is very important to register your generator with PEAK SCIENTIFIC. This will initiate your

warranty entitlement. Please use the form on the next page to register your generator. You

will need the generators serial number which can be found on the serial label on the rear of

the generator.

Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-Infinity1032&33

Inchinnan Business Park F: +44 (0)141 812 8200 Rev. 1

Inchinnan, PA4 9RE W: www.peakscientific.com

Scotland, UK E: info@peakscientific.com Page Page 5 of 5

Warranty Entitlement
