Pepperl+Fuchs DPU1100 Series Bedienungsanleitung

VisuNet Display Unit

DPU1100-* and DPU1200-*

Manual

With regard to the supply of products, the current issue of the following document is applicable:

The General Terms of Delivery for Products and Services of the Electrical Industry, published

by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elek-

troindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause:

"Expanded reservation of proprietorship"

Worldwide

Pepperl+Fuchs Group

Lilienthalstr. 200

68307 Mannheim

Germany

Phone: +49 621 776 - 0

E-mail: info@de.pepperl-fuchs.com

North American Headquarters

Pepperl+Fuchs Inc.

1600 Enterprise Parkway

Twinsburg, Ohio 44087

USA

Phone: +1 330 425-3555

E-mail: [email protected]

Asia Headquarters

Pepperl+Fuchs Pte. Ltd.

P+F Building

18 Ayer Rajah Crescent

Singapore 139942

Phone: +65 6779-9091

E-mail: [email protected]l-fuchs.com

https://www.pepperl-fuchs.com

VisuNet Display Unit

Contents

2023-02

1 Introduction................................................................................................................ 4

1.1 Content of this Document............................................................................. 4

1.2 Target Group, Personnel ............................................................................... 4

1.3 Symbols Used ................................................................................................ 5

2 Product Description .................................................................................................. 6

2.1 Overview......................................................................................................... 6

2.2 Technical Data 21.5-Inch Model ................................................................... 8

2.3 Technical Data 19-Inch Model..................................................................... 10

2.4 Marking ......................................................................................................... 11

2.5 Dimensions and Type Labels...................................................................... 13

3 Installation................................................................................................................ 16

3.1 Special Conditions of Use .......................................................................... 16

3.2 General Installation Requirements ............................................................ 16

3.3 Mechanical Installation ............................................................................... 17

3.4 Repair............................................................................................................ 18

4 Operation and configuration .................................................................................. 19

5 Bluetooth Interface.................................................................................................. 25

6 Appendix .................................................................................................................. 26

6.1 Support Pixel Errors .................................................................................... 26

6.2 Health Monitoring ........................................................................................ 26

6.3 Gloves Tested for Touch Sensitivity ........................................................... 28

6.4 Chemical Resistance of Sealant and Gasket ............................................ 29

2023-02

VisuNet Display Unit

Introduction

1 Introduction

1.1 Content of this Document

This document contains information that you need in order to use your product throughout the

applicable stages of the product life cycle. These can include the following:

•Product identification

•Delivery, transport, and storage

•Mounting and installation

•Commissioning and operation

•Maintenance and repair

•Troubleshooting

•Dismounting

•Disposal

The documentation consists of the following parts:

•Present document

•Instruction manual

•Datasheet

Additionally, the following parts may belong to the documentation, if applicable:

•EU-type examination certificate

•EU declaration of conformity

•Attestation of conformity

•Certificates

•Control drawings

•Functional safety manual

•Additional documents

1.2 Target Group, Personnel

Responsibility for planning, assembly, commissioning, operation, maintenance, and dismount-

ing lies with the plant operator.

Only appropriately trained and qualified personnel may carry out mounting, installation, com-

missioning, operation, maintenance, and dismounting of the product.The personnel must have

read and understood the instruction manual and the further documentation.

Prior to using the product make yourself familiar with it. Read the document carefully.

Note

This document does not substitute the instruction manual.

Note

For full information on the product, refer to the instruction manual and further documentation on

the Internet at www.pepperl-fuchs.com.

Note

For specific device information such as the year of construction, scan the QR code

on the device. As an alternative, enter the serial number in the serial number search

at www.pepperl-fuchs.com.

VisuNet Display Unit

Introduction

2023-02

1.3 Symbols Used

This document contains symbols for the identification of warning messages and of informative

messages.

Warning Messages

You will find warning messages, whenever dangers may arise from your actions. It is mandatory

that you observe these warning messages for your personal safety and in order to avoid prop-

erty damage.

Depending on the risk level, the warning messages are displayed in descending order as fol-

lows:

Informative Symbols

Action

1. This symbol indicates a paragraph with instructions.You are prompted to perform an action or

a sequence of actions.

Danger!

This symbol indicates an imminent danger.

Non-observance will result in personal injury or death.

Warning!

This symbol indicates a possible fault or danger.

Non-observance may cause personal injury or serious property damage.

Caution!

This symbol indicates a possible fault.

Non-observance could interrupt the device and any connected systems and plants, or result in

their complete failure.

Note

This symbol brings important information to your attention.

2023-02

VisuNet Display Unit

Product Description

2 Product Description

2.1 Overview

The display units are one of the three core devices of the VisuNet GXP systems 19" or 22"

which can be exchanged by the customer.The display units DPU1100-* and DPU1200-* are

display panels with optional 10-finger multi-touch-sensors. Displays and touch-sensors are

optically bonded with the hardened front glass.

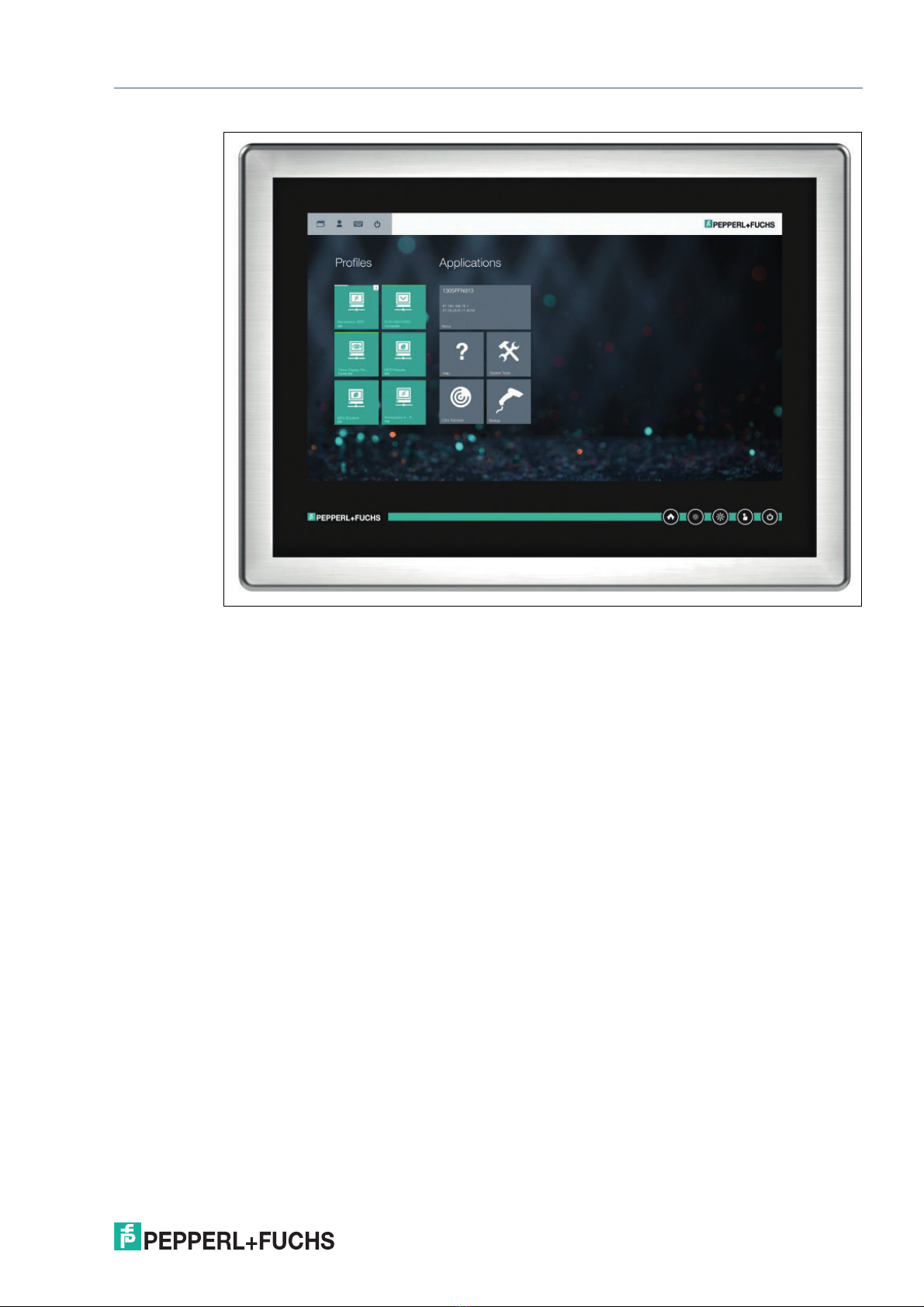

Figure 2.1

The DPU1100-* and DPU1200-* display units are ATEX/IECEx certified, UL listed devices

intended for use in potentially explosive atmospheres, such as Zones 1/21 and 2/22 and Class

I/II, Div. 2, and Class III.

Connected to a Pepperl+Fuchs thin client or PC unit, the DPU serves as a display with an

optional touch screen. It enables users to perceive the system outputs of the computing unit

and to input user data.

Five system keys located on the front of the unit allow users to control system functions of the

display unit (e.g., brightness control) and the computing unit (e.g., home key). Integrated signal

lights on the front keys show selected failure modes in case of a defective component.

The display unit is optimized for use with the modular HMI components of the VisuNet GXP

product line: thin client unit (TCU1100-*/TCU1200-*), PC Unit (PCU1100-*/PCU1200-*), and

power supply unit (PSU1100-*/PSU1200-*).

VisuNet Display Unit

Product Description

2023-02

Figure 2.2

2023-02

VisuNet Display Unit

Product Description

2.2 Technical Data 21.5-Inch Model

Supply

Power dissipation 27 W

Power consumption average: 22 W

at maximum brightness: max. 27 W

Display

Ty p e LC display with LED backlight Optically

bonded

Screen diagonal 54.61 cm (21.5 inches)

Resolution 1920 x 1080 (Full HD), Aspect ratio 16:9

Color depth 16.7 Mio.

Contrast 5000 (typical)

Brightness 300 cd/m2

Reading angle 175°in all directions

Life span back lamp life: 50.000-hrs typical half life, at

20°C (68°F)

Input devices

Touchscreen Optional: projective capacitive, 10 finger multi-

touch, glove-friendly

Control elements 5 capacitive front keys (behind glass):

1 home button, 2 brightness control buttons, 1

touchscreen button, 1 power button

Interface

Interface type Interface v1.0 from Pepperl+Fuchs for com-

puting units from Pepperl+Fuchs

Bluetooth®v4.0, communication distance up

to 30 m in open terrain

Ambient conditions

Operating temperature 0 ... 50 °C (32 ... 122 °F) (normal operation)

-20 ... 50 °C (-4 ... 122 °F) (after 1 hour of

operation)

Storage temperature -20 ... 60 °C (-4 ... 140 °F)

Relative humidity 93% at 40°C, non-condensating, according to

EN 60068-2-78

Shock resistance 18 shocks 15 g, 11 ms all axis, IEC 60068-2-

Vibration resistance 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per

axis according to EN60068-2-6

VisuNet Display Unit

Product Description

2023-02

Mechanical specifications

Degree of protection IP66 (when mounted on the TCU or PCU unit

from Pepperl+Fuchs)

Material

Surface Front: glass (optional with stainless steel

bezel)

Back: Powder-coated aluminum

Mass approx. 15 kg (DPU1100-*)

approx. 11 kg (DPU1200-*)

Dimensions 624 mm x 458 mm x 35 mm

Cut out dimensions 583 mm x 417 mm

2023-02

VisuNet Display Unit

Product Description

2.3 Technical Data 19-Inch Model

Supply

Power dissipation 25 W

Power consumption average: 22 W

at maximum brightness: max. 25 W

Display

Ty p e LC display with LED backlights, optically

bonded

Screen diagonal 48.26 cm (19 inches)

Resolution 1280 x 1024 (SXGA), Aspect ratio 5:4

Color depth 16.7 Mio

Contrast 1000:1 (typical)

Brightness 450 cd/m2

Reading angle 170°horizontal, 160°vertical

Life span back lamp life: 50.000-hrs typical half life, at

25°C (77°F)

Input devices

Touchscreen optional: projective capacitive, 10 finger multi-

touch, glove-friendly

Control elements 5 capacitive front keys (behind glass):

1 home button, 2 brightness control buttons, 1

touchscreen button, 1 power button

Interface

Interface type Interface v1.0 from Pepperl+Fuchs for com-

puting units from Pepperl+Fuchs

Bluetooth®v4.0, communication distance up

to 30 m in open terrain

Ambient conditions

Operating temperature -20 ... 50 °C (-4 ... 122 °F)

Storage temperature -20 ... 60 °C (-4 ... 140 °F)

Relative humidity 93% at 40°C, non-condensating, according to

EN 60068-2-78

Shock resistance 18 shocks 15 g, 11 ms all axis, IEC 60068-2-

Vibration resistance 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per

axis according to EN60068-2-6

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pepperl+Fuchs Messgerät Handbücher

Pepperl+Fuchs

Pepperl+Fuchs LGC2 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs IMU360D-F99-B20 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs LVL-Z120 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs PMI360DV-F130-IU-V15 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs PMI Series Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs F2D0-TI-Ex8.FF Series Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs PMI360D-F130-IE8-V15 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs PMI360DV-F130-IU2E0-V15 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs LGM Series Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs IMUF99 B20 Series Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs HART LUC-M Series Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs LGC Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs Pulscon LTC50 Handbuch

Pepperl+Fuchs

Pepperl+Fuchs LVL-M3 Referenzhandbuch

Pepperl+Fuchs

Pepperl+Fuchs LGM Series Referenzhandbuch

Pepperl+Fuchs

Pepperl+Fuchs PMI360DV-F130-IU2E2-V15 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs PMI15V-F166 IO Series Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs PMI360D-F130-IE8-V15-Y205400 Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs WS-UC F406-B41 Series Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs AS-i Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs KT-LED-24-PT100-24VDC Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs KFA5-DWB-Ex1.D Bedienungsanleitung

Pepperl+Fuchs

Pepperl+Fuchs VBA-2E-KE4-ENC-S Benutzerhandbuch

Pepperl+Fuchs

Pepperl+Fuchs IMUF99 B16 Series Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
