Beard Trimmer

HQ-T 764

PRODUCT INFORMATION

Features :

- Contour Tracking System; comb adapts to the contours of the

face.

- Precision Zoom Lock; for precise adjustability of the comb in

9 lenghts between 1.5 mm and 18 mm.

- Beard length indication window.

- Charging indication (LED on Adapter).

- Maintenance free cutting element: no oiling required.

- Three dimensional rounded teeth at skin side for max. comfort.

TECHNICAL DATA

Power system : Rechargeable

Batteries : 1x AA NiCd

Charging period : NiCd batteries : 10 hours

Capacity : NiCd batteries : 40 minutes

4322 277 00658

01/10

Product meets the requirements regarding

interference suppression on radio andTV.

NOTES :

* In order to guarantee the longest possible working

life of the battery :

- do not charge for more than 24 hours

- do not keep the charging unit permanently

plugged in

- discharge the battery completely once a year by

letting the motor run until it stops

* If the battery is empty and the consumer wants to

trim his beard, the trimmer has to be charged for

at least 1.5 hours to have enough power for one

trim

* The appliance should be charged again, when not

used for a long period

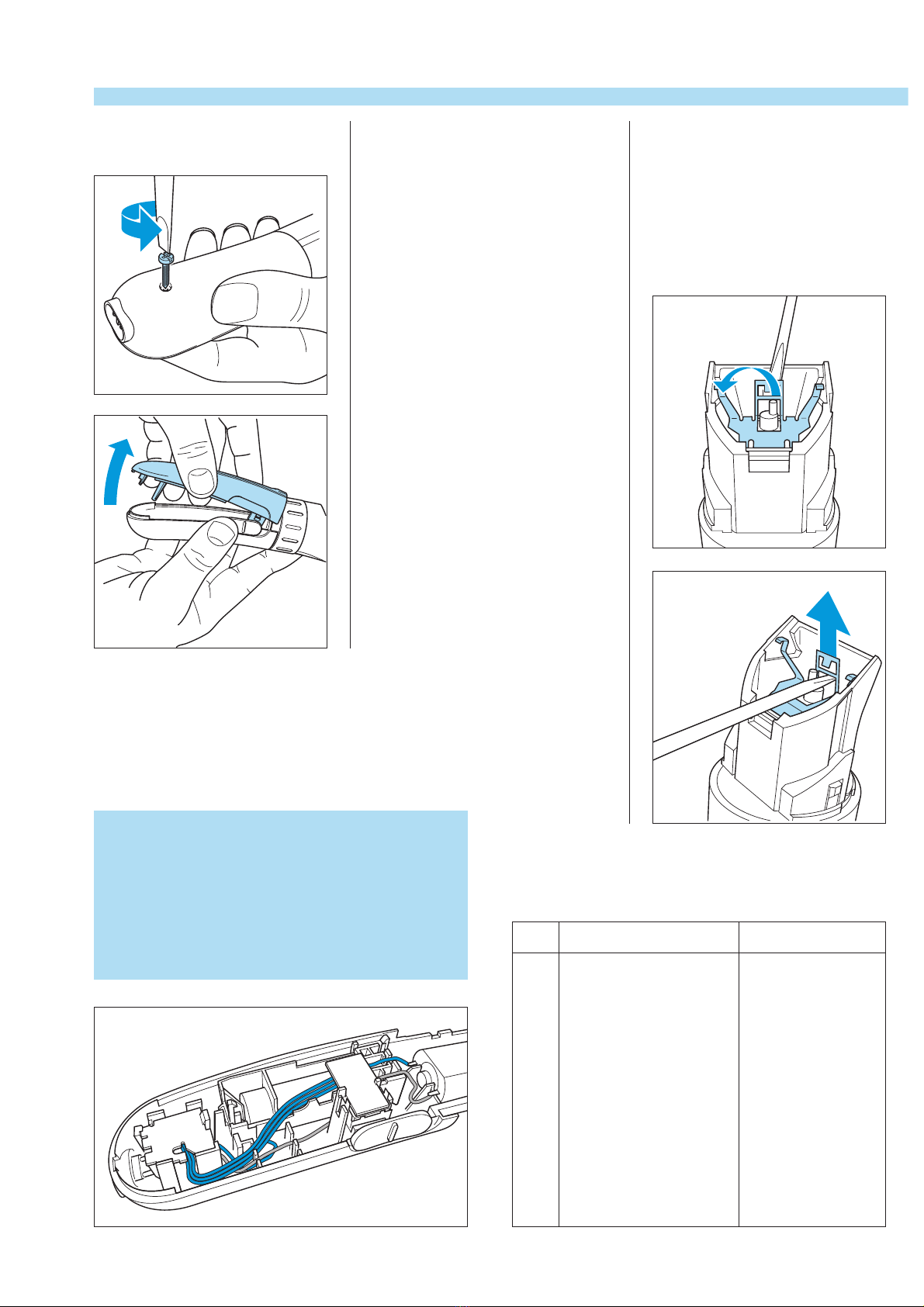

DISASSEMBLY ADVICE + PARTS LIST HQ-T 764

to replace ON / OFF KNOB (8)

remove SCREW A

COVER (7)

Never use again a deformed housing clamp (3).

Before reassembling the battery holder, make sure

that the internal wiring is guided as shown in ﬁgure 1.

After the product has been repaired, it should

function properly and has to meet the safety

requirements as laid down and ofﬁcally established at

this moment.

to replace SPRING ZOOM RING (6)

remove COMB (1)

SCREW A

COVER (7)

COMB HOLDER (4)

ZOOM RING (5)

pos description service code

1 comb 4203 035 76450

2 cutter 4203 035 76420

3 housing clamp 4203 035 76410

4 comb holder 4203 035 76400

5 zoomring 4203 035 76350

6 spring zoom ring 4203 035 71380

7 cover 4203 035 76700

8 on/off knob 4203 035 76470

9 PCB 4203 035 76510

10 battery NiCd 4822 138 10336

11 cleaning brush 4822 479 30183

12 adapter NiCd USA 4203 035 76540

adapter NiCd CND 4203 035 76530

adapter NiCd EURO 4203 035 76520

adapter NiCd UK 4203 035 76550

to replace BATTERY (10)

PCB (9)

remove COMB (1)

CUTTER (2)

HOUSING CLAMP (3)

COMBHOLDER (4)

SCREW A

COVER (7)

ZOOM RING (5)

CAP B

ﬁgure 1

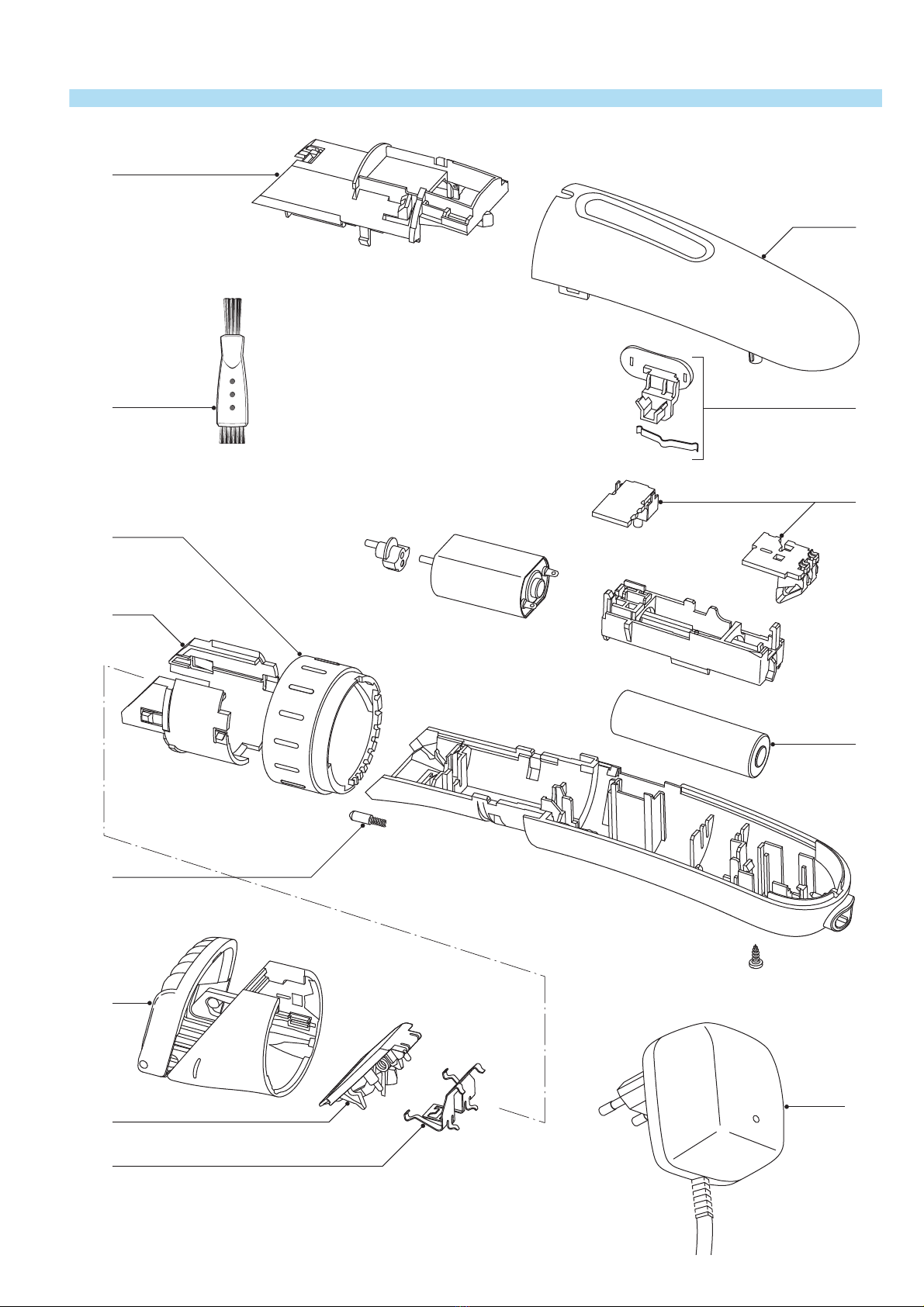

EXPLODED VIEW HQ-T 764
