PXI Power Multiplexer 40-650A

ISSUE 1.0 FEB 2019

• 16-Channel Power Multiplexer

• 2-Pole Switching

• 5A Current Rating With 175W/1250VA

Maximum Power

• Hot Switch to 125VDC/250VAC

• Cold Switch to 400VDC/250VAC

• VISA, IVI & Kernel Drivers Supplied for

Windows

• Supported by PXI or LXI Chassis

• 3 Year Warranty

Com2

Com1

1.1

2.1

16.2

2.2

3.1

3.2

4.1

4.2

16.1

1.2

Schematic for the 40-650A

Power Multiplexer Module

The 40-650A is part of a range of PXI power switching modules

including relay, matrix or multiplexer congurations.

The module is a 16-channel power multiplexer, suitable for

switching inductive/capacitive loads up to 5A at 125VDC/250VAC.

Connections are made via a front panel 37-pin D-type male

connector.

The 40-650A can be operated as a conventional multiplexer

with break-before-make action when a new channel is selected.

Alternatively, product variants can be supplied that allow multiple

channels to be simultaneously selected.

The 40-650A channel selection congurations have been revised

from the 40-650. The 40-650A defaults to single channel selection

with multiple channel selection variants dened by use of a sufx.

Power multiplexer modules are suitable for switching heavy AC or

DC loads or for slave switching large external relays, contactors

and solenoids.

Power Multiplexer – 40-650A

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Contact Type: Gold ash over silver alloy

Cold Switching Capacity

Maximum Current:

Maximum Voltage:

400VDC/250VAC*

Hot Switching Capacity

Maximum Current:

Maximum Voltage:

Maximum Power:

Min. Switching Capacity:

125VDC/250VAC*

175W/1250VA†

10mA, 5VDC

Max Standoff Voltage:

Initial Path Resistance, On:

Path Resistance, Off:

400VDC

<250mΩ

>109Ω

Bandwidth: >20MHz

Typical Operate Time: 21ms typical,

10.5ms for multichannel mode

Expected Life (operations)

- resistive load

Mechanical Life:

At Max. Switch Capacity:

>5x107

>1x105

* For full voltage rating, signal sources to be switched must be fully

isolated from mains supply and safety earth.

† For variation of maximum hot switching capacity of voltage with

current refer to plot.

Power Requirements

+3.3V +5V +12V -12V

0 360mA (typ 280mA) 0 0

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0°C to +55°C

Up to 90% non-condensing

5000m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20°C to +75°C

Up to 90% non-condensing

15000m

PXI & CompactPCI Compliance

The module is compliant with the PXI Specication 2.2. Local Bus,

Trigger Bus and Star Trigger are not implemented.

Uses a 33MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable EU

directives: Low-voltage safety EN61010-1:2010, EMC Immunity

EN61326-1:2013, Emissions EN55011:2009+A1:2010.

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular le formats are

available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 37-pin male D-type connector, for pin outs

please refer to the operating manual.

Relay Type

The 40-650A is electro-mechanical power relays, gold-ash over

silver alloy. A Spare Relay is built onto the circuit board to facilitate

easy maintenance with minimum downtime. AC Resisve

AC Inducve

DC Resisve

DC Inducve

30VDC / 250VAC Resisve

30VDC / 250VAC

Inducve

40-650A Current/Operating Life Curve

40-650A Current/Voltage Curve

Power Multiplexer – 40-650A

pickeringtest.com

Ordering Information

Support Products

Spare Relay Kits

Kits of replacement relays are available for the majority of

Pickering’s PXI switching products, simplifying servicing and

reducing down-time.

Product Relay Kit

40-650A-002 91-100-052

For further assistance, please contact your local Pickering sales

ofce.

Mating Connectors & Cabling

For connection accessories for the 40-650A module please

refer to the 90-007D 37-pin D-type Connector Accessories data

sheet where a complete list and documentation can be found for

accessories, or refer to the Connection Solutions catalog.

Product Order Codes - Power Multiplexer

Channel

Selection Model Variant Order Code

Single 16-Channel, 2-Pole 40-650A-002

Note: The above module is available in multiple channel

selection mode by adding the “-M” sufx to the part number.

The MUX with multiple channel capability would be:

40-650A-002-M

Product Customization

Pickering PXI modules are designed and manufactured on our own

exible manufacturing lines, giving complete product control and

enabling simple customization to meet very specic requirements.

Customization can include:

• Alternative relay types

• Mixture of relay types

• Alternative number of relays

• Different performance specications

All customized products are given a unique part number, fully

documented and may be ordered at any time in the future. Please

contact your local sales ofce to discuss.

Power Multiplexer – 40-650A

pickeringtest.com

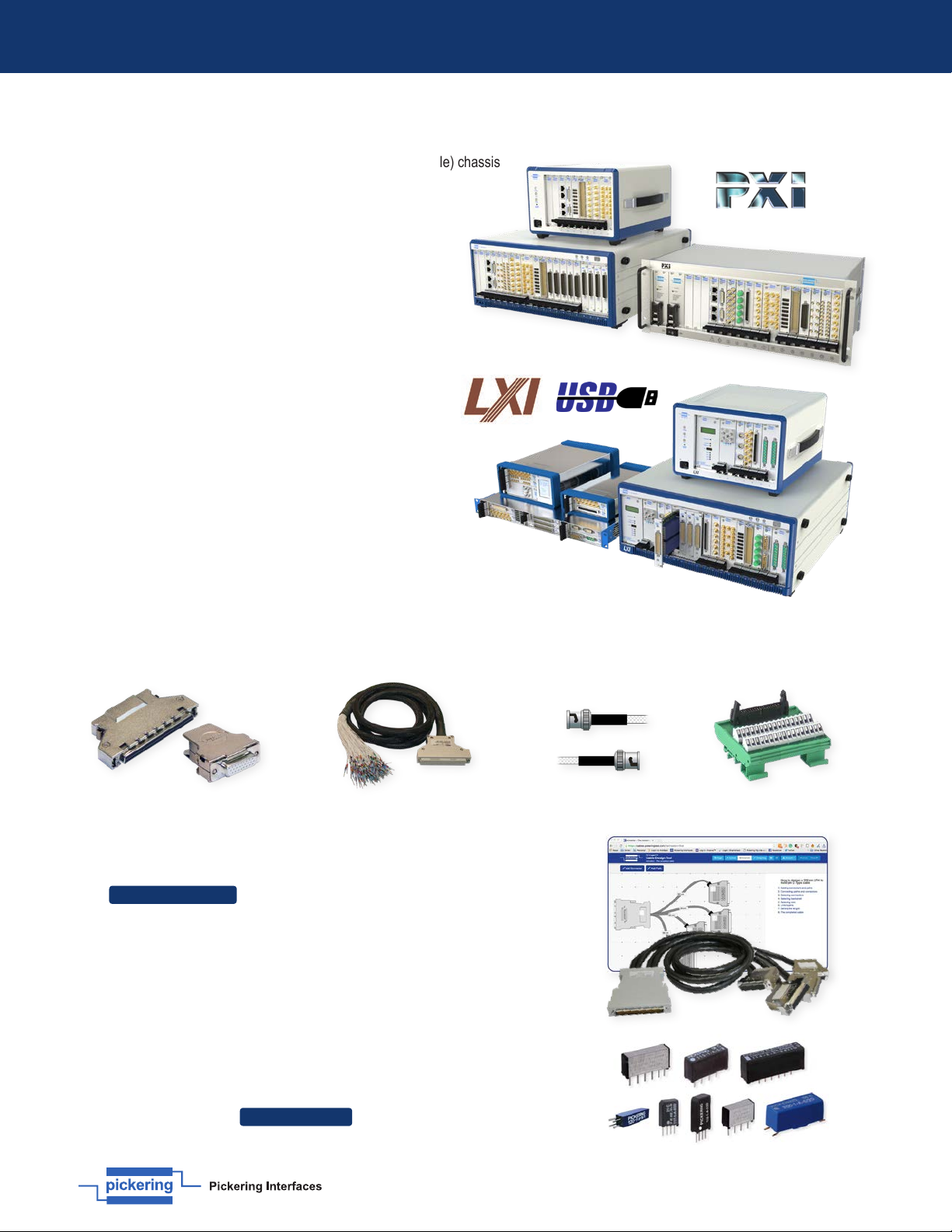

Supporting Products & Software

We also offer customized cabling and have a free online Cable Design Tool that can

be used to create custom cable solutions for many applications.

Visit: pickeringtest.com/cdt to start your design.

Mass Interconnect

We recommend the use of a mass interconnect solution when an Interchangeable

Test Adapter (ITA) is required for a PXI or LXI based test system. Our modules are

fully supported by both Virginia Panel and MacPanel.

Pickering Reed Relays

We are the only switch provider with in-house reed relay manufacturing capability

via our sister company, Pickering Electronics. These instrument grade reed relays

feature SoftCenter® technology, ensuring long service life and repeatable contact

performance

To learn more, please go to: pickeringrelay.com

Chassis Compatibility

This PXI module must be used in a suitable chassis. It is compatible with the following chassis types:

• All chassis conforming to the 3U PXI and 3U Compact PCI (cPCI) specication

• Legacy and Hybrid Peripheral slots in a 3U PXI Express (PXIe) chassis

• Pickering Interfaces LXI or LXI/USB Modular Chassis

Chassis Selection Guide

Standard PXI or hybrid PXIe Chassis from any Vendor:

• Mix our 1000+ PXI switching & simulation modules with any

vendor’s PXI instrumentation

• Embedded or remote Windows PC control

• Real-time Operating System Support

• High data bandwidths, especially with PXI Express

• Integrated module timing and synchronization

Pickering LXI or LXI/USB Modular Chassis—only accept

our 1000+ PXI Switching & Simulation Modules:

• Ethernet or USB control enables remote operation

• Low-cost control from practically any controller

• LXI provides manual control via Web browsers

• Driverless software support

• Power sequencing immunity

• Ethernet provides chassis/controller voltage isolation

• Independence from Windows operating system

Connectivity Solutions

We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+

products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are

manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules.

Connectors & Backshells Multiway Cable Assemblies RF Cable Assemblies Connector Blocks

Power Multiplexer – 40-650A

pickeringtest.com

Supporting Products & Software

Pickering Interfaces maintains a commitment to continuous product development, consequently we reserve the right to vary from the description given in this data sheet.

Programming

Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and

popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os

The VISA driver is also compatible with Real-Time Operating Systems such as LabVIEW RT. For other RTOS support contact Pickering.

These drivers may be used with a variety of programming environments and applications including:

• Pickering Interfaces Switch Path Manager

• National Instruments products (LabVIEW, LabWindows/CVI, Switch Executive, MAX, TestStand, VeriStand, etc.)

• Microsoft Visual Studio products (Visual Basic, Visual C+)

• Keysight VEE

• Mathworks Matlab

• Marvin ATEasy

• MTQ Testsolutions Tecap Test & Measurement Suite

Drivers for popular Linux distributions are available, other environments are also supported, please contact Pickering with specic enquiries.

We provide Soft Front Panels (SFPs) for our products for familiarity and manual control, as well as comprehensive documentation and

example programs to help you develop test routines with ease.

To learn more about software drivers and development environments, please go to: pickeringtest.com/software

Signal Routing Software

Our signal routing software, Switch Path Manager, automatically selects and energizes switch

paths through Pickering switching systems. Signal routing is performed by simply dening

test system endpoints to be connected together, greatly accelerating Test System software

development.

To learn more, please go to: pickeringtest.com/spm

Diagnostic Relay Test Tools

eBIRST Switching System Test Tools are designed specically for our PXI, PCI or LXI

products, these tools simplify switching system fault-nding by quickly testing the system

and graphically identifying the faulty relay.

To learn more, please go to: pickeringtest.com/ebirst

Three Year Warranty & Guaranteed Long-Term Support

All standard products manufactured by Pickering Interfaces are warranted against

defective materials and workmanship for a period of three years from the date of delivery

to the original purchaser. Extended warranty and service agreements are available for all our modules and systems with various levels to

suit your requirements. Although we offer a 3-year warranty as standard, we also include guaranteed long-term support—with a history of

supporting our products for typically 15-20 years. To learn more, please go to: pickeringtest.com/support

Available Product Resources

We have a large library of product resources including success stories, product and support videos, articles, as well as complete product

catalogs and product reference maps to assist when looking for the switching, simulation and cable and connector solutions you need.

We have also published handy reference books for the PXI and LXI standards.

To view, download or request any of our product resources, please visit: pickeringtest.com/resources

Inhaltsverzeichnis

Andere Pickering Multiplexer Handbücher

Pickering

Pickering 40-675 Bedienungsanleitung

Pickering

Pickering 50-670C Bedienungsanleitung

Pickering

Pickering 20-745 Bedienungsanleitung

Pickering

Pickering 40-611A Bedienungsanleitung

Pickering

Pickering PXI Power MUX BRIC 40-571 Bedienungsanleitung

Pickering

Pickering 40-675A Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-736 Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-659A Bedienungsanleitung

Pickering

Pickering PXI 40-850A Bedienungsanleitung

Pickering

Pickering 40-657 Bedienungsanleitung

Pickering

Pickering 40-735 Bedienungsanleitung

Pickering

Pickering 50-670A Bedienungsanleitung

Pickering

Pickering PXI 40-620 Bedienungsanleitung

Pickering

Pickering 40-612A Bedienungsanleitung

Pickering

Pickering 40-682A Bedienungsanleitung

Pickering

Pickering PCI 50-725 Bedienungsanleitung

Pickering

Pickering 40-680 Bedienungsanleitung

Pickering

Pickering PXI 40-617 Bedienungsanleitung

Pickering

Pickering 40-756 Bedienungsanleitung

Pickering

Pickering PCI 50-670 Bedienungsanleitung

Pickering

Pickering 40-881B-001 Bedienungsanleitung

Pickering

Pickering 40-666B Bedienungsanleitung

Beliebte Multiplexer Handbücher anderer Marken

Campbell

Campbell AM416 Bedienungsanleitung

Paradyne

Paradyne SIM2000 Bedienungsanleitung

Panasonic

Panasonic WJFS616 - SWITCHER Bedienungsanleitung

Lanex

Lanex TM-77 Bedienungsanleitung

Bosch

Bosch VSS8394/01T Bedienungsanleitung

Quark-Elec

Quark-Elec QK-A035 Bedienungsanleitung

ADTRAN

ADTRAN Frameport 768 Bedienungsanleitung

Elo TouchSystems

Elo TouchSystems E247 Bedienungsanleitung

Paradyne

Paradyne Hotwire 8786 Bedienungsanleitung

RFL Electronics

RFL Electronics 9508D UCC Bedienungsanleitung

Miranda

Miranda AMX-101i Bedienungsanleitung

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Bedienungsanleitung

GE StoreSafe SDVR-10 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8410C Bedienungsanleitung

ADC

ADC HiGain ELU-319 5E Bedienungsanleitung

Paradyne

Paradyne Hotwire 8774 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8810C-SL Bedienungsanleitung

Viessmann

Viessmann 5229 Bedienungsanleitung
