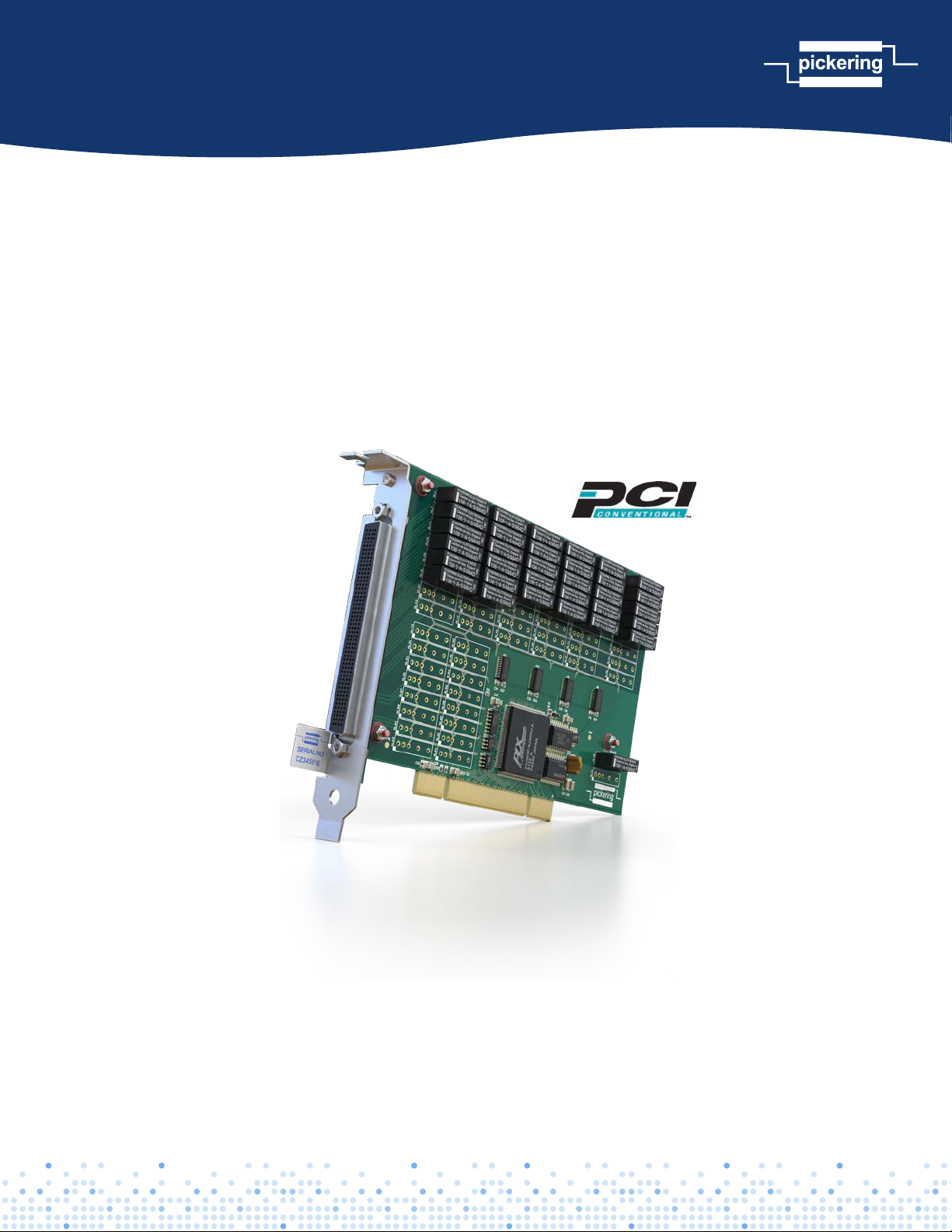

PCI Reed Relay Card

50-110A/115A User Manual

Page (ii)

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any

means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

FM38792

Page (iii)

Worldwide Technical Support and Product Information

Pickering Interfaces Headquarters

Stephenson Road, Clacton-on-Sea, CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

e-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

e-mail: ussales@pickeringtest.com

France

Tel +33 9 72 58 77 00

e-mail: [email protected]

Germany

Tel: +49 89 125 953 160

e-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

e-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

e-mail: [email protected]

China

Tel: +86 4008 799 765

e-mail: [email protected]

Technical Support

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

Warranty

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period

of three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product

found to be defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

Environmental Policy

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to fulﬁl all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health

and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products

that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Page (iv)

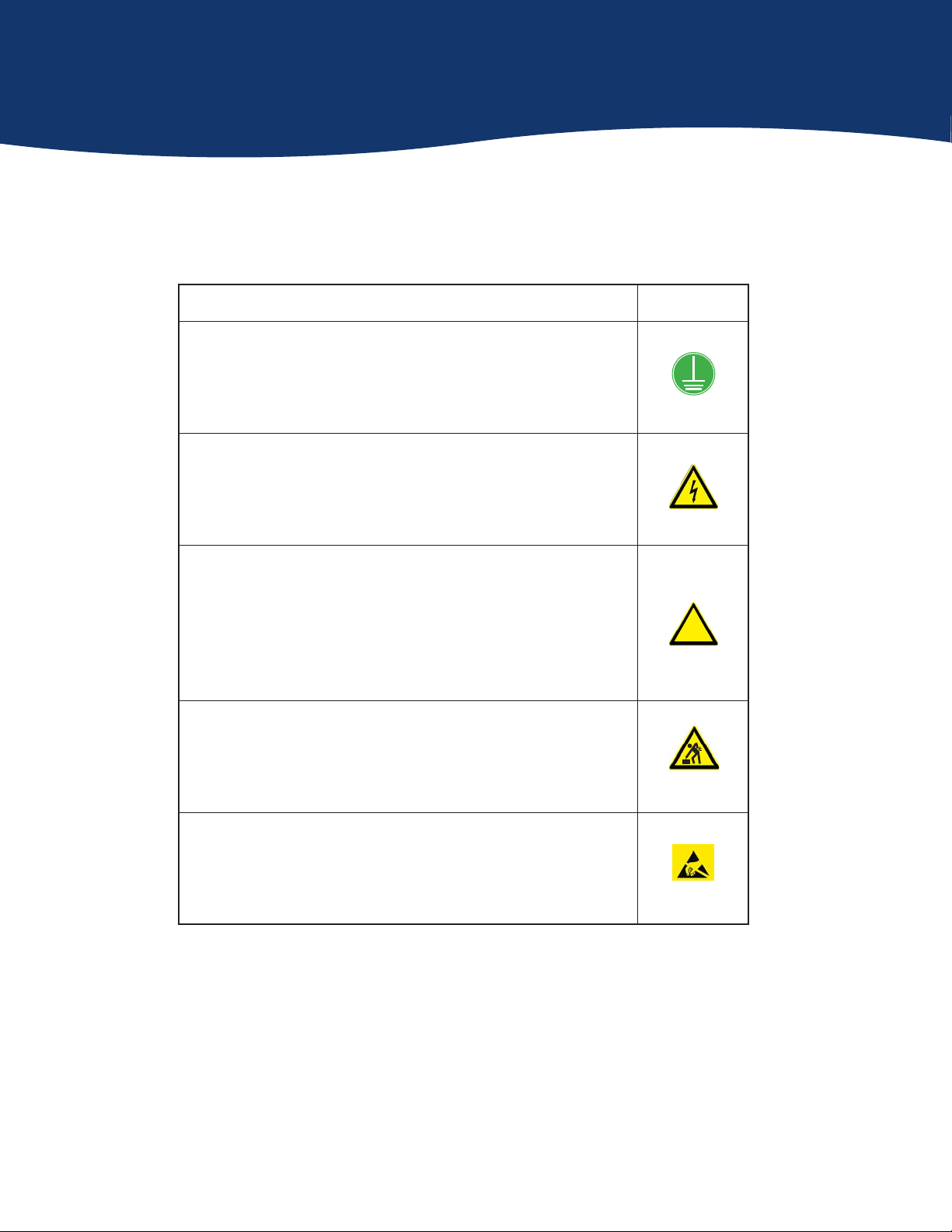

Meaning/Description Symbol

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an

external conductor for protection against electric shock in case of a

fault, or the terminal of a protective earth (ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING/CAUTION

An appropriate safety instruction should be followed or caution to a

potential hazard exists.

Refer to the relevant instructions detailed within the product

manual.

HEAVY

If this product is heavy reference should be made to the safety

instructions for provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling

precautions should be followed.

Safety Symbols

The following safety symbols may be used on the product and throughout the product documentation.

Product Safety

Page (v)

Contents

Copyright Statement........................................................................................................................................................(ii)

Technical Support and Warranty...................................................................................................................................(iii)

Product Safety...................................................................................................................................................................(iv)

Contents (this page).........................................................................................................................................................(v)

Warnings and Cautions...................................................................................................................................................(vi)

Section 1

Technical Speciﬁcation....................................................................................................................................................1.1

Section 2

Technical Description ......................................................................................................................................................2.1

Functional Description...............................................................................................................................................2.1

Section 3

Installation.........................................................................................................................................................................3.1

Pre Operation Checks ................................................................................................................................................3.1

Hardware Installation................................................................................................................................................3.2

Software Installation..................................................................................................................................................3.2

Testing Operation........................................................................................................................................................3.3

Section 4

Programming Guide.........................................................................................................................................................4.1

Programming Options for Pickering PCI Cards.....................................................................................................4.1

Card Architecture: 50-110A-021/121 .....................................................................................................................4.2

Card Architecture: 50-115A-021/121 .....................................................................................................................4.4

Card Architecture: 50-115A-022/122 .....................................................................................................................4.6

Programming the Card..............................................................................................................................................4.8

Section 5

Connector Information ....................................................................................................................................................5.1

Section 6

Trouble Shooting..............................................................................................................................................................6.1

Section 7

Maintenance Information................................................................................................................................................7.1

Switching System Test Tools ....................................................................................................................................7.1

Relay Lookup Table: 50-110A-021/121 ..................................................................................................................7.1

Relay Lookup Table: 50-115A-021/121 ..................................................................................................................7.4

Relay Lookup Table: 50-115A-022/122 ..................................................................................................................7.6

Page (vi)

WARNING - Hazardous Environments Symbol

This product is not speciﬁcally designed for use in hazardous environments, for example in explosive atmospheres.

If the product is to be used in hazardous environments we recommend that the user ensures suitable protective

measures are taken.

CAUTION - Handling of Electrostatic-Sensitive Devices Symbol

Certain semiconductor devices used in this equipment are liable to damage due to static voltage. Observe the

following precautions when handling these devices in their unterminated state, or sub-assemblies containing these

devices:

• Persons removing sub-assemblies from equipment using these devices must be earthed by a wrist strap and a

resistor at the point provided on the equipment.

• Soldering irons used during the repair operations must be low voltage types with earthed tips and isolated from

the mains voltage by a double insulated transformer.

• Outer clothing worn must be unable to generate static charges.

• Printed Circuit Boards (PCBs) ﬁtted with these devices must be stored and transported in anti-static bags.

Warnings & Cautions

WARNING - Danger of Electric Shock Symbol

This card may contain hazardous voltages. Before removing the card from the rack remove all supplies and

disconnect user I/O signals.

Unused slots in the PC chassis are populated with blanking plates to prevent access to user I/O signals that may be

present. If the product is not used in this manner for example by using an extender card then additional care must

be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This card must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full

speciﬁcation, Secondary Circuit power supplies and the Device Under Test must be fully isolated from the Mains

Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground, please refer to

your chassis installation manual.

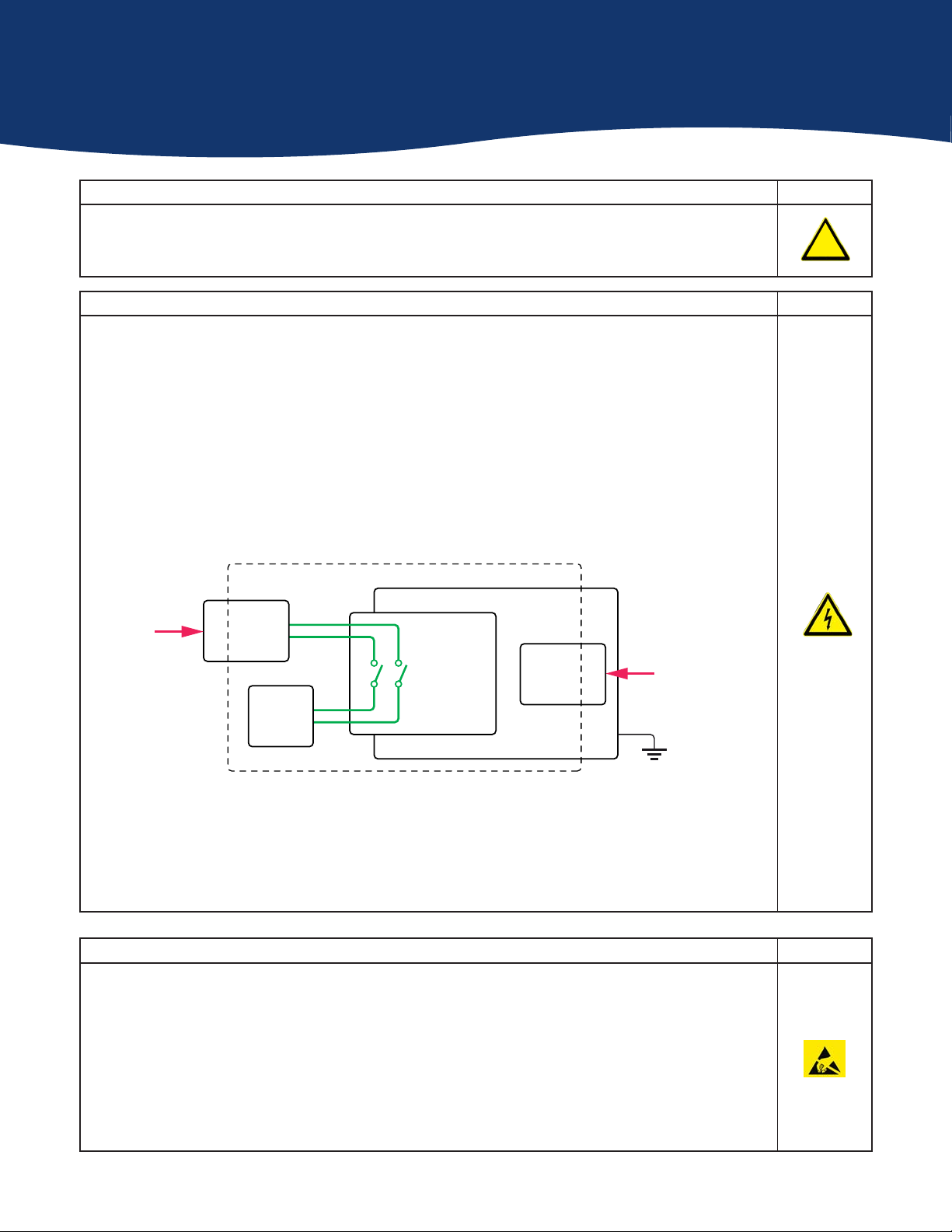

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classiﬁed as Overvoltage Category II up to 300V.

Separation between the Secondary Circuit and Mains Circuit is achieved by a transformer in which the primary

windings are separated from the secondary windings by reinforced insulation, double insulation, or a screen

connected to the protective conductor terminal.

PCI Switching

Card

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (vii)

CAUTION - Product Documentation Symbol

Suitably qualiﬁed & trained users should ensure that the accompanying documentation is fully read and understood

before attempting to install or operate the product.

Safety Instructions

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O signals (refer

to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or the combined

weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the chassis and the

user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorized personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the

unit.

Warnings & Cautions

Page 1.1 pickeringtest.com

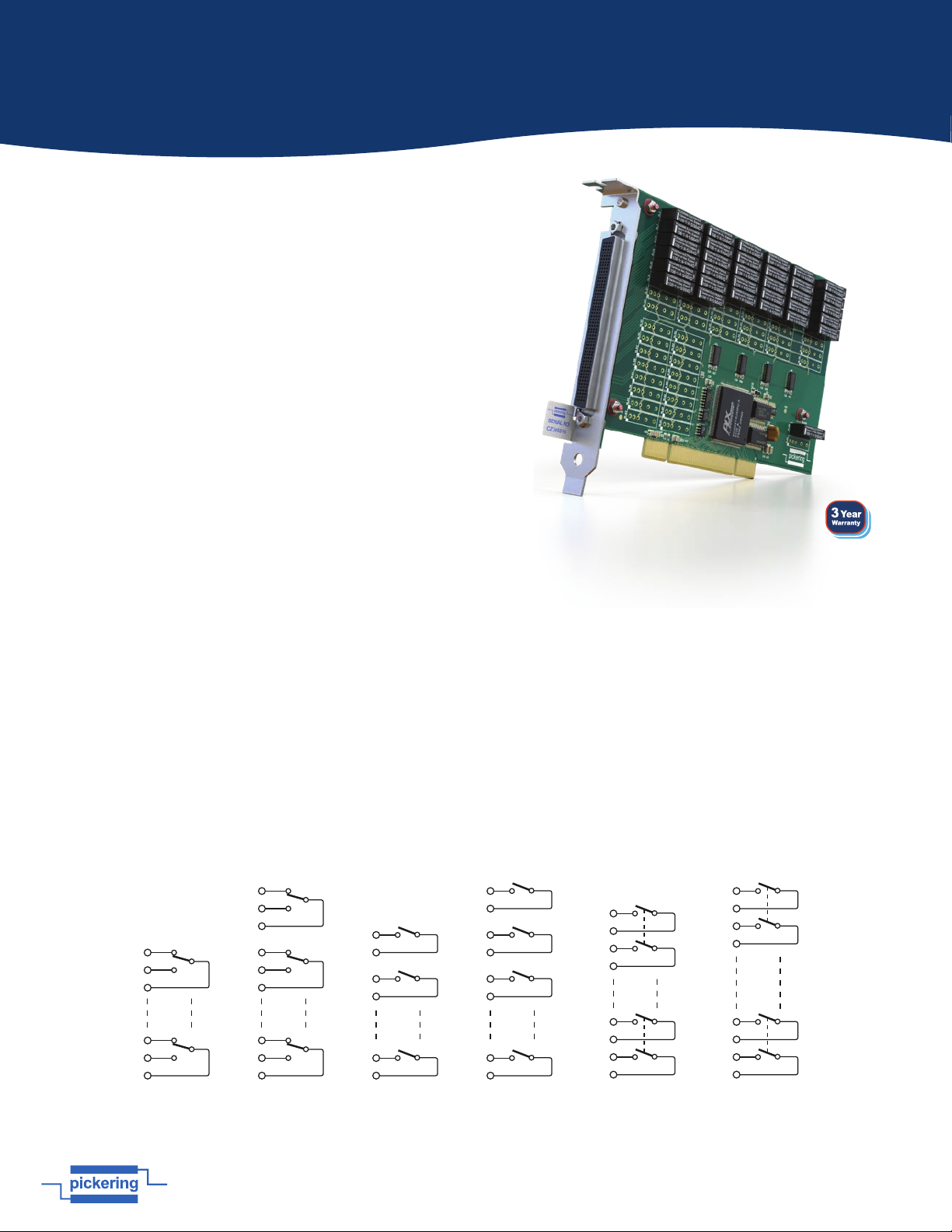

Section 1 - Technical Speciﬁcation

y25, 32, 50 or 64 Reed Relays Per Card

ySPST, DPST and SPDT Conﬁgurations

yRuthenium Reed Relays Suitable For Low Level Signals

yUses High Reliability Pickering Reed Relays For

Maximum Performance

yFast Operating Speed 500 µs Typical

ySwitch up to 150 VDC/100 VAC, 1 A with 10 W Max Power

yDrivers Supplied for Windows & Linux, Plus Support

for Real-time Systems

ySupported by eBIRST ™

y3 Year Warranty

The 50-110A/115A range of switching cards is available in

both Changeover (SPDT) and Normally Open (SPST & DPST)

conﬁgurations. Connections are made via a front panel 200-pin

female connector.

General purpose reed relays are suitable for the construction

of small switching networks, for switching larger relays or for

operating external devices (e.g. lamps, solenoids etc.).

All of the reed relays used in our PCI cards are manufactured

by our Relay Division. Pickering reed relays offer very high

reliability (over 108 operations) with maximum switching

performance, especially for low level signals.

Supported by

eBIRST

eBIRST test tools simplify switching fault-ﬁnding by quickly

testing the system and graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

Range Description:

• 50-110A-x21 32 or 64 SPDT Reed Relays.

• 50-115A-x21 32 or 64 SPST Reed Relays.

• 50-115A-x22 25 or 50 DPST Reed Relays.

B32

A32

C32

A32

C32

A25.2

C25.2

A25.1

C25.1

A1.2

C1.2

A1.1

C1.1

B64

A64

C64

A64

C64

A50.2

C50.2

A50.1

C50.1

A1.2

C1.2

A1.1

C1.1

50-110A-021

32xSPDT

50-110A-121

64xSPDT

50-115A-021

32xSPST

50-115A-121

64xSPST

50-115A-022

25xDPST

50-115A-122

50xDPST

Front Panel Connector

This product is based on the obsolete Molex LFH series connector

that has been superseded by a Pickering commissioned form,

ﬁt, function equivalent. The new connector series is 100%

compatible with the Molex connectors allowing either gender of

Pickering connector to mate with the corresponding Molex part

without issue.

pickeringtest.com

50-110A/115A

PCI Reed Relay Card

Issue 3.0 April 2023

Page 1.2 pickeringtest.com

Section 1 - Technical Speciﬁcation

Relay Type

The 50-110A & 50-115A are ﬁtted with high quality ruthenium

reed relays. These offer very long life with good low level

switching performance and excellent contact resistance

stability. Spare reed relays are built onto the circuit board to

allow easy maintenance with minimum downtime.

All reed relays are manufactured by our Relay Division, for

more information visit: pickeringrelay.com

Switching Speciﬁcation

Switch Type: Ruthenium Reed

Max Switching Voltage: 150 VDC/100 VAC (50-110A)*

100 VDC/70 VAC (50-115A)*

Max Power:

Max Switch Current:

Max Carry Current:

3 W (50-110A)

10 W (50-115A)

0.25 A (50-110A)

1 A (50-115A)

1 A

On Path Resistance:

Off Path Resistance:

Thermal Offset:

<800 mΩ (400 mΩ typical)

>109 Ω

<20 µV (50-110A)

<30 µV (50-115A)

Typical Operate Time: 0.5 ms

Expected Life, low power:

Expected Life, full power:

>1x108 operations

>1x106 operations

* For full voltage rating, signal sources must be fully isolated

from mains supply and safety earth.

Power Requirements

+3.3 V +5 V +12 V -12 V

200 mA 400 mA Max 0 0

Mechanical Characteristics

Single slot short PCI format.

3D models for all versions in a variety of popular ﬁle formats

are available on request.

Operating/Storage Conditions

Operating Temperature:

Humidity:

Altitude:

0 °C to +55 °C

Up to 90 % non-condensing

5000 m

Storage Temperature:

Humidity:

Altitude:

-20 °C to +75 °C

Up to 90 % non-condensing

15000 m

PCI Compliance

The 50-110A/115A range complies with the PCI Speciﬁcation

2.0 (issued Feb 2004).

Signalling Environment: 33 MHz, 32-bit Universal

(+3.3 V or +5 V).

Safety & CE Compliance

All cards are fully CE compliant and meet applicable EU

directives:

Low-voltage safety EN61010-1:2010,

EMC Immunity EN61326-1:2013,

Emissions EN55011:2009+A1:2010.

Connectors

Signals via a 200-pin female LFH* connector, for pin outs

please refer to the operating manual.

* LFH relates to the obsolete Molex connector series and is

retained for continuity, products will be ﬁtted with a form, ﬁt,

function Pickering equivalent connector that is intermateable

with the original Molex parts.

50-110A/115A

pickeringtest.com Page 2

Speciﬁcations

Page 1.3 pickeringtest.com

Section 1 - Technical Speciﬁcation

Product Order Codes

32 x SPDT, Ruthenium Reed Relays

64 x SPDT, Ruthenium Reed Relays

50-110A-021

50-110A-121

32 x SPST, Ruthenium Reed Relays

64 x SPST, Ruthenium Reed Relays

25 x DPST, Ruthenium Reed Relays

50 x DPST, Ruthenium Reed Relays

50-115A-021

50-115A-121

50-115A-022

50-115A-122

Product Customization

Pickering PCI cards are designed and manufactured on our

own ﬂexible manufacturing lines, giving complete product

control and enabling simple customization to meet very

speciﬁc requirements.

Customization can include:

• Alternative reed relay types

• Mixture of reed relay types

• Alternative number of relays

• Different performance speciﬁcations

All customized products are given a unique part number, fully

documented and may be ordered at any time in the future.

Please contact your local sales ofﬁce to discuss.

Support Products

eBIRST

Switching System Test Tool

This product is supported by the eBIRST test tools which

simplify the identiﬁcation of failed relays, the required

eBIRST tools are below. For more information go to:

pickeringtest.com/ebirst

Product Test Tool Adaptor

50-110A/115A 93-002-001 Not Required

Spare Relay Kits

Kits of replacement relays are available for the majority of

Pickering’s PXI switching products, simplifying servicing and

reducing down-time.

Product Relay Kit

50-110A-021/121

50-115A-021/121

50-115A-022/122

91-100-026

91-100-048

91-100-062

For further assistance, please contact your local Pickering

sales ofﬁce.

Mating Connectors & Cabling

For connection accessories for the 50-110A/115A range

please refer to the 90-002D 200-pin LFH Connector

Accessories data sheet where a complete list and

documentation can be found for accessories, or refer to the

Connection Solutions catalog.

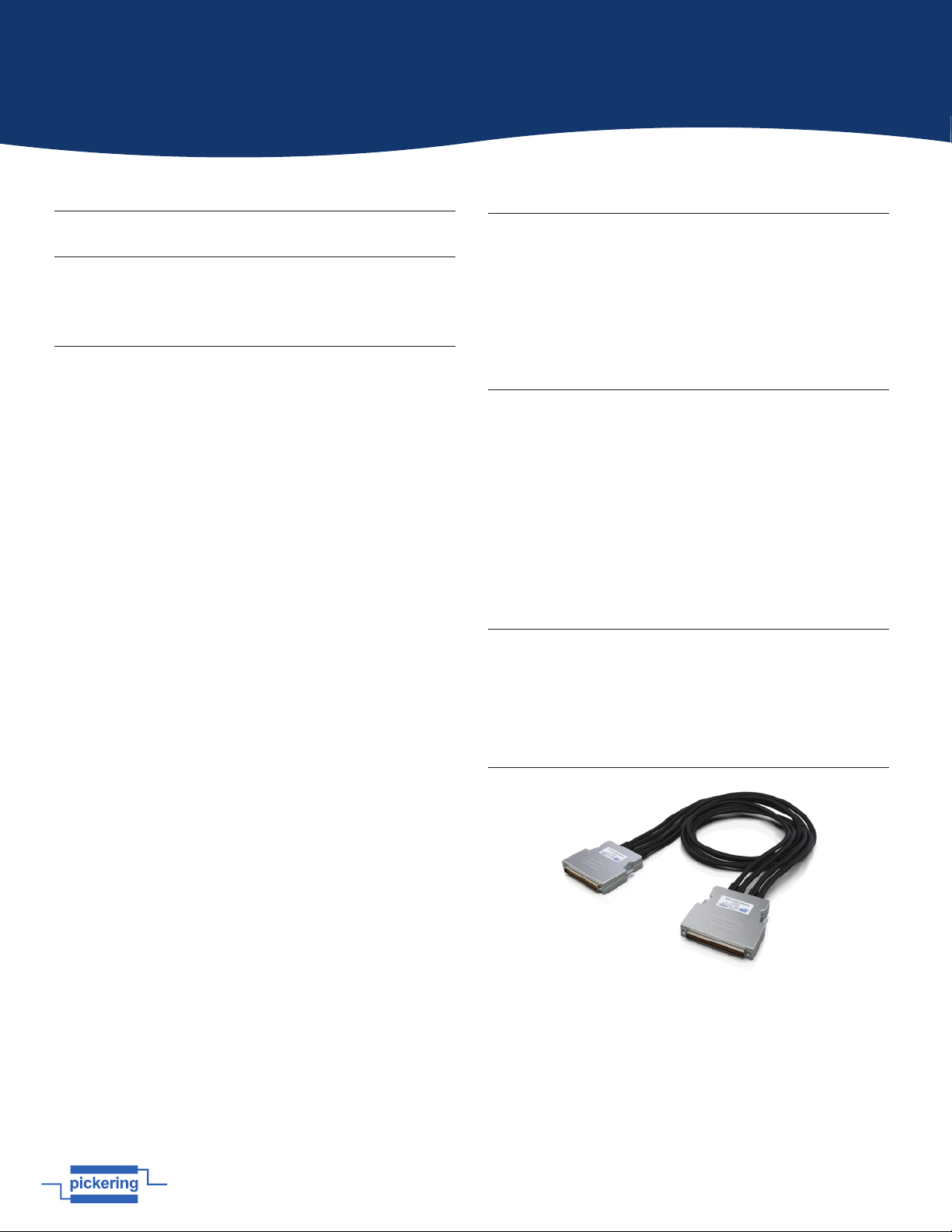

Pickering can supply mating 200-pin connectors and cable

assemblies to enable easy integration of the 50-110A &

50-115A series of relay cards

50-110A/115A

pickeringtest.com Page 3

Ordering Information

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pickering PCI-Karte Handbücher

Pickering

Pickering 40-880A Bedienungsanleitung

Pickering

Pickering PCI CONVENTIONAL 50-110-021 Bedienungsanleitung

Pickering

Pickering 40-740-1 Series Bedienungsanleitung

Pickering

Pickering 50-411A Bedienungsanleitung

Pickering

Pickering 50-265 Bedienungsanleitung

Pickering

Pickering 50-412 Bedienungsanleitung

Pickering

Pickering 50-201 Bedienungsanleitung

Beliebte PCI-Karte Handbücher anderer Marken

ERMA

ERMA SSI 1417 Bedienungsanleitung

SIIG

SIIG CyberSerial Dual PCI Montageanleitung

Moxa Technologies

Moxa Technologies CP-102E Bedienungsanleitung

I-Bus

I-Bus IBC2602 Bedienungsanleitung

Exsys

Exsys EX-60102 Bedienungsanleitung

Chelsio Communications

Chelsio Communications T5 Series Bedienungsanleitung

Conrad Electronic

Conrad Electronic 97 46 71 Bedienungsanleitung

Micro Innovations

Micro Innovations USB650A Bedienungsanleitung

KTI Networks

KTI Networks KF-310 Bedienungsanleitung

Asus

Asus SpaceLink WL230 Bedienungsanleitung

SIIG

SIIG SC2475 Bedienungsanleitung

TRENDnet

TRENDnet TEW-703PI Bedienungsanleitung

Belkin

Belkin F5D7000F Bedienungsanleitung

Pericom

Pericom PI7C7100 Bedienungsanleitung

ADLINK Technology

ADLINK Technology cPCI-3548 Bedienungsanleitung

Digium

Digium TE200 Series Bedienungsanleitung

Allo.com

Allo.com 2nd Gen E1/T1/J1 Bedienungsanleitung

Western Digital

Western Digital FireWire PCI Adapter Bedienungsanleitung
