f

aenelWes

1\

BUTE

ETE

COMPACT

DISC/

Operating

LASERVISION

PLAYER

Instructions

IMPORTANT

NOTICE

(For

KU

model)

The

serial

number

for

this

equipment

is

located

on

the

rear

panel.

Please

write

this

serial

number

on

your

enclosed

warranty

card

and

keep

in

a

secure

area.

This

is

for

your

security.

CAUTION:

Use

of

controls

or

adjustments,

or

performance

of

procedures

other

than

those

specified

herein

may

result

in

hazardous

radiation

exposure.

WARNING:

TO

PREVENT

FIRE

OR

SHOCK

HAZARD,

DO

NOT

Ex-

POSE

THIS

APPLIANCE

TO

RAIN

OR

MOISTURE.

LO-9S00

Thank

you

for

buying

this

Pioneer

product,

Please

read

these

operating

instructions

thoroughly,

so

you

will

know

how

to

operate

your

model

properly.

After

you

have

finished

reading

the

instructions,

put

them

away

in

a

safe

place

for

future

reference,

These

operating

instructions

are

based

on

the

model

KU,

and

they

can

be

used

for

the

S/G

model.

The

differences

between

the

models

are

given

below.

KU

model:

For

U.S.A.

(“KU”

printed

on

packing

case).

Power

line

voltage

is

120

volts.

S/G

model:

“S/G”

printed

on

packing

case.

A

4-point

(110V/120V/220V/240V)

voltage

selector

switch

is

provided.

NOTE

FOR

S/G

MODEL

The

voltage

selector

switch

is

located

on

the

rear

panel

of

the

player.

Please

check

that

it

is

set

properly

before

plugging

the

power

cord

into

an

outlet.

It

is is

not

set

properly,

change

the

setting

of

it

according

to

the

VOLTAGE

SELECTOR

on

page

10.

Use

this

player

with

discs

bearing

the

following

mark.

rf

LaserVision

(LaserVision

Disc)

NOTE:

This

player

is

to

be

used

exclusively

with

the

NTSC

color

system.

Please

use

NTSC

LaserVision

Discs.

PAL

and

SECAM

system

LaserVision

Discs

cannot

be

used

with

this

player.

GlISe

DIGITAL

AUDIO

(Compact

Disc)

Y)

PIONEER’

é

7

a

a

E

i

4

&

"sO

TENSE

STOREY

ETE

EE

RS

PSG

TE

ET

SESE

SHS

UCT

Ssh

RA

OSES

READ

INSTRUCTIONS

—

All

the

safety

and

operating

instructions

should

be

read

before

the

appliance

is

operated.

RETAIN

INSTRUCTIONS

—

The

_

safety

and

operating

instructions

should

be

retained

for

future

reference.

HEED

WARNINGS

—

All

warnings

on

the

appliance

and

in

the

operating

instructions

should

be

adhered

to.

FOLLOW

INSTRUCTIONS

—

Ail

operating

and

use

instructions

should

be

followed.

CLEANING

—

Unplug

this

video

product

from

the

wall

outlet

before

cleaning.

Do

not

use

liquid

cleaners

or

aerosol

cleaners.

Use

a

damp

cioth

for

cleaning.

ATTACHMENTS

—

Do

not

use

attachments

not

recommended

by

the

video

product

manufacturer

as

they

may

cause

hazards.

WATER

AND

MOISTURE

—

Do

not

use

this

video

product

near

water

—

for

example,

near

a

bathtub,

wash

bowl,

kitchen

sink,

or

laundry

tub,

in

a

wet

basement,

or’

near

a

swimming

pool,

and

the

like.

ACCESSORIES

—

Do

not

place

this

video

product

on an

unstable

cart,

stand,

tripod,

bracket,

or

table.

The

video

product

may

fall,

causing

serious

injury

to

a

child

or

adult,

and

serious

damage

to

the

appliance.

Use

only

with

a

cart,

stand,

tripod,

bracket,

or

table

recommended

by

the

manufac-

turer,

or

sold

with

the

video

product.

Any

mount-

ing

of

the

appliance

should

follow

the

manufac-

turer's

instructions,

and

should

use

a

mounting

ac-

cessory

recommended

by

the

manufacturer.

VENTILATION

—

Slots

and

openings

in

the

cabinet

are

provided

for

ventilation

and

to

ensure

reliable

operation

of

the

video

product

and

to

protect

it

from

overheating,

and

these

openings

must

not

be

blocked

or

covered.

The

openings

should

never

be

blocked

by

placing

the

video

product

on

a

bed,

sofa,

rug,

or

other

similar

surface.

This

video

pro-

duct

should

never

be

placed

near

or

over

a

radiator

or

heat

register.

This

video

product

should

not

be

placed

in

a

built-in

installation

such

as

a

bookcase

or

rack

unless

proper

ventilation

is

provided

or

the

manufacturer's

instructions

have been

adhered

to.

POWER

SOURCES

—

This

video

product

should

be

operated

only

from

the

type

of

power

source

in-

dicated

on

the

marking

label.

If

you

are

not

sure

of

the

type

of

power

supply

to

your

home,

consult

your

appliance

dealer

or

local

power

company.

For

video

products

intended

to

operate

from

battery

power,

or

other

sources,

refer

to

the

operating

in-

structions.

POLARIZATION

—

This

video

product

is

equipped

with

a

polarized

alternating

current

line

plug

(a

plug

having

one

blade

wider

than

the

other).

This

plug

will

fit

into

the

power

outlet

only

one

way.

This

is

a

safety

feature.

If

you

are

unable

to

insert

the

plug

fully

into

the

outlet,

try

reversing

the

plug.

If

the

plug

should

still

fail

to

fit,

contact

you

electrician

to

replace

your

obsolete

outlet.

Do

not

defeat

the

safety

purpose

of

the

polarized

plug.

POWER-CORD

PROTECTION

Power-supply

cords

should

be

routed

so

that

they

are

not

likely

to

be

walked

on

or

pinched

by

items

placed

upon

or

against

them,

paying

particular

at-

tention

to

cords

at

plugs,

convenience

receptacles,

e.g.

interior

metat

water

pipe)

and

the

point

where

they

exit

from

the

appliance.

IMPORTANT

The

lightning

flash

with

arrowhead,

within

an

equilateral

triangle,

is

intended

to

alert

the

user

of

the

presence

of

uninsulated

“dangerous

voltage”

within

the

product's

enclosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

SAFETY

INSTRUCTIONS

(FOR

KU

MODEL)

LIGHTNING

— For

added

protection

for

this

video

product

receiver

during

a

lightning

storm,

or

when

it

is

left

unattended

and

unused

for

long

periods

of

time,

unplug

it

from

the

wall

outlet

and

disconnect

the

antenna

or

cable

system.

This

will

prevent’

damage

to

the

video

product

due

to

lightning

and

power-line

surges.

POWER

LINES

—

An

outside

antenna

system

should

not

be

located

in

the

vicinity

of

overhead

power

lines

or

other

electric

light

or

power

circuits,

or

where

it

can

fall

into

such

power

lines

or

circuits.

When

installing

an

outside

antenna

system,

ex-

treme

care

should

be

taken

to

keep

from

touching

such

power

lines

or

circuits

as

contact

with

them

might

be

fatal.

OVERLOADING

—

Do

not

overload

wall

outlets

and

extension

cords

as

this

can

result

in

the

risk

of

fire

or

electric

shock.

OBJECT

AND

LIQUID

ENTRY

—

Never

push

objects

of

any

kind

into

this

video

product

through

openings

as

they

may

touch

dangerous

voltage

points

or

short-out

parts

that

could

result

in

a

fire

or

electric

shock.

Never

spill

liquid

of

any

kind

on

the

video

product.

SERVICING

—

Do

not

attempt

to

service

this

video

product

yourself

as

opening

or

removing

covers

may

expose

you

to

dangerous

voltage

or

other

hazards.

Refer

all

servicing

to

qualified

service

per-

sonnel.

POWER

LINES

GROUND

‘CLAMP

es.

ANI

CONDUCTORS

+

Zo

STAND-OFF

INSULATORS

b

DAMAGE

REQUIRING

SERVICE

Unplug

this

video

product

from

the

wall

outlet

and

refer

servicing

to

qualified

service

personnel

under

the

following

conditions:

a.

ier

the

power-supply

cord

or

plug

is

dam-

aged.

b.

if

liquid

has

been

spilled,

or

objects

have

fallen

into

the

video

product.

c.

If

the

video

product

has

been

exposed

to

rain

or

water.

d.

If

the

video

product

does

not

operate

normally

by

following

the

operating

instructions.

Adjust

only

those

controls

that

are

covered

by

the

operating

in-

structions

as

an

improper

adjustment

of

other

con-

trots

may

result

in

damage

and

will

often

require

ex-

tensive

work

by

a

qualified

technician

to

restore

the

video

product

to

its

normal

operation.

e. if

the

video

product

has

been

dropped

or

the

cabinet

has

been

damaged.

f.

When

the

video

product

exhibits

a

distinct

change

in

performance

—

this

indicates

a

need

for

service.

REPLACEMENT

PARTS

—

When

replacement

parts

are

required,

be

sure

the

service

technician

has

used

replacement

parts

specified

by

the

manufac-

turer

or

having

the

same

characteristics

as

the

original

part.

Unauthorized

substitutions

may

result

in

fire,

electric

shock

or

other

hazards.

SAFETY

CHECK

—

Upon

completion

of

any

service

or

repairs

to

this

video

product,

ask the

service

technician

to

perform

safety

checks

to

determine

that

the

video

product

is

in

proper

operating

condi-

tion.

OUTDOOR

ANTENNA

GROUNDING

—

If

an

out-

side

antenna

is

connected

to

the

antenna

terminal,

be

sure

the

antenna

system

is

grounded

so

as

to

provide

some

protection

against

voltage

surges

and

build

up

static

charges.

In

the

U.S.A.

section

810

of

the

National

Electrical

Code,

ANSI/NEPA

No.

70-1984,

provides

informa-

tion

with

respect

to

proper

grounding

of

the

mast

and

supporting

structure,

grounding

of

the

lead-in

wire

to

an

antenna

discharge

unit,

size

of

ground-

ing

conductors,

location

of

antenna-discharge

unit,

connection

to

grounding

electrodes,

and

re-

quirements

for

the

grounding

electrode.

See

Fig.

A.

a)

Use

No.

10

AWG

(5.3

mm?)

copper

wire,

No.

8

AWG

(8.4

mm?)

aluminum

wire,

No.

17

AWG

(1.0

mm?)

copper-clad

steel

wire,

bronze

wire

or

larger

wire

as

ground

wire.

1

ANTENNA

b)

Secure

antenna

lead-in

and

LEAD.IN

WIRE

x

*

mn

'

i

ground

wires

to

house

with

~~,

.

TOEAL

ene

Gaapee

stand-off

insulators

spaced

H

from

4

feet

(1.22

meters)

to

es

'

GROUNO

caeean

6

feet

(1.83

meters)

apart.

Be

enobas

WIRE

a,b

BIS

CHARGE

UNIT

c

c)

Mount

antenna

discharge

SERVICE.ENTRANCE

i)

CLAMPS

unit

as

closely

as

possible

to

EQUIPMENT

He

a

GROUND

where

lead-in

enters

house.

_——

d)

Use

jumper

wire

not

smaller

P

2)

—

/\

"

than

No.6

AWG

(13.3

mm?)

fe

crounn

copper

or

equivalent

when

GROUNDING

ELECTRODE

SYSTEM

eel

separete

antenna-ground-

at

OPTIONAL

ANTENNA

ing

electrode

is

used.

FIG.A

GROUNDING

ELECTRODE

BONDING

i

ti

suerens

HH

—-

REQUIRED

BY

DRIVEN

8

FEET

(2.44

m)

INTO

THE

EARTH

IF

u

LOCAL

CODES.

SEE

u

NEC

SECTION

810-21

(1).

CAUTION

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

CAUTION:

TO

PREVENT

THE

RiSK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

{OR

BACK).

NO

USER-

SERVICEABLE

PARTS

INSIDE.

REFER

SERVIC-

ING

TO

QUALIFIED

SERVICE

PERSONNEL.

The

exclamation

point

within

an

equilateral

triangle

is

intended

to

alert

the

user

of

the

presence

of

important

operating

and

maintenance

(servicing)

instructions

in

the

literature

accompanying

the

appliance.

ESS

SSE

EE

SET

SU

SETS

TSO

ST

SSS

Se

SESE

SE

GS

A

ER

OVA

SCENE

ESSE

SSR

BEERS

PSEIT

EISNER

SE

CEI

TEES

NEA

ES

SS

ESE

IS

PSS

SS

oT

STS

ST

SS

SSP

SA

ES

EA

ES

ET

SS

FELT

EEN

CONTENTS

Features

Disc

Handling

Precautions

Before

Operation

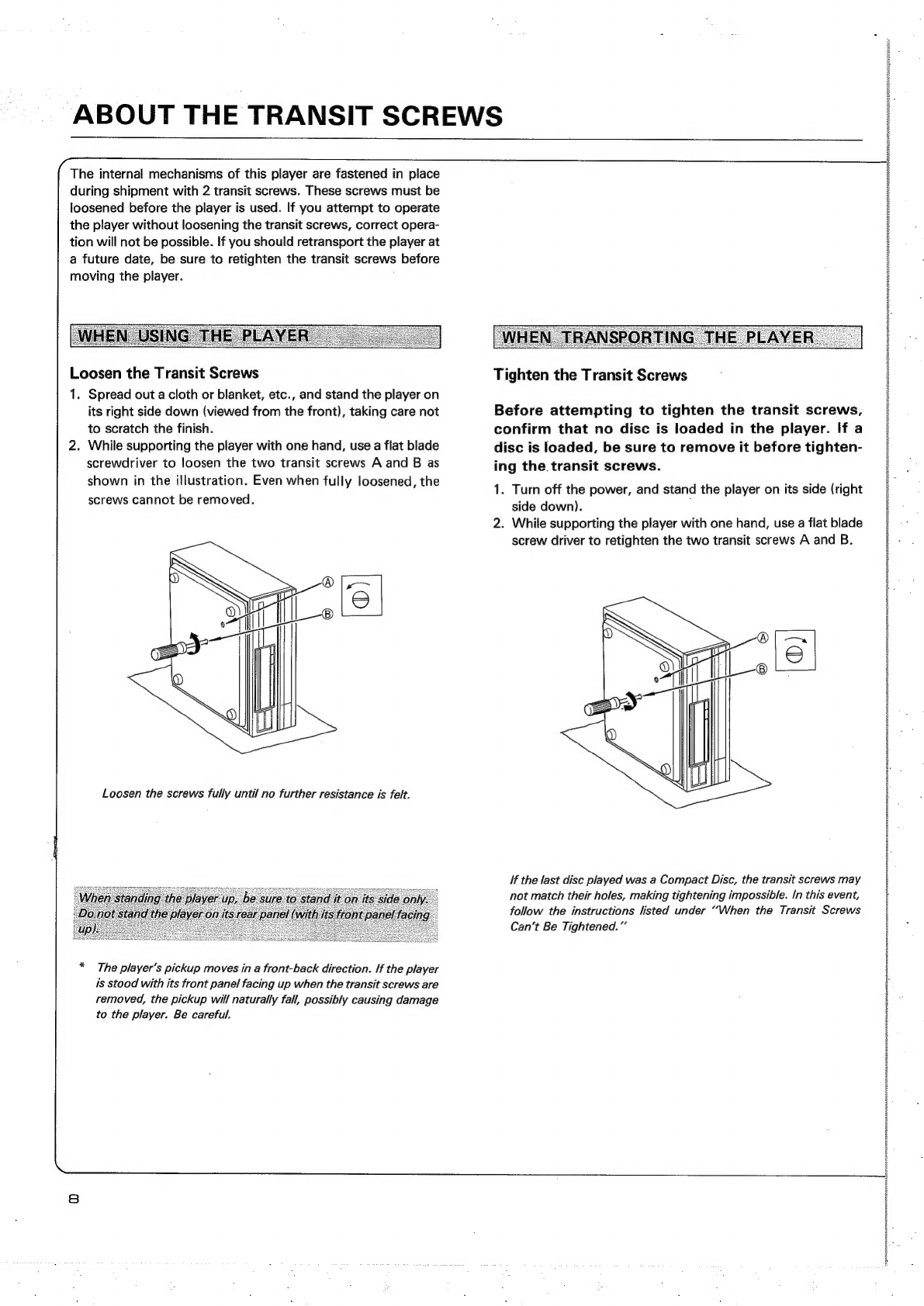

About

the

Transit

Screws

ESR

NE

SE

FS

USS

ST

SSE

PETES

TS

TE

TIGR

Operation

Operation

with

the

Remote

Control

Unit

Operation

for

LaserVision

Video

Disc

Operation

for

Compact

Disc

Troubleshooting

Specifications

Player

Handling

Precautions

SSR

EE

FEISS

TEE

SS

ESE

SAS

IS

OER

.

ee

FEATURES

Both

LaserVision

discs

and

Compact

Discs

utilize

laser

technology

in

playback.

The

CLD-900

now

allows

you

to

play

both

these

discs

on

a

single

component.

It

is

also

possible

to

play

back

LaserVision

with

Digital

Sound

Disc,

thus

allowing

even

greater

sound

fidelity.

In

addition,

the

CLD-900

has

the

following

features:

EQUIPPED

WITH

LASER

DIODE

A

laser

diode

with

superb

reliability

and

long

service

life

is

built

into

the

pickup,

the

heart

of

the

player.

FRONT-LOADING

MECHANISM

The

front-loading

mechanism

not

only

increases

ease

of

oper-

ation,

but

also

allows

a

more

compact,

space-saving

design.

AUTOMATIC

SETTING

OF

LASERVISION

DISC/COMPACT

DISC

Merely

load

the

disc

you

want

to

play

and

close

the

disc

table;

the

player

will

discriminate

the

type

of

disc

and

set

itself

to

the

appropriate

playback

mode.

CX

NOISE

REDUCTION

SYSTEM

Combined

with

CX

encoded

LaserVision

discs,

an

expanded

dynamic

range

and

greatly

increased

S/N

ratio

are

possible.

FUNCTION

SWITCHES

WITH

SUPERB

EASE

OF

OPERATION

Function

buttons

use

logic-controlled,

soft-push

switches,

thus

making

operation

not

just

easy,

but

a

positive

pleasure.

WIRELESS

REMOTE

CONTROL

Most

functions

can

be

performed

from

your

easy

chair

by

us-

ing

the

accessory

remote

control

unit.

EXCLUSIVE

LSI

RESULTS

IN

HIGH-RELIABILITY

DESIGN

Concentrating

a

high

level

of

circuit

technology

and

greatly

compacting

the

circuit

parts,

the

exclusive

LS]

utilized

gives

stable

reliability

and

performance.

SE

ESSN

ESAS

HS

LS

CH

TET

ARTI

TO

SRI

EEE

SSPE

SRO

ETB

STDS

BEE

GNU

SE

EI

IEEE

LEE

EI

ESSE

MESSE

SS

ET

EASE

LEDS

OTA

EEN

EER

ISTE

OT

ETE

SPR

ROR

EE

STAT

RB

ESTAS

ESE

STEEN

ASE

steps

BERS

URES

TERNAL

About

LaserVision

Discs

There

are

two

kinds

of

LaserVision

discs:

standard

play

disc,

and

extended

play

disc.

Some

discs

also

use

digital

technology

to

record

the

audio

signals

(LaserVision

with

Digital

Sound

Disc).

Standard

Play

(CAV)

Discs

Standard

Play

These

discs

are

called

CAV

discs

since

they

play

at

a

‘““Con-

stant

Angular

Velocity.”

These

discs

allow

such

special

functions

as

STILL/STEP,

FAST,

and

MULTI-SPEED

play.

In

addition,

standard

play

discs

allow

random

access,

chapter

stop,

and

interval

repeat

playback.

Extended

Play

(CLV)

Discs

Extended

Play

Since

these

discs

play

at

a

‘Constant

Linear

Velocity,’’

they

are

called

CLV

discs.

Compared

to

standard

play

(CAV)

discs,

the

CLV

disc

allows

longer

playback

time.

The

special

effects

playback

available

with

the

CAV

discs

can-

not

be

performed

with

CLV

discs,

but

random

access,

chapter

stop,

and

interval

repeat

playback

may

be

performed.

LaserVision

with

Digital

Sound

Discs

These

discs

have

PCM

(Pulse

Code

Modulation)

audio

signals

(the

same

as

on

a

Compact

Disc)

recorded

together

with

the

normal

analog

audio

signais.

As

a

result,

in

addition

to

the

high

quality

of

video


ob-

tainable

with

the

LaserVision

disc,

you

can

also

enjoy

the

same

kind

of

digital

sound

found

on

the

Compact

Discs.

These

audio

channels

are

recorded

using

separate

frequency

bands

as

shown

below.

In

these

Operating

Instructions,

the

two

audio

channels

will

be

referred

to

for

convenience

as

the

“Analog

Sound”

and

“Digital

Sound”

signals.

Digital

Sound

Analog

Sound

7

—s

Recording

level

1

2

3 4

5

6

7 8 9

10

Frequency

(MHz)

Recording

Signal

Spectrum

ssoRee

ee

ee

SSE

SSS

ESE

EPS

GSS

SR

SS

PE

SSR

EERE

ZEST

TPES

ETS

CRS

SN

DISC

HANDLING

PRECAUTIONS

This

player

may

be

used

with

LaserVision

Video

discs

and

Compact

Discs

bearing

the

following

marks:

(LaserVision

Disc)

(Compact

Disc)

=f

al

ise

LaserVision

DIGITAL

AUDIO

This

symbol

is

the

universal

indicator

for

LaserVision

video

discs.

This

player

has

been

designed

for

use

exclusively

with

the

NTSC

television

system,

and

it

cannot

be

used

with

televi-

sions

of

other

systems

(PAL,

SECAM).

In

addition,

LaserVision

discs

bearing

the

PAL

or

SECAM

marks

cannot

be

used

with

this

player.

Use

only

LaserVi-

sion

discs

conforming

to

the

NTSC

system.

m@

AS

MUCH

AS

POSSIBLE,

TRY

NOT

TO

TOUCH

THE

SURFACE

OF

THE

DISC

When

holding

discs,

handie

them

as

shown

in

the

illustra-

tion

and

try

as

much

as

possible

not

to

touch

their

playing

surfaces.

If

the

surfaces

of

the

discs

are

scratched,

it

may

cause

track

skipping

if

the

scratches

are

severe.

How

to

hold

the

LaserVision

Disc

Holding

with both

hands...

Hold

the

disc

by

its

edges

with

both

hands,

as

shown

in

Fig.

A.

Holding

with

one

hand...

As

shown

in

Fig.

B,

hold

the

disc

by

its

center

hole

and

one

edge.

How

to

hold

the

Compact

Disc

|

Hold

the

disc

by

its

edges

as

shown

in

Fig.

C.

Fig.

C

Do

not

affix

tape,

paper,

or

gummed

seals

to

the

disc’s

label

surface.

Also

be

careful

not

to

scratch

the

label

sur-

face.

@

BEFORE

PLAYING,

CLEAN

YOUR

DISCS

When

fingerprints

or

other

dirt

are

on

the

disc

surface,

it

will

cause

a

skipping,

jumping

or

sticking

problem.

Always

be

sure

to

clean

your

discs

before

playing

them.

Use

a

soft

clean

cloth

to

wipe

off

them.

If

necessary,

moisten

a

soft

cloth

with

diluted

neutral

detergent

to

remove

heavy

dirt

or

fingerprints.

Record

cleaning

sprays,

static

prevention

sprays,

etc.,

can-

not

be

used.

Also,

do

not

use

other

types

of

cleaners,

etc.,

containing

benzene,

thinner

or

other

solvents.

Using

such

preparations

may

cause

damage

to

the

surface

of

discs.

:

@

DO

NOT

USE

DAMAGED

DIScs

Discs

rotate

inside

the

player

at

high

speeds.

Do

not

use

damaged

(warped,

cracked,

etc.)

discs.

The

player

may

be

damaged

as

a

result.

@

KEEP

YOUR

PLAYER

AWAY

FROM

HEAT

Do

not

place

the

player

on

top

of

the

amplifier

or

any

other

unit

that

emits

heat

since

heat

may

adversely

affect

the

player

and

possibly

warp

a

loaded

disc.

If

the

player

is

used

with

other

audio

equipment

in

the

same

rack,

place

it

on

the

lowest

shelf

away

from

heat

and

keep

the

area

well-ventilated.

@

KEEP

YOUR

DISCS

AWAY

FROM

HEAT

Take

care

not

to

allow

discs

to

warp.

After

playing

a

disc,

always

remove

it

from

the

player

and

return

it

to

its

jacket

or

case,

then

store

it

vertically

in

a

location

not

subject

to

high

temperatures

or

humidity.

Be

careful

when

transporting

discs

since,

for

example,

the

seat

of

a

car

may

become

unbelievably

hot

when

left

in

the

sun.

Take

special

care

to

store

the

LaserVision

video

disc,

if

you

store

the

video

discs

at

an

angle,

or

stacked

on

top

of

each

other,

discs

may

become

warped.

If

the

video

disc

becomes

warped,

put

the

disc

into

the

protective

envelope,

and

place

it

on

a

flat

desk

top.

Subsequently,

place

a

flat

board

on

the

disc,

and

load

it

with

weights

of

about

4~5

kg

(about

10

Ibs.).

If

it

is

left

in

this

state

for

one

day,

sometimes

the

warp

will

be

alleviated.

AERO

+SEE

IDES

STEUER

TE

SU

ESE

SE

TEE

TES

EE

SPREE

TSS

SSE

SS

STE

ES

BSB

PTET

SS

SS

SRR

TTT

TPE

ET

NBEO

EE

FRE

EE

CSE

TTS

EERE

TE

"CSE

ESAS

RT

SETTERS

BEFORE

OPERATION

INSTALLING

THE

PLAYER

Choose

a

stable

platform

next

to

the

television

and

stereo

system

with

which

you

plan

to

use

the

player.

Avoid

placing

the

player

in

locations

subject

to

extremely

high

and

low

temperatures.

Do

not

-use

the

player

in

direct

sunlight,

or

on

radiators

and

other

heating

appliance.

Also,

protect

from

high

humidity,

dust,

smoke,

steam,

oil

and

possible

water

spillage.

When

using

the

player

with

a

stereo

system,

your

speakers

should

be

installed

somewhat

separated

from

your

televi-

sion

(video

TV

monitor).

Do

not

place

heavy

items

on

top

of

the

player.

Also,

cassette

tape

decks

and

other

components

easily

affected

by

magnetism

should

be

installed

separately

from

the

player.

If

the

power

to

the

player

is

turned

on

while

you

are

receiv-

ing

FM

or

AM

radio

broadcasts,

noise

may

be

heard

in

the

radio

broadcast.

As

a

result,

when

not

using

the

player,

be

sure

the

power

switch

is

in

the

OFF

position.

Also,

if

you

experience

noise

during

radio

broadcasts

when

using

an

indoor

antenna,

try

readjusting

the

antenna’s

position

or

direction.

PREPARING

THE

REMOTE

CONTROL

UNIT

The

player's

remote

control

unit

may

be

found

inside

the

card-

board

panel

resting

on

top

of

the

player

when

you

open

the

packing

case.

Remove

the

remote

control

unit

and

insert

bat-

teries

in

it.

1.

Open

the

battery

compartment

cover

on

the

rear

of

the

remote

contro!

unit.

The

cover

should

open

easily

if

you

press

on

it

with

your

thumb

while

sliding

it

to

the

right.

.

Take

out

the

2

accessory

size

‘‘AA”

dry

batteries

and

insert

them

into

the

battery

compartment

in

accordance

with

the

diagram

in

the

compartment,

then

replace

the

cover.

.

Press

the

buttons

on

the

remote

control

unit

and

confirm

that

the

red

indicator

flashes.

Incorrect

use

of

batteries

may

lead

to

leakage

or

rupture.

Always

be

sure

to

follow

these

guidelines:

A.

Always

insert

batteries

into

the

battery

compartment

correctly

matching

the

positive

(+)

and

negative

(—)

polarities

as

shown

in

the

display

inside

the

compartment.

B.

Never

mix

new

and

used

batteries

together.

C.

Batteries

of

the

same

size

may

have

differing

voltages,

depen-

ding

on

brand.

Do

not

mix

different

brands

of

batteries

together.

D.

Both

rechargeable

and

non-rechargeable

batteries

are

available.

Be

sure

to

use

your

batteries

in

accordance

with

the

caution

labels

affixed

to

them.

aE

HOES

DISC

HANDLING

PRECAUTIONS

BEFORE

OPERATION

Moisture

will

form

in

the

operating

section

of

the

player

and

the

player’s

performance

will

be

im-

paired

if

the

player

is

brought

from

cool

surroun-

dings

into

a

warm

room

or

if

the

temperature

of

the

room

rises

suddenly.

To

prevent

this,

let

the

player

stand

in

its

new

sur-

roundings

for

about

an

hour

before

switching

it

on,

or

ensure

that

the

room

temperature

rises

gradually.

Remote

Control

Unit

CU-900

"Se

TREO

ERA

SEES

TESTES

PEE

ESE

TSS

ESS

SSE

SE

SS

ST

US

ESS

STS

SSE

SSS

Sr

ESET

SESS

A

STE

ORNS

ABOUT

THE

TRANSIT

SCREWS

ISRAELS

REDO

ERSTE

The

internal

mechanisms

of

this

player

are

fastened

in

place

during

shipment

with

2

transit

screws.

These

screws

must

be

loosened

before

the

player

is

used.

If

you

attempt

to

operate

the

player

without

loosening

the

transit

screws,

correct

opera-

tion

will

not

be

possible.

if

you

should

retransport

the

player

at

a

future

date,

be

sure

to

retighten

the

transit

screws

before

moving

the

player.

SE

Loosen

the

Transit

Screws

Tighten

the

Transit

Screws

1.

Spread

out

a

cloth

or

blanket,

etc.,

and

stand

the

player

on

its

right

side

down

(viewed

from

the

front),

taking

care

not

Before

attempting

to

tighten

the

transit

screws,

to

scratch

the

finish.

confirm

that

no

disc

is

loaded

in

the

player.

If

a

2.

While

supporting

the

player

with

one

hand,

use

a

flat

blade

disc

is

loaded,

be

sure

to

remove

it

before

tighten-

screwdriver

to

loosen

the

two

transit

screws

A

and

B

as

ing

the

transit

screws.

shown

in

the

illustration.

Even

when

fully

loosened,

the

1.

Turn

off

the

power,

and

stand

the

player

on

its

side

(right

screws

cannot

be

removed.

:

side

down).

2.

While

supporting

the

player

with

one

hand,

use

a

flat

blade

screw

driver

to

retighten

the

two

transit

screws

A

and

B.

Se

ES

SSNS

TOFS

STDS

ESTE

SHUR

Loosen

the

screws

fully

until

no

further

resistance

is

felt.

/f

the

last

disc

played

was

a

Compact

Disc,

the

transit

screws

may

not

match

their

holes,

making

tightening

impossible.

In

this

event,

follow

the

instructions

listed

under

“When

the

Transit

Screws

Can't

Be

Tightened.”

TENSES

ORISA

*

The

player's

pickup

moves

in

a

front-back

direction.

If

the

player

is

stood

with

its

front

panel

facing

up

when

the

transit

screws

are

removed,

the

pickup

will

naturally

fall,

possibly

causing

damage

to

the

player.

Be

careful.

Se

AN

a

CHRD

NOS

HSS

EE

FORRES

EY

igen

nenremmncarenmammanitdl

BENNER

ABOUT

THE

TRANSIT

SCREWS

When

the

Transit

Screws

Can’t

Be

Tightened

—

nivsan

fightene

@

Return

the

player

to

its

normal

horizontal

position.

@)

Return

the

player

to

its

normal

horizontal

position.

@

Turn

on

the

power,

wait

for

5

to

6

seconds

and

turn

the

@

Use

a

screwdriver

to

press

the

transit

switch

deep

in

the

power

off.

hole

at

the

upper

right

of

the

rear

panel,

and

while

pressing

@)

Stand

the

player

on

its

side

(right

side

down).

the

switch,

turn

on

the

power.

@

While

supporting

the

player

with

one

hand,

tighten

the

transit

screw

B.

SS

SS

SSS

t

:

===

==

7

ir

—————

Tao

Turn

on

the

power,

wait

5

~

6

seconds

and

turn

off

the

power.

After

turning

on

the

power,

you

may

stop

pressing

the

transit

switch

after

about

4

seconds.

@)

Wait

an

additional

15

to

16

seconds

and

turn

off

the

power.

@

Stand

the

player

on

its

side

(right

side

down).

©

While

supporting

the

player

with

one

hand,

use

a

flat

blade

screwdriver

to

retighten

the

two

transit

screws

A

and

B

or

A

only

as

required.

TRANSIT

Bares

CO

r

Transit

switch

Turn

on

the

power,

wait

15

~

16

seconds

and

turn

off

the

power.

If

a

LaserVision

disc

is

available,

the

following

procedure

can

be

used

to

simply

align

the

positions

of

the

transit

screws:

1)

Turn

on

the

power,

load

the

LaserVision

disc

on

the

disc

table,

and

push

in

the

disc

table.

2)

Press

the

EJECT

(

*

}

button

and

remove

the

disc.

After

this

procedure,

turn

off

the

power

and

stand

the

player

on

its

side

to

tighten

the

transit

screws.

+

STE

TT

ETE

TE

TT

TET

EE

TEL

LE

TTS

TED

ST

TI

TEST

TS

EFT

STE

RTA

ESS

SSB

ESTES

TT

SIE

TEE

TS

ESF

CTS

SSF

SR

PE

ZS

ET

SENN

REAR

PANEL

FACILITIES

@

ANTENNA

The

coaxial

cable

(75

ohm)

from

a

VHF

television

antenna

is

connected

here.

@

CH.

3/4

VHF

OUT

Connect

to

a

television’s

VHF

antenna

input

terminal.

@

VHF

CHANNEL

SELECTOR

This

selector

is

for

switching

the

internal

VHF

converter.

Set

to

the

channel

which

is

not

used

for

TV

broadcasts

in

your

area.

@

POWER

CORD

Plug

this

into

an

electrical

outlet.

@

W/O

PORT

This

is

the

1/O

port

used

when

performing

external

control

of

the

player.

1/O

PORT

pin

assignment

Do

not

use

as

a

power

source

+11V

EXT

CONTROL

VIDEO

(75)

INT/EXT

EXT

ACK

@

VIDEO

OUTPUT

_

When

using

a

video

TV

monitor

to

play

back

the

video

im-

age,

connect

this

terminal

to

the

TV

monitor's

video

input

~

terminal.

10

BEIDO

{Illustration

not

applicable

to

“S/G"

model.

@

AUDIO

OUTPUT

1

Connect

to

your

stereo

amplifier’s

AUX,

CD,

or

TUNER

in-

put

terminalis.

When

playing

back

the

LaserVision

with

Digital

Sound

Discs,

select

the

front

panel’s

VIDEO

DISC

AUDIO

switch

to

AUTO

DIGITAL

(Digital

Sound

output)

or

ANALOG

ONLY

(Analog

Sound

output).

.The

audio

signals

of

the

Compact

Disc

are

output

from

these

terminals

only.

AUDIO

OUTPUT

2

Connect

to

your

stereo

amplifier’s

AUX,

CD,

or

TUNER

in-

put

terminals.

.

These

terminals

output

only

the

LaserVision

disc’s

Analog

Sound

signals.

[FOR

S/G

MODEL]

VOLTAGE

SELECTOR

SWITCH

A

4-point

(110V/120V/220V/240V)

voltage

selector

switch

is

located

on

the

rear

panel

of

the

player.

Check

that

it is

set

properly

before

plugging

the

power

cord

into

the

wall

socket.

If

the

voltage

is

not

properly

set

or

if

you

move

to

an

area

where

the

voltage

supply

differs,

adjust

the

selector

switch

as

follows:

1.

Disconnect

the

power

cord.

2.

Provide

yourself

with

a

medium-sized

(flat

blade)

screwdriver.

Insert

the

tip

of

the

screwdriver

into

the

groove

of

the

selector

switch

and

turn

it

so

that

the

power

voltage

marking

of

your

area

point

to

the

arrow.

VOLTAGE

SELECTOR

A

NOTE:

“KU”

(For

U.SA.)

model

is

not

provided

with

VOLTAGE

SE-

LECTOR

switch.

RSHELTONR

IORETITEN

SES

EE

SEES

GE

RR

ST

SAUER

i

SSSR

ST

SE

TTS

ESF

RUE

SSE

ES

TZ

ST

ET TO

S

E

E

STe

ES

NSUEE

S

T

E

S

SE

SS

SST

SRS

RS

SRP

SSSS

SEIGT

STSSRNKER

SA

UETI
