Planet DVR-462 Bedienungsanleitung

DVR-462 DVR-462

Quick GuideQuick Guide

2011-AB5390-001

PLANET Technology Corporation

Tel: 886-2-2219-9518 Fax: 886-2-2219-9528

Email: support@planet.com.tw www.planet.com.tw

11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

STEP 1: Remove the 3 screws from DVR-462 STEP 2: Follow the direction to remove the

upper case

SATA cable

DVR-462 I/O Cable

CD Disk

Power Adapter

Battery x 2 Remote Controller

HDD Screw x 4

For detailed information about DVR-462, please refer to the User’s Manual in the CD disk.

STEP 3: Place the HDD on the HDD plate of the

removed case and connect the power

and the SATA cable STEP 4: Put back the upper case and tight the

three screws

Note: Before HDD installation, please make sure there is no pre-configured partition in this HDD.

If yes, please delete all the partition before install.

► Hard Disk Installation

► Contents ► Hardware Connection

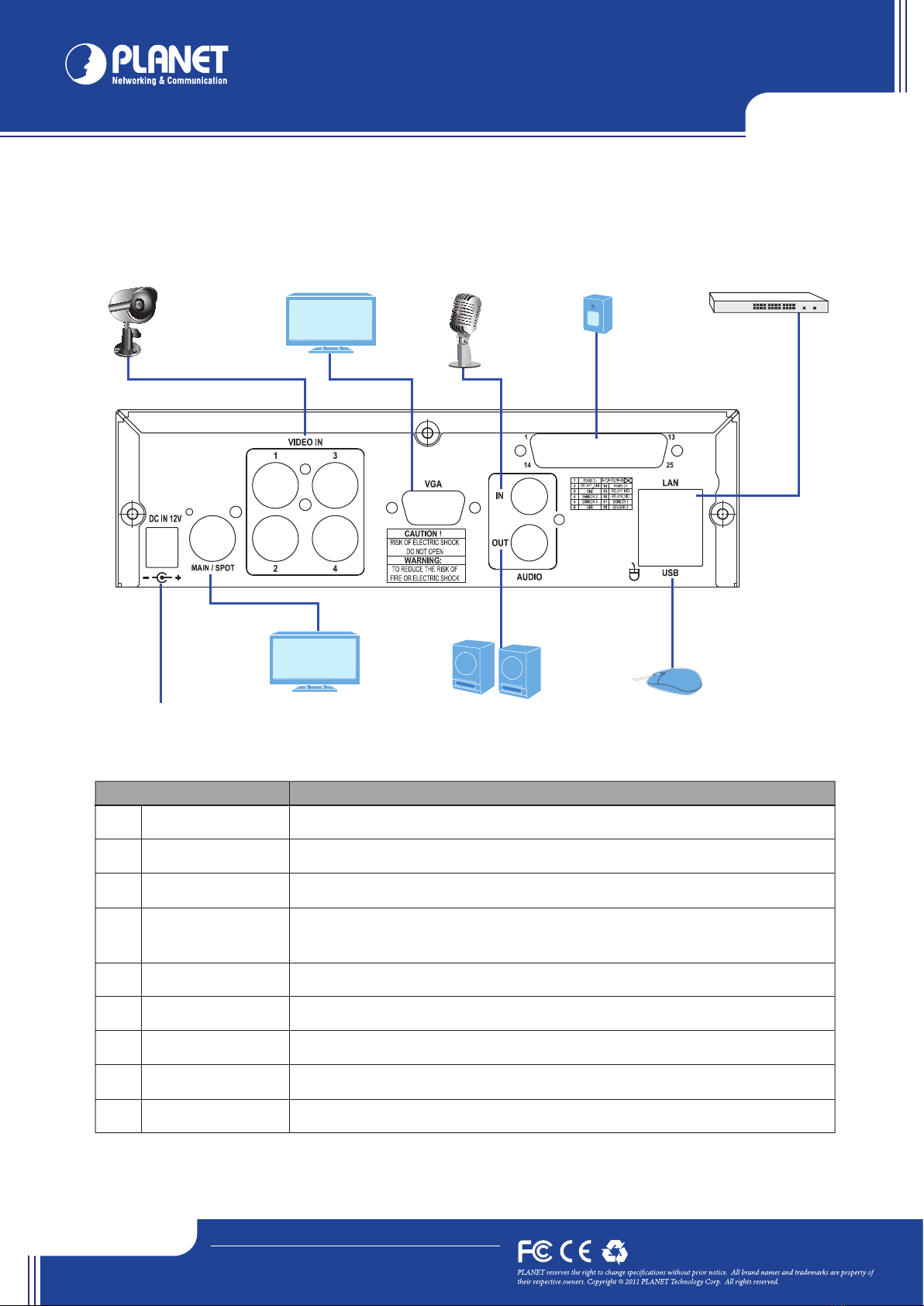

Please follow the sequence from 1 to 9 to connect the equipments to DVR-462.

1 DC 12V

2 MAIN / SPOT MONITOR

3 VIDEO IN

4 VGA

5 AUDIO IN

6 AUDIO OUT

7 EXTERNAL I/O

8 LAN

9 USB

Socket for a DC 12V power input.

BNC port for the main monitor connected and display full screen image of all installed cameras in sequence.

BNC input ports for cameras, 4 in total.

Connect your PC monitor to this connector. If the MAIN port is connected, VGA port will lost function.

You have to choose the VGA or MAIN for monitoring.

RCA input port for an audio signal.

RCA output port for an audio signal.

EXTERNAL I/O port.

Network port. Connect to your switch or PC directly.

Connect your USB mouse to control this DVR.

DescriptionItem

Camera 1~4

Mouse

Audio InputVGA Output

Main/Spot Monitor Output Audio Output

RS485/Relay/Sensor

Power Supply

Network Connection

Quick Installation Guide

DVR-462 DVR-462

Quick GuideQuick Guide

2011-AB5390-001

PLANET Technology Corporation

Tel: 886-2-2219-9518 Fax: 886-2-2219-9528

Email: support@planet.com.tw www.planet.com.tw

11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

STEP 1: Remove the 3 screws from DVR-462 STEP 2: Follow the direction to remove the

upper case

SATA cable

DVR-462 I/O Cable

CD Disk

Power Adapter

Battery x 2 Remote Controller

HDD Screw x 4

For detailed information about DVR-462, please refer to the User’s Manual in the CD disk.

STEP 3: Place the HDD on the HDD plate of the

removed case and connect the power

and the SATA cable STEP 4: Put back the upper case and tight the

three screws

Note: Before HDD installation, please make sure there is no pre-configured partition in this HDD.

If yes, please delete all the partition before install.

► Hard Disk Installation

► Contents ► Hardware Connection

Please follow the sequence from 1 to 9 to connect the equipments to DVR-462.

1 DC 12V

2 MAIN / SPOT MONITOR

3 VIDEO IN

4 VGA

5 AUDIO IN

6 AUDIO OUT

7 EXTERNAL I/O

8 LAN

9 USB

Socket for a DC 12V power input.

BNC port for the main monitor connected and display full screen image of all installed cameras in sequence.

BNC input ports for cameras, 4 in total.

Connect your PC monitor to this connector. If the MAIN port is connected, VGA port will lost function.

You have to choose the VGA or MAIN for monitoring.

RCA input port for an audio signal.

RCA output port for an audio signal.

EXTERNAL I/O port.

Network port. Connect to your switch or PC directly.

Connect your USB mouse to control this DVR.

DescriptionItem

Camera 1~4

Mouse

Audio InputVGA Output

Main/Spot Monitor Output Audio Output

RS485/Relay/Sensor

Power Supply

Network Connection

Quick Installation Guide
