Data Sheet

Key Features

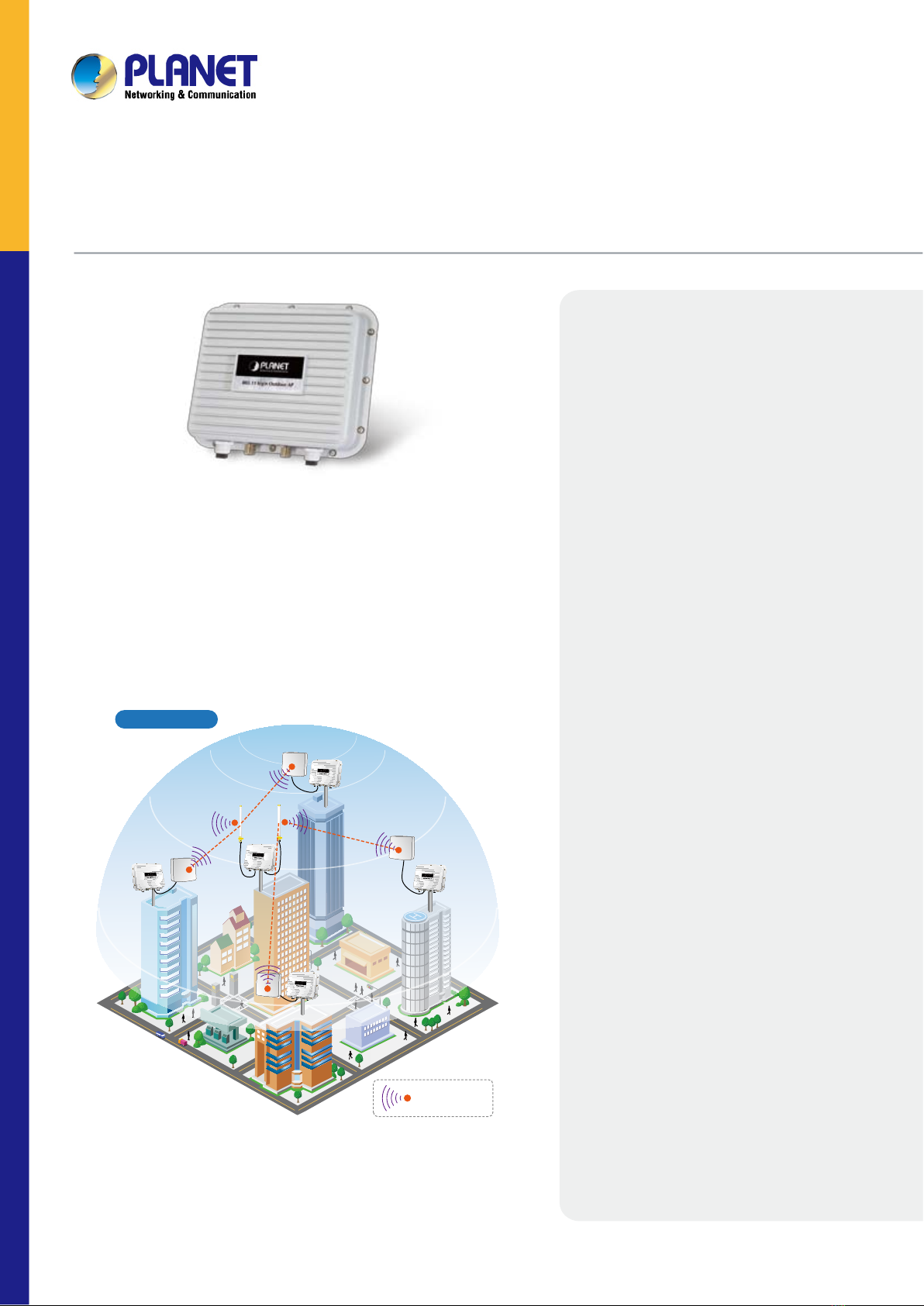

WNAP-6350

2.4GHz 300Mbps 802.11n Wireless Outdoor Access Point

High Power Outdoor Wireless Coverage

PLANET Technology introduces the latest high power outdoor wireless LAN solution

- the 300Mbps PoE wireless outdoor AP, WNAP-6350. It provides higher transmit

power, better performance, widely coverage and more stable connection than

standard wireless outdoor AP. As an IEEE 802.11b/g/n compliant wireless device, the

WNAP-6350 is able to give stable and efficient wireless performance for long distance

application; while designed with IEEE 802.11n standard and 2T2R MIMO technology

makes it possible to deliver six times faster data rate up to 300Mbps than normal

802.11g wireless device. It also features adjustable output power up to 500mW to

extend broader coverage in outdoor long range application.

Industrial Compliant Wireless LAN & LAN

Compliant with IEEE 802.11n wireless technology•

capable of up to 300Mbps data rate

Backward compatible with 802.11b/g standard•

Equipped with 10/100Mbps RJ-45 Ports for LAN &•

WAN, Auto MDI / MDI-X supported

Fixed-network Broadband Router

Supported connection types: Dynamic IP / Static IP /•

PPPoE / PPTP / L2TP / IPSec

Supports Virtual Server, DMZ for various networking•

applications

Supports DHCP Server, UPnP, Dynamic DNS•

RF Interface Characteristics

Built-in two N-Type Female Antenna connectors•

High Output Power up to 500mW with multiple•

adjustable transmit power control

Outdoor Environmental Characteristics

Aluminum Housing, IP67 Protection•

IEEE 802.3af/at Power over Ethernet design•

Operating Temperature: -30~75 Degree C•

Multiple Operation & Wireless Mode

Multiple Operation Modes: Bridge, Gateway, WISP•

Multiple Wireless Modes: AP, Client CPE (WISP), WDS•

PtP, WDS PtMP, Repeater

Supports Dual-SSID allowing users to access different•

networks through one single AP

Supports WMM (Wi-Fi Multimedia)•

Antenna

WNAP-6350

Antenna

WNAP-6350

Antenna

WNAP-6350

Antenna

WNAP-6350

Wi-Fi City

2.4GHz 802.11n

WNAP-6350

Secure Network Connection

Supports Software Wi-Fi Protected Setup (WPS)•

Advanced security: 64/128-bit WEP, WPA / WPA2,•

WPA-PSK / WPA2-PSK (TKIP/AES), and 802.1x

Authentication

Supports NAT firewall features, with SPI function to•

protect against DoS attacks

Supports IP / Protocol-Based access control and MAC•

Filtering

Easy Installation & Management

Web-Based UI and Quick Setup Wizard for easy•

conguration

Remote Management allows configuration from a•

remote site

SNMP-Based management interface•

System status monitoring includes DHCP Client, System•

Log

Multiple Operating & Wireless Modes

The WNAP-6350 supports multiple types of wireless communication connectivity

(AP, Client CPE, WDS PtP, WDS PtMP, Repeater) allowing for various application

requirements and thus it gives users more comprehensive experience when accessing

through Wireless LAN. It helps users to easily build a wireless network and extend the

wireless range of existing wireless network.

The WNAP-6350 also supports WISP mode, so CPE users could easily connect to

Internet via WISP provider or connect to a wired network.

Advanced Security and Management

In aspect of security, besides 64/128- bit WEP encryption, the WNAP-6350 integrates

WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect

your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate

the wireless network security and prevent unauthorized wireless connection. To fulfill

enterprise and various applications demand, the WNAP-6350 also provide multiple SSID

to enhance security and management.

Perfect Solution for Outdoor Environment

The WNAP-6350 is perfectly suitable in outdoor environments and exposed locations.

By designing with IP67 aluminum rugged strong housing, the WNAP-6350 can perform

normally under rigorous weather conditions including heavy rain, wind and snow.

Moreover, the WNAP-6350 is rated to operate at the temperature from -30 to 75 Degree

C; thus it can operate more stably than general outdoor equipments. It is the best way

using the WNAP-6350 to build outdoor wireless access applications between buildings

on campuses, business, rural areas and etc.

Clients

Switch

LAN

AP/Client Mode

Antenna Antenna

WNAP-6350WNAP-6350

AP Mode Client Mode

Internet

WDS Repeater Mode

Internet

WDS Repeater Mode

Clients

Switch

Antenna

WNAP-6350

Antenna

WDS Bridge-PtP Mode

Antenna Antenna

WNAP-6350WNAP-6350

Switch

Clients

Client

Switch Bridge - PtP Mode

Clients

WDS Bridge-PtMP Mode

Switch

Clients

Switch

Antenna

WNAP-6350

Antenna

Bridge - PtMP Mode

Internet

WISP Mode

Wireless Internet

Service Provider

Antenna

WNAP-6350

WISP Mode

Relay Mode

Antenna Antenna

WNAP-6350

Bridge - Relay Mode

Antenna

100Base-TXUTP

PoE

100Base-TX UTP with PoE

PoE

WAN

Clients

2.4GHz 802.11n

N N

Aluminum Housing, IP67 Protection

75ºC-30ºC

Lightning Protection Waterproof

WNAP-6350

Flexible Deployment with PoE Feature

Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-6350 can be powered by PSE (Power Sourcing Equipment) via a single UTP

cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other places where are difficult to reach.

Furthermore, the WNAP-6350 is also suitable to be integrated with PoE Solar Power System to offer farther Wireless service in remote areas. It enables the

wireless LAN deployment becomes more exible and worries free from the power outlet locations.

Easy Installation & Management

With user-friendly Web UI and step by step Setup Wizard, the WNAP-6350 is easy to install, even for users who never experience setting up a wireless

network. Furthermore, with SNMP-Based management interface, the WNAP-6350 is convenient to be managed and congured remotely.

Antenna

WNAP-7350

IP Camera

PoE

Antenna

WNAP-7350

WNAP-6350

Antenna

5GHz Backhaul

2.4GHz Public Access

WNAP-6350

Longer distance coverage between LAN connections

The WNAP-6350 is a cost-effective outdoor wireless solution for widely open space applications. It is ideal for outdoor wireless connections between

buildings.

With built-in two N-Type Antenna connectors, the WNAP-6350 brings longer coverage of wireless connection. The WNAP-6350 provides high output power

with multiple adjustable Tx controller, which allows CPE users to easily install and adjust the suitable value in appropriate locations. The WISP mode

supported in the WNAP-6350 also enables CPE users to connect to Internet via local WISP provider conveniently.

**Sincerely suggest matching the same model in outdoor wireless bridge application for getting best performance.

Application

Campus

Warehouse

Refinery

Factory Control Center

HighwayHarbor

IP Camera IP Camera

Antenna

WNAP-6350 WNAP-6350

WNAP-6350

IP Camera

Antenna Antenna

Antenna

WNAP-6350

Antenna Antenna

PoE Switch

IP Camera

Antenna

WNAP-6350 WNAP-6350

100Base-TX UTP

2.4GHz 802.11n

WNAP-6350

Specication

Product 2.4GHz 300Mbps 802.11n Wireless Outdoor Access Point

Model WNAP-6350

Hardware Specications

Standard

IEEE 802.11b/g/n Wireless LAN

IEEE 802.11i Wireless Security

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3x Flow Control

IEEE 802.3af/at Power over Ethernet / PD

Memory 32 Mbytes DDR SDRAM

8 Mbytes Flash

Interface

Wireless IEEE 802.11b/g/n, 2T2R

LAN: 1 x 10/100Base-TX, Auto-MDI / MDIX, IEEE 802.3af/at PoE / PD port

WAN: 1 x 10/100Base-TX, Auto-MDI / MDIX

Antenna N-Type Female connectors x 2

Wireless RF Specications

RF Modulation IEEE 802.11b/g

IEEE 802.11n

Data Rate

IEEE 802.11b: 11, 5.5, 2 and 1Mbps

IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps

IEEE 802.11n (20MHz): up to 150Mbps

IEEE 802.11n (40MHz): up to 300Mbp

Media Access Control CSMA / CA

Modulation

Transmission/Emission Type: DSSS / OFDM

Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM,

DBPSK, DQPSK, CCK

Frequency Band 2.412GHz ~ 2.484GHz

Operating Channel

America/ FCC: 2.414~2.462GHz (11 Channels)

Europe/ ETSI: 2.412~2.472GHz (13 Channels)

Japan/ TELEC: 2.412~2.484GHz (14 Channels)

RF Output Power (Max.) IEEE 802.11b/g: 27 ± 1.5dBm

IEEE 802.11n: 25 ± 1.5dBm

Receiver Sensitivity

IEEE 802.11b: -95/ -94/ -92/ -90dBm (1/ 2/ 5.5/ 11Mbps)

IEEE 802.11g: -90/ -82/ -80/ -75dBm (6/ 24/ 36/ 54Mbps)

IEEE 802.11n: -91/ -83/ -74/ -89/ -80/ -72dBm (MCS 0/ 3/ 6/ 9/ 12/ 15)

Output Power Control 3~27dBm

Software Features

LAN Built-in DHCP server supporting static IP address distributing

Supports 802.1d STP (Spanning Tree)

WAN

■Static IP

■Dynamic IP

■PPPoE

■PPTP

■L2TP

■IPSec

Wireless Mode

■Bridge

■Gateway

■WISP

■WDS PTMP

■WDS Repeater (AP+WDS)

Channel Width 20MHz / 40MHz

Wireless Isolation Enables isolation of each connected wireless client from communicating with each other mutually.

Encryption Type 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Security

Provides wireless LAN ACL (Access Control List) ltering

Wireless MAC address ltering

Supports WPS (Wi-Fi Protected Setup )

Enable / Disable SSID Broadcast

Multiple SSID Up to 2

Max. Wireless Client 40

Max. WDS AP 8

Max. Wired Client 60

WMM Supports Wi-Fi Multimedia

QoS Supports Quality of Service for bandwidth control

NTP Network Time Management

Management Web UI, DHCP Client, Conguration Backup & Restore, Dynamic DNS, SNMP

Diagnostic tool System Log, Ping Watchdog

WNAP-6350

PLANET reserves the right to change specications without prior notice. All brand names and trademarks are property of

11F., No.96, Minquan Rd., Xindian Dist., New Taipei City

231, Taiwan (R.O.C.)

Tel: 886-2-2219-9518 Fax: 886-2-2219-9528

Email: [email protected] www.planet.com.tw

PLANET Technology Corporation

WNAP-6350

Ordering Information

WNAP-6350 2.4GHz 300Mbps 802.11n Wireless Outdoor Access Point

Mechanical & Power

IP Rate IP67

Material Aluminum

Dimension (W x D x H) 320 x 27.5 x 320 mm

Weight 2.4kg

Installation Pole mounting or Wall mounting

Power Requirements AP: IEEE 802.3af/at PoE / 48VDC input (PoE Injector included)

PoE Injector: 100~240VAC

Power Consumption 7.68W

Environment & Certication

Operation Temperature -30~75 Degree C

Operating Humidity 10~95% non-condensing

Regulatory CE / RoHS

Accessory

Standard Accessories

■48VDC IEEE 802.3af/at PoE injector & Power cord x 1

■Mounting Kit x 1

■Waterproof RJ-45 Connector Kit x 2

■Quick Installation Guide x 1

■CD (User’s Manual, Quick Installation Guide) x 1

Accessories

Related PoE Product

CB-STP-25 25 Meters STP Cat5 Cable

ELA-100 Ethernet Lightning Arrest Box

ANT-OM8 2.4GHz 8dBi Omni-Directional Antenna

ANT-OM15 2.4GHz 15dBi Omni-Directional Antenna

ANT-FP9 2.4GHz 9dBi Flat Panel Directional Antenna

ANT-FP18 2.4GHz 18dBi Flat Panel Directional Antenna

ANT-SE18 2.4GHz 12-18dBi Adjustable Sector Antenna

ANT-YG13 2.4GHz 13dBi Yagi Directional Antenna

ANT-YG20 2.4GHz 20dBi Yagi Directional Antenna

ANT-GR21 2.4GHz 21dBi Grid Directional Antenna

WL-NM-0.6 0.6 Meter N-male (male pin) to N-male (male pin) Cable

WL-LTNA 2.4/5GHz Lightning Arrester (N-male to N-female)

ISW-1022MPT 8-Port 10/100Mbps + 2-Port Gigabit TP/SFP Combo PoE Managed Industrial Switch with Wide Operating

Temperature

ISW-514PTF 4-Port 10/100Mbps with PoE + 1-Port 100FX Industrial Ethernet Switch – Wide Temperature

ISW-804PT-M12 Industrial IP67 Rated 8-Port 10/100Mbps M12 Fast Ethernet PoE Switch with Wide Operating Temperature

IVC-2004PT 4-Port 10/100Base-TX with PoE + 1-Port BNC / RJ-11 Industrial Ethernet Extender

IPOE-162 Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-Span)

FTP-802 100Base-FX to 10/100Base-TX PoE Media Converter

SGSW-24040P 24-Port Gigabit PoE Managed Stackable Switch / 220W

POE-E101 IEEE 802.3af Power over Ethernet Extender

Andere Handbücher für WNAP-6350

Inhaltsverzeichnis

Andere Planet Drahtloser Zugangspunkt Handbücher

Planet

Planet Network Device WAP5 Bedienungsanleitung

Planet

Planet WDAP-702AC Bedienungsanleitung

Planet

Planet MAP-3120 Programmierhandbuch

Planet

Planet WNAP-6305 Bedienungsanleitung

Planet

Planet WBS-202N Bedienungsanleitung

Planet

Planet WDAP-C3000AX Bedienungsanleitung

Planet

Planet WDAP-C7200AC Bedienungsanleitung

Planet

Planet WNAP-7205 Bedienungsanleitung

Planet

Planet WDAP-850AC Bedienungsanleitung

Planet

Planet MAP-3120 Bedienungsanleitung

Planet

Planet WNAP-W2201A Bedienungsanleitung

Planet

Planet WAP-8000 Bedienungsanleitung

Planet

Planet WAP-6200 Bedienungsanleitung

Planet

Planet Network Device WAP-4033PE Bedienungsanleitung

Planet

Planet WAP-252N Bedienungsanleitung

Planet

Planet WNAP-W2200 Bedienungsanleitung

Planet

Planet WDAP-C1800AX Bedienungsanleitung

Planet

Planet WNAP-6306 Bedienungsanleitung

Planet

Planet IAP-1800AX Bedienungsanleitung

Planet

Planet WDAP-C7200AC Bedienungsanleitung

Planet

Planet WAP-4030A Bedienungsanleitung

Planet

Planet WNAP-6305 Bedienungsanleitung

Planet

Planet WAP-4030A Bedienungsanleitung

Planet

Planet IAP-2000PS Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
