Powerfix Profi 107580 Bedienungsanleitung

IAN 107580

DIGItal CallIper

MIarKa CYFrOWa

Wskazówki dotyczące obsługi i bezpieczeństwa

DIGItálIs tOlóMérő

Kezelési és biztonsági utalások

DIGItalnO KljunastO MerIlO

Navodila za upravljanje in varnostna opozorila

DIGItální pOsuvné MěřítKO

Pokyny pro obsluhu a bezpečnostní pokyny

DIGItálne pOsuvné MeraDlO

Pokyny pre obsluhu a bezpečnostné pokyny

DIGItaler MesssCHIeber

Bedienungs- und Sicherheitshinweise

DIGItal CallIper

Operation and Safety Notes

GB Operation and Safety Notes Page 5

PL Wskazówki dotyczące obsługi i bezpieczeństwa Strona 14

HU Kezelési és biztonsági utalások Oldal 23

SI Navodila za upravljanje in varnostna opozorila Stran 32

CZ Pokyny pro obsluhu a bezpečnostní pokyny Strana 41

SK Pokyny pre obsluhu a bezpečnostné pokyny Strana 50

DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 59

11 10 9 8

GB 5

Introduction

Intended use................................................................Page 6

Scope of delivery........................................................Page 6

Description of parts.....................................................Page 6

Technical data.............................................................Page 6

Safety instructions...........................................Page 7

Safety instructions for batteries ..................................Page 8

Before start of operation

Insert /replace battery................................................Page 9

Preparing the calliper..................................................Page 9

Starting up the device

Using the calliper ........................................................Page 9

Examples of use ..........................................................Page 10

Troubleshooting...........................................................Page 11

Cleaning and maintenance......................Page 12

Disposal....................................................................Page 12

Warranty.................................................................Page 13

GB6

DIGITAL CALLIPER

QIntroduction

Q Intended use

Only for private use.

Not for commercial use.

Q Scope of delivery

1x digital calliper

1x battery

1x storage box

1x instruction for use

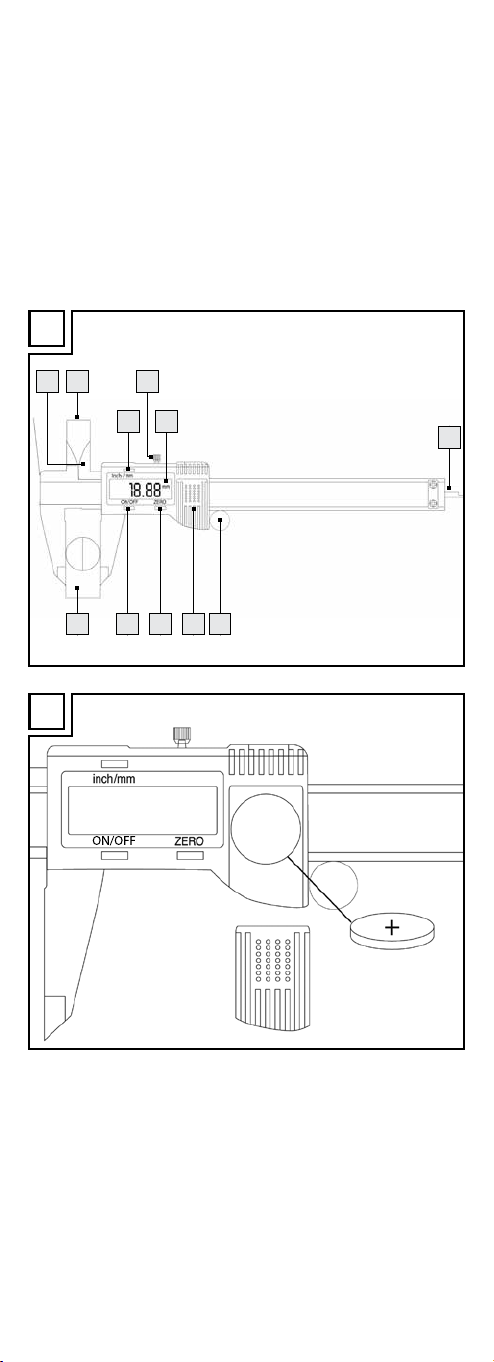

Q Description of parts

1measuring surfaces

2internal measuring jaws

3Inch/mm key

4locking screw

5LCD display

6depth-measuring blade

7handwheel for measuring jaws

8battery compartment lid

9key for zero setting (ZERO)

10 ON/ OFF key (ON/OFF)

11 external measuring jaws

Q Technical data

Measurement unit: mm / inch

Measuring range: 0-150 mm / 0-6”

Resolution: 0.01 mm / 0.0005”

Accuracy: 0-100 mm ± 0.02 mm / 0.001”

100-150 mm ± 0.03 mm /

0.001”

Maximum measuring speed: 1.5 m/s, 60”/s

Measuring system: Liner capacitive measuring system

Display: LCD display

Operating temperature: +5°C - +40 °C

Inﬂuence of humidity: within a range from 0% to 80%

relative humidity irrelevant

Battery: 3V CR2032 (included)

GB 7

Safety instructions

BEFORE USING THIS DEVICE, PLEASE

READ THE DIRECTIONS FOR USE!

PLEASE KEEP THE DIRECTIONS FOR USE

IN A SAFE PLACE!

CAUTION! RISK OF INJURY!

JKEEP THE PRODUCT OUT

OF THE REACH OF

CHILDREN. THIS PRODUCT

IS NOT A TOY! This product should

never be used by children unsupervised.

DANGER TO LIFE AND RISK OF

ACCIDENT FOR TODDLERS AND

CHILDREN! Never leave children alone

and unsupervised with the packaging

material.

JThere is a risk of suﬀocation from the

packaging material. Children often

underestimate risks. Always keep children

away from the product.

DANGER TO LIFE! Batteries could be

swallowed and pose a lethal hazard.

Consult a doctor immediately if anyone

swallows a battery.

JThis appliance can be used by children

aged from 8 years and above and

persons with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a safe

way and understand the hazards

involved. Children shall not play with the

appliance. Cleaning and user

maintenance shall not be made by

children without supervision.

JNever expose the product to high

temperatures, water or moisture as this

may damage the product.

JDo not put the calliper under any strain.

This may damage the chip in the calliper.

JKeep the calliper clean and dry. Fluids

could damage the calliper.

GB8

Safety instructions for

batteries

JCAUTION! RISK OF

EXPLOSION! Never recharge

the batteries!

JBatteries must not be short-circuited. This

could result in over-heating and risk of

ﬁre or explosion.

JRemove a depleted battery from the

product immediately; otherwise there is

an increased risk of leakage!

JKeep batteries out of the reach of

children; do not throw them into ﬁre; do

not short-circuit them; and do not take

them apart.

JEnsure polarity is correct (+ and -).

JOnly use the recommended battery.

JIf these instructions are not complied

with, the battery may be discharged

beyond its cut-oﬀ voltage. There is then a

risk of leakage. If the battery has leaked

into your device, please remove it

immediately in order to prevent any

damage to the product!

JWear protective gloves! If they

come into contact with skin, leaked or

damaged batteries could cause chemical

burns; you should therefore wear suitable

protective gloves at all times if such an

event occurs.

JAvoid contact with skin, eyes, and

mucous membranes. If you come into

contact with battery acid, rinse the

aﬀected spot with plenty of water

and/or consult a doctor immediately!

WARNING!

Switch the product OFF

before inserting the battery (LCD display

5is oﬀ.)

JRemove the battery from the device if it is

not in use for a long period of time.

JDo not, on any account, short-circuit the

terminals.

GB 9

QBefore start of operation

Q Insert/replace battery

Tip: Flashing numbers indicate a discharged/ﬂat battery.

Tip: When changing the battery, the LCD display 5may

experience faults. Remove the battery and insert it again after

waiting more then 30 seconds.

jPush open the lid to the battery compartment 8(see Fig. B).

jRemove the old battery.

Insert the new battery into the battery compartment and

ensure correct polarity (+ and -). Make sure that the plus

terminal points outwards.

Push the lid to the battery compartment 8shut again (see

Fig. B).

Q Preparing the calliper

Loosen the locking screw 4so that you can move the

calliper.

Clean all measuring surfaces and the calliper rod. Otherwise,

faulty measuring results may occur due to, for example,

humidity.

Check that all keys, switches and the LCD display 5work

correctly.

QStarting up the device

Q Using the calliper

jLoosen the locking screw 4by turning it anti-clockwise.

Push the external measuring jaws 11 and the internal

measuring jaws 2together.

Switch the LCD display

on by pressing the ON/OFF key

Press the inch/mm key 3to set the unit of measurement

(inch or mm) you wish to use. Either “mm” or “inch” will

appear to the right of the ﬁgures in the LCD display 5.

Press the key to obtain the zero setting (ZERO) 9in order

to reset the LCD display 5to zero.

Measuring an object from the outside:

Move the external measuring jaws 11 apart by turning the

handwheel 7outwards anti-clockwise. Place the external

measuring jaws 11 against the object to be measured.

Turn the handwheel 7inwards clockwise. Move the

external measuring jaws 11 together until they touch both

sides of the object you want to measure. Please ensure that

you do not damage the object you want to measure by

subjecting it to too much pressure.

GB10

Measuring an object from the inside:

Place the internal measuring jaws 2against the object

you want to measure.

Turn the handwheel 7outwards anti-clockwise. Move the

internal measuring jaws 2apart until they touch the object

on both its inner sides. Please ensure that you do not

damage the object you want to measure by subjecting it to

too much pressure.

Measuring the depth of an object:

Move the depth-measuring blade 6out of the calliper.

Put the depth-measuring blade 6in position until it touches

the surface (e.g. inside a hole).

Slide the body of the calliper downward until you feel

resistance.

Ensure that you do not damage the depth-measuring blade

6or the object you want to measure by exerting too much

pressure on them.

jThe LCD display 5now displays the dimensions.

After carrying out the measurement, move the external

measuring jaws 11 /internal measuring jaws 2together

again by turning the handwheel 7inwards clockwise.

Switch the LCD display 5oﬀ again by pressing the

ON/ OFF key 10 .

Tip: The LCD display 5automatically switches itself oﬀ

after approx. 3 minutes.

Tighten the locking screw 4again by turning it clockwise

until you feel some resistance.

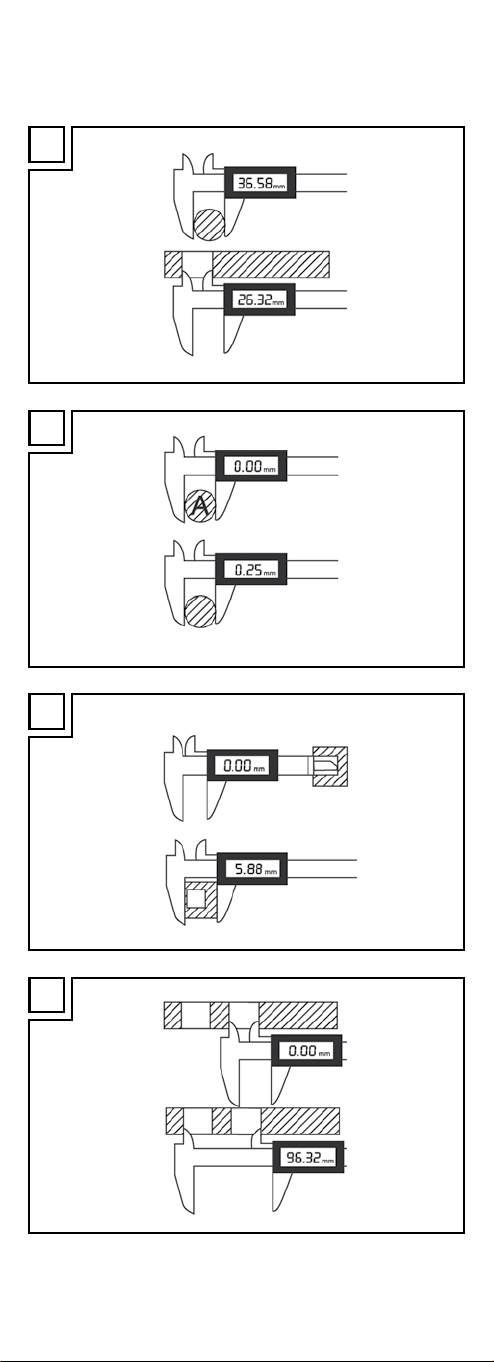

Q Examples of use

Tip: When measuring, always proceed as described in the

chapter on using the calliper.

Comparison of plug and socket (see fig. C):

jFirst measure the dimensions of the plug.

jYou may wish to make a note of the measurement.

jThen measure the socket.

Deviation from a reference value (see fig. D):

jMeasure a reference object (in this case A).

Leave the measuring jaws 2/ 11 in this position and press

the key to obtain the zero setting (ZERO) 9.

Then measure the second object. The LCD display 5now

shows the deviation of the measurement of the second object

to that of the reference object (A).

Measuring the thickness of the floor of an object

(see fig. E):

jFirst measure the depth of the object.

Leave the depth blade 6in this position and press the key

Inhaltsverzeichnis

Sprachen:

Andere Powerfix Profi Messgerät Handbücher

Powerfix Profi

Powerfix Profi 280231 Bedienungsanleitung

Powerfix Profi

Powerfix Profi PBUH 1.5 A1 Bedienungsanleitung

Powerfix Profi

Powerfix Profi PBUH 1.5 A1 Bedienungsanleitung

Powerfix Profi

Powerfix Profi HG00962A Bedienungsanleitung

Powerfix Profi

Powerfix Profi KH 2927-2 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 275222 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 280231 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 303589 Bedienungsanleitung

Powerfix Profi

Powerfix Profi PMDL 5 B1 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 100042 Bedienungsanleitung

Powerfix Profi

Powerfix Profi HG00384C Bedienungsanleitung

Powerfix Profi

Powerfix Profi 288019 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 291710 Bedienungsanleitung

Powerfix Profi

Powerfix Profi Z22855 Bedienungsanleitung

Powerfix Profi

Powerfix Profi Z22855 Bedienungsanleitung

Powerfix Profi

Powerfix Profi KH 2927-1 Bedienungsanleitung

Powerfix Profi

Powerfix Profi PTSI 9 A1 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 280231 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 278296 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 300093 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 91218 Bedienungsanleitung

Powerfix Profi

Powerfix Profi KH3301 Bedienungsanleitung

Powerfix Profi

Powerfix Profi 278296 Bedienungsanleitung

Powerfix Profi

Powerfix Profi HG00384C Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
