Powr-Flite PF62EC Bedienungsanleitung

OPERATOR’S MANUAL

WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL

COMPLETELY BEFORE OPERATING THIS EQUIPMENT.

Save These Instructions

Pro-Lite Upright Lightweight Vacuum

PF62EC

PFSM-PF62EC 01/20

Congratulations on your purchase of the Pro-Lite PF62EC. We know you will be happy with

the performance and features that we selected for you. In the event that you have questions or

concerns, do not hesitate to contact us at:

SAFETY WARNINGS AND PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT

Read and understand this owner’s manual and all labels on the unit before operating. Safety is a

combination of common sense,staying alert and knowing how your unit works. Use this unit only

as described in this manual. Use only manufacturer’s recommended attachments. To reduce the

risk of personal injury or damage to your unit use only manufacture recommended accessories.

When using an electrical appliance, basic precautions should be observed, including the

following: Read all instructions before using your lightweight upright vacuum cleaner.

WARNING:

To reduce the risk of fire, injury or electric shock:

• Never leave the unit unattended when it is plugged in.

• Unplug from outlet when not in use and before servicing.

• Never use with damaged cord or plug.

• Never unplug by pulling on cord.

• Never pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp

corners, run cleaner over cord, or expose cord to heated surfaces.

• Never use the unit if it has been dropped, damaged, left outdoors or dropped into water.

Return it to place of purchase.

• Never allow children to use as a toy.

• Never use outdoors or on wet surfaces.

• Never handle the unit or plug with wet hands.

• Never put any object into openings, use with blocked opening, or restrict air flow.

• Never use without dust bag and/or filters in place.

• Never allow hair, loose clothing, fingers or body parts to get near openings or floor brush in

the appliance.

• Never pick up hot coals, cigarette butts, matches or any hot, smoking, or burning objects.

• Never pick up hard or sharp objects such as glass, nails, screws, coins, etc.

• Never pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or

use in the presence of explosive liquids or vapor.

• Connect to a properly grounded outlet only.

• See grounding instructions.

• Never pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).

• Never use in an enclosed space filled with vapors given off by oil base paint, paint thinner,

some moth proofing substances, flammable dust, or other explosive or toxic vapors.

• Never use for any purpose other than described in this User’s Guide.

• Use only on dry, indoor surfaces.

• Keep openings free of dust, lint, hair, etc.

• Keep appliance on a level surface.

• Turn off all controls before plugging in or unplugging cleaner.

• Be extra careful when cleaning stairs.

• Pay close attention when working around children

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides

a path of least resistance for electric current to reduce the risk electric shock. This machine

is equipped with a cord having an equipment -grounding conductor and grounding plug. The

plug must be inserted into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk

of electric shock. Check with a qualified electrician or service person if you are in doubt as to

whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if

it will not fit the outlet, have a proper outlet installed by a qualified electrician.

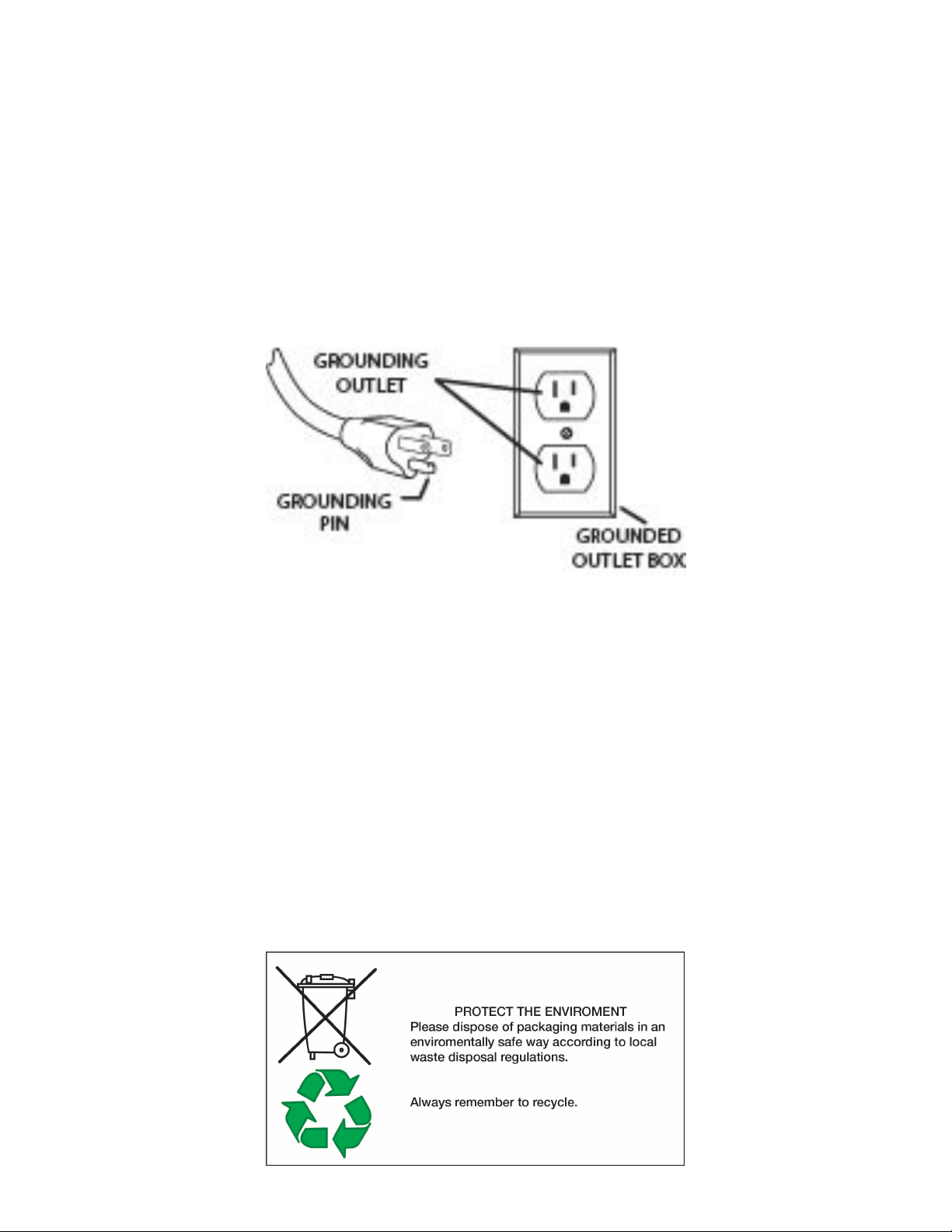

This appliance is for use on a nominal 115-volt circuit, and has a grounding plug that looks like

the plug illustrated in sketch A.

Check the carton for shipping damage. Carefully unpack and inspect your new Powr-Flite

vacuum for shipping damage. Each unit is tested and thoroughly inspected prior to shipping.

If damage is discovered, immediately notify the transportation company that delivered your

machine and request an inspection. As a manufacturer, we are unable to act upon any claim for

concealed damage; you must originate the claim. Be sure to keep the carton, packing inserts,

packing lists, and carrier’s receipt until the inspector has verified your claim.

The Dual Suction System is a lightweight, yet powerful, cleaning system ideal for commercial

use on all types of carpets and floors.

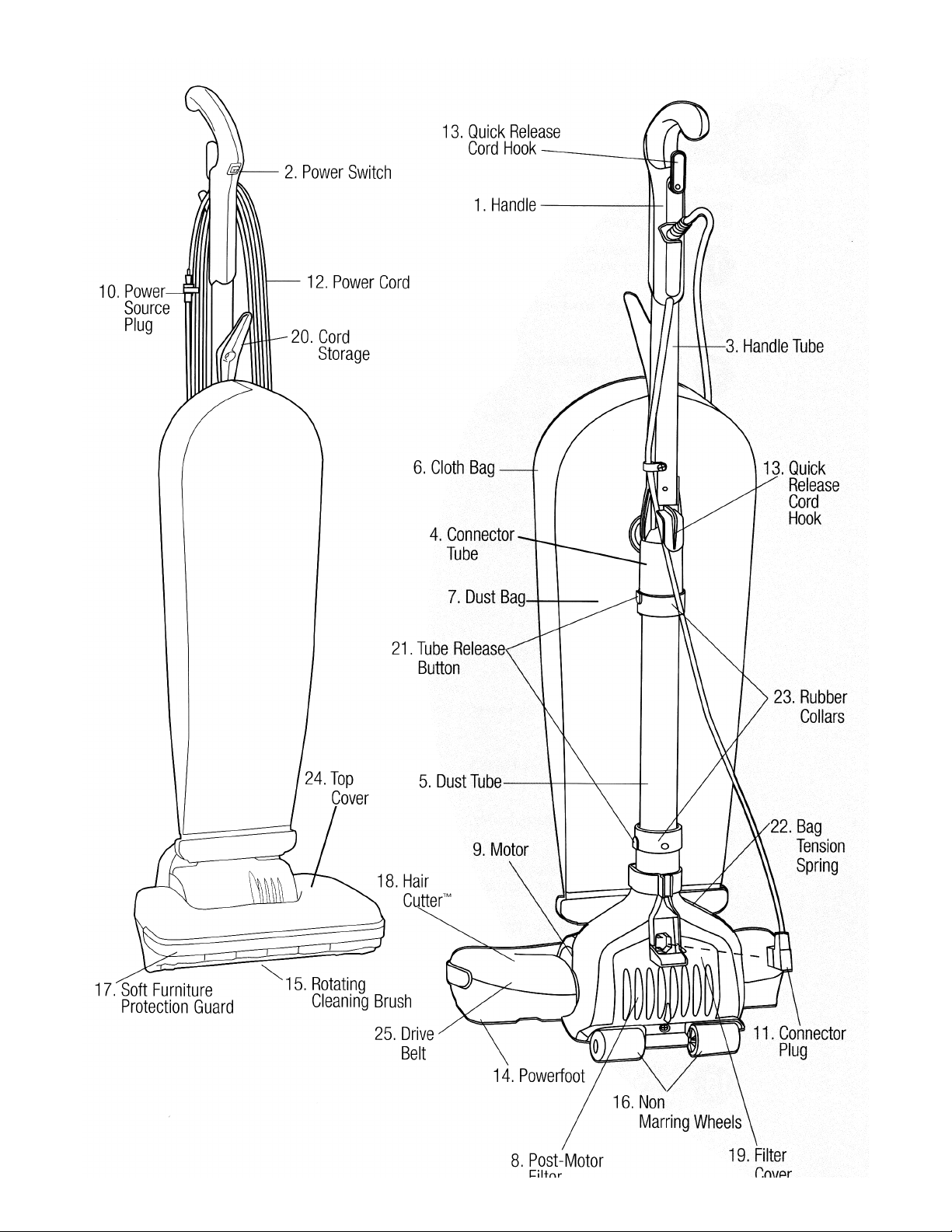

1. Handle – designed for comfort and easy maneuvering.

2. Power Switch – conveniently located in handle.

3. Handle Tube – lightweight, for easy movement and use.

4. Connector Tube – strong lightweight aluminum tube is designed for optimal airflow.

5. Dust Tube – large diameter dust tube designed to minimize clogging.

6. Cloth Bag – durable, reinforced material for years of service.

7. Dust Bag – top loading bag for clean and easy bag change.

8. The Post-Motor Filter – helps to reduce motor emissions.

9. Motor – 6 amps of full cleaning power, saves energy.

10.Power Source Plug – grounded for safe, reliable operation.

11.Connector Plug – for enhanced safety.

12.Power Cord – 50 foot heavy-duty, commercial quality for extended reach.

13.Quick Release Cord Hook – for quick, easy removal of power cord.

14.Powerfoot – twin fan/dual suction design for deeply embedded dirt and superior edge

cleaning.

15.Rotating Cleaning Brush – continuous, rotating dual action for thorough cleaning; white,

non-marring bristles.

16.Non-Marring Wheels – safe for use on bare floors.

17.Soft Furniture Protection Guard – helps protect furniture while vacuuming.

18.Hair Cutter – ensures that any long hair or other fibers are cut and broken down into

lengths that are manageable for the vacuum. This helps to prevent clogs.

19.Filter Cover – easily removes with one screw for easy access to filter.

20.Cord Storage – wrap cord around the back of the unit, or simply hang cord on the front

Cord Storage Hook.

21.Tube Release Buttons – allows for easy access in the unlikely event of the tube clogging.

22.Bag Tension Spring – keeps the bag secure at the base of the bag.

23.Rubber Collars – designed to seal air path at critical connections, preventing loss of

airflow.

24.Top Cover – simply removes with 3 screws allowing for easy belt change.

25.Drive Belt – designed for optimal life and performance.

HOW TO ASSEMBLE

WARNING: Plastic bags or film can be dangerous. To avoid danger of

suffocation, keep away from babies and children.

The dual Suction System is packaged for convenience and requires

minimal assembly. The only tool you will need is a Phillips head

screwdriver.

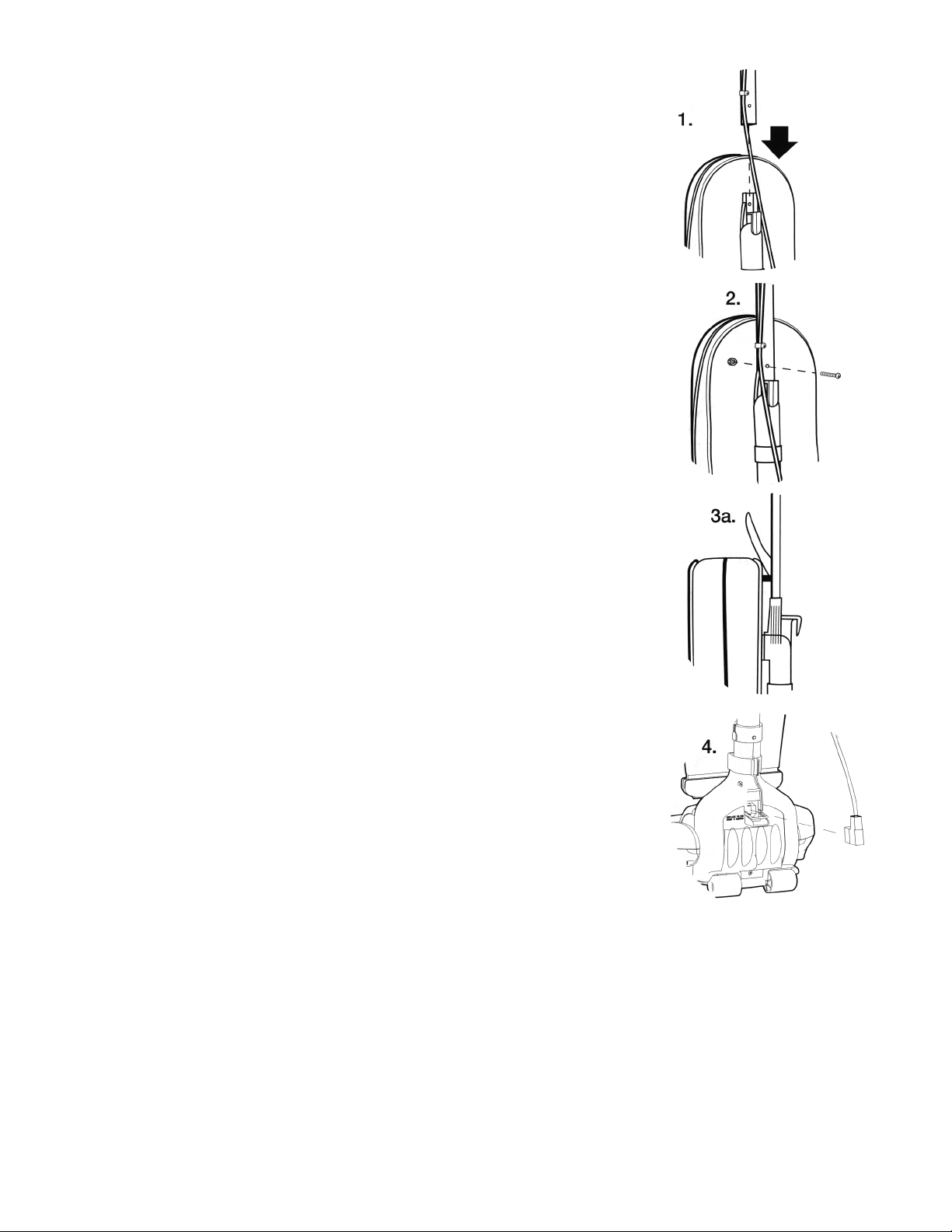

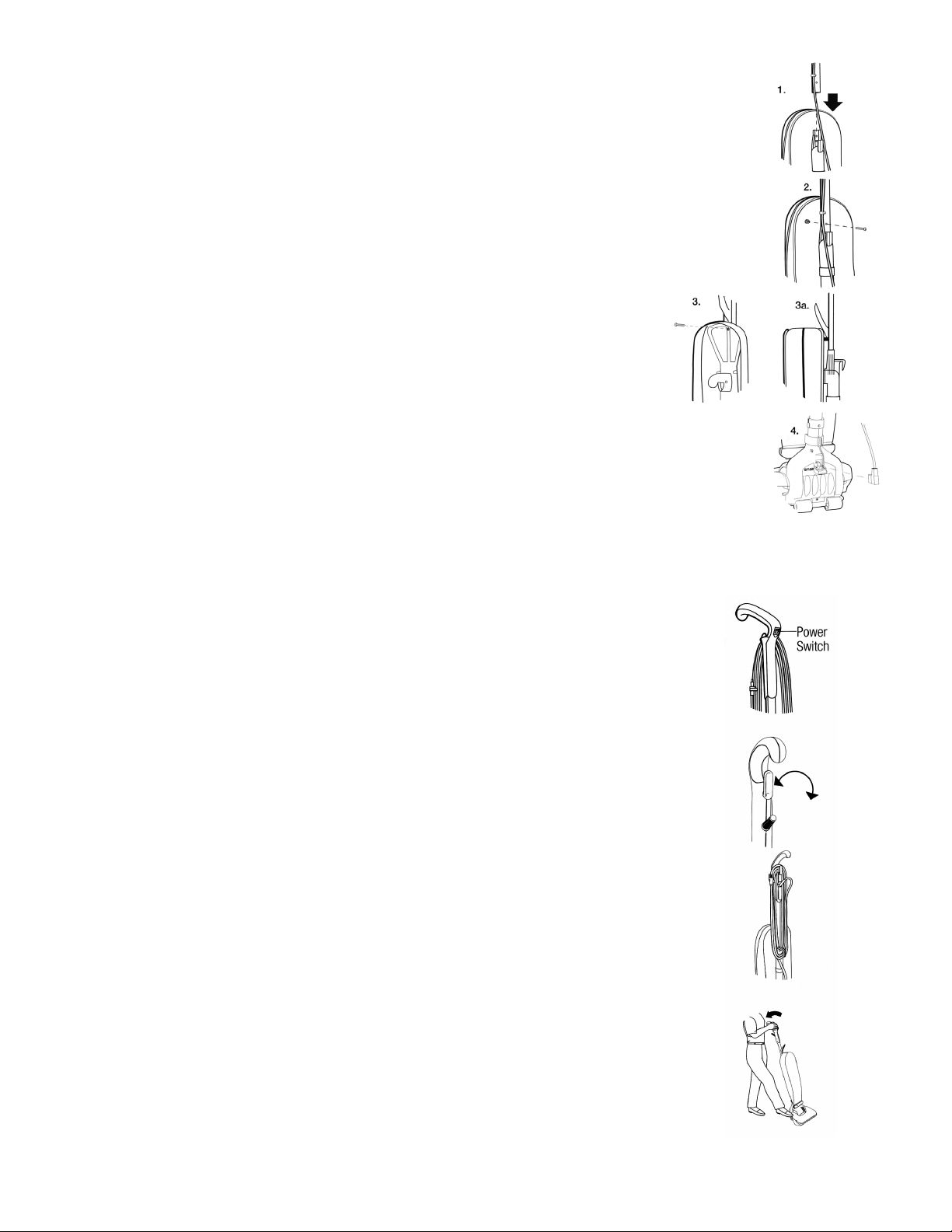

1. Slide the handle Tube into the Connector, aligning the hole in the

Handle Tube with the molded hole at the top of the Connector.

2. Hold the hex nut in front of the Connector in the hex shaped cavity

while inserting the screw with your finger from the back. Tighten

the screw while placing your finger over the hex cavity to hold the

hex nut in place. After a few turns, tighten further with a Phillips

head screwdriver. Do not overtighten.

3. Slide screw through plastic Cord Hook from the inside of Cloth

Bag. Align screw with hole in Handle Tube. Tighten screw.

4. Remove screw from Filter Cover. Remove Filter Cover. Insert

the Connector Plug into the back of the unit at the rear of the

Powerfoot – Make sure the Connector Plug is fully inserted.

Replace Filter Cover. Replace Filter Cover Screw.

Your Vacuum cleaner is now ready to use.

USE

Tip. Before cleaning under low furniture, always check area first for

objects that might harm the Rotating Cleaning Brush or get caught in

the Dust Tube.

Power Supply

The Power Cord is stored at the back of the vacuum cleaner, and is

looped around the Quick Release Cord Hooks. The polarized Power

Source Plug is designed to attach to the Power Cord during storage.

Before using, make sure the Connector Plug is securely attached

to the Powerfoot and that the Power Source Plug is plugged into a

polarized outlet.

Power Switch

The Power Switch is located in the Handle of the cleaner. Push down

(I) to turn ON. Push up (O ) to turn OFF.

Power Cord Storage

When you are finished using your vacuum, return it to the upright

position. Make sure the vacuum is turned OFF. Always unplug the

vacuum by grasping the Power Source Plug (NOT the Power Cord)

and disconnecting from the outlet. Properly store the Power Cord by

winding the cord around the Quick Release Cord Hooks on the back

of the vacuum in a continuous loop, or by hanging the cord on the

Cord Storage Hook located on the front of the vacuum. Attach the

Power Source Plug to the Power Cord.

Operation

This vacuum, with Dual Suction System, is designed to effectively and

safely clean all types of carpeting, wood, linoleum, and vinyl floors.

Its wide 14-inch Powerfoot makes cleaning quick and easy.

To place the vacuum in position for use, lightly press your foot on the

Powerfoot and tip the Handle backwards.

Routine Maintenance

For maximum performance from your vacuum, check and maintain

vacuum parts regularly.

Replacing the Dust Bag

Check the Dust Bag weekly. Replace the Dust Bag when it is near full

or when cleaning suction diminishes. Never reuse a Dust Bag.

WARNING: To avoid electrical shock or injury from moving parts,

always turn OFF the Power Switch and unplug the Power Source Plug

before performing maintenance or trouble shooting. Always unplug by

grasping the Power Source Plug; NEVER pulling on the Power Cord to

unplug.

Tip: Vacuuming new carpet or vacuuming fine powders may clog the

Dust Bag. Check Dust bag often.

Unplug vacuum by grasping and pulling on the Power Source Plug.

Unzip Cloth Bag. Remove collar retainer by pressing on the two tabs

and pulling the top towards you. Dispose of Dust Bag.

Slide collar of new Dust Bag completely into collar retainer. Push

collar retainer back into position and secure in place.

Tuck the remainder of the Dust Bag completely inside the Cloth Bag.

Make sure it lays flat, top to bottom, without bunching. Zip Cloth

Bag.

Cleaning the Dust Tube

The vacuum features a Dust Tube designed to optimize cleaning

power. For best performance, routinely check and clear excess dust

and other debris.

Note: Cover floor with newspaper to catch any loose material or dust

removed during cleaning.

Release Bag Tension Spring.

Remove Filter Cover screw and then remove Filter Cover. Unplug

Connector Plug.

Locate the Tube Release Button at the top of the Powerfoot. The

Tube Release Button is hidden under a Rubber Collar on the side of

the Dust Tube and can be pressed through the Rubber Collar. Lift off

the Dust Tube while pressing on the Tube Release Button.

Use a wire brush to clean out the inside of the Dust Tube and the top section of the Powerfoot

where they connect.

Reconnect the tube with the Powerfoot. It should snap into place. Make sure that the tube

release button on the Tube lines up with the Tube Release Button on the Rubber Collar.

Plug the Connector Plug back into base of vacuum.

WARNING: To avoid electrical shock or injury from moving parts, always turn OFF the Power

Switch and unplug the Power Source Plug before performing maintenance or trouble shooting.

Always unplug by grasping the Power Source Plug; NEVER pulling on the Power Cord to unplug.

Cleaning the Filter

The Post-Motor Filter is located in the Powerfoot of your vacuum

cleaner. It should be checked often, and cleaned when the Post-

Motor Filter becomes dirty.

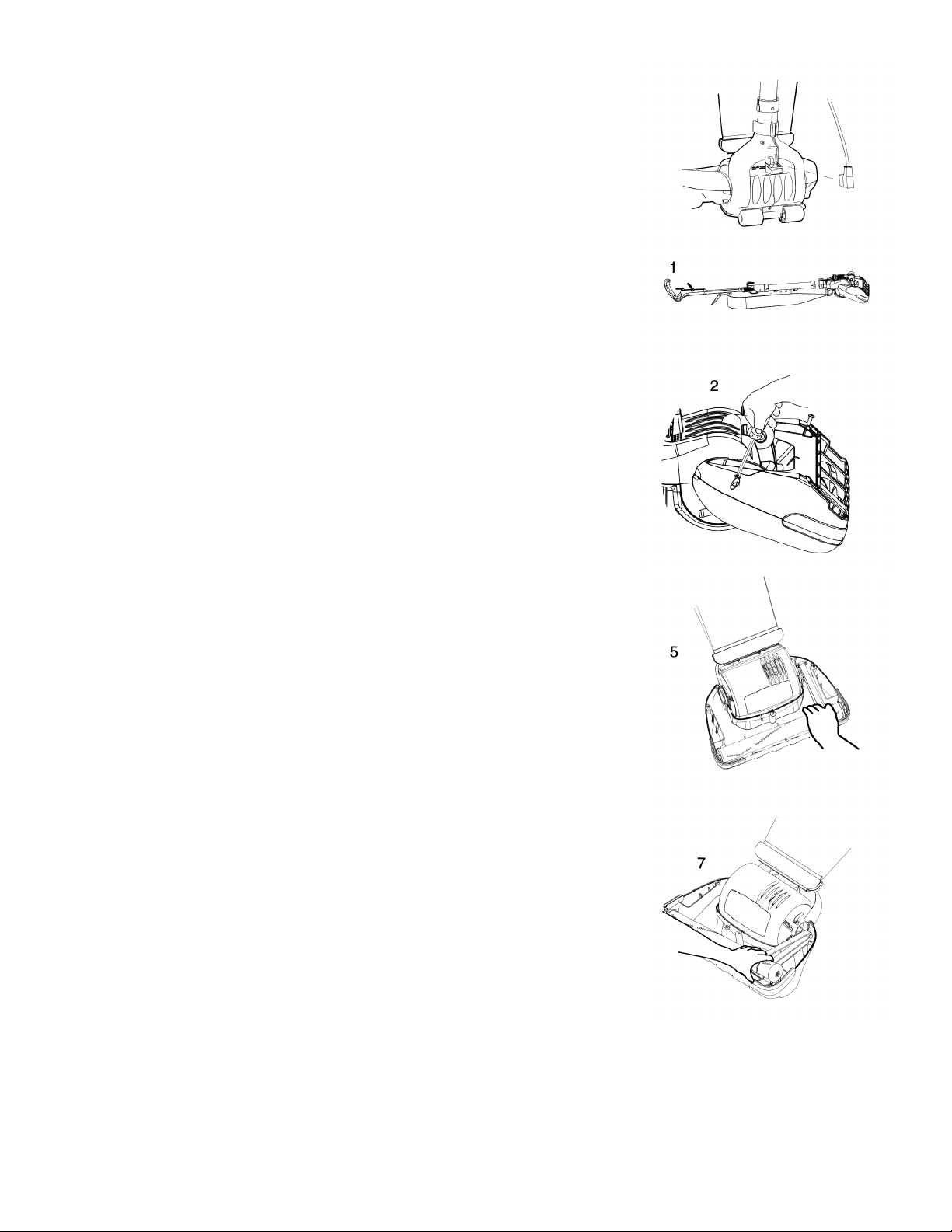

1. To Clean Post-Motor Filter, remove the filter cover screw with a

Phillips head screwdriver.

2. Lift out Filter Cover.

3. Remove Post-Motor-Filter and wash with mild soap and water.

Dry thoroughly.

4. Reinstall clean and dried Post-Motor filter.

5. Replace Filter Cover by sliding in the two tabs at the top of the

Filter Cover and centering over the screw hole.

6. Replace screw.

Cleaning the Rotating Cleaning

Brush/Replacing the Drive Belt

Check the Rotating Cleaning Brush and Drive Belt regularly for

wear or damage. Keep the Rotating Cleaning Brush ends free of

string, hair, and carpet fibers. These can become entangled and

reduce the vacuum’s cleaning effectiveness.

NOTE: The Rotating Cleaning Brush can most often be cleaned

without removal from the vacuum. If there is an excessive amount

of hair and debris, remove the Rotating Cleaning Brush for proper

cleaning.

1. Unplug the vacuum and turn face down on a flat surface.

2. Remove all 3 screws from the bottom of the Powerfoot.

3. Grip both the Top Cover and base while turning unit back over.

Lift off Top Cover.

4. Check Drive Belt. If it is broken or damaged, remove Rotating

Cleaning Brush and replace Drive Belt.

5. To remove the Rotating Cleaning Brush, pull the right side of

the Rotating Cleaning Brush toward the front of the Powerfoot

as you lift slowly.

6. Clean off Rotating Cleaning Brush as necessary.

WARNING: To avoid electrical shock or injury from moving parts,

always turn OFF the Power Switch and unplug the Power Source

Plug before performing maintenance or trouble shooting. Always

unplug by grasping the Power Source Plug; NEVER pulling on the

Power Cord to unplug.

MAINTENANCE

TROUBLESHOOTING

7. Place existing or new Drive Belt over Rotating Cleaning Brush and the motor shaft. Insert the

end cap pin on the left of the Rotating Cleaning Brush into the slot on the Powerfoot and slide

the end cap pin on the right end of the Rotating Cleaning Brush in to the slot in the Powerfoot

and lower until it clicks into place.

8. Make sure the Furniture Protection Guard is still intact.

9. Align the 3 tabs on the Top Cover with the 3 slots in the Powerfoot. Press into place, making

sure the Furniture Protection Guard is on the outside.

10. Grip both the top cover and bag while turning the vacuum cleaner face down.

11. Reinstall the 3 screws beginning with the center screw.

Vacuum cleaner won’t run.

Possible Causes Remedies

Vacuum Cleaner is not plugged in Check power Source Plug and Connector Plug

Household fuse/circuit breaker tripped Check/replace fuse – Reset breaker

Vacuum cleaner won’t pick up dirt.

Possible Causes Remedies

Dust Bag is full Replace with new Dust Bag

Drive Belt not functioning Realign Drive Belt or replace if damaged

Rotating Cleaning Brush bristles worn Replace Rotating Cleaning Brush

Rotating Cleaning Brush jammed Remove Rotating Cleaning Brush and clean debris

from brush ends; Reinstall Drive Belt

Dust Tube is clogged Clean Dust Tube

Accumulation of dust inside Cloth Bag

Possible Cause Remedies

Dust Bag is clogged or dirty Replace with new Dust Bag

Dust Bag collar retainer not secure Secure Dust Bag collar retainer

Inlet clogged Shake dust down to bottom of Dust Bag.

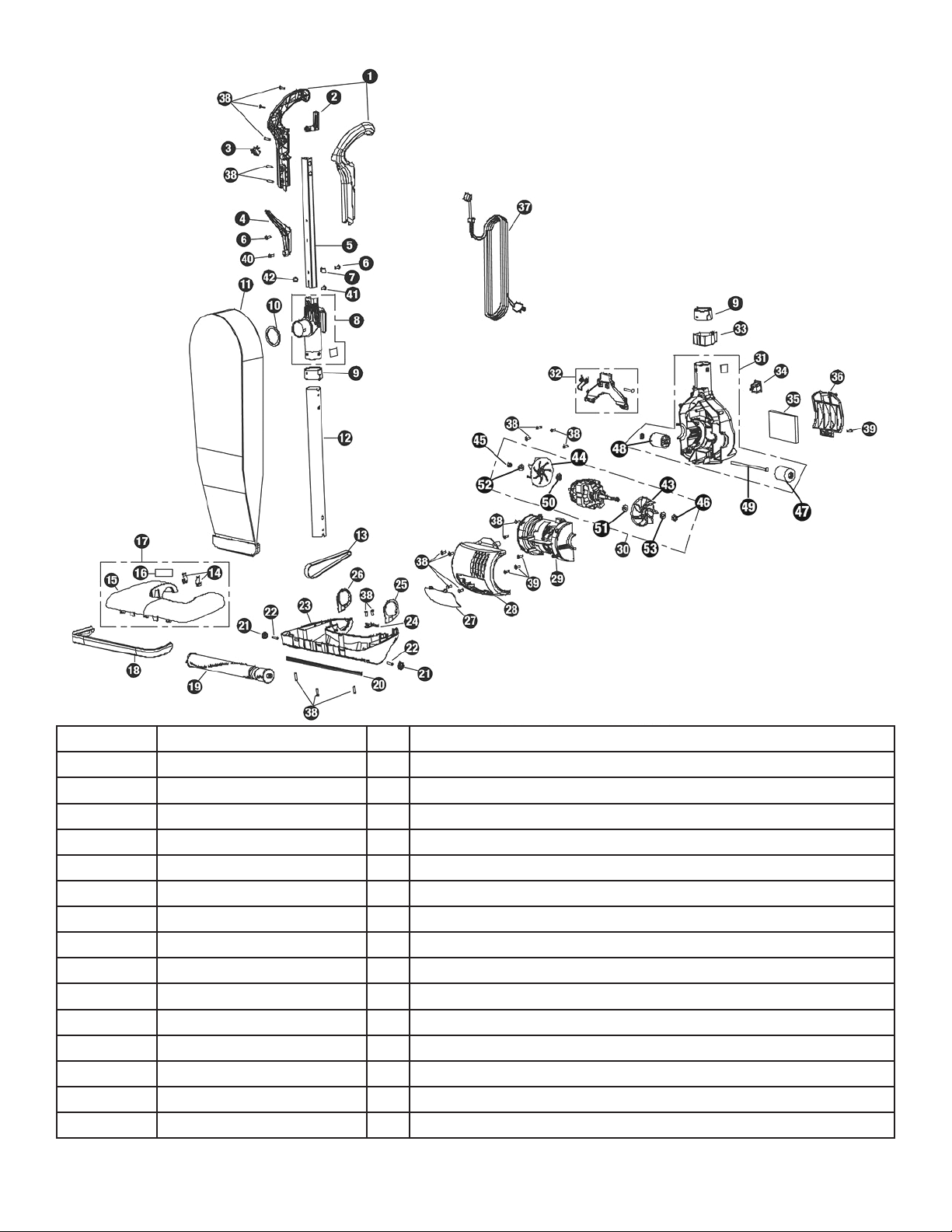

No. Part No. Qty Description

1 C431-4400C 1 Handle Assembly

2 B431-4814 1 Upper Cord Hook

3 A428-2014 1 Main Switch Handle

4 B431-4914 1 Cord Hook Commercial

5 B431-4700B 1 Handle Tube Rectangular

6 A090-0200 1 Screw

7 A090-0100 1 Cable Clamp

8 D431-4300 1 Upper Duct Diverter & Bag Mount Assembly

9 B431-4214 1 Rubber Collar

10 B211-4414B 1 Bag Mount Foam Gasket

11 D431-0700 1 Zippered Cloth Bag

12 B431-4000 1 Duct Tube

13 B014-0814B 1 Belt

14 B016-1400B 1 Upright Stops w/Spring Clips

15 B017-6369B 1 Nozzle Cover

Inhaltsverzeichnis

Andere Powr-Flite Staubsauger Handbücher

Powr-Flite

Powr-Flite PF300BP Bedienungsanleitung

Powr-Flite

Powr-Flite PF600BP Bedienungsanleitung

Powr-Flite

Powr-Flite PF50 Bedienungsanleitung

Powr-Flite

Powr-Flite PF60EC Bedienungsanleitung

Powr-Flite

Powr-Flite Comfort Pro FREEDOM CPF6 Series Installations- und Betriebshandbuch

Powr-Flite

Powr-Flite PF2030 Bedienungsanleitung

Powr-Flite

Powr-Flite Solar Reach PV090-W12-U Bedienungsanleitung

Powr-Flite

Powr-Flite Solar Upright PV030-W12-U Bedienungsanleitung

Powr-Flite

Powr-Flite Comfort Pro series Montage- und Wartungsanleitung

Powr-Flite

Powr-Flite PF50DC Bedienungsanleitung

Powr-Flite

Powr-Flite PF51 Bedienungsanleitung

Powr-Flite

Powr-Flite PF82HF Bedienungsanleitung

Powr-Flite

Powr-Flite PF712VC Bedienungsanleitung

Powr-Flite

Powr-Flite PF58 Bedienungsanleitung

Powr-Flite

Powr-Flite PF 2030 Bedienungsanleitung

Powr-Flite

Powr-Flite PF56 Bedienungsanleitung

Powr-Flite

Powr-Flite PF18 Bedienungsanleitung

Powr-Flite

Powr-Flite Newton Bedienungsanleitung

Powr-Flite

Powr-Flite BP4S-1 series Montage- und Wartungsanleitung

Powr-Flite

Powr-Flite PF20BP Bedienungsanleitung

Powr-Flite

Powr-Flite BP6 Series Bedienungsanleitung

Powr-Flite

Powr-Flite PF28SV Installations- und Betriebshandbuch

Powr-Flite

Powr-Flite PF25 Leitfaden

Powr-Flite

Powr-Flite PF90 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
