Powr-Flite PS35 Bedienungsanleitung

Save These Instructions

X8721 6/2004

Commercial Spotter

Model number PS35

OPERATING INSTRUCTIONS

COMMERCIAL AND HOUSEHOLD

SPOTTER/EXTRACTOR

CONGRATULATIONS

YOU HAVE JUST ACQUIRED A HIGH QUALITY COMMERCIAL

SPOTTER. PLEASE READ THIS MANUAL CAREFULLY,

BEFORE OPERATING YOUR NEW COMMERCIAL SPOTTER.

KEEP MANUAL ON HAND FOR FURTHER REFERENCES.

– 3 –

*When using a commercial spotter, basic precautions should be followed, including the following: *Read all instructions before

using this commercial spotter.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

To reduce risk of fire, electric shock, or injury:

• Do not use outdoors or on wet surfaces.

• Do not leave commercial spotter unattended when plugged in. Turn off the switch and unplug the electrical cord when

not in use and before servicing.

• Do not allow to be used as a toy. Close attention is necessary when used near children.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug. If commercial spotter is not working as it should, has been dropped, damaged,

left outdoors, or dropped into water, return it to a service center before using.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull a cord around sharp edges or

corners. Do not run commercial spotter over cord. Keep cord away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Turn off all controls before unplugging.

• Do not handle plug or commercial spotter with wet hands.

• Do not put any objects into openings. Do not use with any opening blocked, keep free of dust, lint, hair, and anything

that may reduce airflow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes. Use extra care when

cleaning on stairs. Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where

they may be present.

• Store your commercial spotter indoors in a cool, dry area.

• Do not unplug by pulling on cord. To unplug, grasp the plug, NOT THE CORD.

THESE MODELS ARE GROUNDED, CONNECT TO A PROPERLY GROUNDED OUTLET ONLY - SEE GROUNDING INSTRUCTIONS.

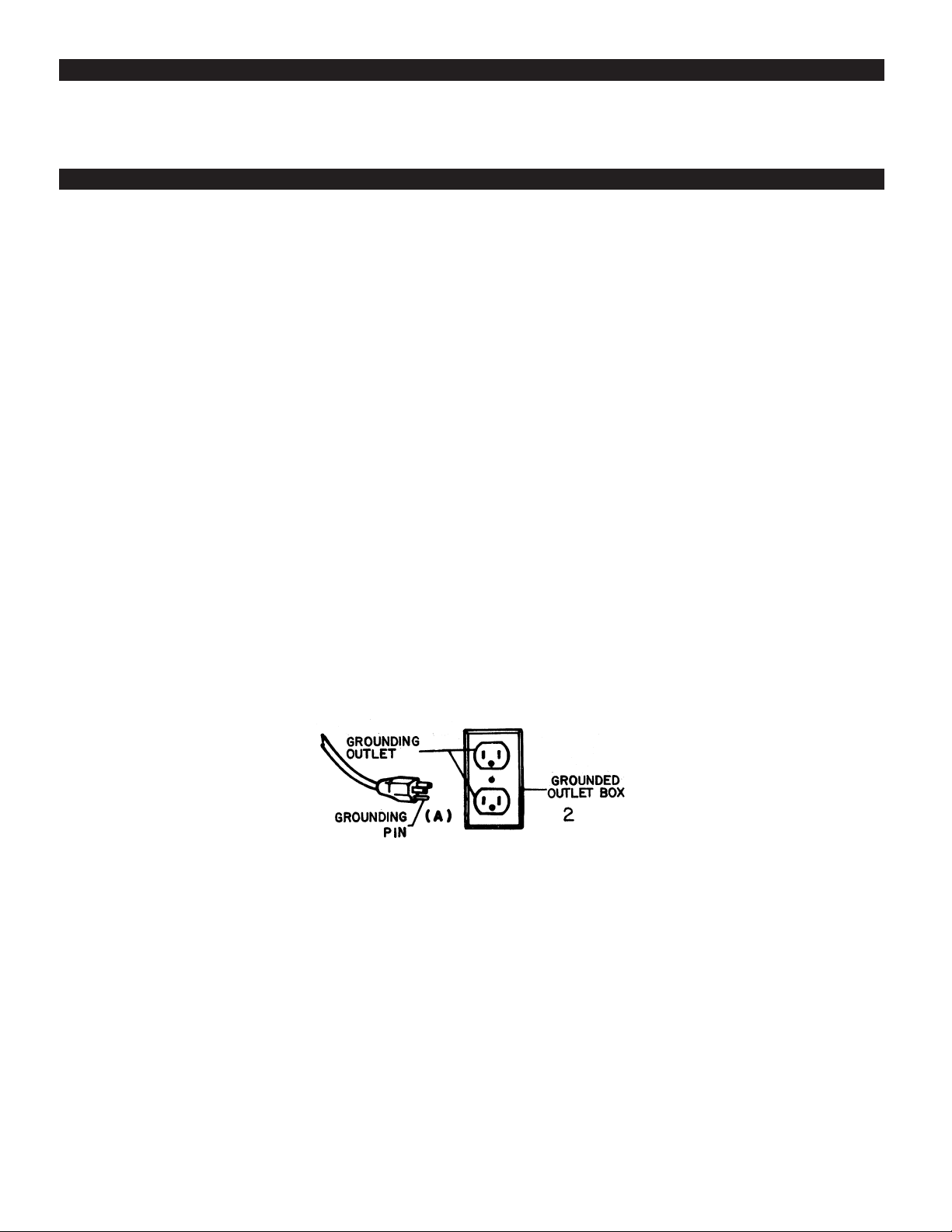

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for elec-

tric current to reduce the risk of shock. This appliance is equipped with a cord having an equipment-grounding conductor and

grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a

qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug

provided with the appliance - if the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a normal 120 volt circuit, and has a grounded plug that looks like the plug illustrated in sketch A.

Note: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

– 4 –

Operating Instructions for PS35 Commercial Spotter

WARRANTY

To protect your investment, promptly

fill in the required information on the

warranty card included with the unit. Then mail the

card back.

WHEN THE MACHINE IS DELIVERED…

BEFORE USING THE MACHINE

GENERAL PRECAUTIONS

Read the manual carefully and completely

before attempting to operate the unit. This manual

has important information for the use and safe

operation of this machine. Keep this manual

handy at all times. The commercial spotter will

provide years of satisfactory service if operated

and maintained according to recommendations in

the manual.

Follow these guidelines to ensure operator

safety and to maintain equipment in running

order.

■Make sure the machine is plugged into an

electrical outlet with the same voltage rating as

WARNING

■ Do not expose the machine to freezing tempera-

tures.

■ Do not use the machine for totally dry vacuum-

ing. This machine is not fitted with a fine dust

filter.

■ Do not use citrus-based cleaners in this machine.

■ Do not use cleaning chemicals in this machine

except those recommended for commercial

extraction equipment. The use of any chemical

with abrasive additives voids the warranty.

■ Do not break off or pull out the ground prong on

the plug.

■ Do not attempt repair on a warranted machine

unless instructions to perform it by an authorized

shop are obtained from the factory.

■ Do not use any replacement parts except those

specified on the parts list. Proper performance of

the machine could be affected if substitutions are

made.

■ Use defoamer at all times to prevent damaging

the vacuum motor.

■ Do not use water in excess of 140° F (62° C).

Failure to comply with the above warning

instructions will void the warranty.

shown on the nameplate of the machine.

Do not attempt to plug a 115 volt machine into

a 230 volt outlet or a 230 volt machine into a

115 volt outlet.

■Disconnect the power cord from the outlet before

attempting maintenance or repair work.

■Do not leave machine connected to an electrical

outlet when unattended.

■Never pull the machine by the cord or yank the

cord from the receptacle. Replace a damaged

cord immediately.

■If an extension cord is necessary, use a three

conductor grounding cord – 12 gauge wire or

heavier to prevent motor burnout and

over-heating of wires.

■To avoid electric shock, do not expose to rain.

Store indoors.

■To avoid fire, do not use machine in environ-

ments where combustible liquids, vapors or dust

concentrations are present.

Check the carton carefully for signs of rough han-

dling. Remove the machine from the carton. If the

machine is damaged, notify the carrier immediately

and request an inspection. Be sure to keep the car-

ton, packing inserts, packing lists and carrier

receipt until the inspector has verified your claim.

Liability ceases when the shipment is picked up by

the carrier, but our customer service staff will be

glad to furnish any information needed in connec-

tion with the claim and will expedite the repair of

the machine.

– 5 –

Operating Instructions for PS35 Commercial Spotter

Basic Troubleshooting:

A. If the pump does not prime, depress the lever on the hand tool to release the air lock.

B. If solution flow is reduced or spray is weak:

1. Check for low solution level in the solution tank.

2. Check the screen on the hose in the solution tank for blockage.

3. Check the spray jet in the hand tool for blockage.

If suction is low:

1. Check the recovery tank to see if it is full.

2. Check for blockage in the hand tool or the hose.

3. Add defoamer to recovery tank.

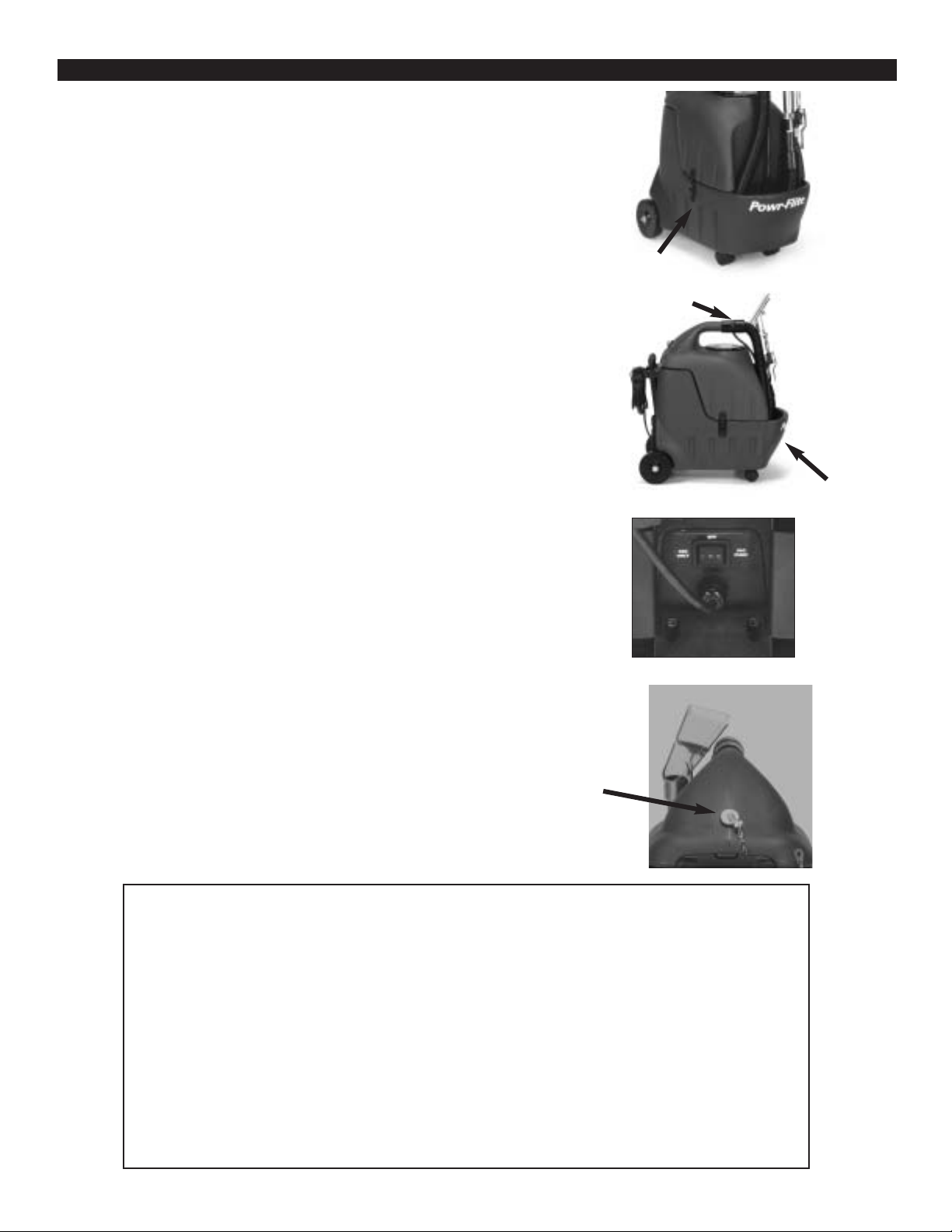

Filling the Spotter

Disconnect the solution and recovery tanks. Add water and or chemi-

cals to the lower solution tank. The tank will hold up to 3.5 gallons.

Operating the Spotter

A. Attach the solution feed line to the quick disconnect at the

bottom of the machine.

B. Attach the vacuum hose to the vacuum inlet (handle) above

the recovery tank lid.

C. Turn the 3-way switch to use either the pump and

vacuum or the vacuum alone.

(Allow approximately 30 seconds for the pump to prime.)

D. Use the hand tool to spray and recover the solution.

E. The float shut-off will disable the suction of the unit

when the recovery tank is full. The operator will notice a

distinctive change in the sound of the vacuum motor when

the shut-off is activated. Empty the recovery tank to

resume cleaning.

Emptying the Recovery Tank

A. Disconnect the solution line and vacuum hose.

B. Unlatch the recovery tank from the base of the unit and remove.

C. Remove the drain plug.

D. Drain tank over suitable outlet for wastewater.

E. Rinse tank after each use.

Disconnect tanks

Attach vacuum hose

Drain plug

Attach solution hose

3-way switch

– 6 –

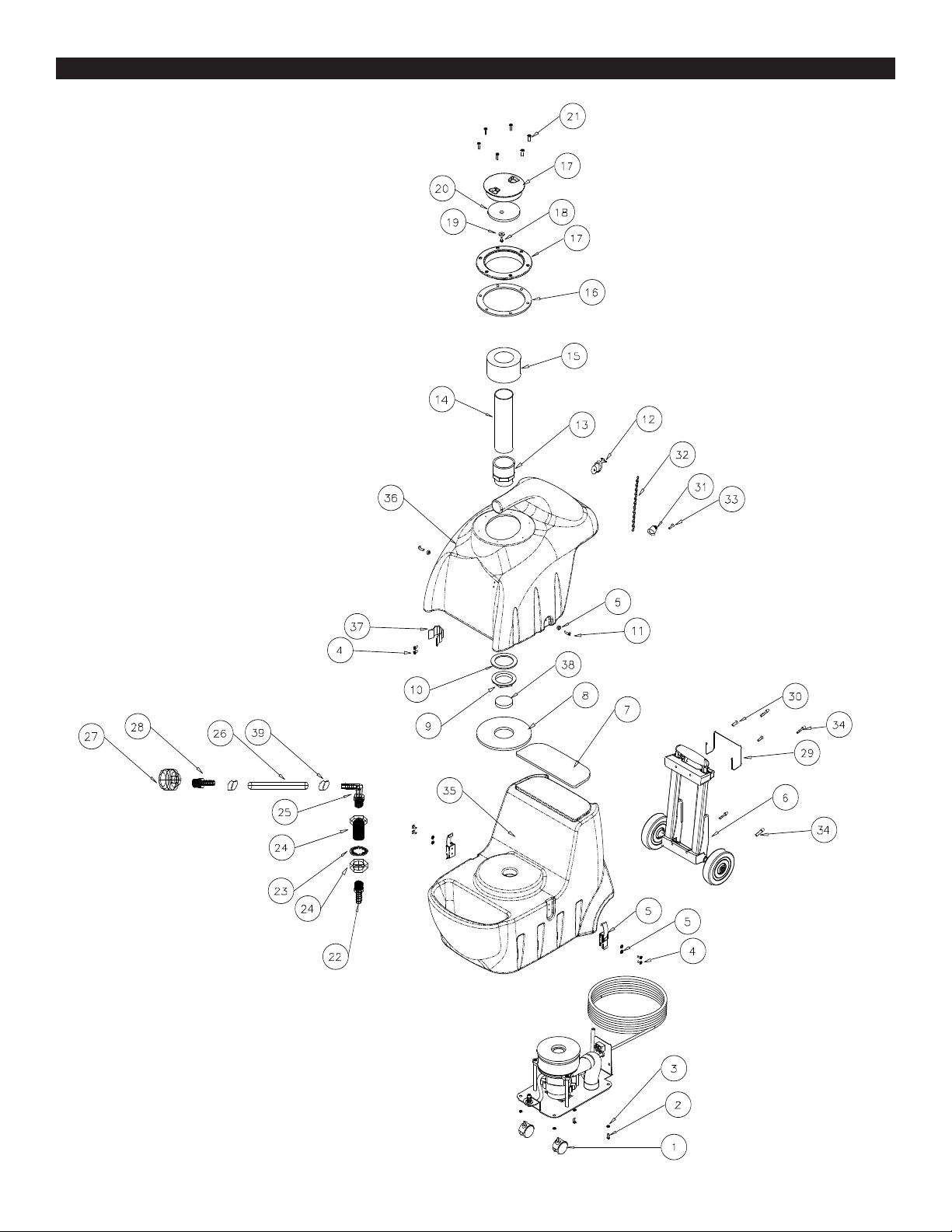

Parts Diagram

– 7 –

Parts List

ref. # order # description

1X9047 CASTER SWIVEL 45MM

2 7BS003 SCREW 1/4-20 X 1/2" PHIL. STAINLESS STEEL

3 X8212 WASHER 1/4 MED SPLIT LOCK ZINC

4 X8262 SCREW, 8-32 X 1/4", THPH, BLACK

5 X9059 LATCH OVER CENTER W/ KEEPER

6 X8990 HANDLE / WHEEL ASSEMBLY

7 X9064 GASKET SOLUTION TANK

8 X9079 GASKET DONUT 3/8" THICK

9 PX46 NUT, LOCK, DIE CAST, 1-1/2"

10 PX14A DAMP VALVE GASKET 1-1/2" THIN

11 X8278 SCREW 8-32 X 1/2" PAN HEAD PHILLIPS

12 X9073 PLUG 7/8" X 1-1/16" SNAP-TITE

13 X9076 BULKHEAD 1-1/2" MPT X 1-1/2"

14 X9082 1-1/2" PVC SCHEDULE 40 PIPE

15 X9062 FLOAT RING VACUUM SHUT-OFF

16 PX103AG GASKET, LID, 6" O.D. X 4.6" I.D.

17 PX103A LID 4" CLEAR W/ BLACK RING

18 X9087 WASHER #6 X 5/8 SAE FLAT 55

19 X9088 SCREW 8-18 X 1/2 PAN HD PHIL SS

20 X9061 SHUT-OFF DISK

21 X8295 SCREW #8 X 3/4" PHILLIPS FLAT TS

22 PC66 FITTING 1/8" NPTM X 1/4 HOSE BARB

ref. # order # description

23 72115A WASHER 5/8" X 1-3/16" NEOPRENE BOND

24 7AJ004 ANCHOR CONECTOR 1/8"

25 7AT006 FITTING ELBOW 90 DEGREE 1/4-1/8

26 71817A HOSE 1/4" BRAIDED

27 PX30 FILTER, MESH SCREEN

28 PX213 FITTING 1/4 NPTM X 1/4 HOSE BARB

29 X9072 CORD HOOK

30 X8270 SCREW 10-24 X 1/2"

31 X9069 END LOOP STAINLESS STEEL W/ TWO HOLES

32 X9068 12" STAINLESS STEEL JACK CHAIN

33 X8849 SCREW, 8-18 X 1/2" PHILLIPS PAN

34 X9065 SCREW 1/4-20 X 1" SHCS

35 SP101BLU SOLUTION TANK

36 SP102BLU RECOVERY TANK

37 72173A CLIP, SPRING, BLACK VINYL COATED

38 PX209 FILTER, FOAM, 1-1/2" O.D. X 1/2" THICK

39 7DL003 CLAMP 1/4" WORM GEAR STAINLESS STEEL

Not Illustrated

X9058 HOSE ASSEMBLY STRETCH 10 FT

AA195 HAND TOOL, DETAILER ASSEMBLY 1-1/2"

X8962 LABEL

ref. # order # description

1 X9046 BASE PLATE WELDMENT SPOTTER

27CM004 WASHER 3/8" FLATSTAINLESS STEEL

37AT006 BARB ELBOW (90) 1/4-1/8 BRASS

4 71817A HOSE 1/4" BRAIDED

5X8212 WASHER 1/4 MED SPLIT LOCK ZINC

6X8291 CAP SVREW 1/4-20 X 5-1/2" ZINC

7 PD8 STRAIN RELIEF 1/2" NPT

8 X9048 SWITCH ROCKER SPOTTER

9 M1408 POWER CORD, 18/3 X 15'

10 7DL003 CLAMP 1/4" WORM GEAR STAINLESS STEEL

11 PX214 FITTING NYLON, 90 DEG. ELBOW

12 PX204 MOUNT, FLOJET PUMP

, SPOTTER

13 FJ5082 PUMP, OSCILLATING, FLOJET

14 71817A HOSE 1/4" BRAIDED

15 X8271 NUT 10-24 W/ NYLON INSERT

ref. # order # description

16 PC66 FITTING, 1/8 NPTM X 1/4 HOSE BARB

17 X8237 NUT, 1/4-20, LOCK NYLON INSERT

18 X9078 VACUUM MOTOR GASKET

19 X9060 SCREEN VACUUM MOTOR

20 1942-IE MOTOR, VACUUM, IMPERIAL ELECTRIC

21 7CZ001 1-1/2" WIRE REINFORCED HOSE

22 X9045 MOUNTING POST VACUUM MOTOR

23 PC10 MALE QUICK DISCONNECT

24 X8270 SCREW 10-24 X 1/2" PHILLIPS TRUSS HEAD

25 X8214 NUT SPEED 1/4-20 U TYPE CLIP

26 X8293 WASHER NYLON .50 ID X .75 OD X .13 THK.

Not Illustrated

X8284 SCREW 8-32 X 3/8 PHIL PANTCS

X8008N NUT 1/2" CONDUIT

PX215 CLAMP 2-1/2" WORM GEAR S.S.

X8497B SWITCH LABEL 2.5" X 1.5"

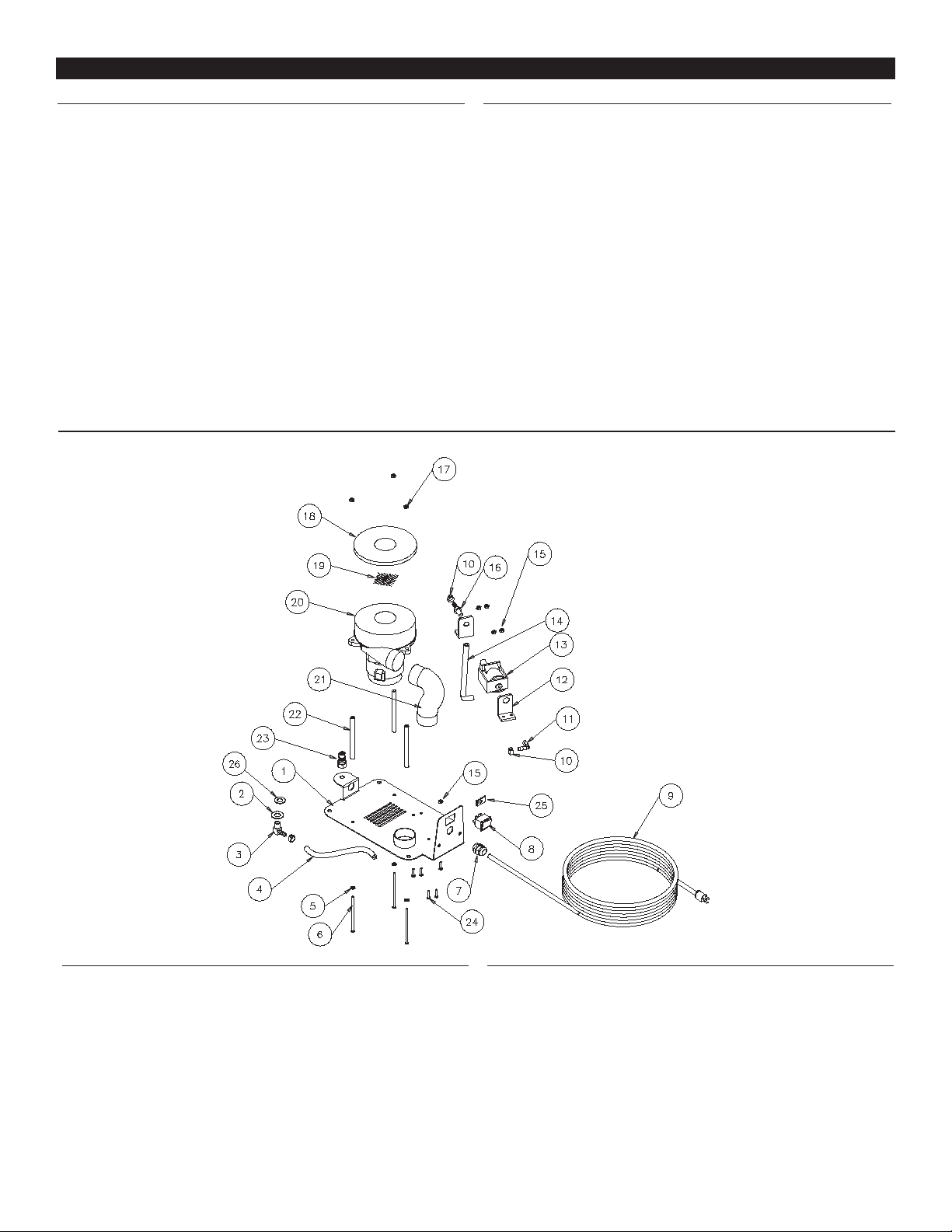

Motor Assembly

3101 Wichita Court • Fort Worth, Texas 76140-1710

Call Toll-Free (800) 880-2913 • Fax (817) 551-0719

Inhaltsverzeichnis

Andere Powr-Flite Staubsauger Handbücher

Powr-Flite

Powr-Flite Solar Upright PV030-W12-U Bedienungsanleitung

Powr-Flite

Powr-Flite BP4S-1 series Montage- und Wartungsanleitung

Powr-Flite

Powr-Flite Solar Reach PV090-W12-U Bedienungsanleitung

Powr-Flite

Powr-Flite PF28SV Installations- und Betriebshandbuch

Powr-Flite

Powr-Flite PF60EC Bedienungsanleitung

Powr-Flite

Powr-Flite PF55HM Bedienungsanleitung

Powr-Flite

Powr-Flite Comfort Pro FREEDOM CPF6 Series Installations- und Betriebshandbuch

Powr-Flite

Powr-Flite PF600BP Bedienungsanleitung

Powr-Flite

Powr-Flite PF56 Bedienungsanleitung

Powr-Flite

Powr-Flite Borelli Dual Pro Bedienungsanleitung

Powr-Flite

Powr-Flite Rigel Pro Bedienungsanleitung

Powr-Flite

Powr-Flite PF99 Montage- und Wartungsanleitung

Powr-Flite

Powr-Flite PF90 Bedienungsanleitung

Powr-Flite

Powr-Flite PF62EC Bedienungsanleitung

Powr-Flite

Powr-Flite PF50DC Bedienungsanleitung

Powr-Flite

Powr-Flite Comfort Pro series Montage- und Wartungsanleitung

Powr-Flite

Powr-Flite PF300BP Bedienungsanleitung

Powr-Flite

Powr-Flite PF6 Bedienungsanleitung

Powr-Flite

Powr-Flite PF58 Bedienungsanleitung

Powr-Flite

Powr-Flite PF54 Bedienungsanleitung

Powr-Flite

Powr-Flite PF50 Bedienungsanleitung

Powr-Flite

Powr-Flite PF20BP Bedienungsanleitung

Powr-Flite

Powr-Flite PF51 Bedienungsanleitung

Powr-Flite

Powr-Flite PF82HF Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
