Assembly and UseInstructions
Adjustable Weight Bench with Rack
Model # 7861LB-2 / 7861LB-4
• Read all assembly instructions and safety precautions before using this product.
• Reference all safety guidelines and warning labels.
• Consult a qualified trainer or reputable source of instruction to
learn the proper technique for exercise that you will perform.
• Keep this owner’s manual for future reference.
WARNING
For customer service or replacement parts, please call
972-889-9730 Monday through Friday 9am-5pm CST,
visit our website: www.prctz.com or email: help@prctzusa.com
2
Important Safety Instructions
WARNING: To reduce the risk of injury, please read the following
precautions before using this product. PRCTZ assumes no
responsibility for personal injury or property damage sustained by or
through the use of this product
1. It is recommended that the equipment is located in an access
controlled area. It is the owners responsibility to Keep children away
from all equipment
2. Do not use or permit use of any equipment that is damaged, or has
worn or broken parts. For all PRCTZ equipment use only replacement
parts supplied by PRCTZ.
3. Always make sure that all nuts and bolts are tightened prior
to each use.
4. Maintain labels and nameplates - do not remove labels for any
reason. They contain important information.
5. Equipment maintenance - preventative maintenance is the key to
smooth operating equipment. Please ensure that you follow our
maintenance tips to ensure the continued correct function of your
PRCTZ equipment.
6. Before any use, examine all accessories approved for use with the
PRCTZ equipment for damage or wear.
7. Should your PRCTZ equipment appear damaged or worn, do not
attempt to use or repair the equipment yourself.
8. It is the purchaser's responsibility to instruct all users as to the
proper operating procedures of all PRCTZ equipment.
3
Important Safety Instructions
9. Keep children away from all moving parts. Parents must provide
close supervision of children if the equipment is used in the presence
of children.
10. Do not wear loose fitting clothing or jewelery when using the
equipment. It is also recommended that users tie up long hair to avoid
contact with moving parts.
11. Ensure that anyone not using the equipment stays clear of the user,
accessories and moving parts while the machine is in operation.
12. The PRCTZ adjustable weight bench with rack has a maximum user
weight limit of 300 lbs with a static load of up to 620 lbs.
13. Recommended WeightLimit ForEach WorkoutStation:
Leg & Arm Developer: 150 lbs
Incline & Flat Bench: 620 lbs
Squat Rack: 1000 lbs
WARNING: Prior tostarting any exercise program or if you have
sustained an injury, you should consult a physician
4
PRE ASSEMBLY CHECK LIST
Thank you for choosing the PRCTZ Weight bench. We take great pride in
producing this product and hope it will provide many hours of quality
exercise to make you feel better, look better and enjoy life to its fullest. Yes,
it's a proven fact that a regular exercise program can improve your physical
and mental health. Too often, our busy lifestyles limit our time and opportu-
nity to exercise. PRCTZ Weight Bench provides a convenient and simple
method to begin your assault on getting your body in shape and achieving

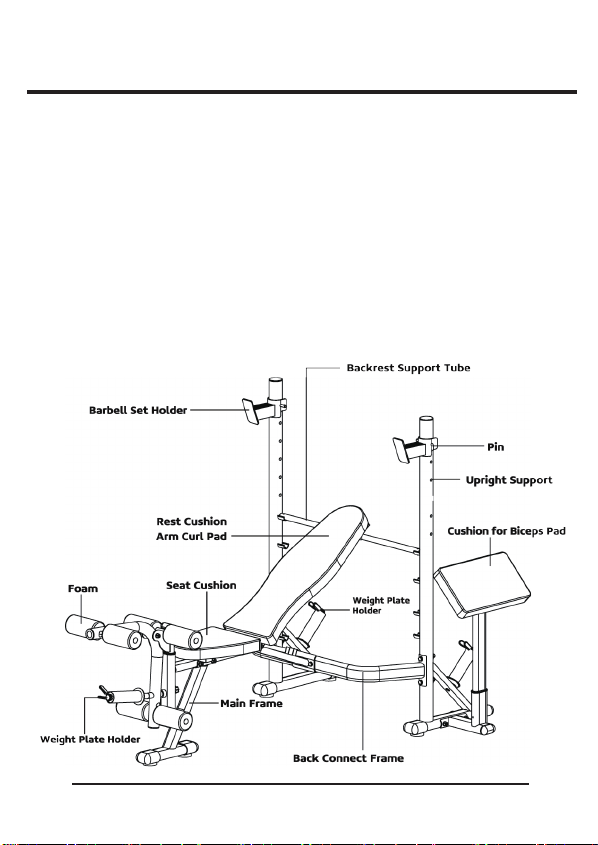

a healthier lifestyle. Before reading further, please review the drawing
below and familiarize yourself with the parts that are labeled.
Read this manual carefully before using the PRCTZ Bench.
5
INSTRUCTION FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging
to make sure all parts are included
6
PARTS LIST
Rear Support Tube (R)
Rear Support Tube (L)
Adjustable Bar
Side Stabilizer Tube
Main Frame
Main Support Tube
Barbell Tube
Front Support Tube
Adjustable Bar forArm
Front Arm
Support for Biceps Pad
Back Pad Tube
Back Pad Support
Support for Barbell
Foam Tube (long)
Foam Tube (short)
Back Pad
Seat
Cushion for Biceps Pad
End Cap 40x80
Rubber
Spring
Foam
Screw M10x155
Screw M10X100
Screw M10x95
1
1
1
1
1
1
2
1
1
1
1
2
1
2
1
2
1
1
1
7
2
3
6
2
2
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
No. QTYDescription
Screw M10x80
Screw M10x85
Screw M10x50
Screw M10x20
Screw M8x40
Screw M8x35
Screw M8x20
Pin ø10x150
Pin ø10x80
Flat Washer M10
Flat Washer M8
Nut M10
Curved Washer M10
Bushing 30x70
Bushing 40x80
End cap 40x80 (B)
Knob
Cap
Bushing ø50
Bushing ø25
Bushing 25x25
Bushing ø60
Bushing 20x40
Leather
Tools
4
1
2
2
4
4
3
1
2
16
11
13
12
1
2
1
1
1
2
11
4
2
4
2
2
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
Sleeve 1
52
Short Sleeve 2
53
No. QTYDescription
7
