9.45, 9.45i Treadmill

Page 1

9.45, 9.45i Treadmill

Warning: This service manual is for use by Precor trained service providers only.

IfyouarenotaPrecorTrainedServicer,youmustnotattempttoserviceanyPrecorProduct;

Call your dealer for service.

This document contains information required to perform the majority of troubleshooting, and

replacement procedures required to repair and maintain this product.

This document contains general product information, software diagnostic procedures (when

available), preventative maintenance procedures, inspection and adjustment procedures,

troubleshooting procedures, replacement procedures and electrical block and wiring diagrams.

To move directly to a procedure, click the appropriate procedure in the bookmark section to the

left of this page. You may “drag” the separator bar between this page and the bookmark section

to change the size of the page being viewed.

Unauthorized Reproduction and Distribution Prohibited By Law

9.45, 9.45i Treadmill

Page 2

Section One - Things you Should Know

About This Appendix

Precor has re-designed the M9.45 treadmill several times. Units with the original design have

serial numbers starting with '1L' and were manufactured between January 24, 1995 and March

25, 1996. The M9.45 treadmill was then redesigned with serial numbers starting with '2P' and

were manufactured between March 26, 1996 and November 15, 1997. The 9.45i uses serial

numbers starting with ‘3Y’ and started in production on November 16, 1997. The 9.45i is the only

version of the 9.45 that is currently in production. This document will refer to the three versions

as follows 9.45 (1Y), 9.45 (2P) and 9.45i (3Y).

Section One, Things You Should Know. This section includes general information and

technical specifications. Read this section, as well as the M9.45 Treadmill Owner’s Manual,

before you perform the maintenance procedures in this manual.

Section Two, Software Features. Precor’s M9.45 Treadmill is programmed with several

diagnostic and setup features. This section contains the procedures you need to access the

diagnostic features on this treadmill.

Section Three, Checking Treadmill Operation. This section provides you with a quick way of

checking treadmill operation. Check treadmill operation at the end of a maintenance procedure

and when it is necessary to ensure that the treadmill is operating properly.

Section Four, Inspection and Adjustment Procedures. Perform inspection procedures when

a trouble symptom points to a particular problem and after removing and replacing major

components. Many maintenance problems can be fixed by adjusting various treadmill

components. This section also provides you with the step-by-step procedures required to make

these adjustments.

Section Five, Troubleshooting Procedures. The diagnostic and troubleshooting procedures

contained in this section should be performed when it is necessary to isolate a problem to a

particular component.

Section Six, Replacement Procedures. When a treadmill component must be replaced, go to

this section and follow the step-by-step procedures required to remove and replace the

component.

Section Seven, Wiring and Block Diagrams. This section includes wiring and block diagrams

for all versions of the 9.45.

General Information

For the latest exploded view, part number and part pricing information, visit the Precor dealer

website at “www.precor.com/Dealer”.

9.45, 9.45i Treadmill

Page 3

Technical Specifications

Physical Specifications

Length: 71 inches or 180 cm (Extended deck treadmills

are 5 inches longer)

Width: Handrails 31.5 inches (80 cm)

Base 28.5 inches (72 cm)

Height: 50 inches (127 cm)

Running surface: 53 inches by 18 inches (135 cm by 46 cm)

Motor: 2 hp continuous duty

Speed: 0.5 to 10 mph (0.8 to 16 kph)

10 mph is equivalent to a 6 minute mile

Incline: -2% to +12% grade

Power: 50/60 Hz 120v AC (dedicated circuit)

50/60 Hz 240v AC (dedicated circuit)

Weight: 265 lbs (119 kg)

Shipping weight: 326 lbs (147 kg)

About The Smart Rate System

The Smart Rate system is the heart rate system mounted in the display housing. The Smart Rate

system receives a heart rate signal from chest strap transmitter worn by the user. Smart Rate

software displays a heart range on green, red and yellow LED's mounted on the upper PCA. The

LED’s indicate whether the heart rate is below, within or above the desired rang.

9.45, 9.45i Treadmill

Page 4

Procedure 2.1 - Accessing the M9.45 (1L or 2P) Treadmill's

Diagnostic Program

Procedure

1. Plug the power cord into the wall outlet, then turn on the treadmill with the circuit breaker.

2. The diagnostic program provide six different routines to aid it testing and trouble diagnosis.

3. On 9.45 (1Y & 2P units), with the PRECOR M9.45 banner scrolling, press and hold ENTER

until the software version number is displayed in the right display windows. On units that

have serial numbers starting with '2P', the part number of the PROM will also be displayed.

4. The first routine is the LED display test. The routine will light every LED on the display as the

test proceeds. It is necessary to watch the display to see if an LED does not light.

5. On 9.45 (1L units) the second routine is the lift test. The lift test takes the lift through each of

the critical lift positions. In doing so it tests the performance of the zero switch, upper limit

switch, lower limit switch and rotation sensor. Press ENTER to continue.

6. On 9.45 (2P) units the second routine is lift calibration. The lift calibration number indicates

the physical position of the lift. As lift is operated the lift calibration number will track the lift’s

physical position. The lift calibration number will be used to initialize the lift. Press the

INCLINE keys while you watch the right display window (see Diagram 2.1). The lift

calibration number increments as the INCLINE ▲ key is pressed and decrements as the

INCLINE ▼key is pressed. Press ENTER to continue.

7. The third routine is the power bits display. Power bits is a number that indicates the amount

of time that power is applied to the drive motor (duty cycle). The power bit number reflects

changes in speed and load. Power bits and running belt speed will; be displayed. Notice that

the power bits number will increase or decrease as speed and/or load is increased or

decreased. The power bit number can be used to determine treadmill loading. Press

ENTER to continue.

8. The fourth routine is the keypad test. Seven dashed lines will appear on the display. Each

dash will correspond to a key on the display. Press each key one at a time, the

corresponding dash will enlargen, indicating the key that was pressed. Use this test to

determine if the keys are functioning properly. Press the INCLINE ▼ and SPEED ▲ keys,

simultaneously to continue.

9. The fourth routine is the safety key test. When the safety key is inserted SAFE ON is

displayed in the right display window. Remove the safety key from the upper display module

while you watch the right display window, SAFE OFF is displayed. Replace the safety key

and press ENTER to continue.

10. The fifth routine is the heart rate test. When a chest strap transmitter or test transmitter is

used, the heart rate will be displayed. Press ENTER to continue.

9.45, 9.45i Treadmill

Page 5

11. The last routine is the circuit breaker trip test. This test checks the ability of the treadmill to

trip the circuit breaker under software control. If the STOP key is pressed and held the trip

signal will be sent to the circuit breaker and the circuit will trip, shutting off the treadmill. If

you do not wish to trip the circuit breaker, press the ENTER key to exit the diagnostic

program.

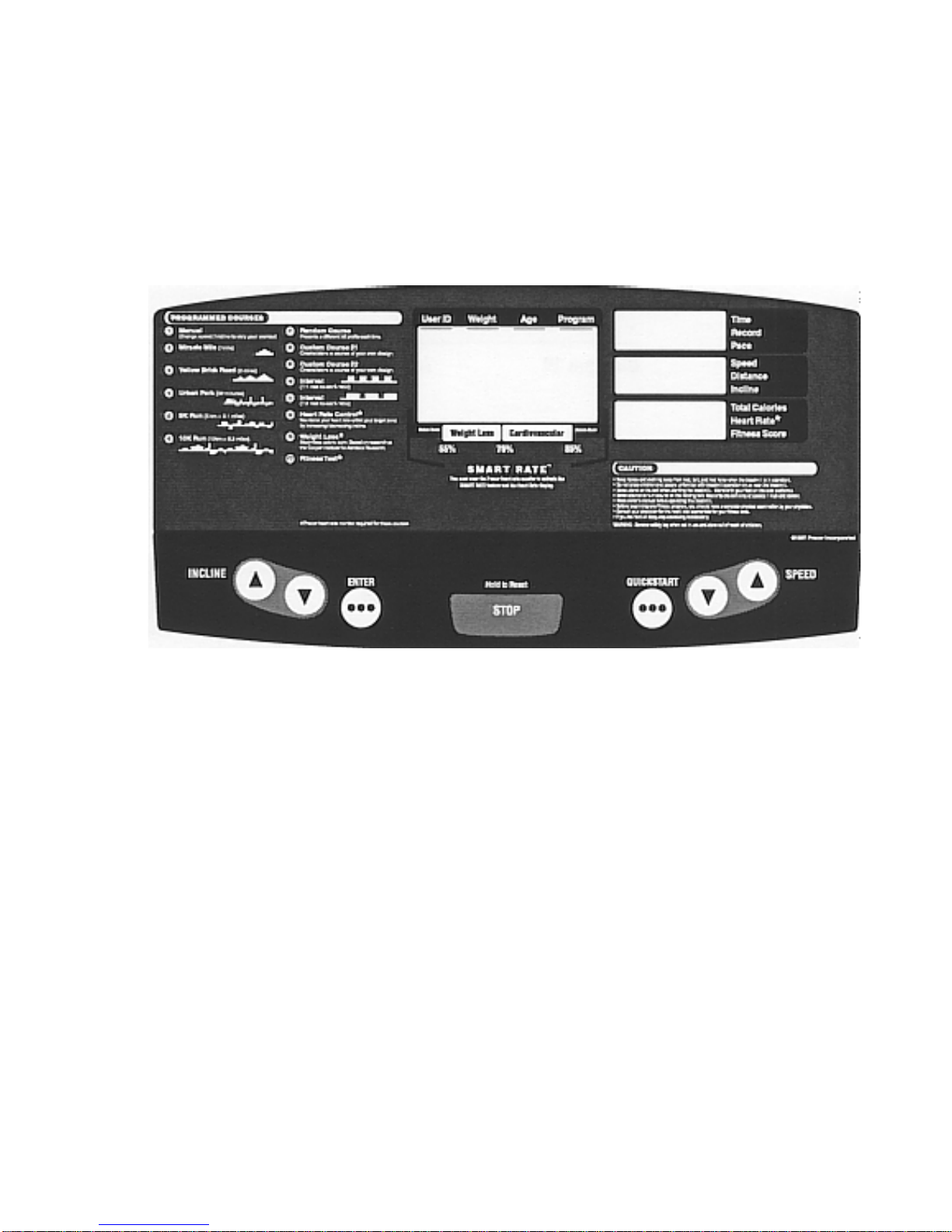

Diagram 2.1 - Display Housing, 9.45 (1Y & 2P)

9.45, 9.45i Treadmill

Page 6

Procedure 2.2 - Accessing the M9.45i (3Y) Treadmill's

Diagnostic Program

Procedure

1. Plug the power cord into the wall outlet, then turn on the treadmill with the circuit breaker.

2. The diagnostic program provide six different routines to aid it testing and trouble diagnosis.

3. For the purpose of accessing the various software routines, including the diagnostics

program, the display housing keys are hypothetically numbered 1 to 7 from left to right.

4. With the PRECOR M9.45 banner scrolling, press keys RESET,5,1,7,6,5,7,6,1, sequentially

(See Diagram 2.2).

5. The first routine is the LED display test. The routine will light every LED on the display as the

test proceeds. It is necessary to watch the display to see if an LED does not light..

6. The second routine is lift calibration. The lift calibration number indicates the physical

position of the lift. As lift is operated the lift calibration number will track the lift’s physical

position. The lift calibration number will be used to initialize the lift. Press the INCLINE keys

while you watch the right display window (see Diagram 2.2). The lift calibration number

increments as the INCLINE ▲ key is pressed and decrements as the INCLINE ▼key is

pressed. Press ENTER to continue.

7. The third routine is the power bits display. Power bits is a number that indicates the amount

of time that power is applied to the drive motor (duty cycle). The power bit number reflects

changes in speed and load. Power bits and running belt speed will; be displayed. Notice that

the power bits number will increase or decrease as speed and/or load is increased or

decreased. The power bit number can be used to determine treadmill loading. Press

ENTER to continue.

8. The fourth routine is the key pad test. Seven dashed lines will appear on the display. Each

dash will correspond to a key on the display. Press each key one at a time, the

corresponding dash will enlargen, indicating the key that was pressed. Use this test to

determine if the keys are functioning properly. Press the INCLINE ▼ and SPEED ▼ keys,

simultaneously to continue

9. The fifth routine is the safety key test. When the safety key is inserted SAFE ON is

displayed in the right display window. Remove the safety key from the upper display module

while you watch the right display window, SAFE OFF is displayed. Replace the safety key

and press ENTER to continue.

10. The sixth routine is the heart rate test. When a chest strap transmitter or test transmitter is

used, the heart rate will be displayed. Press ENTER to continue.

9.45, 9.45i Treadmill

Page 7

11. The last routine is the circuit breaker trip test. This test checks the ability of the treadmill to

trip the circuit breaker under software control. If the STOP key is pressed the trip signal will

be sent to the circuit breaker and the circuit will trip, shutting off the treadmill. If you do not

wish to trip the circuit breaker, press the ENTER key to exit the diagnostic program.

Diagram 2.2 - Display Housing, 9.45i (3Y)

9.45, 9.45i Treadmill

Page 8

Procedure 2.3 - Resetting All User Information

This procedure completely resets the M9.45 user statistics. All previously-saved user information

will be either reset to zero or changed to default values. All odometers will be reset to zero. If you

want to save accumulated user information and odometer readings, record the information

before performing this procedure.

Note: This procedure is not available on the 9.45i. User stats must be reset individually per

Procedure 2.4.

Procedure

1. Plug the power cord into the wall outlet, then turn on the treadmill with the circuit breaker.

2. With the PRECOR M9.45 or PRECOR M9.45i banner scrolling, press the INCLINE ▲,

INCLINE ▼, SPEED ▲, and SPEED ▼keys simultaneously and hold them for approximately

five seconds (or until zeros are displayed in the right display windows). Release the keys.

3. Watch the electronic display. The right middle display window:

a Resets to all zeros, then increments to 119

b Resets to 1000, then increments to 1119

c Resets to 2000, then increments to 2119

d Resets to 3000, then increments to 3119

e Displays the User ID prompt.

Note:

If the upper PCA or prom is replaced, all user information will be re-initialized.

9.45, 9.45i Treadmill

Page 9

Procedure 2.4 - Resetting an Individual User’s Information

This procedure resets accumulated user information and odometer readings for an individual

User ID. All previously-saved user information for a selected User ID will be either reset to zero or

changed to default values. The odometer reading for the selected User ID will be reset to zero.

Procedure

1. Plug the power cord into the wall outlet, then turn on the treadmill with the circuit breaker.

2. With the PRECOR M9.45 or PRECOR M9.45i banner scrolling, press any key.

3. At the User ID prompt, select the User IDs to be reset using the SPEED ▲(or INCLINE ▲)

and SPEED ▼(or INCLINE ▼) keys.

4. Press the STOP and QUICKSTART keys together and hold them for approximately two

seconds (or until the right middle display window displays one of the numbers sets in

Procedure 2.2, step 3a, 3b, 3c or 3d).

5. If you do not observe the values listed in Procedure 2.2, step 3a, 3b, 3c or 3d...

THEN... OTHERWISE...

Replace the upper PCA as described in This procedure is complete.

Procedure 5.2 of the Residential Treadmill

Service Manual.

Note:

If the upper PCA is replaced, all user information will be re-initialized.

9.45, 9.45i Treadmill

Page 10

Procedure 2.5 - Displaying the Treadmill Odometer and Error

Code Log

Procedure

1. Plug the power cord into the wall outlet, then turn on the treadmill with the circuit breaker.

2. On 9.45 (1L or 2P units), with the PRECOR M9.45 banner scrolling, press the ENTER,

SPEED ▼and SPEED ▲keys, simultaneously. Continue to hold the keys until the message

TREADMILL ODOMETER scrolls across the left display window. On 9.45 (3Y units), press

keys RESET,6,5, sequentially.

Note:

The right display window displays total miles or kilometers on the treadmill (see Diagram 2.3).

The top display window shows the most significant bits of the number; the lower display window

shows the least significant bits of the number. The number displayed is 102,187,723 (in miles or

kilometers).

Diagram 2.3 - Odometer Reading For the Treadmill

3. Press ENTER to access the error code log.

0001

0218

7723

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Precor Tretmühle Handbücher

Precor

Precor ENERGY SERIES Bedienungsanleitung

Precor

Precor M9.21i Bedienungsanleitung

Precor

Precor 9.31 Bedienungsanleitung

Precor

Precor C932i Bedienungsanleitung

Precor

Precor M9.41si Bedienungsanleitung

Precor

Precor GEN06 Series C952 Bedienungsanleitung

Precor

Precor M9.45i Bedienungsanleitung

Precor

Precor 9.35 Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

Precor

Precor Experience Series 700 Line Bedienungsanleitung

Precor

Precor Treadmill EFX534 Bedienungsanleitung

Precor

Precor Teambike 800 Bedienungsanleitung

Precor

Precor C966 Gebrauchsanweisung

Precor

Precor Experience 800 Bedienungsanleitung

Precor

Precor Experience TRM700-16 Bedienungsanleitung

Precor

Precor 9.21 Bedienungsanleitung

Precor

Precor C952i Bedienungsanleitung

Precor

Precor M9.57 Bedienungsanleitung

Precor

Precor PRECISION SERIES Technisches Handbuch

Precor

Precor C936i Bedienungsanleitung

Precor

Precor Experience 700 line Series Bedienungsanleitung

Precor

Precor GEN06 Series Bedienungsanleitung

Precor

Precor M 9.2s Bedienungsanleitung

Precor

Precor C966i Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung

Master

Master F22 Bedienungsanleitung
