PP-5 INSTALLATION INSTRUCTIONS

The ceiling should be capable of supporting at least five (5) times the weight of the product that will be used with

this accessory. If the surface cannot support this weight, it must be reinforced. Proper installation procedure by

qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in

serious personal injury.

Step 1. Install the PP-5 securely to the ceiling structure in accordance with proper commercial standards. Use (commercially

available) hardware depending on the installation requirements (Figure 1; see WARNING:).

Step 2. Install the desired length of 1-1/2” diameter NPT pipe with the threaded ends attaching to the PP-5.

Step 3. Tighten the M6 Phillips head screw to the PP-5 to secure the pipe from rotating.

For adjustable suspension applications, the PP-5 can be mated directly to our APP-2446 suspension adapter.

Bolt

Washer

Ceiling

Washer

Nut

PP-5

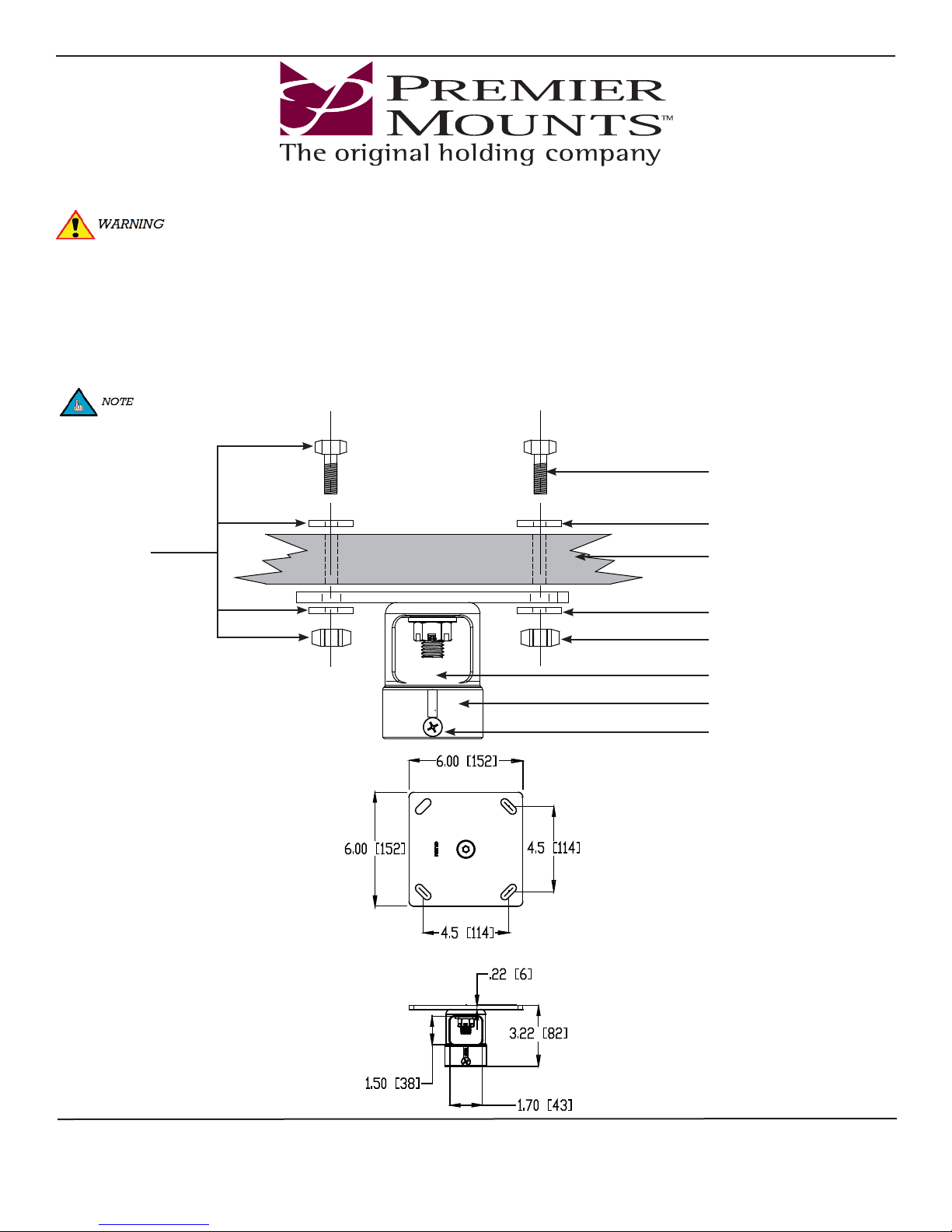

Figure 1

Commercially

Available Hardware

Locking Screw - M6 x 12mm

Phillips Head Screw

Installation Instructions Page 2

PP-5A INSTALLATION INSTRUCTIONS

The ceiling should be capable of supporting at least five (5) times the weight of the product that will be used with

this accessory. If the surface cannot support this weight, it must be reinforced. Proper installation procedure by

qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in

serious personal injury.

For adjustable suspension applications, the PP-5A can be mated directly to our APP-2446 suspension adapter.

Step 1. Install the PP-5A to the ceiling structure according to commercial standards (Figure 2).

Step 2. Use (commercially available) suitable hardware depending on the installation requirements.

Step 3. See Figure 2 for cable access and 360º rotation.

Step 4. Install the desired length of 1-1/2” diameter NPT pipe with the threaded ends attaching to the PP-5A.

Step 5. Tighten the M6 x 12mm screws to secure the pipe.

Figure 2

Bolt

Washer

Ceiling

Washer

Nut

Locking Screw - M6 x 12mm

Phillips Head Screw

PP-5A Cable Access

1-1/2” Coupler

Commercially Available

Hardware
