Pride Mobility LEGEND CLASSIC XL-8 Bedienungsanleitung

Owner’s Manual

Unit 106, Heyford Park Camp Road

Upper Heyford, Oxfordshire OX25 5HA

www.pridemobility.com

The Ultimate In Style & Performance

SAFETY GUIDELINES

PrideMobilityProductsLtd.

INFMANU2367/RevD/November2005

Thesymbolsbelowareusedthroughoutthisowner'smanualandonthescootertoidentifywarningsandimportant

information.It isveryimportantfor youtoread themandunderstandthem completely.

WARNING! Failure to follow designated procedures can cause either personal injury,

component damage, or malfunction (black symbol on yellow triangle with black border).

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause injury to personnel and/or damage to equipment (white

symbol on blue dot with white border).

PROHIBITED! These actions should be prohibited. These actions should not be performed

at any time or in any circumstances. Performing a prohibited action can cause injury to

personnel and/or damage to equipment (black symbol with red circle and red slash).

www.pridemobility.com Legend Classic XL-8

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased.

PrideDealer:___________________________________ Purchase Date:_______________________

Address:___________________________________________________________________________

PhoneNumber:_______________________________________________________________________

SerialNumber:_______________________________________________________________________

Pleasefilloutthefollowinginformationforquickreference:

Legend Classic XL-8 www.pridemobility.com

CONTENTS

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY......................................................................................................................................... 5

III. SPECIFICATIONS ................................................................................................................... 16

IV. YOUR SCOOTER...................................................................................................................... 18

V. BATTERIES AND CHARGING ............................................................................................ 22

VI. OPERATION............................................................................................................................... 26

VII. COMFORT ADJUSTMENTS................................................................................................ 28

VIII.DISASSEMBLY AND ASSEMBLY ..................................................................................... 31

IX. BASIC TROUBLESHOOTING ............................................................................................. 33

X. CARE AND MAINTENANCE ................................................................................................ 35

XI. WARRANTY................................................................................................................................37

4 www.pridemobility.com Legend Classic XL-8

I. INTRODUCTION

SAFETY

WELCOMEto Pride MobilityProductsCorporation(Pride). Theproductyouhave purchasedcombinesstateof

theartcomponentswithsafety,comfort,andstylinginmind.Weareconfidentthedesignfeatureswillprovideyou

withtheconveniences you expectduringyourdailyactivities. Understanding how to safelyoperateandcarefor

thisproductshould bring youyearsoftroublefree operations and service.

Readandfollowallinstructions,warnings,andnotesinthismanualandall otheraccompanyingliterature before

attemptingtooperate this product for thefirsttime. In addition, your safetydepends upon you, as well asyour

dealer,caretaker, or healthcareprofessionalinusing goodjudgement.

Ifthereis anyinformationinthismanual which youdonotunderstand, or ifyourequireadditional assistance for

setuporoperation,pleasecontactyourauthorisedPrideDealer. Failureto follow the instructions, warnings,

andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct

damageandvoidPride’sproductwarranty.

PURCHASER’S AGREEMENT

Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove

orrenderinoperableorunsafeanyguards,shields,or othersafetyfeaturesofthis product;fail,refuse,orneglect to

installanyretrofitkits from time totimeprovidedbyPridetoenhance or preserve thesafeuseofthisproduct.

INFORMATION EXCHANGE

We want tohearyourquestions, comments, andsuggestionsaboutthismanual.We would alsoliketohear about

thesafetyandreliabilityofyournewPrideproduct,andabouttheservice youreceivedfromyourauthorizedPride

Provider.Pleasenotify us ofanychangeofaddress, so wecankeepyou apprised ofimportantinformationabout

safety,new products, and new options that can increase yourabilitytouseandenjoyyourPrideproduct.Please

feelfreetocontact us at the address below:

PrideMobilityProducts Ltd.

Unit106, Heyford Park Camp Road

UpperHeyford,OxfordshireOX255HA

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Legend Classic XL-8 www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

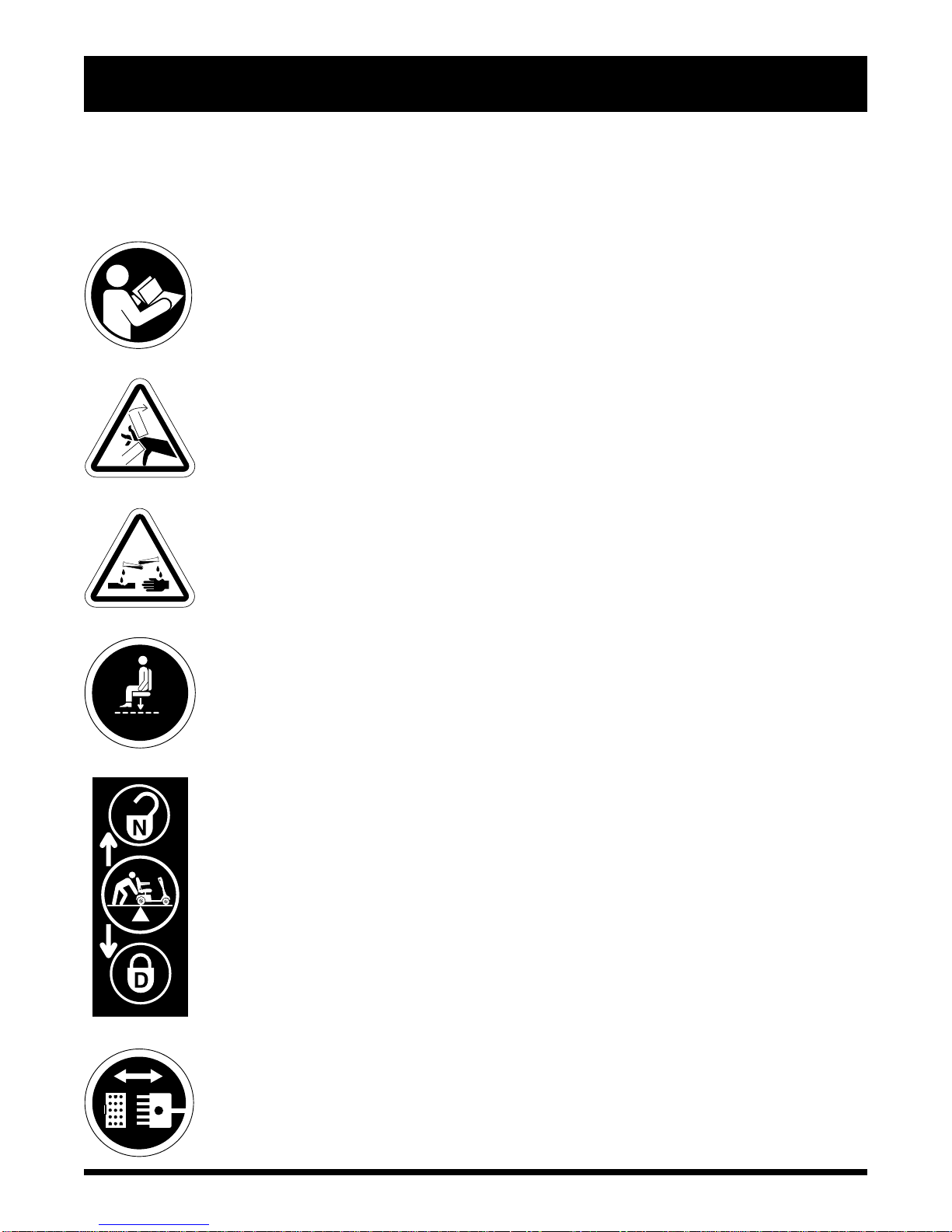

Thesymbolsbelow are used on thescootertoidentifywarnings,mandatory actions, and prohibitedactions.Itis

veryimportantfor youtoreadandunderstand themcompletely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.Use only AGM or Gel-Cell batteries to reduce

the risk of leakage or explosive conditions.

Read and follow the information in the owner’s manual.

Maximum seating weight.

Place unit on level ground and stand behind or to one side when changing from drive

mode to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Front-to-rear plug orientation.

6 www.pridemobility.com Legend Classic XL-8

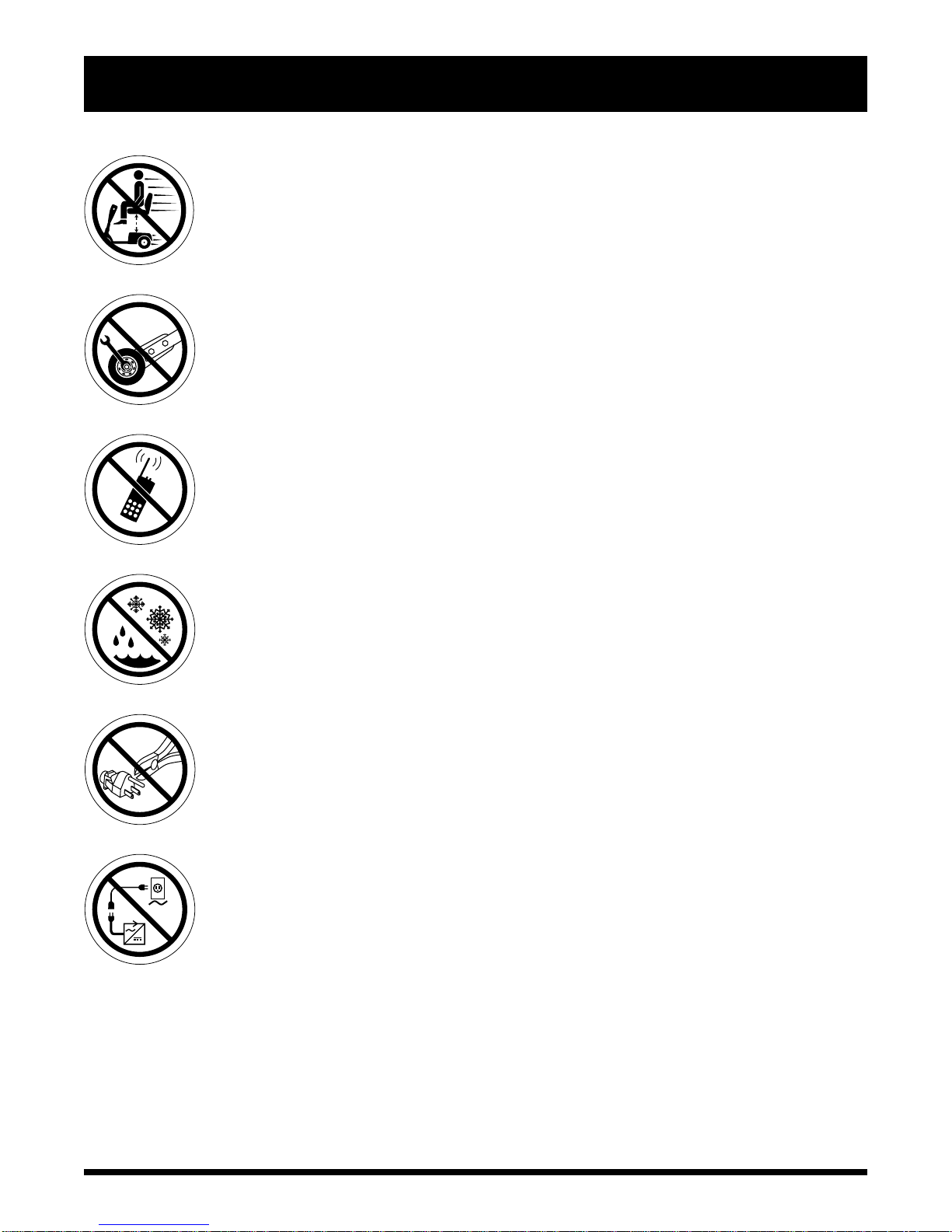

Do not raise or lower the power seat while the scooter is in motion.

Do not remove anti-tip wheels.

Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while

operating.

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access. Failure to heed could result in personal injury and/or property damage.

Prevent personal injury and equipment damage. Do not connect an extension lead

to the AC/DC converter or the battery charger.

II. SAFETY

Legend Classic XL-8 www.pridemobility.com

II. SAFETY

SAFETY

MANDATORY! Do not operate your new scooter for the first time without completely reading

and understanding this owner’s manual.

Yourscooterisastate-of-the-artlife-enhancementdevicedesignedtoincreasemobility.Prideprovidesanextensive

varietyofproducts to best fittheindividualneedsofthe scooter user. Please beawarethatthefinalselection and

purchasingdecisionregardingthetypeofscootertobeusedistheresponsibilityofthescooteruserwhoiscapable

ofmaking such adecisionandhis/her healthcareprofessional(i.e.,medical doctor,physical therapist,etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scootertotheuser and has assisted the prescribing healthcareprofessionaland/ortheauthorisedPrideDealerin

theinstructionprocessforthe use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operatingthe scooterinthe presenceofa trainedattendant.Atrained attendantcanbe definedasa familymember

orcareprofessionalspecially trainedinassistingascooteruserinvariousdailylivingactivities.

Asyoubegin usingyourscooterduring daily activities,youwillprobably encounter situationsinwhichyou will

needsomepractice. Simply take your timeand you will soon be infull and confident control as youmaneuver

throughdoorways,onandoff lifts, up and down ramps, and over moderateterrain.

Belowaresomeprecautions,tips,andothersafetyconsiderationsthatwillhelpthe user become accustomed to

operatingthescooter safely.

Modifications

Pridehasdesignedandengineeredyourscootertoprovidemaximummobilityandutility.Awiderangeofaccessories

isavailablefromyourauthorisedPride Dealer to further customise your scooter to better suit yourneedsand/or

preferences.However,undernocircumstancesshouldyoumodify,add, remove, or disable any feature, part, or

functionof yourscooter.

WARNING! Do not modify your scooter in any way not authorised by Pride. Unauthorised

modifications may result in personal injury and/or damage to your scooter.

Removable Parts

WARNING! Do not attempt to lift or move your scooter by any of its removable parts.

Personal injury and damage to the scooter may result.

Pre-Ride Safety Check

Gettoknowthefeelofyourscooteranditscapabilities.Priderecommendsthatyouperforma safetycheckbefore

eachusetomakesure your scooter operates smoothly and safely.For details onhowtoperformthesenecessary

inspections,seeX. “Care andMaintenance.”

8 www.pridemobility.com Legend Classic XL-8

II. SAFETY

Performthefollowinginspections priortousingyourscooter:

!Checkfor propertyreinflationifequippedwithpneumatic tyres.

!Checkallelectricalconnections.Makesure they are tight and not corroded.

!Checkallharnessconnections.Makesuretheyaresecuredproperly.

!Check the brakes.

!Checkbatterycharge.

Weight Limitations

Yourscooterisratedfor amaximumweightcapacity. Refertothespecifications tableforinformation.

WARNING! Exceeding the weight capacity voids your warranty and may result in personal

injury and damage to your scooter. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers may result in

personal injury and/or property damage.

Tyre Inflation

Ifyourscooter isequippedwithpneumatictyres, you shouldcheckorhavethe airpressurecheckedatleast once

aweek. Properinflationpressureswillprolongthelife ofyourtyres andhelpensurethesmoothoperationof your

scooter.

WARNING! It is critically important that 2-2.4 bar (30-35 psi) tyre pressure be maintained

in pneumatic tyres at all times. Do not underinflate or overinflate your tyres. Low pressure

may result in loss of control, and overinflated tyres may burst. Failure to maintain 2-2.4

bar (30-35 psi) tyre pressure in pneumatic tyres at all times may result in tyre and/or wheel

failure, causing serious personal injury and/or damage to your scooter.

WARNING! Inflate your scooter tyres from a regulated air source with an available pressure

gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting

in a burst tyre and/or personal injury.

Incline Information

Moreand more buildings have rampswith specified degrees of inclination, designed for easy andsafe access.

Somerampsmay have turning switchbacks(180-degreeturns)thatrequireyou to have good corneringskillson

yourscooter.

!Proceedwithextremecautionasyouapproachthedowngrade of a ramp or other incline.

!Takewide swings withyour scooter around any tightcorners. If you do that,the scooter’s rearwheels will

followawidearc,notcut the corner short, and not bump into orgethunguponanyrailingcorners.

!Whendrivingdownaramp,keepthescooter’sspeedadjustmentsettotheslowestspeedsettingtoensurea

safelycontrolleddescent.

!Avoid sudden stops andstarts.

When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly, and then

acceleratecautiously.When driving down anincline, do so bysetting the speed adjustment dial to the slowest

settinganddrivingintheforwarddirectiononly.If your scooterstartstomovedowntheinclinefasterthan you

anticipatedordesired, allow it to come toacomplete stop by releasing the throttlecontrollever.Thenpushthe

throttlecontrol leverforwardslightlytoensureasafely controlleddescent.

Legend Classic XL-8 www.pridemobility.com

II. SAFETY

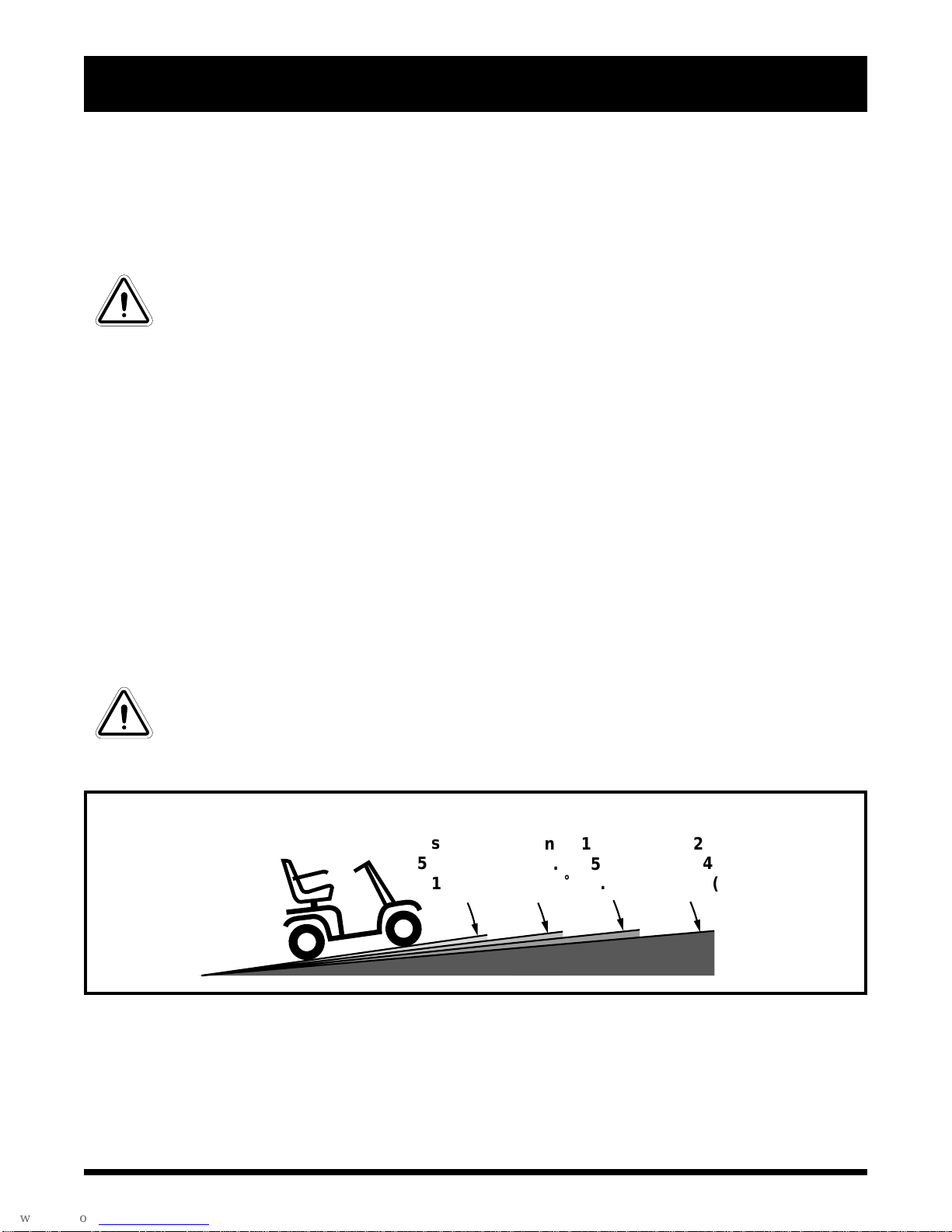

Figure 1. Maximum Recommended Incline Angles

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the

incline. Drive your scooter straight up the incline. This greatly reduces the possibility of a

tip or a fall. Always exercise extreme caution when negotiating an incline.

WARNING! Do not drive your scooter across the side of an incline or diagonally up or down

an incline; do not stop, if possible, while driving up or down an incline.

WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas

covered with snow, ice, cut grass, or wet leaves).

WARNING! When on any sort of an incline or decline, never place the scooter in freewheel

mode while seated on it or standing next to it.

WARNING! Even though your scooter is capable of climbing slopes greater than those

illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or

any other specifications presented in this manual. Doing so could cause instability in your

scooter, resulting in personal injury and/or damage to your scooter.

Handicap public access ramps are not subject to government regulation in all countries, and therefore do not

necessarilyshare thesamestandardpercentofslope.Otherinclines maybenatural or,ifman-made, notdesigned

specificallyforscooters.Figure 1 illustrates your scooter’s stability and itsabilitytoclimbgradesundervarious

weightloadsandundercontrolledtestingconditions.

Thesetestswereconducted with the scooter’s seat in the highestpositionandadjustedrearwardonthe seat base

toitsfarthest rearward position.Usethisinformationas a guideline.Yourscooter’sabilitytotravelup inclines is

affectedby your weight, your scooter’s speed, your angle of approach to the incline, and your scooter setup.

WARNING! Any attempt to climb or descend a slope steeper than what is shown in figure

1 may put your scooter in an unstable position and cause it to tip, resulting in personal

injury.

WARNING! Never carry an oxygen tank weighing more than 7 kg (15 lbs.). Never fill the

rear basket with contents exceeding 7 kg (15 lbs.).

113 kg/



18 stone/



250 lbs.



10.5% (6˚)

136-181 kg/



21-28 stone/



300-400 lbs.



8.7% (5˚)

90 kg/



14 stone/



200 lbs.



12.3% (7˚)



68 kg/



11 stone/



150 lbs.



14.1% (8˚)



10 www.pridemobility.com Legend Classic XL-8

II. SAFETY

Figure 3. Increased Stability Driving PositionFigure 2. Normal Driving Position

Whenyouapproachanincline,itisbesttoleanforward.Seefigures2and3.Thisshiftsthecenterofgravityofyou

andyourscootertowardthe front of the scooter for improved stability.

NOTE: When negotiating ramps, if the throttle control lever is released while moving forward, the

scooter may “rollback” approximately 30.5 cm (1 foot) before the brake engages. If the throttle control

lever is released while moving in reverse, the scooter may “rollback” approximately 1 meter (3 feet)

before the brake engages.

Cornering Information

Excessivelyhigh cornering speeds can create the possibility of tipping. Factors which affect the possibility of

tippinginclude, butarenot limitedto,corneringspeed,steeringangle(howsharplyyouare turning),unevenroad

surfaces,inclinedroadsurfaces,ridingfromanareaoflowtractiontoanareaofhightraction(suchaspassingfrom

a grassy area to a paved area – especially at high speed while turning), and abrupt directional changes. High

cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and

steeringangle(i.e., lessen thesharpnessoftheturn) to preventyourscooterfrom tipping.

WARNING!

When cornering sharply, reduce your speed. When using your scooter at higher

speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid

personal injury or property damage, always exercise common sense when cornering.

Braking Information

Yourscooteris equipped with thesepowerfulbrakesystems:

!Regenerative:Uses electricitytorapidlyslow thevehiclewhenthe throttlecontrolleverreturns tothecenter/

stopposition.

!DiscParkBrake:Activatesmechanicallyafterregenerativebrakingslowsthevehicletonearstop,orwhen

powerisremovedfrom the system for any reason.

!Handbrake:Gives you additionalstoppingpowerwhen yousqueezeit.

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility Destiny Bedienungsanleitung

Pride Mobility

Pride Mobility 613 Bedienungsanleitung

Pride Mobility

Pride Mobility COLT XL8 Bedienungsanleitung

Pride Mobility

Pride Mobility Traveller Plus Bedienungsanleitung

Pride Mobility

Pride Mobility Colt Bedienungsanleitung

Pride Mobility

Pride Mobility Shuttle Bedienungsanleitung

Pride Mobility

Pride Mobility Bebop Bedienungsanleitung

Pride Mobility

Pride Mobility Legend XL Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility COLT PURSUIT Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Go Go ES Bedienungsanleitung

Pride Mobility

Pride Mobility REVO Bedienungsanleitung

Pride Mobility

Pride Mobility Colt Twin Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Bedienungsanleitung

Pride Mobility

Pride Mobility Victory ES9 Bedienungsanleitung

Pride Mobility

Pride Mobility Pathrider 130 XL Bedienungsanleitung

Pride Mobility

Pride Mobility The Ultimate In Style & Performance Bedienungsanleitung

Pride Mobility

Pride Mobility Travel Pro Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility 39 Bedienungsanleitung

Pride Mobility

Pride Mobility Hurricane SCUK4500 Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY 10 Bedienungsanleitung

Pride Mobility

Pride Mobility Celebirty The Ultimate In Style &... Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
