Pride Mobility Maxima Scooter SC940 Bedienungsanleitung

The Ultimate In Style & Performance

Exeter, PA

St. Catharines, ON 1-800-800-8586

www.pridemobi ity.com

Owner’s Manual

ATTENTION:

Please read the content

of your owners manual

before operating your

scooter.

SAFETY GUIDELINES

Pride Mobility Products Corp.

INFMANU2058 Rev D November 2004

NOTE: This owner’s manual is compiled from the latest specifications and product information

available at the time of publication. We reserve the right to make changes as they become neces-

sary.Any changes to our products may cause slight variations between the illustrations and expla-

nations in this manual and the product you have purchased.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation that can cause personal

injury, equipment and/or property damage. Black symbol on yellow triangle with black

border).

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause injury to personnel and/or damage to equipment white

symbol on blue dot).

PROHIBITED! These actions are prohibited; do not perform at any time or in any situation.

Performing a prohibited action can cause personal injury and/or equipment damage black

symbol with red circle and red slash).

Please fill out the following information for quick reference:

PrideProvider:____________________________________________________________________

Purchase Date:___________________________________________________________________

Address:__________________________________________________________________________

PhoneNumber:_____________________________________________________________________

SerialNumber:______________________________________________________________________

Maxima www.pridemobility.com

I. INT ODUCTION ........................................................................................................................ 4

II. SAFETY ......................................................................................................................................... 5

III. EMI/ FI ........................................................................................................................................ 14

IV. SPECIFICATIONS ................................................................................................................... 16

V. YOU SCOOTE ..................................................................................................................... 18

VI. BATTE IES AND CHA GING ........................................................................................... 23

VII. OPE ATION ............................................................................................................................... 27

VIII.COMFO T ADJUSTMENTS................................................................................................ 29

IX. DISASSEMBLY AND ASSEMBLY ..................................................................................... 32

X. BASIC T OUBLESHOOTING............................................................................................. 35

XI. CA E AND MAINTENANCE ............................................................................................... 37

XII. WA ANTY ............................................................................................................................... 39

CONTENTS

4www.pridemobility.com Maxima

I. INTRODUCTION

SAFETY

WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines

state of the art components with safety, comfort and styling in mind. We are confident the design features

will provide you with the conveniences you expect during your daily activities. Understanding how to

safely operate and care for this product should bring you years of trouble free operations and service.

Read and follow all instructions, warnings, and notes in this manual and all other accompanying literature

before attempting to operate this product for the first time. In addition, your safety depends upon you, as

well as your provider, caretaker, or healthcare professional in using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assis-

tance for setup or operation, please contact your authorized Pride Provider. Failure to follow the instruc-

tions, warnings, and notes in this manual and those located on your Pride product can result in

personal injury or product damage and will void Prides product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter or modify this product or

remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,

refuse or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear

about the safety and reliability of your new scooter, and about the service you received from your autho-

rized Pride Provider. Please notify us of any change of address, so we can keep you apprised of important

information about safety, new products, and new options that can increase your ability to use and enjoy

your scooter. Please feel free to contact us at the address below:

Pride Mobility Products Corporation

Attn: Customer Care Department

182 Susquehanna Ave.

Exeter, PA 18643-2694

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us

and we will be glad to send you a new one immediately.

PRIDE OWNERS CLUB

As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and

return your enclosed product registration card or visit Pride's web site at www.pridemobility.com.

From our home page, select Owners Club to enter a page dedicated to current and potential Pride product

owners. You will gain access to interviews, stories, recreation ideas, daily living tips, product and funding

information, and interactive message boards. These message boards invite you to communicate with other

Pride customers as well as Pride representatives who are available to assist you with any questions or

concerns.

Maxima www.pridemobility.com

II. SAFETY

GENERAL

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the

final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the

scooter user who is capable of making such a decision and his her healthcare professional (i.e., medical

doctor, physical therapist, etc.).

There are certain situations, including some medical conditions, where the scooter user will need to prac-

tice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a

family member or care professional specially trained in assisting a scooter user in various daily living

activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and confident control as

you maneuver through doorways, on and off of elevators, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help the user become accus-

tomed to operating the scooter safely.

MODIFICATIONS

Pride has designed and engineered your scooter to provide maximum mobility and utility. However, under

no circumstances should you modify, add, remove, or disable any feature, part, or function of your scooter.

WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized

modifications may result in personal injury and/or damage to your scooter.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts.

Personal injury and damage to the scooter may result.

ELECTROMAGNETIC FIELDS

Your scooters road performance features may be influenced by electromagnetic fields caused by cellular

telephones or other radiating devices, such as hand-held radios, radio and television stations, wireless

computer links, microwave sources, and paging transmitters.

MANDATORY! Do not operate your new scooter for the first time without completely reading

and understanding this owners manual.

6www.pridemobility.com Maxima

II. SAFETY

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your scooter operates smoothly and safely. For details on how to perform

these necessary inspections, see XI. Care and Maintenance.

Perform the following inspections prior to using your scooter:

nCheck for proper tire inflation (if equipped with pneumatic tires).

nCheck all electrical connections. Make sure they are tight and not corroded.

nCheck all harness connections. Make sure they are secured properly.

nCheck the brakes.

nCheck battery charge.

If you discover a problem, contact your authorized Pride Provider for assistance.

TIRE INFLATION

If your scooter is equipped with pneumatic tires, you should check or have the air pressure checked at least

once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth

operation of your scooter.

WARNING! It is critically important that 30-35 psi tire pressure be maintained in pneumatic

tires at all times. Do not underinflate or overinflate your tires. Low pressure may result in

loss of control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure

in pneumatic tires at all times may result in tire and/or wheel failure, causing serious

personal injury and/or damage to your scooter.

WARNING! Inflate your scooter tires from a regulated air source with an available pressure

gauge. Inflating your tires from an unregulated air source could overinflate them, resulting

in a burst tire and/or personal injury.

WEIGHT LIMITATIONS

Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information.

WARNING! Exceeding the weight capacity voids your warranty and may result in personal

injury and damage to your scooter. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers may result in

personal injury and/or property damage.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe

access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good

cornering skills on your scooter.

nProceed with extreme caution as you approach the downgrade of a ramp or other incline.

nTake wide swings with your scooter around any tight corners. If you do that, the scooters rear wheels

will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.

nWhen driving down a ramp, keep the scooters speed adjustment set to the slowest speed setting to

ensure a safely controlled descent.

nAvoid sudden stops and starts.

Maxima www.pridemobility.com

II. SAFETY

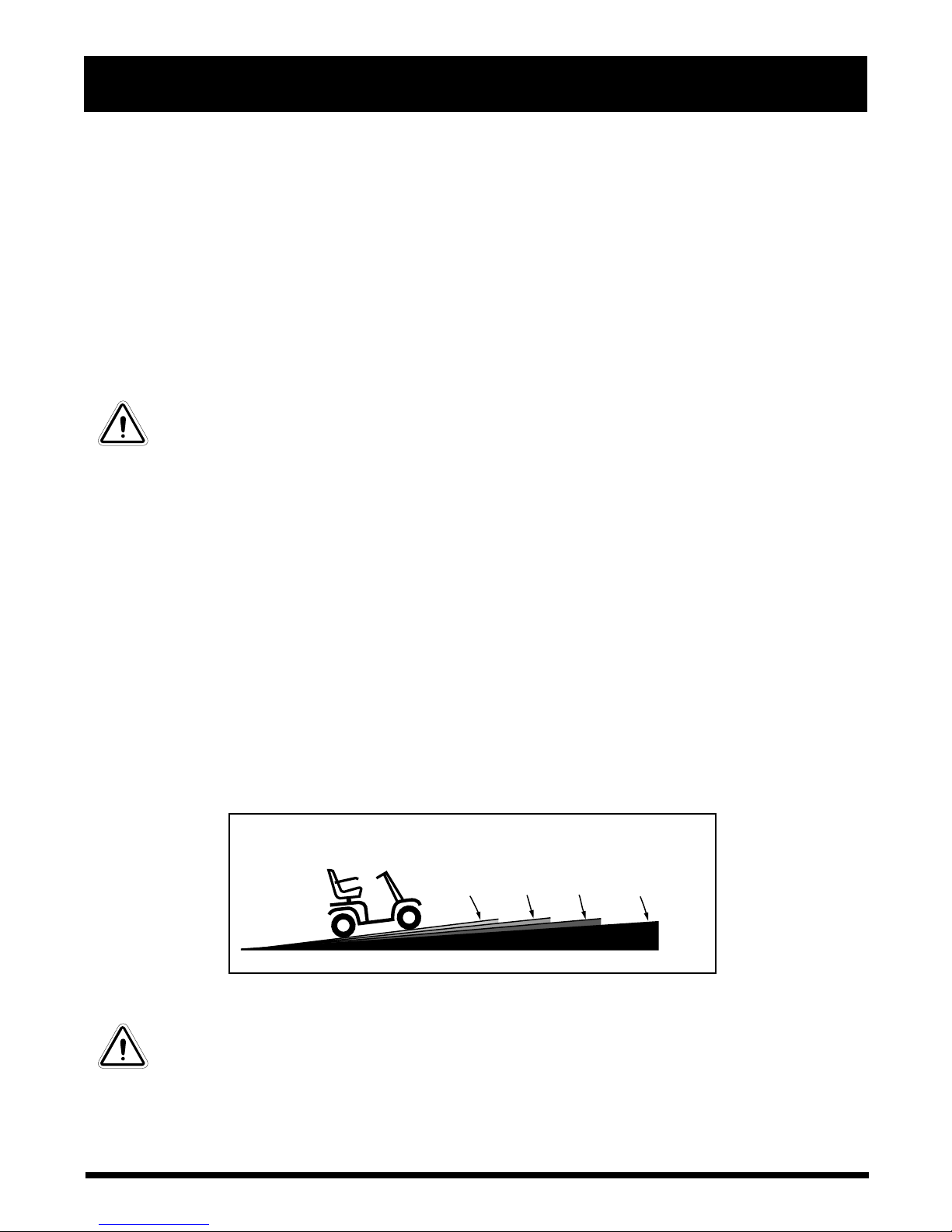

Figure 1. Maximum Recommended Incline Angles

150 lbs.

7°, 12.3%

200-250 lbs.

6°, 10.5%300-350 lbs.

5°, 8.7%

400-450 lbs.

4.5°, 7.5%

When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly, and then

accelerate cautiously. When driving down an incline, do so by setting the speed adjustment dial to the

slowest setting and driving in the forward direction only. If your scooter starts to move down the incline

faster than you anticipated or desired, allow it to come to a complete stop by releasing the throttle control

lever. Then push the throttle control lever forward slightly to ensure a safely controlled descent.

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the

incline. Drive your scooter straight up the incline. This greatly reduces the possibility of

a tip or a fall. Always exercise extreme caution when negotiating an incline.

WARNING! Do not drive your scooter across the side of an incline or diagonally up or

down a hill; do not stop, if possible, while driving up or down an incline.

WARNING! You should not travel up or down a potentially hazardous incline i.e., areas

covered with snow, ice, cut grass, or wet leaves).

WARNING! When on any sort of an incline or decline, never place the scooter in freewheel

mode while seated on it or standing next to it.

WARNING! Even though your scooter is capable of climbing slopes greater than those

illustrated in figure 1 do not, under any circumstances, exceed the incline guidelines or

any other specifications presented in this manual. Doing so could cause instability in

your scooter, resulting in personal injury and/or damage to your scooter.

Handicap public access ramps are not subject to government regulation in all countries, and therefore do

not necessarily share the same standard percent of slope. Other inclines may be natural or, if man-made,

not designed specifically for scooters. Figure 1 illustrates your scooters stability and its ability to climb

grades under various weight loads and under controlled testing conditions.

These tests were conducted with the scooters seat in the highest position and adjusted rearward on the seat

base to its farthest rearward position. Use this information as a guideline. Your scooters ability to travel up

inclines is affected by your weight, your scooters speed, your angle of approach to the incline, and your

scooter setup.

WARNING! Any attempt to climb or descend a slope steeper than what is shown in figure

1 may put your scooter in an unstable position and cause it to tip, resulting in personal

injury.

8www.pridemobility.com Maxima

II. SAFETY

CORNERING INFORMATION

Excessively high cornering speeds can create the possibility of tipping. Factors which affect the possibility

of tipping include, but are not limited to, cornering speed, steering angle (how sharply you are turning),

uneven road surfaces, inclined road surfaces, riding from an area of low traction to an area of high traction

(such as passing from a grassy area to a paved area  especially at high speed while turning), and abrupt

directional changes. High cornering speeds are not recommended. If you feel that you may tip over in a

corner, reduce your speed and steering angle (i.e., lessen the sharpness of the turn) to prevent your scooter

from tipping.

WARNING! When cornering sharply, reduce your speed. When using your scooter at higher

speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid

personal injury or property damage, always exercise common sense when cornering.

BRAKING INFORMATION

Your scooter is equipped with these powerful brake systems:

nRegenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the

center stop position.

nDisc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or

when power is removed from the system for any reason.

Figure 2A. Increased Stability Driving Position

Figure 2. Normal Driving Position

When you approach an incline, it is best to lean forward. See figures 2 and 2A. This shifts the center of

gravity of you and your scooter toward the front of the scooter for improved stability.

Maxima www.pridemobility.com

II. SAFETY

Figure 3. Correct Curb Approach Figure 3A. Incorrect Curb Approach

OUTDOOR DRIVING SURFACES

Your scooter is designed to provide optimum stability under normal driving conditionsdry, level surfaces

composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you

will encounter other surface types. For this reason, your scooter is designed to perform admirably on packed

soil, grass, and gravel. Feel free to use your scooter safely on lawns and in park areas.

nReduce your scooters speed when driving on uneven terrain and or soft surfaces.

nAvoid tall grass that can become tangled in the running gear.

nAvoid loosely packed gravel and sand.

nIf you feel unsure about a driving surface, avoid that surface.

PUBLIC STREETS AND ROADWAYS

WARNING! You should not operate your scooter on public streets and roadways. Be

aware that it may be difficult for traffic to see you when you are seated on your scooter.

Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then

proceed with extreme caution.

STATIONARY OBSTACLES (STEPS, CURBS, etc.)

WARNING! Do not drive near raised surfaces, unprotected ledges, and/or drop-offs curbs,

porches, stairs, etc.).

WARNING! Do not attempt to have your scooter climb or descend an obstacle that is

inordinately high. Serious personal injury and/or damage may result.

WARNING! Do not attempt to have your scooter proceed rearward down any step, curb, or

other obstacle. This may cause the scooter to tip and cause personal injury.

WARNING! Be sure your scooter is traveling perpendicular to any curb you may be required

to ascend or descend. See figures 3 and 3A.

WARNING! Do not attempt to negotiate a curb that has a height greater than 2 in.

10 www.pridemobility.com Maxima

II. SAFETY

INCLEMENT WEATHER PRECAUTIONS

WARNING! Pride recommends that you do not operate your scooter in icy or slippery

conditions or on salted surfaces i.e., walks or roads). Such use may result in an accident,

personal injury, or adversely affect the performance and safety of your scooter.

WARNING! Do not operate or store your scooter where it may be exposed to inclement

weather conditions such as rain, snow, mist, and below freezing temperatures such as

storage on an outside car/van lift). Attempting to operate the scooter in such conditions

can damage the electronics and potentially result in loss of control.

FREEWHEEL MODE

Your scooter is equipped with a manual freewheel lever that, when pulled back, allows the scooter to be

pushed. For more information about how to place your scooter into and out of freewheel mode, see V. Your

Scooter.

WARNING! When your scooter is in freewheel mode, the braking system is disengaged.

n Disengage the drive motor only on a level surface.

n Ensure the key is removed from the key switch.

n Stand behind the scooter to engage or disengage freewheel mode. Never sit on a

scooter to do this.

n After you have finished pushing your scooter, always return it to the drive mode to lock

the brakes.

Failure to heed the above could result in personal injury and/or damage to your scooter.

An added feature built into your scooter is push-too-fast protection which safeguards the scooter against

gaining excessive speed while in freewheel mode.

Push-too-fast operates differently depending on which of two conditions exists:

nIf the key is switched off while in freewheel mode, the scooters controller activates regenerative

braking when the scooter is pushed faster than a maximum threshold which has been preprogrammed.

In this case, the controller is acting as a speed governor.

nIf the key is switched on while in freewheel mode, you will encounter considerable resistance at any

speed.

This prevents the scooter from gaining unwanted momentum should the manual freewheel lever inad

vertently be released while driving the scooter.

Andere Handbücher für Maxima Scooter SC940

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility Go-Go Ultra X Bedienungsanleitung

Pride Mobility

Pride Mobility SC40X Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy Select gt Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Ultra X SC40X Bedienungsanleitung

Pride Mobility

Pride Mobility SC3450 Bedienungsanleitung

Pride Mobility

Pride Mobility Apex Spirit Bedienungsanleitung

Pride Mobility

Pride Mobility Victory XL-8 Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity XL SC4450DX Bedienungsanleitung

Pride Mobility

Pride Mobility Legend Bedienungsanleitung

Pride Mobility

Pride Mobility Apex Sprint Bedienungsanleitung

Pride Mobility

Pride Mobility v10 Bedienungsanleitung

Pride Mobility

Pride Mobility Legend SC3000 Bedienungsanleitung

Pride Mobility

Pride Mobility Ultimate 3 Bedienungsanleitung

Pride Mobility

Pride Mobility Elite Traveller Series INFINFB2039 Leitfaden

Pride Mobility

Pride Mobility LEGEND CLASSIC XL-8 Bedienungsanleitung

Pride Mobility

Pride Mobility Rally SC151 Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility 39 Bedienungsanleitung

Pride Mobility

Pride Mobility REVO Bedienungsanleitung

Pride Mobility

Pride Mobility PMV5000 Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Bebop Bedienungsanleitung

Pride Mobility

Pride Mobility Zero Turn 10 Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum Jazzy 1420 Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
