*INFMANU4213*

Including Models: Victory ES9 and Victory ES10

SERIES

VICTORY ES

Pride Mobility Products Corp.

INFMANU4213/Rev B/November 2011

SAFETY GUIDELINES

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

Pride Provider:

Address:

Phone Number:

Purchase Date: Serial Number:

WARNING! An authorized Pride Provider or qualified technician must perform the initial

setup of this scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and a red slash.

Please fill out the following information for quick reference:

Victory ES Series www.pridemobility.com 3

CONTENTS

I. INTRODUCTION .......................................................................................................................4

II. SAFETY ........................................................................................................................................5

III. YOUR SCOOTER ......................................................................................................................19

IV. BATTERIES AND CHARGING ..........................................................................................23

V. O P E R A T IO N .............................................................................................................................28

VI. COMFORT ADJUSTMENTS ..............................................................................................30

VII. DISASSEMBLY AND ASSEMBLY ...................................................................................33

VIII.BASIC TROUBLESHOOTING ...........................................................................................35

IX. CARE AND MAINTENANCE ..............................................................................................37

X. WARRANTY ..............................................................................................................................41

4 www.pridemobility.com Victory ES Series

I. INTRODUCTION

SAFETY

Welcome to Pride Mobility Products (Pride). The product you have purchased combines state-of the-art

components with safety, comfort, and styling in mind. We are confident the design features will provide

you with the conveniences you expect during your daily activities. Understanding how to safely operate

and care for this product should bring you years of trouble-free operation and service.

Read and follow all instructions, warnings, and notes in this manual before attempting to operate your

scooter for the first time. You must also read all instructions, warnings, and notes contained in any supple-

mental instructional booklets that accompanied your scooter before initial operation. Your safety depends

upon you, as well as your provider, caretaker, or healthcare professional in using good judgment

If there is any information in this manual which you do not understand, or if you require additional assis-

tance for setup or operation, please contact your authorized Pride Provider. Failure to follow the instruc-

tions, warnings, and notes in this manual and those located on your Pride product can result in

personal injury or product damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product

or remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,

refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

SHIPPING AND DELIVERY

Before using your scooter, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorized Pride Provider imme-

diately. Where damage has occurred during transport, either to the packaging or content, please contact

the delivery company responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear

about the safety and reliability of your new scooter, and about the service you received from your autho-

rized Pride Provider. Please notify us of any change of address, so we can keep you apprised of important

information about safety, new products, and new options that can increase your ability to use and enjoy

your scooter. Please feel free to contact us at the address below:

Pride Mobility Products Corporation

Attn.: Customer Care Department

182 Susquehanna Avenue

Exeter, PA 18643-2694

[email protected]

1-800-424-8205

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Victory ES Series www.pridemobility.com 5

II. SAFETY

PRODUCT SAFETY SYMBOLS

The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited

actions. It is very important for you to read and understand them completely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.

EMI/RFI - This product has been tested and passed at an immunity level of 20 V/m.

Explosive conditions exist!

Read and follow the information in the owner’s manual.

Do not remove anti-tip wheels.

Keep tools and other metal objects away from battery terminals. Contact with

tools can cause electrical shock.

6 www.pridemobility.com Victory ES Series

II. SAFETY

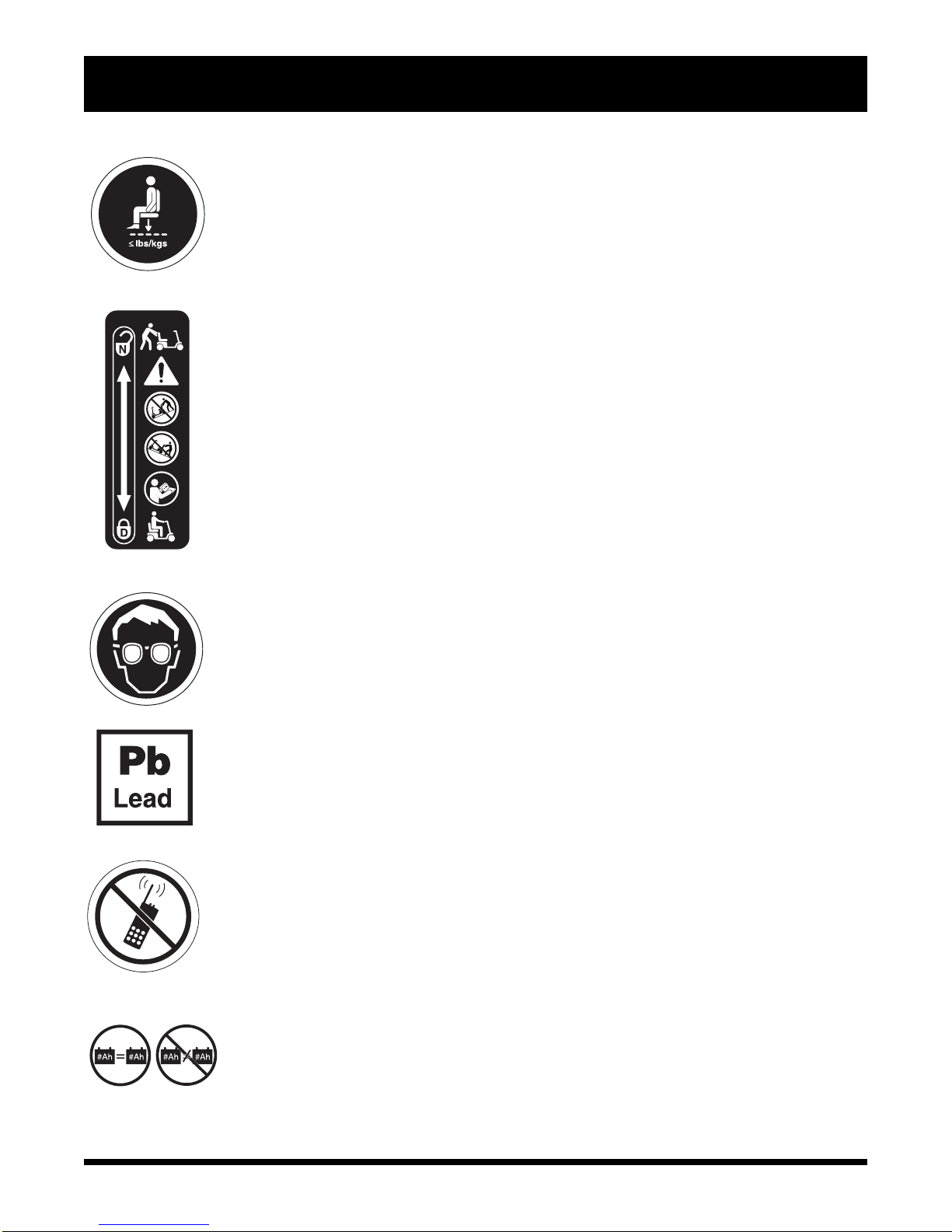

Maximum seating weight.

Place unit on level ground and stand to one side when changing from drive mode

to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Battery posts, terminals, and related accessories contain lead and lead

compounds. Wear goggle and gloves when handling batteries and wash hands

after handling.

Do not place the scooter in freewheel mode on a decline or incline.

Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while

operating.

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Victory ES Series www.pridemobility.com 7

II. SAFETY

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Do not connect an extension cord to the AC/DC converter or the battery charger.

Do not allow unsupervised children to play near the scooter while the batteries

are charging.

Keep your hands away from the tires when driving. Be aware that loose fitting

clothing can become caught in drive tires.

Manufactured in

8 www.pridemobility.com Victory ES Series

II. SAFETY

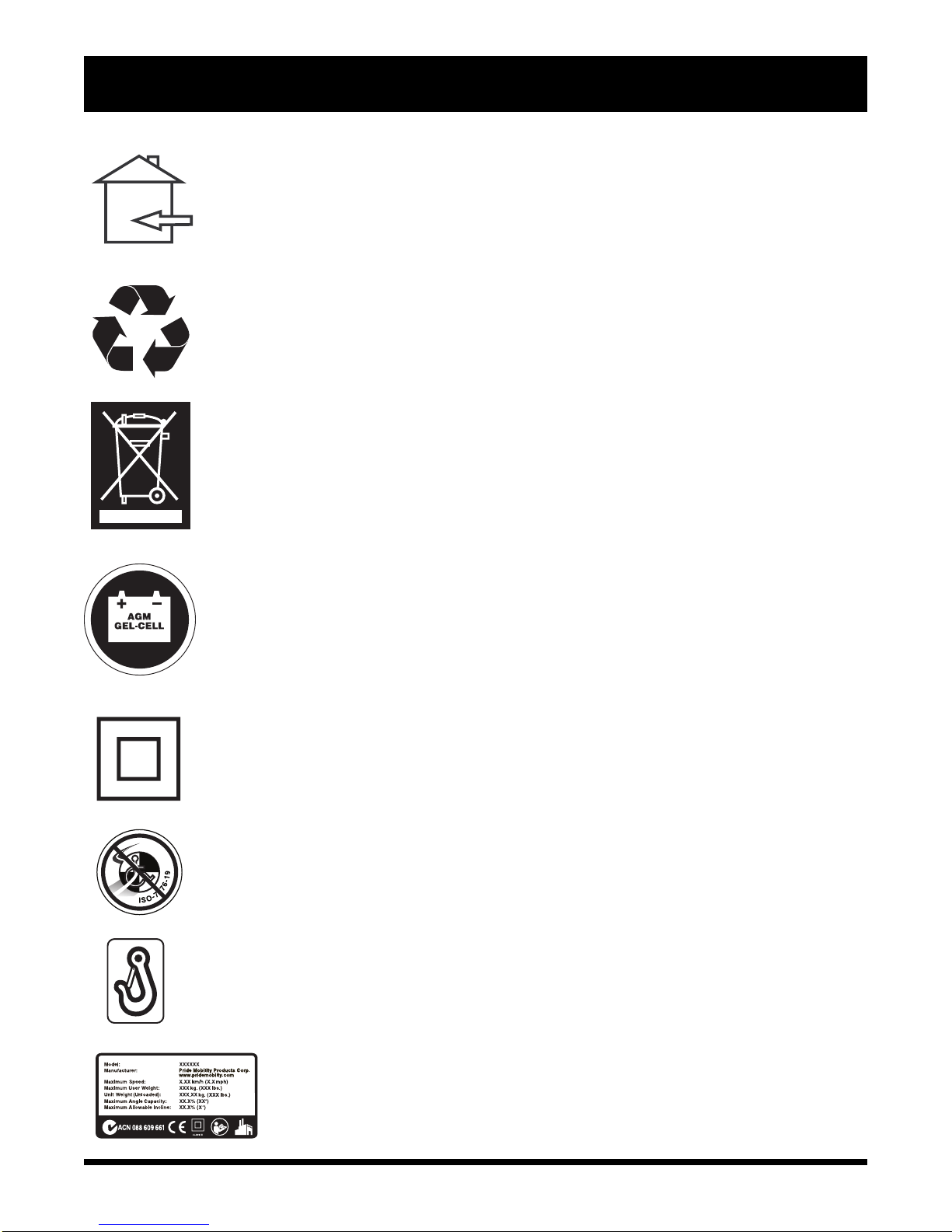

Battery charger for indoor use only.

Disposal and recycling - Contact your authorized Pride Provider for information on

proper disposal and recycling of your Pride product and its packaging.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Class II equipment

Scooter does not conform to ISO 7176-19 for transport of an occupied scooter in

a motor vehicle.

Indicates tie-down points on the scooter.

Scooter information label.

Victory ES Series www.pridemobility.com 9

II. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the first time without completely

reading and understanding this owner’s manual.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the

final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the

scooter user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical

doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the scooter to the user and has assisted the prescribing healthcare professional and/or the authorized Pride

Provider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a family

member or care professional specially trained in assisting a scooter user in various daily living activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and confident control as

you maneuver through doorways, on and off elevators, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed

to operating the scooter safely.

MODIFICATIONS

Pride has designed and engineered your scooter to provide maximum mobility and utility. A wide range

of accessories is available from Pride to further customize your scooter to better suit your needs and/or

preferences. However, under no circumstances should you modify, add, remove, or disable any feature,

part, or function of your scooter.

WARNING! Do not modify your scooter in any way not authorized by Pride. Do not use

accessories if they have not been tested or approved for Pride products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts,

including the armrests, seat, or shroud. Pride recommends use of only solid, non-

removable frame components such as scooter securement points or the front and rear

frame weldments to lift or move your scooter.

WARNING! Lifting the scooter should be accomplished with no fewer than three people,

one at the front and two at the rear of the unit.

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your scooter operates smoothly and safely.

10 www.pridemobility.com Victory ES Series

II. SAFETY

Perform the following inspections prior to using your scooter:

Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated

on each tire if equipped with pneumatic tires.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes. See IX. “Care and Maintenance.”

Check battery charge. See IV. “Batteries and Charging.”

If you discover a problem, contact your authorized Pride Provider for assistance.

TIRE INFLATION

If your scooter is equipped with pneumatic tires, you should check or have the air pressure checked at least

once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth

operation of your scooter.

WARNING! It is critically important that the psi/bar/kPa air pressure rating indicated on

the tire be maintained in pneumatic tires at all times. Do not underinflate or overinflate

your tires. Low pressure may result in loss of control, and overinflated tires may burst.

Failure to maintain the psi/bar/kPa air pressure rating indicted on the pneumatic tires at

all times may result in tire and/or wheel failure.

WARNING! Inflate your scooter tires from a regulated air source with an available

pressure gauge. Inflating your tires from an unregulated air source could overinflate

them, resulting in a burst tire.

NOTE: If the tire on your scooter lists the psi rating only, use the following conversion formulas to find

the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

WEIGHT LIMITATIONS

Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information.

Keep in mind that the maximum weight capacity includes the combined weight of the user and any acces-

sories mounted to the scooter.

MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the

weight capacity voids your warranty. Pride will not be held responsible for injuries and/

or property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers on your

scooter may affect the center of gravity, resulting in a tip or a fall.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe

access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cor-

nering skills on your scooter.

Proceed with extreme caution as you approach the downgrade of a ramp or other incline.

Take wide swings with your scooter around any tight corners. If you do that, the scooter’s rear wheels

will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.

When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to

ensure a safely controlled descent.

Avoid sudden stops and starts.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility Sonic Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Bedienungsanleitung

Pride Mobility

Pride Mobility LEGEND CLASSIC XL-8 Bedienungsanleitung

Pride Mobility

Pride Mobility Rally SC151 Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility COLT XL8 Bedienungsanleitung

Pride Mobility

Pride Mobility COLT PURSUIT Bedienungsanleitung

Pride Mobility

Pride Mobility Zero Turn 10 Bedienungsanleitung

Pride Mobility

Pride Mobility Victory XL Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity XL SC4450DX Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY XL Bedienungsanleitung

Pride Mobility

Pride Mobility Legend Bedienungsanleitung

Pride Mobility

Pride Mobility GOPHER Bedienungsanleitung

Pride Mobility

Pride Mobility Legend Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity X Sport Bedienungsanleitung

Pride Mobility

Pride Mobility KOLJA ELITE Bedienungsanleitung

Pride Mobility

Pride Mobility Travel Pro Bedienungsanleitung

Pride Mobility

Pride Mobility Apex Spirit Bedienungsanleitung

Pride Mobility

Pride Mobility Elite Traveller Series INFINFB2039 Leitfaden

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Bedienungsanleitung

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Bedienungsanleitung

Pride Mobility

Pride Mobility Legend XL Bedienungsanleitung

Pride Mobility

Pride Mobility Legend XL Bedienungsanleitung

Pride Mobility

Pride Mobility 39 Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
