Pride Mobility Wrangler Bedienungsanleitung

WRANGLER

Pride Mobility Products Corp.

INFMANU1138/Rev K/September 2008

SAFETY GUIDELINES

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

Pride Provider:_____________________________________________________________________

Address:__________________________________________________________________________

Phone Number:__________________________

Purchase Date:__________________________ Serial Number:____________________________

WARNING! An authorized Pride Provider or qualified technician must perform the initial

setup of this PMV and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the PMV to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and a red slash.

Please fill out the following information for quick reference:

088 609 661

Wrangler www.pridemobility.com

CONTENTS

I. INTRODUCTION ................................................................................................ 4

II. SAFETY ................................................................................................................. 5

III. YOUR PMV .......................................................................................................... 19

IV. BATTERIES AND CHARGING ................................................................... 23

V. O P E R A T I O N ...................................................................................................... 28

VI. COMFORT ADJUSTMENTS ....................................................................... 30

VII. DISASSEMBLY AND ASSEMBLY ........................................................... 33

VIII. BASIC TROUBLESHOOTING .................................................................. 34

IX. CARE AND MAINTENANCE ...................................................................... 35

X. WARRANTY ....................................................................................................... 38

APPENDIX I - SPECIFICATIONS ......................................................................40

4www.pridemobility.com Wrangler

I. INTRODUCTION

SAFETY

Welcome to Pride Mobility Products Corporation (Pride). The Personal Mobility Vehicle (PMV) you have

purchased combines state-of the-art components with safety, comfort, and styling in mind. We are confi-

dent the design features will provide you with the conveniences you expect during your daily activities.

Understanding how to safely operate and care for this PMV should bring you years of trouble-free opera-

tion and service.

Read and follow all instructions, warnings, and notes in this manual and all other accompanying literature

before attempting to operate this product for the first time. In addition, your safety depends upon you, as

well as your provider, caretaker, or healthcare professional in using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assis-

tance for setup or operation, please contact your authorized Pride Provider. Failure to follow the instruc-

tions, warnings, and notes in this manual and those located on your PMV can result in personal

injury or product damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product

or remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,

refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

SHIPPING AND DELIVERY

Before using your PMV, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorized Pride Provider imme-

diately. Where damage has occurred during transport, either to the packaging or content, please contact

the delivery company responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear

about the safety and reliability of your new PMV, and about the service you received from your authorized

Pride Provider. Please notify us of any change of address, so we can keep you apprised of important

information about safety, new products, and new options that can increase your ability to use and enjoy

your PMV. Please feel free to contact us at the address below:

USA: Canada:

Pride Mobility Products Corporation Pride Mobility Products Company

Attn.: Customer Care Department 380 Vansickle Road Unit 350

182 Susquehanna Avenue St. Catharines, Ontario L2R 6P7

Exeter, PA 18643-2694 1-888-570-1113

[email protected]

1-800-424-8205

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Wrangler www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

The symbols below are used on the PMV to identify warnings, mandatory actions, and prohibited actions.

It is very important for you to read and understand them completely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.

EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.

Do not lift the mobility vehicle while seated in it.

Explosive conditions exist!

Read and follow the information in the owner’s manual.

6www.pridemobility.com Wrangler

II. SAFETY

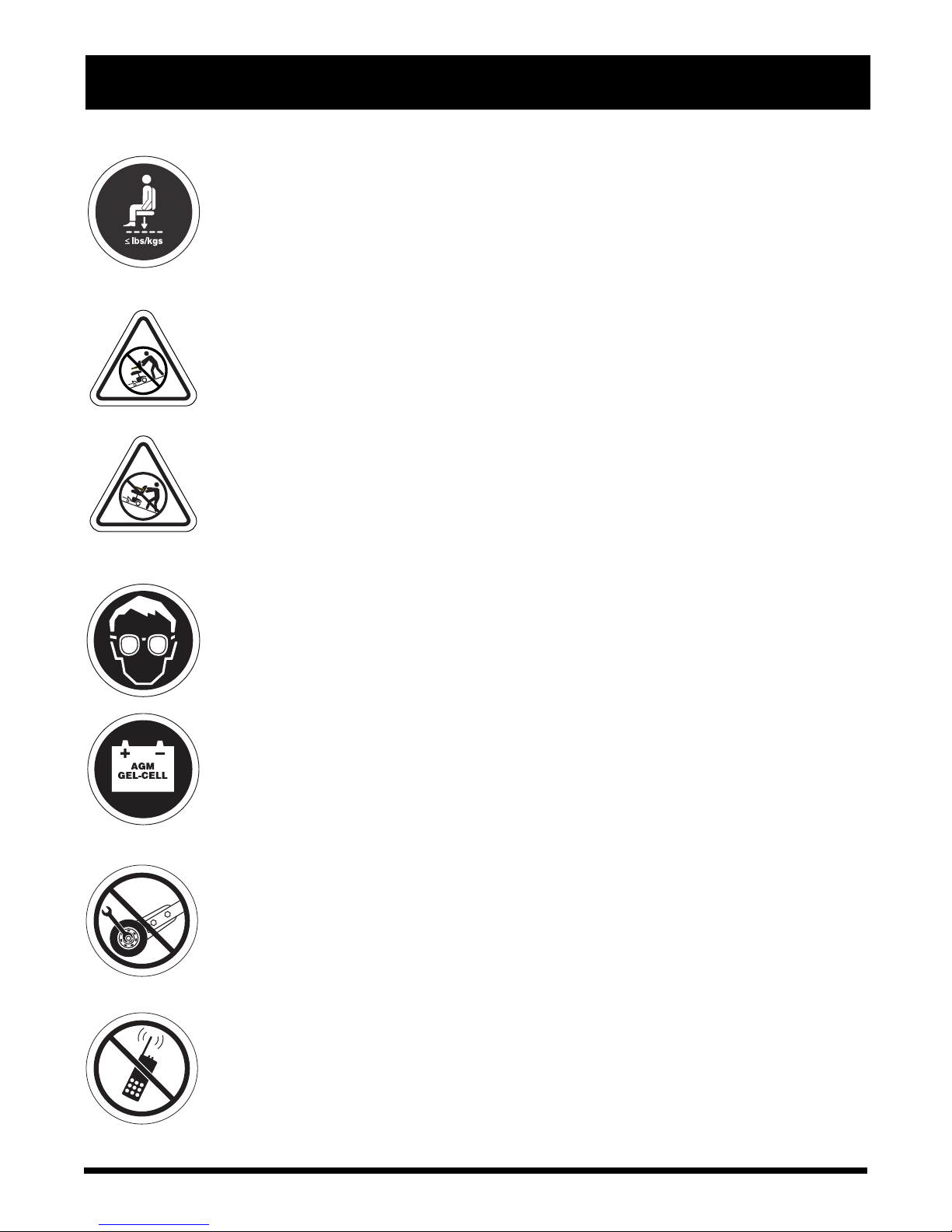

Maximum seating weight.

Do not remove anti-tip wheels.

Wear safety goggles.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while

operating.

Do not place PMV in freewheel mode on a decline.

Do not place PMV in freewheel mode on an incline.

Wrangler www.pridemobility.com

II. SAFETY

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Do not connect an extension cord to the AC/DC converter or the battery charger.

Keep tools and other metal objects away from battery terminals. Contact with

tools can cause electrical shock.

Do not allow unsupervised children to play near the PMV while the batteries are

charging.

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Keep your hands away from the tires when driving. Be aware that loose fitting

clothing can become caught in drive tires.

8www.pridemobility.com Wrangler

Battery charger for indoor use only.

Disposal and recycling - Contact your authorized Pride Provider for information on

proper disposal and recycling of your Pride product and its packaging.

Contains Lead.

II. SAFETY

Wrangler www.pridemobility.com

II. SAFETY

GENERAL

Your PMV is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the PMV user. Please be aware that the

final selection and purchasing decision regarding the type of PMV to be used is the responsibility of the

PMV user who is capable of making such a decision and his/her healthcare professional (i.e., medical

doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the PMV to the user and has assisted the prescribing healthcare professional and/or the authorized Pride

Provider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the PMV user will need to practice

operating the PMV in the presence of a trained attendant. A trained attendant can be defined as a family

member or care professional specially trained in assisting a PMV user in various daily-living activities.

As you begin using your PMV during daily activities, you will probably encounter situations in which you

will need some practice. Simply take your time and you will soon be in full and confident control as you

maneuver through doorways, on and off lifts, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help the user become accus-

tomed to operating the PMV safely.

MODIFICATIONS

Pride has designed and engineered your PMV to provide maximum mobility and utility. A wide range of

accessories are available from your authorized Pride Provider to further customize your PMV to better

suit your needs and/or preferences. However, under no circumstances should you modify, add, remove,

or disable any feature, part, or function of your PMV.

WARNING! Do not operate your new PMV for the first time without completely reading

and understanding this owner’s manual.

WARNING! Do not modify your PMV in any way not authorized by Pride. Do not use

accessories if they have not been tested or approved for Pride Products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your PMV by any of its removable parts,

including the armrests, seat, or shroud.

PRE-RIDE SAFETY CHECK

Get to know the feel of your PMV and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your PMV operates smoothly and safely.

10 www.pridemobility.com Wrangler

II. SAFETY

Perform the following inspections prior to using your PMV:

Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated

on each tire if equipped with pneumatic tires.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes.

Check battery charge.

If you discover a problem, contact your authorized Pride Provider for assistance.

WEIGHT LIMITATIONS

Your PMV is rated for a maximum weight capacity. Refer to the specifications table for information.

WARNING! It is critically important that the psi/bar/kPa air pressure rating indicated on

the tire be maintained in pneumatic tires at all times. Do not underinflate or overinflate

your tires. Low pressure may result in loss of control, and overinflated tires may burst.

Failure to maintain the psi/bar/kPa air pressure rating indicated on pneumatic tires at all

times may result in tire and/or wheel failure.

WARNING! Inflate your PMV tires from a regulated air source with an available pressure

gauge. Inflating your tires from an unregulated air source could overinflate them,

resulting in a burst tire.

MANDATORY! Stay within the specified weight capacity for your PMV. Exceeding the

weight capacity voids your warranty. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your PMV. Carrying passengers on your PMV may

affect the center of gravity, resulting in a tip or fall.

NOTE: If the tires on your PMV list the psi rating only, use the following conversion formulas to find

the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

TIRE INFLATION

If your PMV is equipped with pneumatic tires, you should check or have the air pressure checked at least

once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth

operation of your PMV.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe

access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cor-

nering skills on your PMV.

Proceed with extreme caution as you approach the downgrade of a ramp or other incline.

Take wide swings with your PMV around any tight corners. If you do that, the PMV’s rear wheels will

follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.

When driving down a ramp, keep the PMV’s speed adjustment set to the slowest speed setting to

ensure a safely controlled descent.

Avoid sudden stops and starts.

Andere Handbücher für Wrangler

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pride Mobility Roller Handbücher

Pride Mobility

Pride Mobility CELEBRITY XL Bedienungsanleitung

Pride Mobility

Pride Mobility CELEBRITY X Bedienungsanleitung

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Bedienungsanleitung

Pride Mobility

Pride Mobility The Ultimate In Style & Performance Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SPORT Bedienungsanleitung

Pride Mobility

Pride Mobility go-go ES2 Bedienungsanleitung

Pride Mobility

Pride Mobility Ultimate 3 Bedienungsanleitung

Pride Mobility

Pride Mobility raptor series Bedienungsanleitung

Pride Mobility

Pride Mobility Revo Sport Bedienungsanleitung

Pride Mobility

Pride Mobility Hurricane SCUK4500 Bedienungsanleitung

Pride Mobility

Pride Mobility Legend Bedienungsanleitung

Pride Mobility

Pride Mobility Celebrity X Sport Bedienungsanleitung

Pride Mobility

Pride Mobility 613 Bedienungsanleitung

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Bedienungsanleitung

Pride Mobility

Pride Mobility scooter Bedienungsanleitung

Pride Mobility

Pride Mobility PMV Series Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Elite traveller Bedienungsanleitung

Pride Mobility

Pride Mobility Wrangler Bedienungsanleitung

Pride Mobility

Pride Mobility Apex Sprint Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Go Ultra X Bedienungsanleitung

Pride Mobility

Pride Mobility Maxima Scooter SC940 Bedienungsanleitung

Pride Mobility

Pride Mobility Elite Traveller Series INFINFB2039 Leitfaden

Pride Mobility

Pride Mobility Zero Turn 10 Bedienungsanleitung

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
