Pro-Form 395E Bedienungsanleitung

ModelNo. 831.23953.3

Serial No.

Write the serial number in the space

above for reference.

Serial Number

Decal (under frame)

• Assembly

•Operation

• Maintenance

• Part List and Drawing

Sears, Roebuck and Co.

Noffman Estates, IL 60179

ELLIPTICAL EXERCISER

User's Manual

TABLE OF CONTENTS

WARNING DECAL PLACEMENT ............................................................... 2

IMPORTANT PRECAUTIONS .................................................................. 3

BEFORE YOU BEGIN ........................................................................ 4

PART IDENTIFICATION CHART ................................................................ 5

ASSEMBLY ................................................................................ 6

HOW TO USE THE ELLIPTICAL .............................................................. 15

FCC INFORMATION ........................................................................ 19

MAINTENANCE AND TROUBLESHOOTING .................................................... 20

EXERCISE GUIDELINES .................................................................... 22

PART LIST ................................................................................ 25

EXPLODED DRAWING ...................................................................... 26

ORDERING REPLACEMENT PARTS ................................................... Back Cover

90 DAY FULL WARRANTY ........................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, call

1=888=533=1333 and request a free replacement

decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual size.

• Misuseof this machine

may result in serious

injury.

• Read user's manual

prior to use and follow

all warnings and

instructions.

• Do not allow children

on or around machine.

•Pedals continue to

spin when you stop

pedaling.

, Spinning pedals can

cause injury.

•Reduce pedal speed

in acontrolledmanner.

• User weight must not

exceed 250 pounds,

•Replace label if

damaged, illegible, or

removed. [_

iMPORTANT PRECAUTIONS

WARNING: Toreducetheriskofseriousinjury,reada,importantprecautionsand

instructions in this manual and all warnings on your elliptical before using your elliptical. Sears

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

1. it is the responsibility of the owner to ensure 9.

that all users of the elliptical are adequately

informed of all precautions.

Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre=existing health problems.

Use the elliptical only as described in this

manual

10.

11.

The elliptical should not be used by persons

weighing more than 250 Ibs. (113 kg).

Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

The elliptical is intended for home use only.

Do not use the elliptical in acommercial,

rental, or institutional setting.

Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or coveted patio, or near water.

Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

12.

13.

14.

The heart rate monitor is not amedical

device. Various factors may affect the accu =

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

The elliptical does not have afreewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

acontrolled way.

Keep your back straight while using the ellip-

tical; do not arch your back.

inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

Keep children under age 12 and pets away

from the elliptical at all times.

15. Over exercising may result in serious injury

or death, if you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

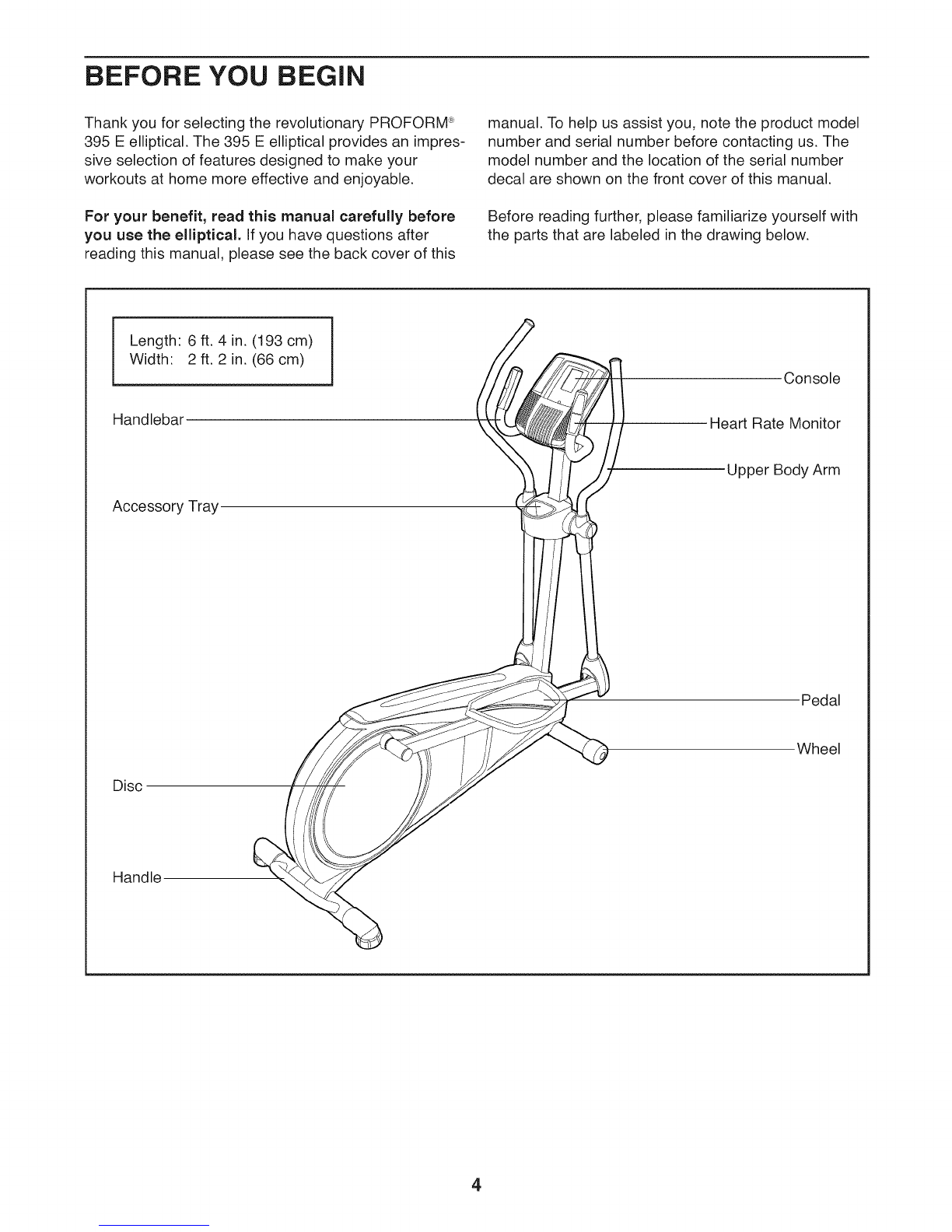

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM _

395 E elliptical. The 395 E elliptical provides an impres-

sive selection of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Length: 6 ft. 4 in. (193 cm)

Width: 2 ft. 2 in. (66 cm) Console

Handlebar Heart Rate Monitor

Accessory Tray

Upper Body Arm

Pedal

Disc

Wheel

Handle

PART iDENTiFiCATiON CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included, if a part is missing, please call 1=888=533=1333.

M8 Jam Nut

(77)-4 M8 Washer M8 x 20mm M10 x 20mm

(33)-2 Screw (80)-2 Screw (79)-8

M10 Split

Washer (78)-11

Bolt Set (31)-2

M10 x 45mm Screw (75)-6

M4 x 16mm

Screw (53)-9

M8 x 45mm Bolt (76)-4

M10 x 85mm Screw (74)-4

ASSEMBLY

Assembly requires two persons.

Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you finish all assembly steps.

Left parts are marked "L" or "Left" and right parts

are marked "R" or "Right."

To identify small parts, see page 5.

• in addition to the included tool(s), assembly

requires the following tool(s):

one Phillips screwdriver

Assembly may be easier if you have your own set

of wrenches. To avoid damaging parts, do not use

power tools.

.Go to www.proformservice.com/registration

on your computer and register your product.

Registration provides the following benefits:

• activates your product manufacturer's warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: if you do not have Internet access, call

1-888-533-1333 to register your product.

.While a second person lifts the rear of the Frame

(1), attach the Rear Stabilizer (70) to the Frame

with two M10 x 85mm Screws (74).

3. 3

Orient the Front Stabilizer (73) as indicated by

the sticker.

While a second person lifts the front of the

Frame (1), attach the Front Stabilizer (73) to the

Frame with two MIO x 85mm Screws (74).

73 74

.Orient the Upright (2) and the Shield Cover (37)

as shown. Slide the Shield Cover upward onto

the Upright.

Have a second person hold the Upright (2) and

the Shield Cover (37) near the Frame (1).

Locate the wire tie in the lower end of the Upright

(2). Tie the wire tie to the Main Wire (42). Then,

pull the upper end of the wire tie until the Main

Wire is routed through the Upright.

Tip: To prevent the Main Wire (42) from fall=

ing into the Upright (2), secure the Main Wire

with the wire tie.

Wire Tie

Wire

.Tip: Avoid pinching the Main Wire (42). Slide

the Upright (2) onto the Frame (1).

Have a second person hold the Shield Cover

(37) out of the way.

Attach the Upright (2) with five M10 x 20mm

Screws (79) and five M10 Split Washers (78).

Tip: Start all the Screws, and then tighten

them.

Press the Shield Cover (37) into the Left and

Right Shields (44, 45).

44 45 79. 78

.Orient the Handlebar (39) as shown. Have a

second person hold the Handlebar near the

Upright (2).

Locate the Sensor Wires (28) in the Handlebar

(39). Insert the right Sensor Wire into the right

side of the Upright and insert the left Sensor

Wire into the left side of the Upright. Pull the

Sensor Wires upward out of the top of the

Upright.

Tip: Avoid pinching the wires. Attach the

Handlebar (39) to the Upright (2) with three M10

x 20mm Screws (79).

Avoid pinching

the wires

The Console (4) can use four D batteries (not

included); alkaline batteries are recommended.

Do not use old and new batteries together or

alkaline, standard, and rechargeable batter-

ies together, iMPORTANT: if the Console has

been exposed to cold temperatures, allow it

to warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic com-

ponents. Remove the battery covers from the

back of the Console, and insert batteries into the

battery compartments. Make sure to orient the

batteries as shown by the diagrams inside

the battery compartments. Then, reattach the

battery covers.

To purchase an optional power adapter, call

the telephone number on the cover of this

manual. To avoid damaging the console,

use only a manufacturer-supplied power

adapter. Plug one end of the power adapter into

the receptacle inside the battery compartment

on the console; plug the other end into an outlet

installed in accordance with all local codes and

ordinances.

Battery

Cover

ptacle

,Untie and discard the wire tie on the Main

Wire (42).

While a second person holds the Console (4)

near the Upright (2), connect the wires on the

Console to the Main Wire (42) and to the Sensor

Wires (28).

Insert the excess wire into the Upright (2) or into

the Console (4).

Tip: Avoid pinching the wires. Attach the

Console (4) to the Upright (2) with four M4 x

16mm Screws (53).

Avoid pinching

the wires

42 2

9. Orient the Rear Console Cover (81) as shown.

Have a second person hold the Rear Console

Cover (81) against the Upright (2) until you com-

plete step 10.

10. Orient the Front Console Cover (32) as shown.

Attach the Rear Console Cover (81) around

the Upright (2) by pressing the hooks on the

Rear Console Cover into the tabs on the Front

Console Cover (32).

Attach the Front Console Cover (32) to the

Upright (2) with two M4 x 16mm Screws (53).

10 32

11. Identify the Right Upper Body Arm (9).

Orient the Right Upper Body Arm (9) and an

Upper Body Leg (6) as shown. Insert the Right

Upper Body Arm into the Upper Body Leg.

Attach the Right Upper Body Arm (9) to the

Upper Body Leg (6) with two M8 x 45mm Bolts

(76) and two M8 Jam Nuts (77). Make sure that

the Jam Nuts are inside the hexagonal holes.

Do not fully tighten the Bolts yet.

Attach the Left Upper Body Arm (8) to the

other Upper Body Leg (6) in the same way.

Hexagonal

Holes

Andere Handbücher für 395E

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form PFEL89720-INT.0 Bedienungsanleitung

Pro-Form

Pro-Form 595 HR Benutzerhandbuch

Pro-Form

Pro-Form 20.0 Crosstrainer Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEVEL73908.0 Bedienungsanleitung

Pro-Form

Pro-Form pacerprograms 485p Bedienungsanleitung

Pro-Form

Pro-Form 485 E Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 490 LE Bedienungsanleitung

Pro-Form

Pro-Form 831.28622.0 Bedienungsanleitung

Pro-Form

Pro-Form 420 Zle Elliptical Einrichtungshandbuch

Pro-Form

Pro-Form PFEL91030 Bedienungsanleitung

Pro-Form

Pro-Form Cardio Crosstrainer 650 Bedienungsanleitung

Pro-Form

Pro-Form 550 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form XP StrideClimber 600 Bedienungsanleitung

Pro-Form

Pro-Form PFCCEL87078 Bedienungsanleitung

Pro-Form

Pro-Form 530e Bedienungsanleitung

Pro-Form

Pro-Form STRIDE SELECT PFEL3926.0 Bedienungsanleitung

Pro-Form

Pro-Form 510 Ex Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 660 Xt Benutzerhandbuch

Pro-Form

Pro-Form 762 Ekg Bike Benutzerhandbuch

Pro-Form

Pro-Form 465 S Bedienungsanleitung

Pro-Form

Pro-Form 660 Xt Systemhandbuch

Pro-Form

Pro-Form 545 Ekg Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEVEL80717.0 Bedienungsanleitung

Pro-Form

Pro-Form 700 S Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
