Pro-Form 850 Elliptical Bedienungsanleitung

USERʼS MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Model No. PFEL5105.0

Serial No.

www.proform.com

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

Serial

Number

Decal

TABLE OF CONTENTS

WARNINGDECA P ACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMB Y ...............................................................................5

HOWTOUSETHEE IPTICA .............................................................13

MAINTENANCEANDTROUB ESHOOTING ...................................................22

EXERCISEGUIDE INES ...................................................................23

PART IST ..............................................................................24

EXP ODEDDRAWING ....................................................................26

ORDERINGREP ACEMENTPARTS ..................................................BackCover

IMITEDWARRANTY ..............................................................BackCover

PROFORM is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use

of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

3. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

4. eep the elliptical indoors, away from mois-

ture and dust. Place the elliptical on a level

surface, with a mat beneath it to protect the

floor or carpet. Make sure that there is at

least 3 ft. (0.9 m) of clearance in the front

and rear of the elliptical and 2 ft. (0.6 m) on

each side.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. eep children under age 12 and pets away

from the elliptical at all times.

7. The elliptical should not be used by persons

weighing more than 250 lbs. (113 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on the elliptical.

Always wear athletic shoes for foot protec-

tion.

9. Hold the handgrip pulse sensors or the han-

dlebars when mounting, dismounting, or

using the elliptical.

10. eep your back straight while using the

elliptical; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

13. Use the elliptical only as described in this

manual.

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

850 elliptical. The 850 elliptical exerciser provides an

impressive selection of features designed to make

your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

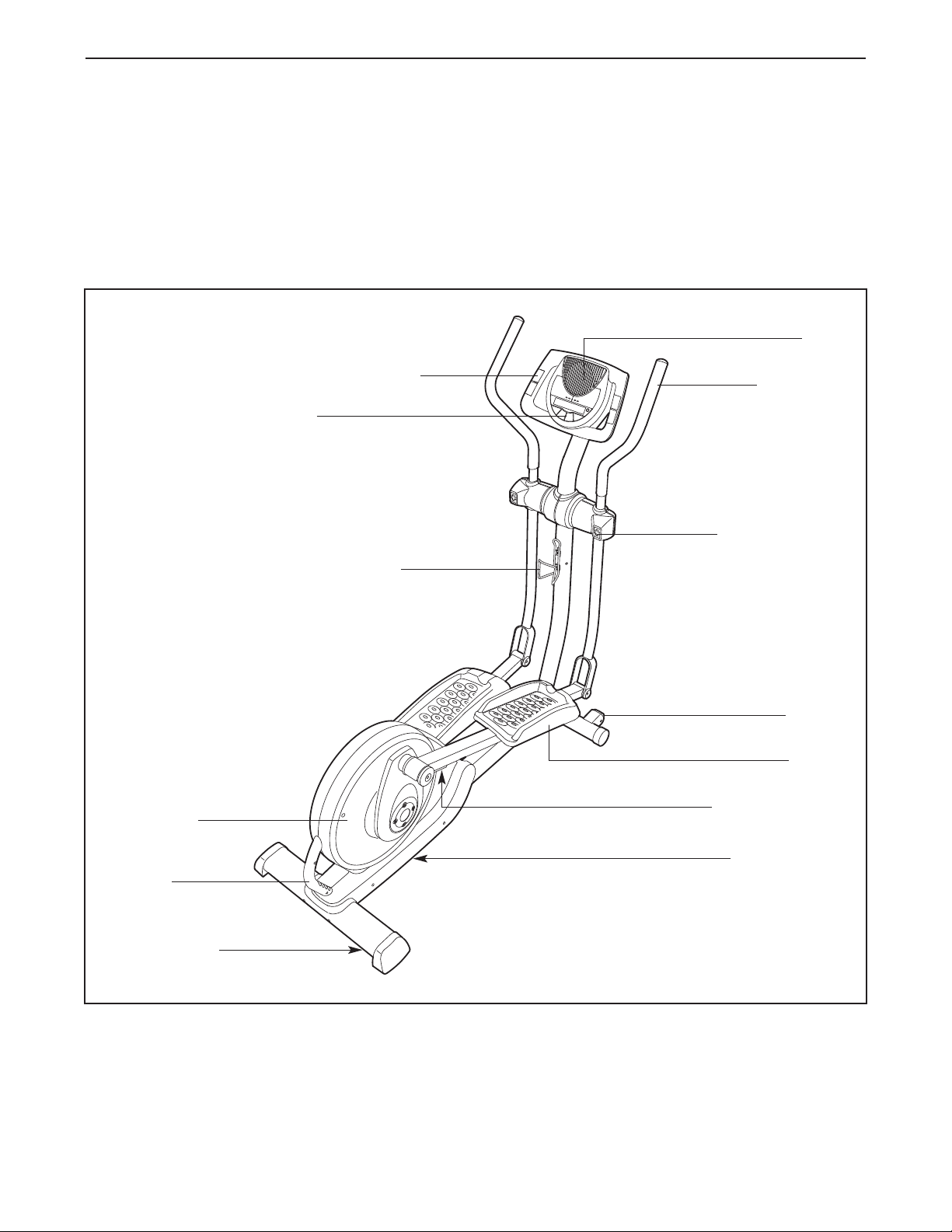

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor Handlebar

Pedal Disc

Wheel

Pedal

Console

Water Bottle Holder*

eveling Foot

Handle

Storage atch

Storage Magnet

Fan

Pedal Arm atch

*Water bottle is not included

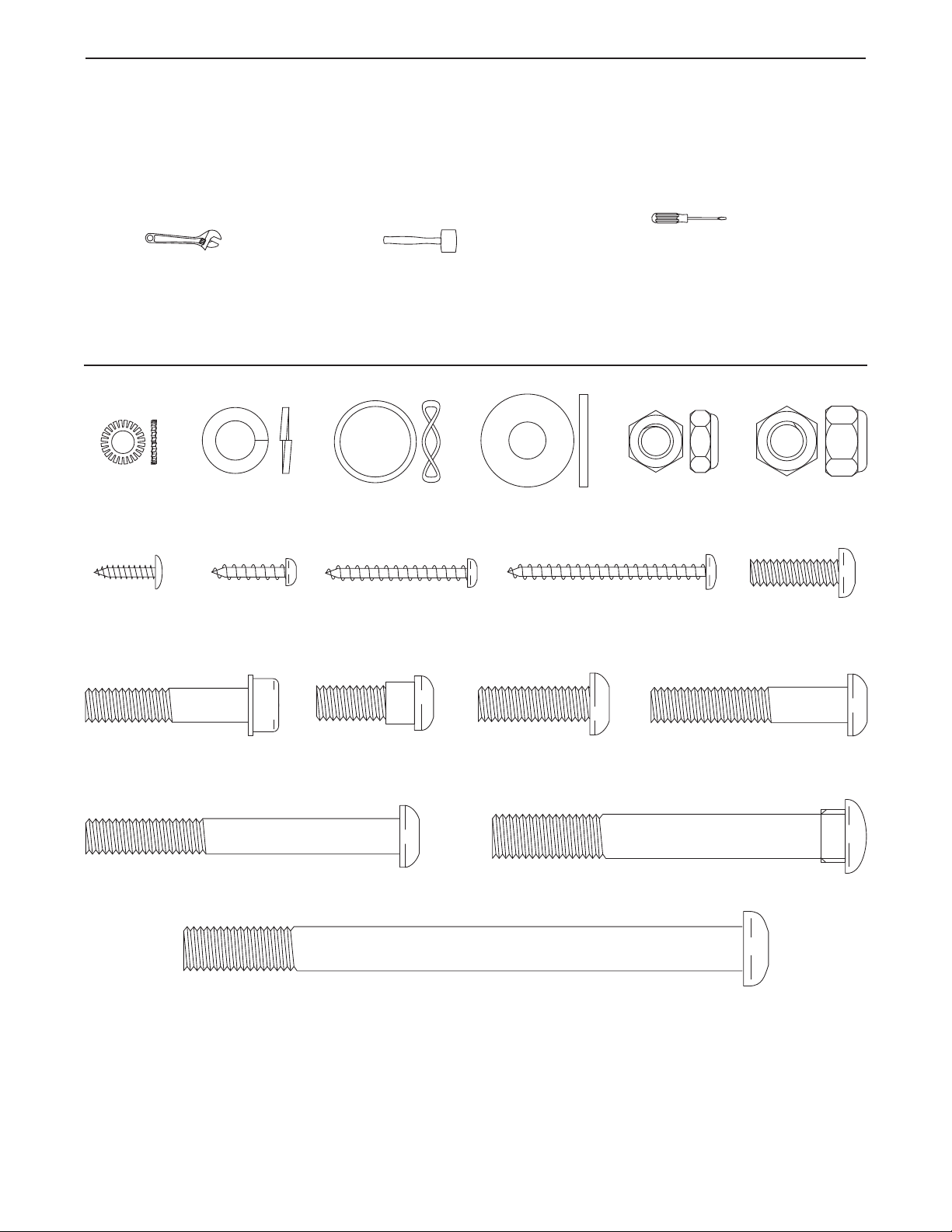

M10 x 127mm Button Screw (83)–2

M4 x 14mm

Screw (104)–8

M10 Locknut

(81)–2

M8 Jamnut

(79)–5

M8 Washer

(88)–6

Wave Washer

(111)–2

M8 x 23mm Button

Screw (84)–4

M8 Split

Washer (90)–3

M8 x 43mm Button

Bolt (78)–4

M4 x 16mm

Round Head

Screw (101)–8

M4 x 32mm

Round Head

Screw (105)–6

M4 x 45mm

Screw (108)–2

M8 x 23mm Shoulder

Screw (115)–4

M8 x 69mm Button

Bolt (80)–1

M10 x 80mm Carriage

Bolt (82)–2

M6 x 20mm Button

Screw (77)–4

Hub Screw (87)–8

Star Washer

(112)–8

ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART IST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware

kit, check to see if it has been preassembled.

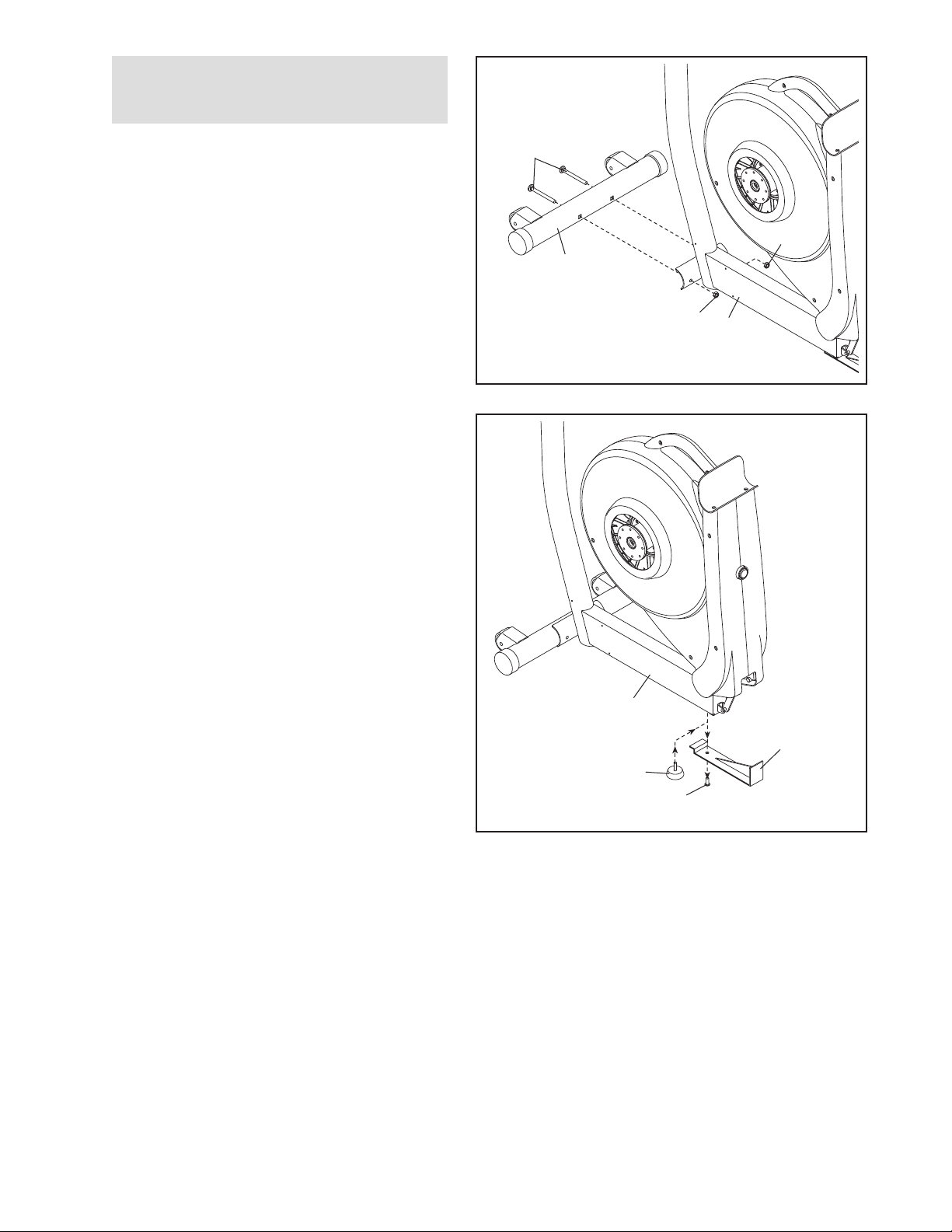

While another person lifts the Base (1), attach

the Front Stabilizer (6) to the Base with two

M10 x 80mm Carriage Bolts (82) and two M10

ocknuts (81).

2. Remove the indicated screw and bracket from

the Base (1). Discard the screw and the

bracket.

Next, tighten the Base Foot (26) into the Base

(1) as far as possible.

Bracket

Screw

To make assembly easier, read the

information on page 5 before you begin.

3. Attach the Rear Stabilizer (7) to the Frame (2)

with two M10 x 127mm Button Screws (83).

Next, hold the handle on the Frame (2), press

the atch Button (68), and lower the Frame until

the Rear Stabilizer (7) is resting on the floor.

4. Hold a Hub Cover (75) and a Crank Arm (36)

against the left Crank Hub (38).

Align the holes in the Hub Cover (75) and the

Crank Arm (36) with the unused holes in the left

Crank Hub (38).

Insert four Hub Screws (87) into the Hub Cover

(75) and the Crank Arm (36), and finger tighten

the Hub Screws into the left Crank Hub (38).

Tighten one of the Hub Screws (87), and then

tighten the Hub Screw across from the first Hub

Screw. Then, tighten the remaining two Hub

Screws.

Repeat this step on the right side of the ellipti-

cal; make sure that the Crank Arms (36) are

oriented so that the Crank Bushing Sleeves

(43) are oriented as shown.

Note: There are no Pulley Screws (98) on the

right side.

Handle

6. Insert the end of the Upper Wire Harness (48)

through the rectangular hole in the Console

Bracket (4).

Attach the Console Bracket (4) to the Upright

(3) with four M6 x 20mm Button Screws (77).

Orient one of the Upright Covers (17) as shown,

and hold it against the Upright (3).

Attach the Upright Cover (17) with two M4 x

16mm Round Head Screws (101). Attach the

other Upright Cover in the same way.

5. While another person holds the Upright (3),

connect the Upper Wire Harness (48) to the

ower Wire Harness (49).

Gently pull the upper end of the Upper Wire

Harness (48) to remove any slack, and insert

the Upright (3) into the Base (1).

Tip: Avoid pinching the wires. Attach the

Upright (3) with an M8 x 69mm Button Bolt (80),

an M8 Split Washer (90), and an M8 Jam Nut

(79). Do not tighten the Button Bolt yet;

make sure that the Jam Nut is in the hexago-

nal hole in the Base.

Next, finger tighten two M8 x 23mm Button

Screws (84) with M8 Split Washers (90) into the

Base (1). Do not tighten the Button Screws

yet.

Attach the Water Bottle Holder (22) to the Base

(1) with two M4 x 14mm Screws (104).

101

90 104

Avoid pinching

the wires

8. While another person holds the Console (5)

near the Console Bracket (4), connect the wire

harness on the Console to the Upper Wire

Harness (48).

Insert the excess wires into the Upright (3).

Tip: Avoid pinching the wires. Attach the

Console (5) to the Console Bracket (4) with four

M4 x 16mm Round Head Screws (101).

7. The Console (5) can use four D batteries (not

included); alkaline batteries are recommended.

IMPORTANT: If the Console has been

exposed to cold temperatures, allow it to

warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic compo-

nents. Remove the battery cover, insert the

batteries into the battery compartment, and

reattach the battery cover. Make sure to orient

the batteries as shown by the diagram

inside the battery compartment.

101

Wire

Harness

Battery

Cover

Batteries

Tabs

Avoid pinching

the wires

10. Insert the Pivot Axle (74) into the Upright (3) and

center it. Apply a generous amount of the

included grease to the Pivot Axle.

Orient the eft Upper Body eg (11) as shown,

and slide it onto the left end of the Pivot Axle

(74). Slide the Right Upper Body eg (12) onto

the right end of the Pivot Axle.

Tighten an M8 x 23mm Button Screw (84) with

an M8 Washer (88) and a Wave Washer (111)

into each end of the Pivot Axle (74) at the same

time. Make sure that the Wave Washers are on

the ends of the Pivot Axle.

9. Identify the eft Handlebar (8) and the eft

Upper Body eg (11), which are marked with

“ eft” stickers, and orient them as shown.

Insert the eft Handlebar (8) into the eft Upper

Body eg (11).

Attach the eft Handlebar (8) with two M8 x

43mm Button Bolts (78) and two M8 Jam Nuts

(79). Make sure that the Jam Nuts are in the

hexagonal holes in the Left Upper Body Leg.

Attach the Right Handlebar (9) to the Right

Upper Body Leg (12) in the same way.

111

84 111

Grease

Andere Handbücher für 850 Elliptical

Inhaltsverzeichnis

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form 595 HR Bedienungsanleitung

Pro-Form

Pro-Form 450 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form HYBRID TRAINER Bedienungsanleitung

Pro-Form

Pro-Form Comfort Stride Bedienungsanleitung

Pro-Form

Pro-Form 764hr Bike Benutzerhandbuch

Pro-Form

Pro-Form Strideclimber 7101 Bedienungsanleitung

Pro-Form

Pro-Form PFIVEL19216.0 Bedienungsanleitung

Pro-Form

Pro-Form 750 Rx Benutzerhandbuch

Pro-Form

Pro-Form 470 Hr Elliptical Systemhandbuch

Pro-Form

Pro-Form PFEL4905.0 Bedienungsanleitung

Pro-Form

Pro-Form 280 Razor Elliptical Kurzanleitung

Pro-Form

Pro-Form 831.280182 Bedienungsanleitung

Pro-Form

Pro-Form 1150 Rxw Bedienungsanleitung

Pro-Form

Pro-Form 470 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form CARBON E7 Bedienungsanleitung

Pro-Form

Pro-Form StrideClimber 831.23745.1 Bedienungsanleitung

Pro-Form

Pro-Form 420 Ce Elliptical Benutzerhandbuch

Pro-Form

Pro-Form 380 F Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 510 Es Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 762 Ekg Bike Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 764hr Bike Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 910 E Elliptical Bedienungsanleitung

Pro-Form

Pro-Form COMMERCIAL 12.9 Bedienungsanleitung

Pro-Form

Pro-Form 130 Elliptical Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
