USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. 831.280440

Serial No.

SEARS, ROEBUCK AND CO.,

HOFFMAN ESTATES, IL 60179

Patent Pending

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

1. Read all instructions in this manual before

using the exercise cycle.

2. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions. Use the

exercise cycle only as described.

3. The exercise cycle is intended for in-home

use only. Do not use the exercise cycle in a

commercial, rental, or institutional setting.

4. Use the exercise cycle indoors on a level sur-

face. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor or carpet.

5. Inspect and properly tighten all parts regularly.

Replace any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

7. The exercise cycle should not be used by

persons weighing more than 250 pounds.

8. Wear appropriate clothing when exercising;

do not wear loose clothing that could become

caught on the exercise cycle. Always wear

athletic shoes when using the exercise cycle.

9. When connecting the link arms to the pedals,

make sure that the link arms are fully seated

on the pedal bushings (refer to HANDLEBAR

OPERATION on page 9). If the link arms are

not on the pedal bushings, they may slip off

during use, resulting in injury to the user.

10. When adjusting the height of the seat, make

sure that the pin on the seat knob is inserted

into one of the adjustment holes in the seat

post (refer to HOW TO ADJUST THE SEAT on

page 9). Do not rest the seat post on top of

the pin on the seat knob.

11. Always keep your back straight when using

the exercise cycle; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

13. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the exercise cycle.

Congratulations for selecting the new PROFORM®

WHIRLWIND exercise cycle. Cycling is one of the

most effective exercises for increasing cardiovascular

fitness, building endurance, and toning the entire

body. The PROFORM®WHIRLWIND offers an array

of features designed to let you enjoy this healthful

exercise in the comfort and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading the manual, please call our toll-free

HELPLINE at 1-800-736-6879, Monday through

Saturday, 7 a.m. until 7 p.m. Central Time (excluding

holidays). To help us assist you, please mention the

product model number when calling. The model num-

ber is 831.280440. The serial number can be found

on a decal attached to the exercise cycle (see the

front cover of this manual).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Handlebar

Water Bottle Holder*

*Water bottle is not included

FRONT

BACK

Seat

T-handle

Lock Rod

Pedal

Console

Book Holder

Seat Knob

Link Arm

RIGHT SIDE

BEFORE YOU BEGIN

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly can be completed using the included tools; however, a rubber mallet is also

recommended.

Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each

drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers to the

quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a part is

not in the parts bag, check to see if it has been pre-assembled.

M10 x 75mm Carriage Bolt (65)–4

M4 x 12mm

Screw (77)–2

M8 x 77mm Button Bolt (58)–2

M8 Split

Washer (81)–4 M8 Flat

Washer (73)–4

M6 Nylon

Locknut (56)–4 M8 Nylon

Locknut (66)–6 M10 Nylon

Locknut (64)–4 M10 Split

Washer (54)–6

M6 x 38mm Button

Bolt (57)–4 M10 x 17mm Button

Screw (55)–3 M10 x 23mm Button

Screw (80)–3

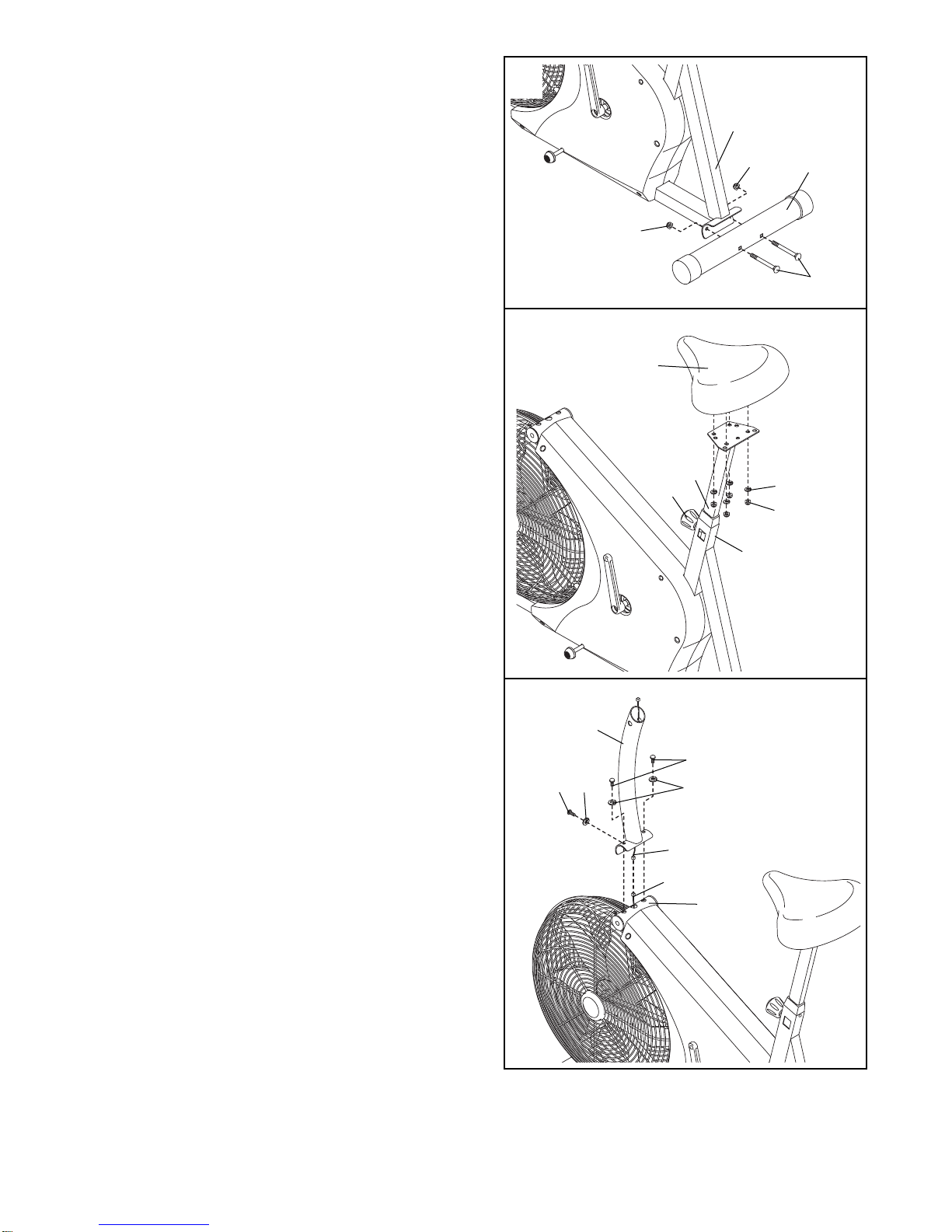

1. Attach one of the Stabilizers (19) to the front of the

Frame (1) with two M10 x 75mm Carriage Bolts (65)

and two M10 Nylon Locknuts (64). 19

2. Attach the other Stabilizer (19) to the rear of the

Frame (1) with two M10 x 75mm Carriage Bolts (65)

and two M10 Nylon Locknuts (64).

3. Turn the Seat Knob (29) counterclockwise two or

three turns to loosen it. Next, pull the Seat Knob,

raise the Seat Post (6) to the desired height, and

then release the Seat Knob. Move the Seat Post up

and down slightly until it locks into position.

Then, tighten the Seat Knob.

Attach the Seat (20) to the Seat Post (6) with four

M8 Nylon Locknuts (66) and four M8 Split Washers

(81). Note: The Nylon Locknuts and the Split

Washers may be preattached to the Seat.

4. While another person holds the Upright (2) in the

position shown, connect the Extension Wire (39) to

the Reed Switch Wire (31). Carefully pull the

upper end of the Reed Switch Wire to remove

any slack.

Carefully set the Upright (2) on the Frame (1); be

careful not to pinch the Extension Wire (39) or

the Reed Switch Wire (31). Attach the Upright with

three M10 x 17mm Button Screws (55) and three

M10 Split Washers (54).

55 54

6. Refer to the inset drawing. Insert the T-handle (4)

into the opening in the bottom of the Console (3) as

shown. Be careful not to pinch the console wire.

Align the holes in the metal tube on the T-handle

with the holes in the bracket on the Console.

Tighten two M4 x 12mm Screws (77) into the holes.

While another person holds the Console (3) near

the Upright (2), connect the console wire to the

Extension Wire (39). Insert the excess console wire

and Extension Wire into the Upright.

Attach the Console (3) to the Upright (2) with three

M10 x 23mm Button Screws (80) and three M10

Split Washers (54). Be careful to avoid pinching

the console wire or the Extension Wire (39).

5. The Console (3) requires four “D” batteries (not

included); alkaline batteries are recommended.

Press the tab on the battery cover, and lift off the

battery cover. Insert four batteries into the battery

compartment. Make sure that the batteries are

oriented as shown by the diagram inside the

battery compartment. Reattach the battery cover.

Battery

Cover

Batteries

7. Identify the Left Handlebar (7) and the Left

Handlebar Base (8), which are marked with stickers.

Attach the Left Handlebar to the Left Handlebar

Base with two M6 x 38mm Button Bolts (57) and

two M6 Nylon Locknuts (56).

Attach the Right Handlebar (not shown) to the Right

Handlebar Base (not shown) in the same way. 7

Console

Wire

Be careful

not to pinch

the console wire

during this step.

54 54

Bracket

Tube

9. Identify the Left Link Arm (15), which is marked with

a sticker.

Apply a small amount of grease to an M8 x 77mm

Button Bolt (58). Insert the Button Bolt into the Left

Handlebar Base (8). Slide an M8 Flat Washer (73),

a Link Arm Bushing (45), the Left Link Arm (15), and

another M8 Washer (73) onto the Button Bolt. Make

sure that the Link Arm Bushing and the Left

Link Arm are turned as shown. Tighten an M8

Nylon Locknut (66) onto the Button Bolt. Rest the

notch in the Left Link Arm on the left lock rod.

Attach the Right Link Arm (not shown) to the Right

Handlebar Base (not shown) in the same way.

10. Remove the 1/2" Pedal Nut (68) from the shaft on

one of the Pedals (23). Make sure that there is a

Pedal Spring (42), a Red Washer (71), a Pedal

Bushing (43), a Black Pedal Washer (79), and a

Pedal Spacer (44) on the shaft of the Pedal. In addi-

tion, make sure that the Pedal Bushing (43) is

turned as shown. Next, firmly tighten the shaft of the

Pedal clockwise into the left Crank Arm (26), and

tighten the Pedal Nut (68) back onto the shaft.

Attach the other Pedal (not shown) in the same way.

71 43 79 44

Lock

Rod Notch

11. Make sure that all parts are properly tightened before you use the exercise cycle. Place a mat

beneath the exercise cycle to protect the floor.

8. Apply a small amount of the included grease to the

Handlebar Axle (33). Insert the Handlebar Axle into

the Frame (1) and center it. (Note: It may be helpful

to use a rubber mallet to insert the Handlebar Axle.)

Next, slide the Left and Right Handlebars (7, 9) onto

the Handlebar Axle. Make sure that the

Handlebars are on the correct sides.

Using the included pedal tool, tap a Push Nut (78)

onto each end of the Handlebar Axle (33). Make

sure that the Push Nuts are turned as shown in

the inset drawing. (Note: It may be helpful if anoth-

er person holds a block of wood against one end of

the Handlebar Axle while you tap a Push Nut onto

the other end.) Then, tap the Large Axle Cap (49)

onto each end of the Handlebar Axle.

Grease

73 45

Pedal Tool 33

HOW TO OPERATE THE EXERCISE CYCLE

HANDLEBAR OPERATION

The handlebars can be used in either the dual-action

mode, for both upper-body and lower-body exercise,

or the stationary mode, for pedaling exercise only.

Dual-action Mode

To convert the

handlebars to

the dual-

action mode,

the link arms

must be con-

nected to the

pedals. Refer

to drawing 1.

Lift the link

arms off the

lock rods.

Refer to draw-

ing 2. Pull the

link arms out-

ward against

the tops of

the red wash-

ers, while

pulling

against the

bottoms of the

red washers

with your fin-

gers as shown. Be careful not to pinch your fin-

gers. Next, slide the link arms onto the pedal bush-

ings. Move the link arms up and down slightly to

make sure that they are fully seated on the pedal

bushings. CAUTION: Make sure that the link arms

are fully seated on the pedal bushings. If the link

arms are not on the pedal bushings, they may slip

off during use, resulting in injury to the user.

Stationary Mode

To convert the handlebars to the stationary mode, the

link arms must be disconnected from the pedals. Pull

the link arms outward against the red washers until

the link arms are free of the pedal bushings (see

drawing 2 above). Be careful not to pinch your fin-

gers. Next, lift the link arms off the pedals, and clip

them onto the lock rods (see drawing 1 above).

HOW TO ADJUST THE SEAT

For effective exer-

cise, the seat must

be at the proper

height. As you

pedal, there should

be a slight bend in

your knees when

the pedals are in

the lowest position.

To adjust the seat,

first turn the seat

knob counterclock-

wise two or three

turns to loosen it.

Next, pull the seat

knob, raise or lower

the seat post, and

then release the

seat knob. Move the seat post up and down slightly

until it locks into position. Then, tighten the seat

knob. CAUTION: Make sure that the pin on the seat

knob is inserted into one of the adjustment holes

in the seat post. Do not rest the seat post on top

of the pin on the seat knob.

DESCRIPTION OF THE CONSOLE

The console features six modes that provide instant

exercise feedback during your workouts. The modes

are described below.

• Time—This mode displays the elapsed time.

• Distance—This mode displays the total distance you

have pedaled.

• Speed—This mode displays your pedaling speed.

Note: Speed and distance can be displayed in either

miles or kilometers. An MPH or a KPH will appear

when the speed is displayed to show which unit of

measurement is selected. To change the unit of

measurement, press and hold the On/Reset button

for ten seconds.

• Calories—This mode displays the approximate num-

ber of calories you have burned.

• Fat calories—This mode displays the approximate

number of fat calories you have burned (see FAT

BURNING on page 12).

• Pulse—This mode displays your heart rate when the

thumb pulse sensor is used (see step 3 on page 10).

Seat

Post

Seat

Knob

Lock

Rod

Link Arm

Red

Washer Pedal

Bushing

Link

Arm

Seat

BATTERY INSTALLATION

The console requires four “D” batteries. To install bat-

teries, refer to assembly step 5 on page 7.

HOW TO OPERATE THE CONSOLE

Note: If there is a piece of clear plastic on the face of

the console, remove it before operating the console.

1. To turn on the

power, press

the On/Reset

button or begin

pedaling.

2. Begin exercising and monitor your progress with the

two displays.

Left display—

This display

shows the

elapsed time

and the dis-

tance that you

have pedaled.

The display will

change from

one number to the other every seven seconds, as

shown by the indicators in the display.

Right display—

This display

shows your

pedaling speed

and the approx-

imate numbers

of calories and

fat calories you

have burned.

When the thumb pulse sensor is used, the display

will also show your heart rate (see step 3 at the

right). Every seven seconds, the display will change

from one number to the next, as shown by the indi-

cators in the display.

To reset the displays at any time, press the

On/Reset button.

3. Measure your heart rate, if desired.

To measure

your heart rate,

stop pedaling

and place your

thumb on the

pulse sensor as

shown. The

pulse sensor is

pressure activat-

ed—fully press it down. Do not press too hard, or

the circulation in your thumb will be restricted,

and your pulse will not be detected. Next, raise

your thumb slightly until the heart-shaped indicator

in the right display flashes steadily. Hold your

thumb at this

level. After a few

seconds, two

dashes will

appear in the

display, and

then your heart

rate will be

shown. Hold

your thumb on

the pulse sensor for another 15 seconds for the

most accurate reading. If the displayed heart rate

appears to be too high or too low, or if your heart

rate is not displayed, lift your thumb off the pulse

sensor and allow the display to reset. Press down

again on the pulse sensor as described above.

Make sure that you are applying the proper amount

of pressure to the pulse sensor. Try the pulse sensor

several times until you become familiar with it.

Remember to sit still while measuring your heart

rate.

4. To turn off the power, simply wait for a few minutes.

The console has an “auto-off” feature. If the

pedals are not moved and the On/Reset button

is not pressed for a few minutes, the power will

turn off automatically to conserve the batteries.

Indicators

Inhaltsverzeichnis

Andere Pro-Form Heimtrainer Handbücher

Pro-Form

Pro-Form 831.283120 Bedienungsanleitung

Pro-Form

Pro-Form PFIVEX33613.0 Bedienungsanleitung

Pro-Form

Pro-Form 225 Zlx Bike Bedienungsanleitung

Pro-Form

Pro-Form LE TOUR DE FRANCE Bedienungsanleitung

Pro-Form

Pro-Form 900e Bike Bedienungsanleitung

Pro-Form

Pro-Form XP 185 U Bedienungsanleitung

Pro-Form

Pro-Form REBEL PFCCEX37082 Bedienungsanleitung

Pro-Form

Pro-Form 890e W/hand Pulse Bedienungsanleitung

Pro-Form

Pro-Form 425 Zlx Bike Bedienungsanleitung

Pro-Form

Pro-Form 831.21926.0 Bedienungsanleitung

Pro-Form

Pro-Form 920SEKG Bedienungsanleitung

Pro-Form

Pro-Form Le Tour De France PFEVEX71919.0 Bedienungsanleitung

Pro-Form

Pro-Form 831.288280 Bedienungsanleitung

Pro-Form

Pro-Form 831.288080 Bedienungsanleitung

Pro-Form

Pro-Form 831.283180 Bedienungsanleitung

Pro-Form

Pro-Form PFIVEX56282.0 Bedienungsanleitung

Pro-Form

Pro-Form 200 Zlx Bike Kurzanleitung

Pro-Form

Pro-Form 405 SPX Bedienungsanleitung

Pro-Form

Pro-Form PFCCEX01010 Bedienungsanleitung

Pro-Form

Pro-Form PFIVEX87112.0 Bedienungsanleitung

Pro-Form

Pro-Form 10.8x Bike Bedienungsanleitung

Pro-Form

Pro-Form Equalizer PFCEP Bedienungsanleitung

Pro-Form

Pro-Form 890e W/hand Pulse Bedienungsanleitung

Pro-Form

Pro-Form PFEVEX34181 Bedienungsanleitung

Beliebte Heimtrainer Handbücher anderer Marken

Weslo

Weslo Vector 302 Kurzanleitung

TOORX

TOORX BRX85 Bedienungsanleitung

Matrix

Matrix KranKcycle Bedienungsanleitung

Matrix

Matrix IC3 Bedienungsanleitung

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Bedienungsanleitung

Monark

Monark 827E Bedienungsanleitung

Stamina

Stamina 1310 Bedienungsanleitung

American Fitness

American Fitness SPR-BK1072A Bedienungsanleitung

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Bedienungsanleitung

BH FITNESS

BH FITNESS H9158H Bedienerhandbuch

Body Sculpture

Body Sculpture BC-7220G Bedienungsanleitung

Cateye

Cateye EC-2300 Bedienungsanleitung

FYTTER

FYTTER RACER RC MSR Bedienungsanleitung

Kikos

Kikos HM-9090M Bedienungsanleitung

Fuel Fitness

Fuel Fitness SU135-40 Bedienungsanleitung

NordicTrack

NordicTrack Gxr 4.2 Bike Bedienungsanleitung

Vision Fitness

Vision Fitness U70 Bedienungsanleitung

Stamina

Stamina 15-0340A Bedienungsanleitung
