PROAIM CINEMA Series Bedienungsanleitung

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Top Plate

Dolly Base Leg

Rods

Compass 360° Photo Booth Rotang Camera

Plaorm (DL-CMPS-01)

4 (Size: 6x10mm Allen Buon)

5 (Size: 6x15mm Pan Phillips)

4mm Allen key

Ball Head

Compass 360° Camera Plaorm Setup

• Same as above, insert the second rod into the

other side of 360° rod adapter of dolly base

leg.

• Then properly insert all the Pan Phillips bolts

into the top plate and ghten them with the

help of a screwdriver.

• Tighten all the allen bolts properly with the

help of the Allen key.

• Insert the allen bolts to secure both the rods

with the dolly base leg.

• Insert the rod in 360° rod adapter of the Dolly

Base Leg.

• Place the top plate on 360° rod adapter, as

shown in the image.

• By placing the 2nd plate above the top plate,

insert the bolt and secure the plate properly.

• Both the plates are properly aached with

the dolly base leg.

• Adjustable angle rod can rotate up to an

angle of 60° .

• Insert the adjustable angle rod into the rod.

• Secure them properly with the help of the

Allen key and ghten the adjustable angle rod

knob properly.

• Remove all bolts of top plate properly with

the help of Allen key.

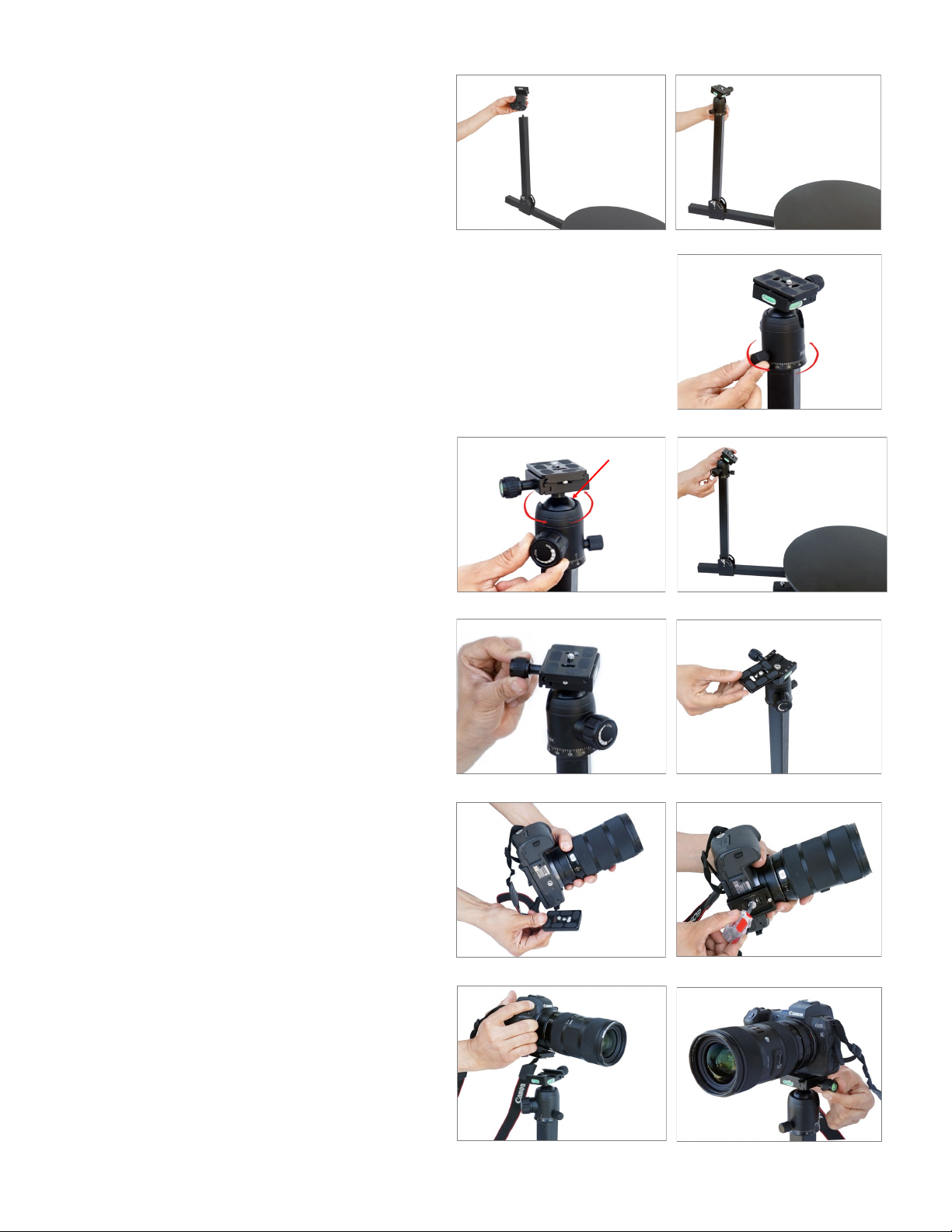

• Now aach the Ball Head to the mounng

part of the Adjustable angle rod and ghten it

manually.

NOTE: Ball head causes circular movements and

by loosening or ghtening the knob, you can

adjust its movement according to your needs.

• Then aach the Camera plate with the

camera (Not Included) and properly secure it

with the help of the screwdriver

• With the help of the other knob, you can

adjust the movement of the center ball.

• Place the camera (Not Included) by sliding it

over the ball head and ghten it with the help

of a knob.

• Remove the camera plate by loosening the

knob of the Ball Head.

center ball

YOUR PROAIM COMPASS 360° PHOTO BOOTH ROTATING CAMERA PLATFORM

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.

• Insert weights into the rod according to the

weight of the camera (Not Included).

• The setup is ready to use, as shown in the

image.
