INTRODUCTION

Proaim Camera Dolly is a 3 wheel dolly which allows the camera and camera operator to move around

very smoothly. This is 3-legged Track Dolly, very strong and durable that carry the weight of Jib, Pan Tilt

Head and camera very easily. The total weight capacity of this portable camera dolly is up to 330lbs. You

can use it independently with your own Dolly Tripod Stand. The Dolly System is excellent for making

Professional and Independent videos.

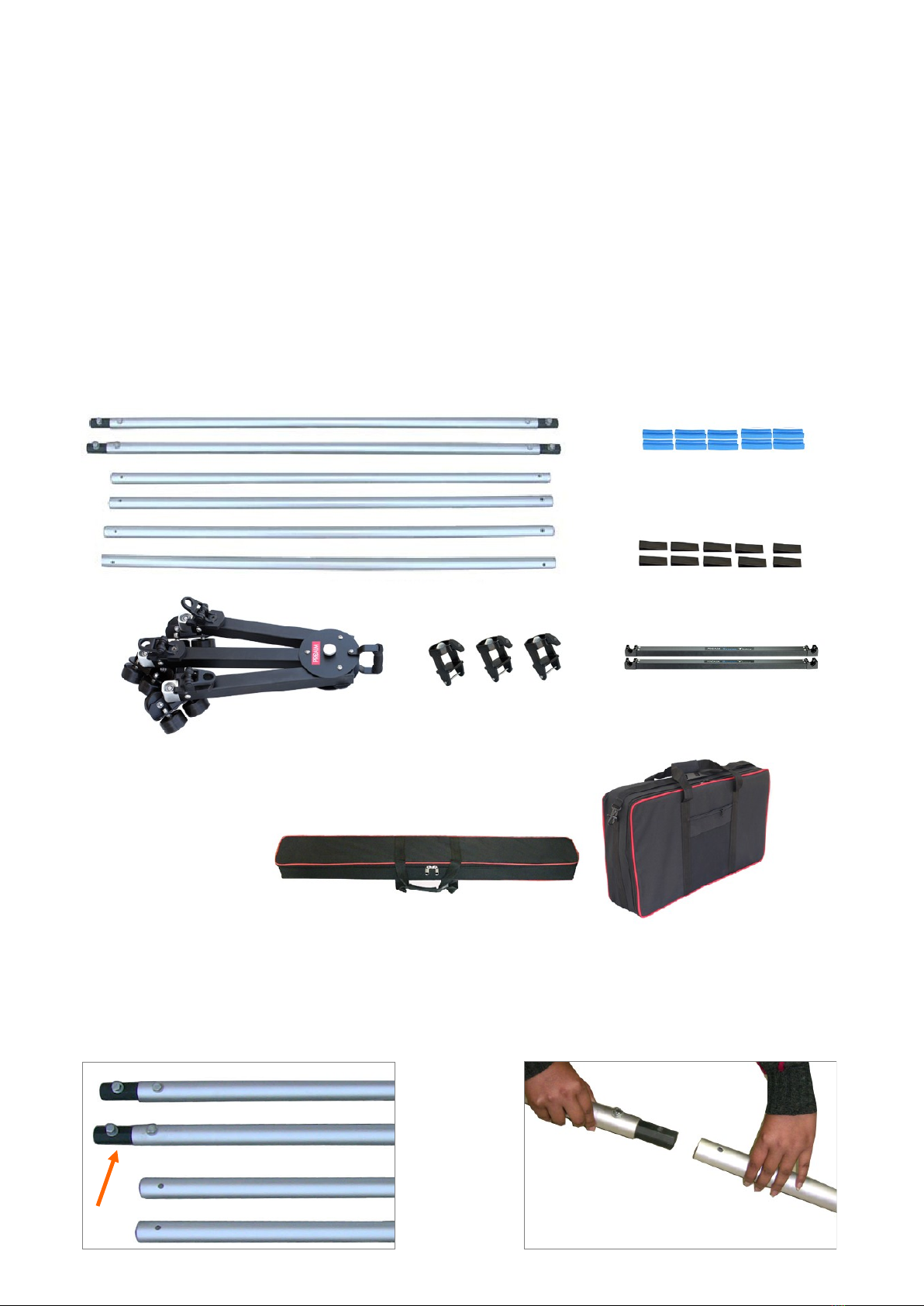

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is pictured and

listed below. The shipping bag have been especially designed to protect your purchase while in transit

and is a good place to keep your Proaim TDL Dolly-275.

ASSEMBLING THE SECTIONS OF 12FT TRACK

Proaim TDL Dolly-275

12 Straight Track

2 x End Adapters

10 x Black wedges

 Using the secons with the aached nylon bushings remove the outboard set of screws, slide an

extension secon on to each end to complete a 12’ run and install.

Storage Bag

10 x Blue wedges

3 x Foot Clamps

PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 3

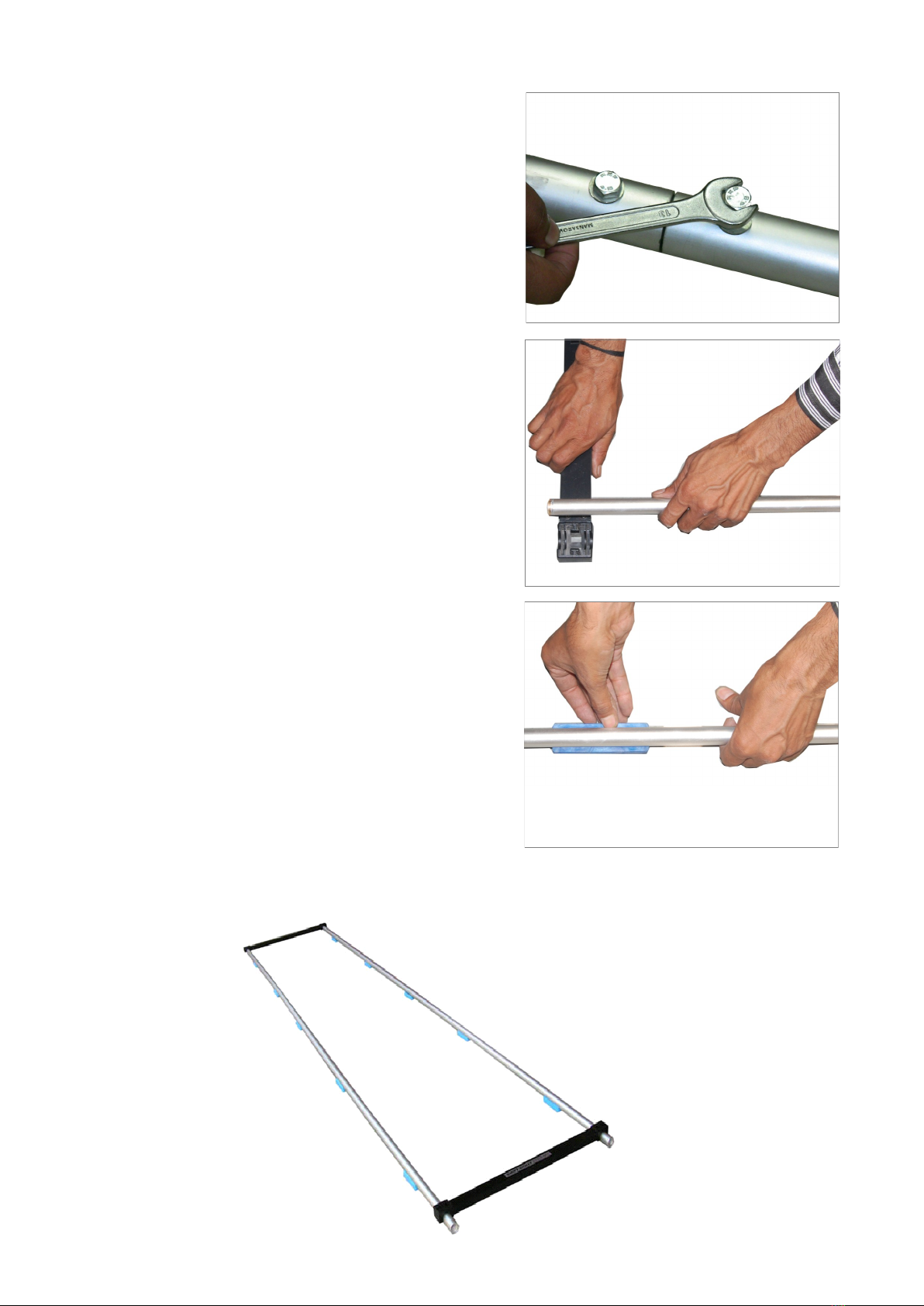

 Now tighten the screw to attach it properly

as shown.

 Aach the end adapter at both the

ends of the track.

 Now, track is ready as shown in the picture below.

 Aer assembling the track, put the

blue/black wedges below the track for

beer balancing.

PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 4

 You will receive your 3-leg dolly

collapsed for shipping / storage

purposes. Extend the legs and pull out

each leg unl it locks into place.

 Now place the dolly on the track. Make

sure that dolly’s wheels are properly

set on track.

 Place the tripod legs on Tripod Locking Adapter of Dolly. Lock the Tripod in place with the provided

rubber grips on Dolly.

PROAIM TDL-275 Dolly with 12 Straight Track

All set and ready to use

Mounng Tripod Stand on Dolly

PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 5

 Loosen the screw with the help of allen key and remove the Tripod Locking Adapter as shown below.

 Insert the screw as shown to aach the foot clamp with dolly and ghten with the help of allen key.

Mounng Jib Stand on Dolly

 Now, Place the dolly on track.

 Place the tripod legs on foot clamp of dolly and ghten with the help of knob to secure properly.

PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 6

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or crasman-

ship obtained during normal use or handling based on the user manual. Please note that we will not cover

any shipping costs for returning the product to us. If any VAT or import dues are applied to the return,

we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do not supply

or from mishandling in transit, accident, misuse, neglect, lack of care of the product , or service by anyone

other than our company.

We are not liable for incidental or consequenal damages resulng from the use of the unit or occurring

due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the replace-

ment parts only) to the customers aer the Warranty Period has expired. We will cover the complete cost

of sending replacement parts within the warranty period. Aer that, nominal cost of the product & Actual

shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our best to

help you out.

For any other assistance you can reach us via email.

YOUR PROAIM TDL-275 DOLLY WITH 12FT STRAIGHT TRACK

ALL SET AND READY TO GO.

(SHOWN WITH OPTIONAL ACCESSORES)
