PROAIM SC-03 Bedienungsanleitung

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

SnapRig Mini Super Clamp | Fits 30mm

Speed Rails Tubes SC-03 (SC-03)

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

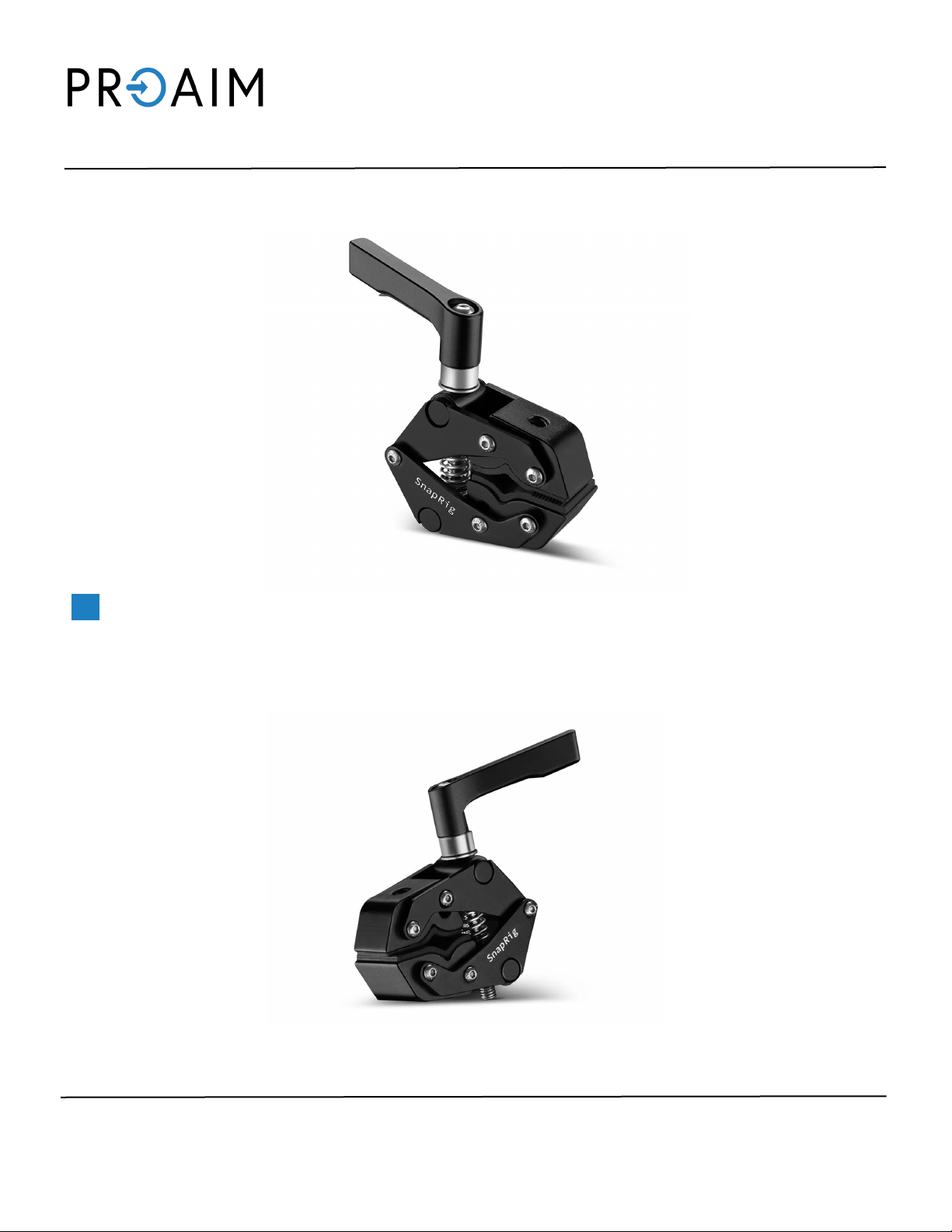

What’s In The Box

Proaim SnapRig Mini Super Clamp

SnapRig Mini Super Clamp Setup

• Loosen the knob of Mini Super clamp and

open it as shown in the image.

Note: The Clamp is equipped with a 3/8"

threaded stud, a 1/4-20, and a 3/8"-16 female

threads to securely mount your gear with the

payload of up to 10kg in one go.

• Mini Super clamp can be mounted on Apple

boxes (Not Included) ghten the knob to

secure it as shown.

NOTE: Its jaws expand up to 1.18," and it easily

fastens onto speed rails, scaold poles, or even

square tubes.

• Aach the LCD arm (Not Included) with the

Mini Super clamp and secure it properly.

• Secure the LCD (Not Included) by mounng it

on the LCD arm then ghten the screw as

shown in the images.

• LCD is Properly secured with LCD Arm

(Not Included).

Feature: peak-and-valley design of the jaw

allows for mulple-point contact, ensuring a

rm grasp around squared, round and at

objects.

Mini Super Clamp Mounted on Rod Setup

• Aach the mini super clamp to the rod

(Not Included) ghten the knob to secure it.

Feature: This clamp with socket features

arculang jaws that can rmly grip to any

irregularly shaped object.

YOUR PROAIM SNAPRIG MINI SUPER CLAMP FITS

30MM SPEED RAILS TUBES SC-03

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.

• Mount the 5/8” baby pin (Not Included) onto

the clamp matching the thread. Then mount

the light (Not Included) onto the baby pin.

• Tighten the ratchet knob of the light

(Not Included) then make movements as per

your requirement as shown in the image.

Feature: Clamp oers a smart soluon for

securing your equipment, like cameras,

monitors, lights, or other add-ons., on

unconvenonally-shaped plaorms with utmost

ease.
