PROAIM Atlas V2 Bedienungsanleitung

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Atlas V2 Video Production Camera Cart (ATLS-V2)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Assembly Manual

4 x Pneumac

Tires

4 x Supporng

rods Lower shelf

2 x crossbars

Upper shelf

2 x Handles

Available Sizes:38",48"

Aaching Pneumac Tires

Slide the wheels on Dovetail bracket

mounted at the base of the lower Shelf of

Cart and secure the tires with locking knob.

Atlas Cart Setup

NOTE: Specially designed Foot Brakes help

set the Cart in the desired position or keep

the Cart in a static place (non-movable). You

can use Brakes as per your requirement.

Unfold all four rods and secure with

provided locking clamps.

Open all the 4 locks of Trolley to take out all

the parts, as shown in image.

Place the upper shelf over the rods and

ghten the knobs properly, as shown in

image.



EŽƚĞzŽƵŶĞĞĚϮƉĞƌƐŽŶƚŽƐĞƚƵƉǇŽƵƌƵƉƉĞƌ

ƐŚĞůĨŽŶƚŚĞƌŽĚƐ



Press the pin button both side if yu want to

remove the upper shelf.

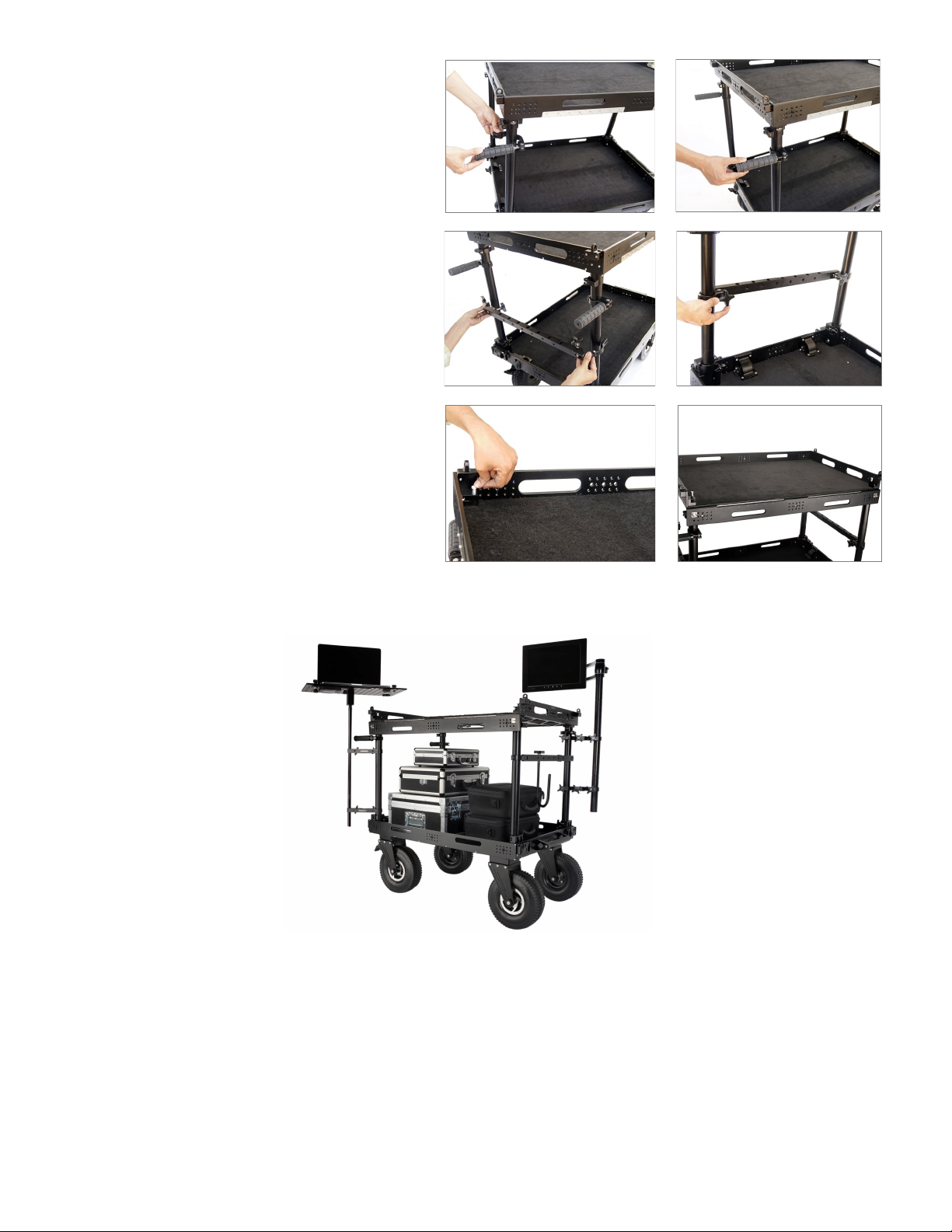

Attaching Handle

Insert the handle onto the rods, set

the required height, and secure properly.

Insert the crossbar and secure with

provided knob.

There is a provision to unfold the lip by

releasing the inner locking pin.

YOUR PROAIM ATLAS V2 VIDEO PRODUCTION CAMERA CART

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.


