PROAIM PF-4TR Bedienungsanleitung
23.9ft Fraser (PF-4TR) Jib crane with
PT-1000 Pan tilt head, FR-TS Stand and
FR-D Dolly
(PF-4TR-PP)
INSTRUCTION MANUAL
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by
the applicable copyright statutes or in wring by the Publisher.
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 2
INTRODUCTION
PROAIM presents a fully professional 23.9 Fraser lm producon package, a perfect lming
soluon to increase your producon value. Fraser, a DV & Eng jib system has numerous features
to support & oer great performance. It is compable with many types of DV, HDV &broad
casng camera.
The triangular jib crane with high-intensity aluminium alloy structure ts smoothly & securely
with one another providing super rigidity and strength. Precisely designed 2-axis pan-lt
head adds creavity to your shots. Accompanied with various other benets, it completes the
package which is designed to enhance the cinemac quality.
IN THE BOX
Please inspect the contents of your shipped package to ensure you have received all that is
pictured and listed below.
Jib Secons
Jib Stand
Cables length & Qty :
(Red) 14 5 inch-1
(Red) 6 8 inch—1
(Red) 4 7inch—1
(Red) 3 8 inch—1
Cable Guide support rod
Hub locking knob
(Blue) 18 8 inch-1
(Blue)10 10inch-1
(Yellow)17 2inch-1
Dolly
Monitor Supporting Rods
Weight rod with weight closer
Locking pin
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 3
2 X joysck wires
1.(blue ring)
2.(yellow ring)
8meter 7 pin to 7 pin
XLR male wire (1PC)
5 pin lemo male to male
connecng wire (1PC)
3.5mm jack male to male
connecng wire (1 PC)
8meter BNC to BNC long
Connecng Wire (1PC)
4 pin XLR male to female
connecng wire (1PC)
2.5mm jack male to male
connecng wire(1PC) Lemo to din
connecng wire
(1PC)
1 meter BNC connecng
wire(1PC)
Pan Tilt Head 4X Knob
1x motor holding rod Focus & iris
Main Controlling box
Head control
handle
Camera control
handle
lemo to push or pull
connecng wire (1PC)
Main Ac adapter
(1 PC)
Pan lt wires
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 4
Take out the bolt from the center of dolly and spread it on floor. Then put the bolt back through
the center of dolly again.
Note: To keep the dolly in stac posion
(non-movable), Lock down the wheels.
ASSEMBLING THE DOLLY
Stretch the legs of jib stand on oor and in order to set the height of stand, loosen the bolts on
legs with the help of allen key and insert the locking pin for extra security of stand legs.
ATTACHING THE JIB STAND
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 5

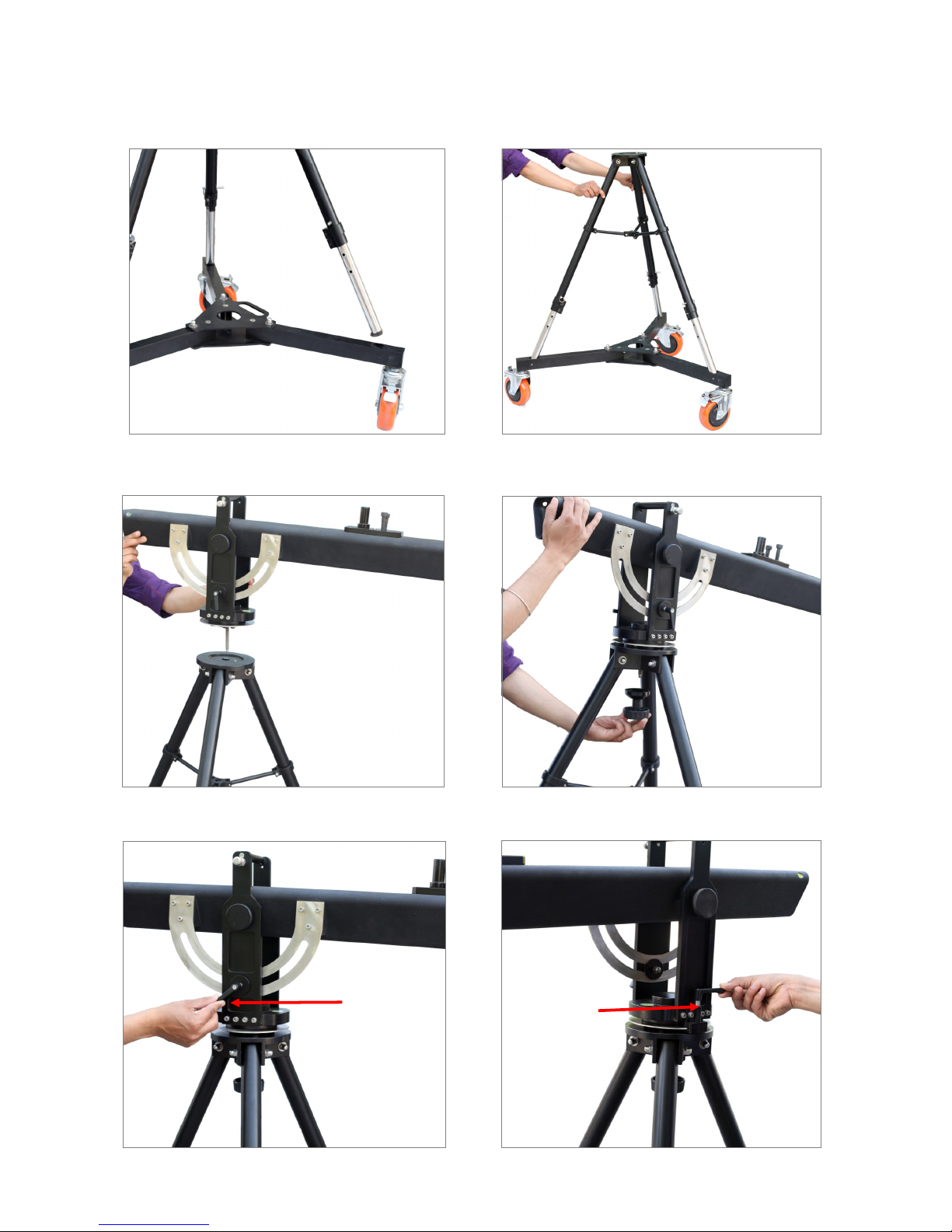

Now mount the jib Stand onto the dolly.
Place the secon 2 with hub mounng on stand and ghten it with the hub locking knob to
secure it properly.
NOTE: For assembling the jib crane, Lock the pan and lt knobs.
Pan locking
knob.
Tilt Locking
knob
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 6

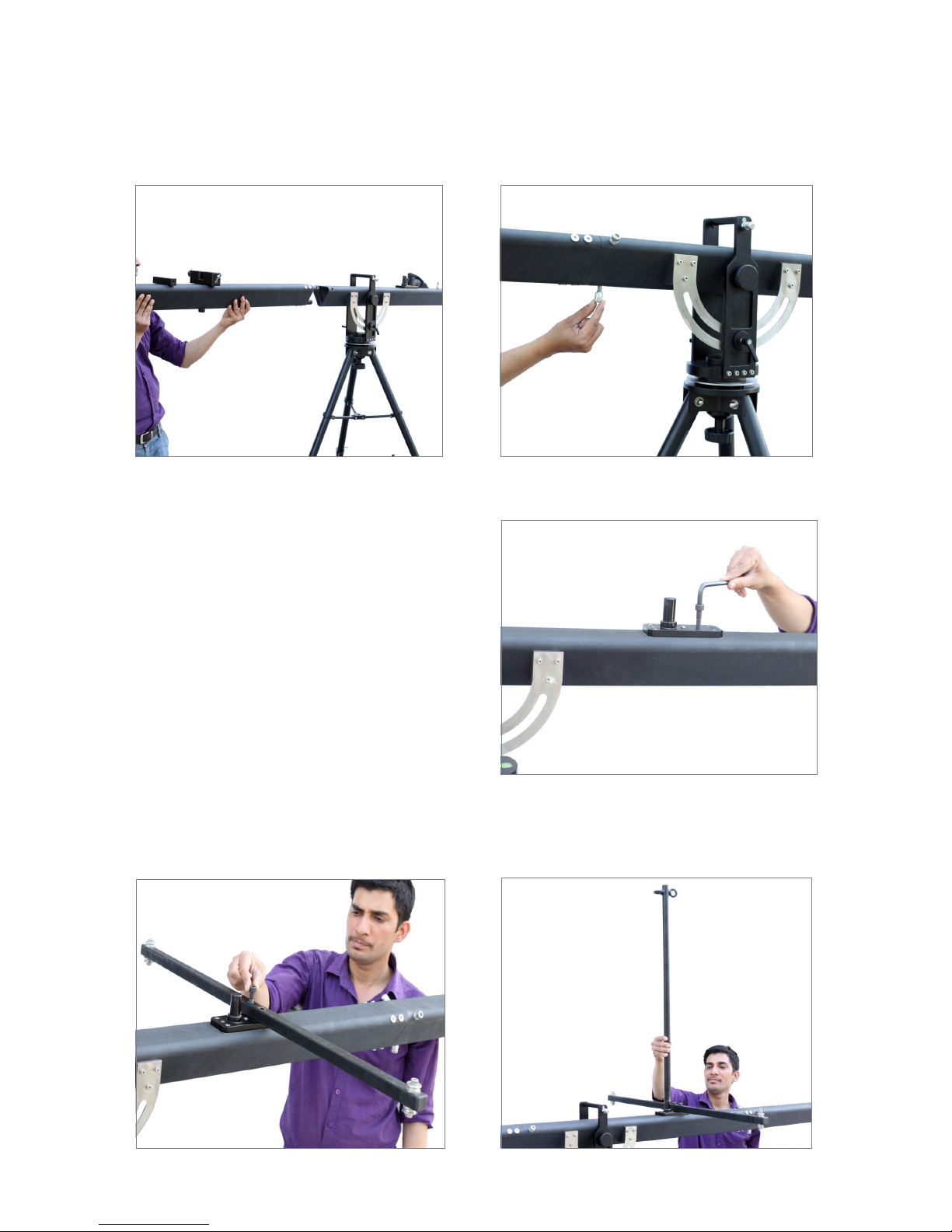

Aach rst secon with second secon and ghten the allen bolts to secure it.
Aach cable guide support rod to cable guide clamp on secon-2 and ghten the allen bolts
secon properly to secure it. Then aach the cable guide support rod onto the cable guide
clamp.
Loosen the allen bolt, in order to
aach cable guide support rod to it.
ATTACHING THE CABLE GUIDE RODS
NOTE : Aach the rest of the secons in the same way starng from the other end of secon 2.
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 7

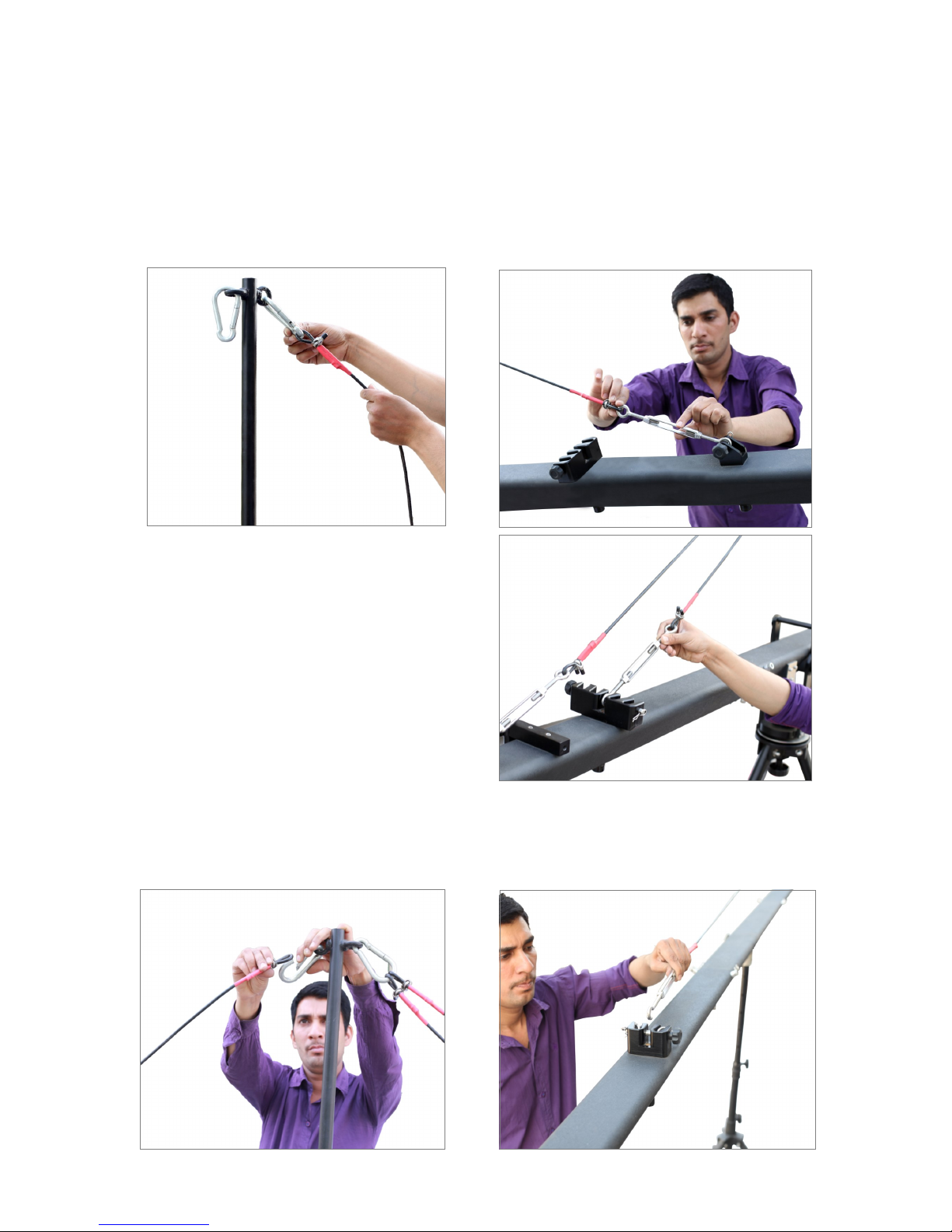

Now aach hook to the cable guide rod on jib Secon-2. Then aach 4.7 red cable into the
hook & connect it to the clamp on jib secon –1.
Now repeat the same steps to connect
the 3 8 inch cable from jib secon-2
and aach with clamp on jib secon-1
to clamp on jib secon : 1.
Cable code (red)
ATTACHING THE STABILITY CABLES
Mount another hook to the cable guide rod on jib secon-2 then aach 6.8 red cable to the
hook and further clamp it on jib Secon-4 & adjust the cable with the help of wire tensioner.
Note: Repeat the same steps to connect 14.5 cable from jib Secon-2 with clamp on jib Secon-6
NOTE: You can adjust the cable with the help of wire tensioner.
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 8

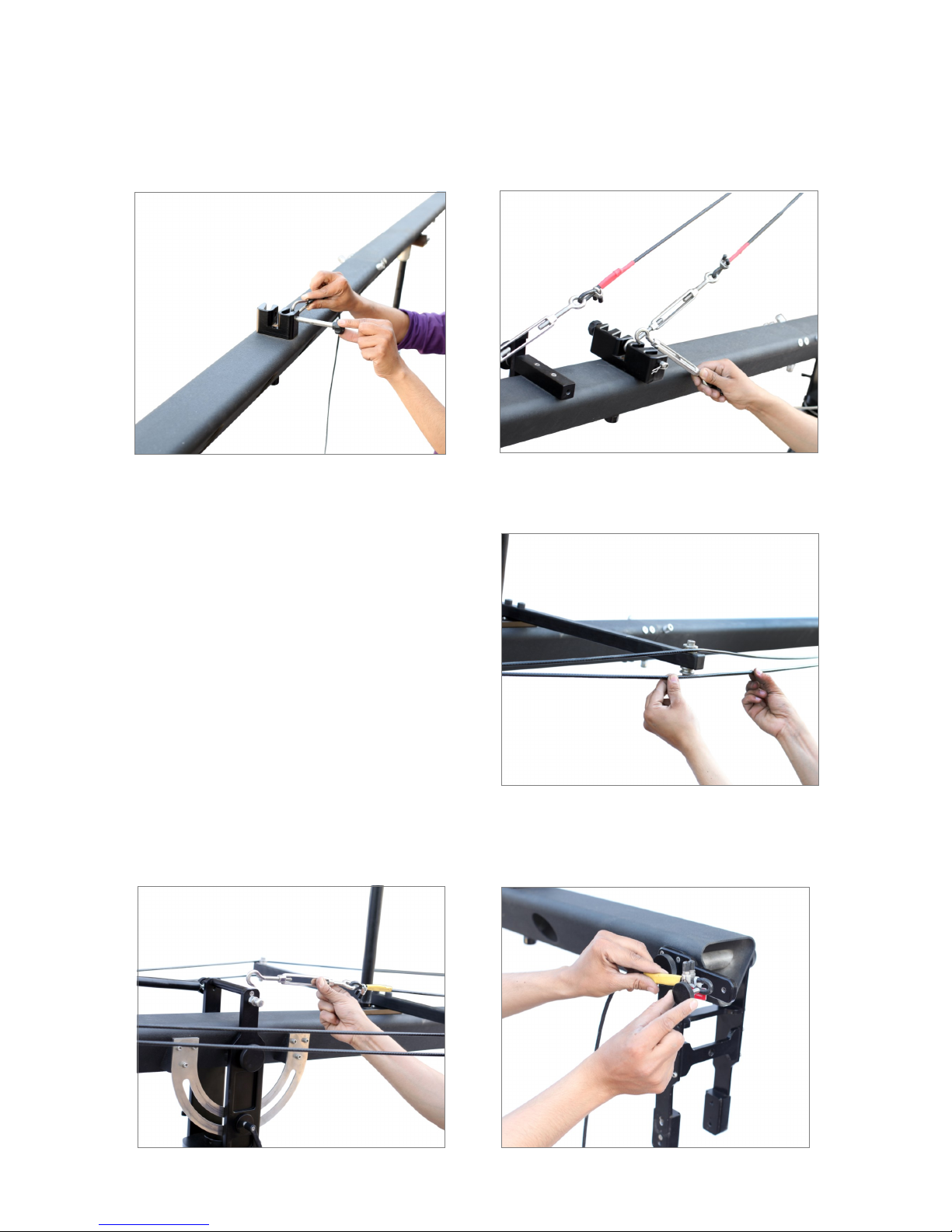

Aach 10.10 blue cable to the clamp on jib Secon-4 & aach it further to the clamp on Jib
Secon-1 & repeat the same steps for other side.
Cable code (blue)
Align the cables to the cables guide side
rod.
Note: Repeat the same steps to connect 18.8 blue cable to the clamp on jib Secon-6 &
aach it further to the clamp Jib Secon-1 & repeat the same steps for other side.
Aach the 17.2 yellow cable to the hub secon and aach it with the head secon of jib
and adjusng the cable with the help of wire tensioner.
Cable code (Yellow)
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 9
Aach the pan-lt head to the Head plate of crane and and secure it with the help of knobs.
ATTACHING THE PAN TILT HEAD
knobs
Mount your camera on the mounng plate of pan lt head with the help of provided
checknut.
Insert the silver 15mm rod into the
camera sliding plate to aach iris and
focus gear.
Proaim 23.9 Fraser (PF-4TR) Jib crane with PT-1000 Pan lt head, FR-TS Stand and FR-D Dolly 10
Similarly, plug the lemo to din connector wire from camera to circuit board.
Now Insert the gear into 15mm rod and aach the gear to the iris & lens focusing & iris ring of
your camera. Then plug the iris & focus cable from camera to circuit board.
Plug the 5 pin male to male lemo wire from head to circuit board of head.
