KI TE - 22 CA M ER A C RA NE S TA R TER

PA C KA GE

(K I TE - 22- S T A R T ER )

I N S T R UC T I O N M A NU AL

Exclusive of Camera, Pan-Tilt Head, Power Pack, Weights

PROAIM KITE-22 STARTER PACKAGE 2

It is important that you read and understand this guide before attempting to assem-

ble or use your PROAIM KITE-22 STARTER PACKAGE.

Should you need additional information, technical assistance is available 'on line' by

contacting your sales representative.

I NT RO DU CT I ON

A fully featured camera crane is the creative tool of choice for serious

videographers and semi-professionals.

Our Proaim Kite-22 Starter package is designed for years of trouble-free operation

and has the fastest setup and longest reach of any crane in its price category. With

precision engineering and quality of manufacture, the Proaim Kite -22 Starter

package is truly a professional tool that will expand a directors creative

opportunities. The smooth-coated, corrosion resistant cables are easy to handle and

will last a lifetime.

S P EC I F I CAT I O N S

Height from Ground 20ft(6 Meter)

Jib Arm Thickness 3mm

Jib Crane Length 22ft (6.7 Meter)

Jib each Arm length 4ft

Height of Jib Arm while

Your Stand Adjusted at

Maximum height of 5ft

20ft high at 22ft length

17.4ft high at 19ft length

15ft high at 16ft length

12ft high at 13ft length

9ft high at 10ft length

6ft high at 7ft length

Jib Arm Break downs to 7 Sections of 4ft each

Camera Platform Leveling By Control Cable

Jib Crane Weight 30kg (66lbs)

Max Camera Package Load

Capacity 20kg (45lbs)

PROAIM KITE-22 STARTER PACKAGE 3

WH A T ’ S I N T H E B O X

Please inspect the contents of your shipped package to ensure you have received all

that is pictured and listed below.

The grey foam shipping /storage container has been especially designed to protect

your purchase while in transit and is a good place to keep your Proaim Kite-22

Starter package contents when not in use.

You will receive this package in 7 boxes.

First Box includes

 Jib Sections

Second Box includes

 Jib Sections

Third Box includes

 Jib Stand

Fourth Box includes

 Accessories of Jib Crane

Fifth Box includes

 Dolly Pack

NOTE :

 We send the Jib sections in two boxes. One box has the sections with pipe

packing and the other box (cardboard box) has the rest of the sections.

We only send one pipe packing for the jib sections.

 We send the Dolly in cardboard box.

PROAIM KITE-22 STARTER PACKAGE 4

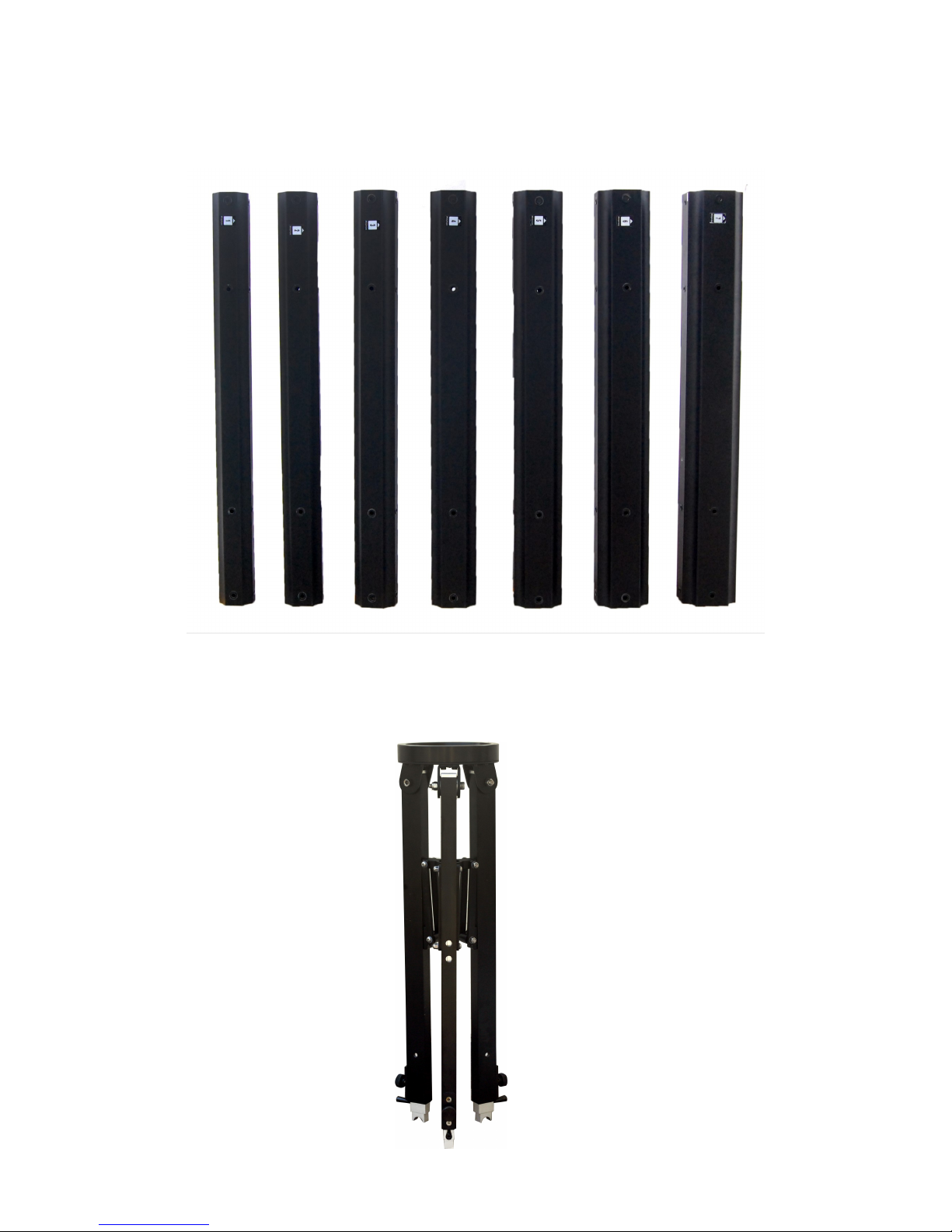

Packaging Material of Box 1 & 2: Jib Sections

Packaging Material of Box 3: Stand

PROAIM KITE-22 STARTER PACKAGE 5

Packaging Material of Box 4: Accessories of jib crane

Hu b Mou n ti n g Cab l e G u i d e

Cl a m p s

Sh a n k fo r j o in i n g

arm s

Hoo k s f o r C abl e s S cr e w s

l o c ki n g Pi n s

Cl a mp s

Colour code: Ye llow

Colour code: Blue

Colour code: Red

11’1” 2’10” 2’10”

18’9” 18’9”

10’5” 6’5”

S p re a d e r

Head Plaorm

Wei gh t R o ds L – B ra c k ets LCD m o ni to r

a da p te r

J o ys t ic k f ix i n g

p l a te

PROAIM KITE-22 STARTER PACKAGE 6

P a c k a gi ng M a t e r i a l o f B o x 6: D o l l y

A S S E MBLY I N ST RU CT I ON S

For Spreader :

 Spread the spreader on floor and

extend the legs of spreader with the

help of provided knob.

 For setting up your desired package with spreader or with floor dolly follow the

below steps :

For Dolly :

 Open the legs of Dolly and spread it on floor. Then tighten the Allen bolts to

secure the legs in place.

NOTE : This dolly has various holes for flexible mounting of Tripod.

Allen Bolts

PROAIM KITE-22 STARTER PACKAGE 7

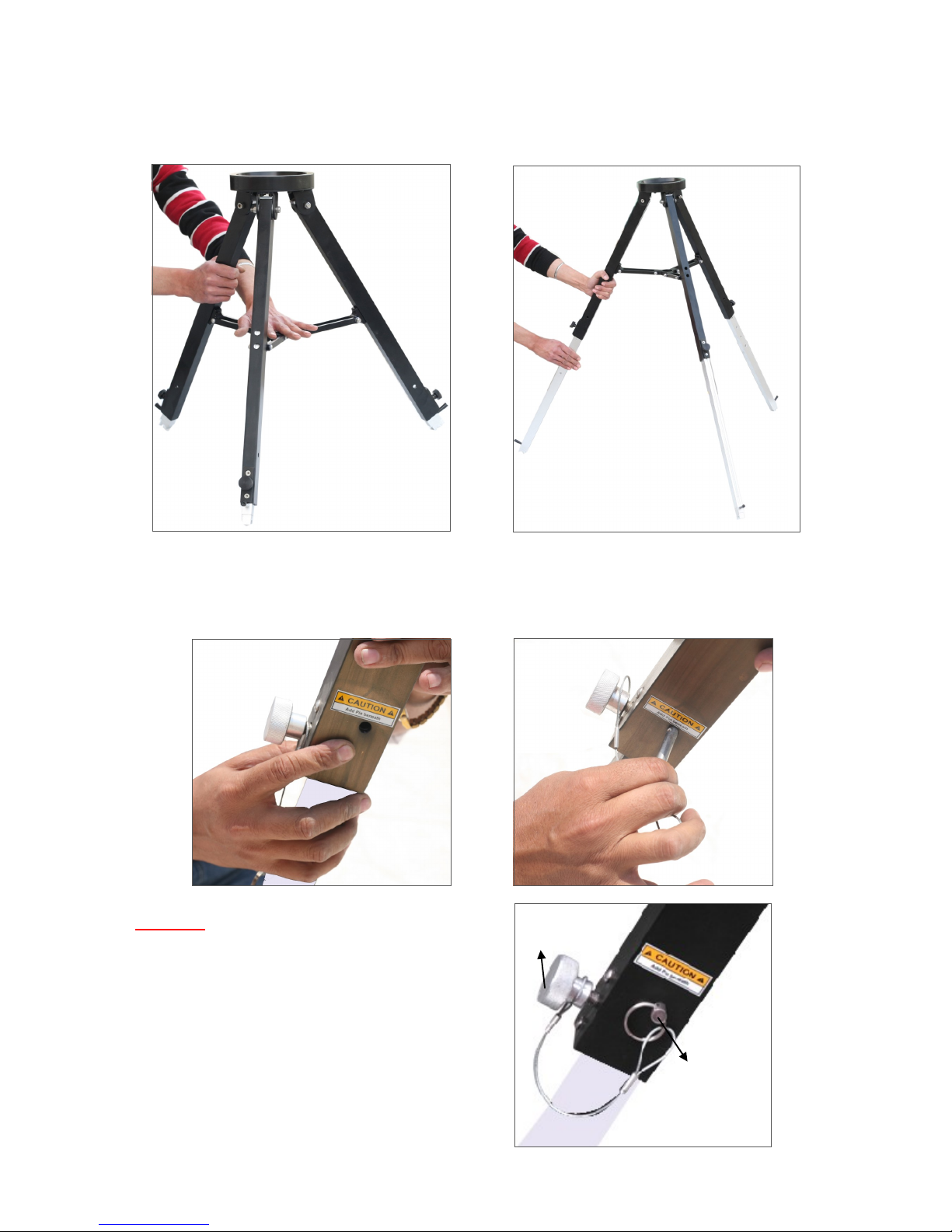

 Match the holes of the bottom leg section with the upper leg section to secure

the tripod stand with the Steel locking Pins and tighten the knobs.

 Take out the Jib Stand from its case, spread and extend its legs.

Knob

Warning:

We have provided double locking

precautions on Jib Stand:

P i n i s t h e f ir s t an d p ri m a ry l o ck-

i n g

kn ob i s th e s e c on d a r y l o c ki n g

so first lock the Pin to avoid slipping

of stand.

PROAIM KITE-22 STARTER PACKAGE 8

 In case of Spreader :

F i x t h e t r i po d s t an d w i th S pr e a der an d ti g h te n th e t o p r a tche t kn ob s

o f st a nd to se cu re i t i n p la c e .

 I n c a s e of D o l l y :

Insert the tripod legs into the foots on the dolly.

Dolly Foots

 Install the Hub Assembly by sliding

the bottom of the hub assembly

into the stand’s Mount opening.

I N ST AL L I N G T H E H U B A SS E MB L Y

Note : The Hub Assembly has several

mounting holes. You can mount LCD

Monitor or Joystick box to this

assembly if you want.

PROAIM KITE-22 STARTER PACKAGE 9

Warning:

This is the Pan Friction Knob. Never pan the Jib with this knob tightened.

If this knob turns while panning, it is too tight. Only tighten while parking the jib !

I N ST AL L I N G T H E J I B S E C T I O N S

 Insert the rear tube section (section 7) into the hub assembly, slide section 6

into section 7 and align the holes of the Section 7 and section 6 with the cen-

tral hole of hub assembly.

7 secon

 Secure the sections by tightening the long bolt and nut.

 Install the pin from top and secure the sections with the locking pin.

PROAIM KITE-22 STARTER PACKAGE 10

AS S E M B L IN G T H E R E AR F R A ME

 Take the two 16mm thick rods and

two 25mm thick rods. Attach

these rods altogether so that it

makes a rectangle and for this in-

sert the 16mm rods into slots of

25mm rods.

 Attach the Allen bolts by screwing in with hand and tighten with Allen key at all

the four points to secure properly.

 Align the threads of joystick plate with the threads of the 1mm rods and tighten

the Allen bolts with Allen key.

 Take out the two black tubes from the

weight rod.
