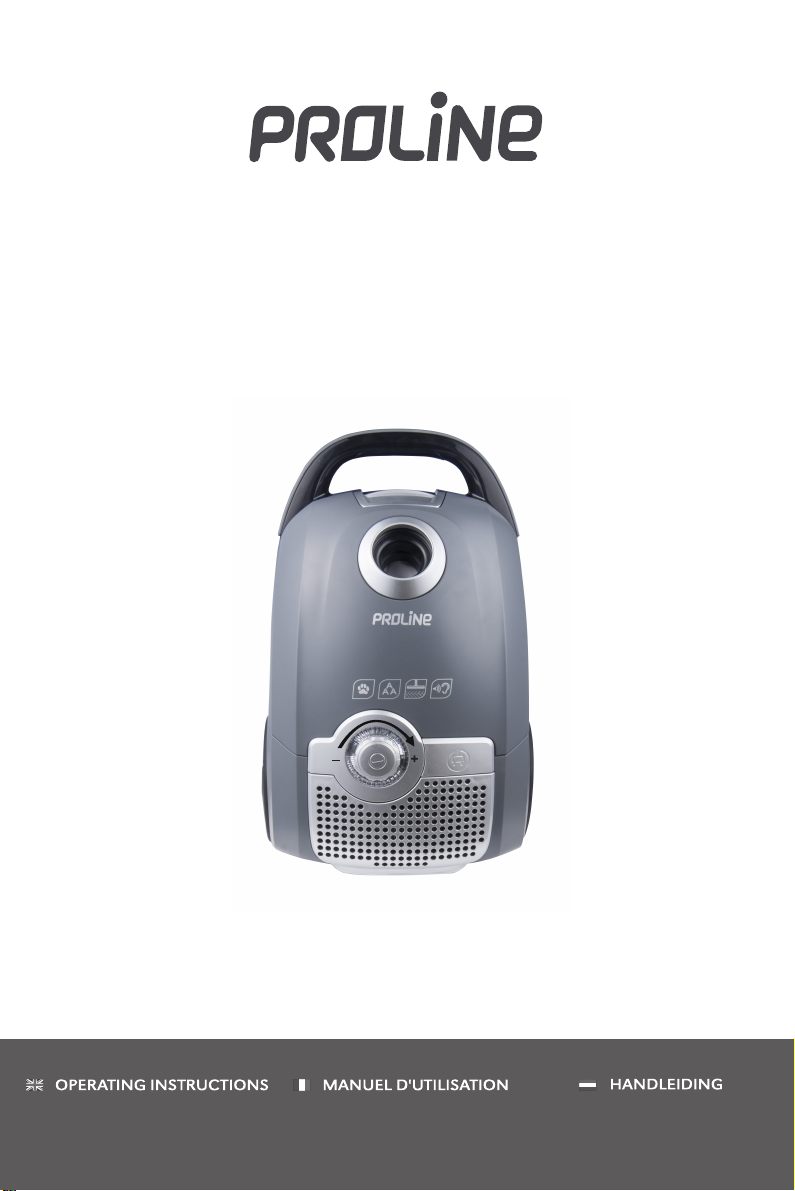

Proline BVC Silentpro Bedienungsanleitung
BVC Silentpro
STOFZUIGER MET ZAK
BAGGED VACUUM CLEANER
ASPIRATEUR AVEC SAC
Downloaded from www.vandenborre.be
1
Catalogue
Page
English……………………………….………….. EG-1 – EG-09
French …………………………………………… FR-1 – FR-10
Netherlands …………………….………… NL-1– NL-10
Downloaded from www.vandenborre.be
WARNINGS
This appliance is intended for domestic
household use only and should not be used
for any other purpose or in any other
application, such as for non‐domestic use or in
a commercial environment.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
Regarding the detailed instructions for the
method and frequency of cleaning and the
precautions during user maintenance, refer to
the section “Cleaning and Maintenance” on
page EG‐6–EG‐7of the manual.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play
with the appliance. Cleaning and user
EG
EG-1
Downloaded from www.vandenborre.be
maintenance shall not be made by children
without supervision.
The plug must be removed from the
socket‐outlet before cleaning or maintaining
the appliance.
Following objects are strictly banned,
otherwise the vacuum cleaner will be
damaged or fire calamity will be caused,
which bring such accidents as human body
injuries:
Don’t pick up large or sharp broken such as
glasses.
Don’t pick up harming or erodent liquids
(solvent, corrosive, detergent…).
Don’t pick up inflammable or explosive
substance such as gasoline or alcohol.
Don’t pick up/ vacuum burning or glowing
objects (cigarettes, matches, hot ashes).
EG-2
Downloaded from www.vandenborre.be
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the instructions before operating the appliance and keep
them for future reference.
Check that the voltage marked on the rating plate located on the appliance is the
same as your mains supply.
The manufacturer will not accept responsibility for damage or injury caused by
connecting to the wrong voltage.
Use this appliance only for its intended purpose as laid out in these instructions.
Always switch off and disconnect the appliance from the power supply if it is left
unattended and before assembling, disassembling or cleaning.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Keep the appliance and the power cord away from direct radiant heat from the sun,
from damp, from sharp edges and other dangers.
Do not use the appliance with wet hands or feet.
Do not use the appliance or store it outdoors or expose the appliance to rain.
Use only original accessories recommended by the manufacturer.
Do not attempt to repair the appliance yourself, contact a qualified service agent
to carry out any repairs or maintenance or contact the store where you purchased
the appliance.
Never immerse the appliance in water or any other liquid when cleaning.
If the appliance should become wet or damp, remove plug from the power supply
immediately.
The plug shall be the main disconnect device and should remain operable at all
times.
Extreme care shall be taken when cleaning on stairs.
EG-3
Downloaded from www.vandenborre.be
DESCRIPTION
1. Floor brush
2. Telescopic tubes
3. Dusting brush
4. Crevice tool
5. Hose handle
6. Airflow regulator
7. Hose
8. Hose socket
9. Cord rewind button
10. Air outlet grille
11. Power button with variable suction
power knob
12. Front cover clamp
13. Pet brush
14. Parquet brush
ASSEMBLY
Always remove the plug from the mains socket before assembling or disassembling
accessories.
Hose
1. To fit the hose, push it firmly into the hose socket on
the front of the appliance until the hose clicks into
place.
2. To remove the hose, press the release tabs on the hose
sides and pull the hose out of the appliance.
Connecting tube and accessories
1. Attach the bigger end of the tubes into the hose handle.
2. Adjust the tubes to your desired length.
13
14
EG-4
Downloaded from www.vandenborre.be
Push forward the switch on the tube then
adjust. Release the switch until the
desiredlengthisachieved.
3. Attach the desired cleaning accessory to the end of the tube.
To remove the tubes and accessory, hold each piece tightly and pull firmly apart.
OPERATION
1. Pull the power cord out of the appliance and insert the mains plug into the mains
socket.
A YELLOW mark on the power cord indicates the ideal cable
length. Do not extend the power cord beyond the RED
mark.
2. Press the power button on top of the appliance to switch on
the appliance.
Adjust the suction power by turning the variable suction
power knob.
3. You can quickly reduce the suction power by pushing the air flow regulator on the
hose handle. Push it forward, suction power will increase; push it
backward, suction power will reduce.
Using the Cleaning Accessories
Dual position carpet / floor brush (Drawings for reference only)
Position 1: Bristles extended
-For hard floors
Position 2: Bristles retracted
-For carpets
EG-5
Downloaded from www.vandenborre.be
Crevice tool
For corners, edges or small spaces
Dusting brush
For cleaning delicate surfaces such as
curtains, etc.
Pet brush
For removing stubborn pet hair that
sticks to a surface
Parquet floor brush
For all wood and laminate floors
CLEANING AND MAINTENANCE
Always switch off and unplug the appliance from the mains socket before carrying
out any maintenance or cleaning.
Clean the outside of the appliance with a slightly damp cloth. Dry thoroughly.
Never immerse in water.
Do not use abrasive or chemical cleaning agents.
Emptying and Replacing the Dust Tank
When the indicator lights around the power button illuminate blue, please empty or
replace the dust bag. You need to clean the air filter if clogged.
1. Lift up the front cover clamp to open the dust tank.
2. Remove the dust bag from the dust bag holder.
3. Empty the dust bag or replace it with a new one.
4. Insert the bag back into the dust tank and close the front cover.
Filters Maintenance
It is very important to keep the filters clean to maintain maximum performance from
the vacuum.
EG-6
Downloaded from www.vandenborre.be
Clean the filters regularly. We recommend you replace the filters once a year.
Cleaning the air inlet filter
1. Open the front cover to remove the air inlet filter
cover and then remove the filter.
2. Rinse them under running water then dry them in a
cool place.
3. Place the filter in the grille and then attach the grille
back to the appliance.
Cleaning HEPA filter
The high efficiency particulate air (HEPA) filter is an effective system in removing
almost all indoor pollutants, dust mites, pollen and mould spores.
1. Remove the air outlet filter grille by
lifting the outer rim upwards.
2. Hold the tab on the HEPA filter and
pull this tab outwards to remove the
HEPA filter.
3. Remove the sponge from the
appliance.
4. Wash them under running water and allow them to dry thoroughly.
DO NOT USE DETERGENTS TO CLEAN THE FILTER.
5. After cleaning, replace the sponge and then attach the HEPA filter back until it
clicks into place.
First insert two tabs on one side of the HEPA
filter into the slots in the appliance and then
push down the other side until a click is
heard.
6. Attach the air outlet grille to the appliance until a click is heard.
EG-7
Downloaded from www.vandenborre.be
Power cord rewinding
When not in use, unplug from the power outlet and then press the cord rewind
button to feed back the power cord.
CAUTION: Take special care to rewind the mains cord by holding the plug to avoid
injury by a whipping action.
Storage
Insert the holder of the floor brush with telescopic tubes into the storage clip at the
back or on the rear of the appliance.
TROUBLESHOOTING
Please check the following details before you have your appliance repaired by an
authorised servicing agent.
Problem Possible Cause Possible Solution
Vacuum cleaner
does not work.
1. Check if the power plug is
firmly inserted into the
power outlet.
2. Check if the power button
of the appliance is pressed.
1. Insert the plug back into
the power outlet and
ensure it is switched on.
2. Press the power button
to turn on the vacuum
cleaner.
Suction power
becomes weak.
1. Check if the hose, brush or
tube is clogged or damaged.
2. Check if the dust tank is
full.
3. Check if the filter is
clogged, the tube is correctly
attached.
1. Immediately remove the
obstruction.
2. Empty the dust tank.
3. Clean the filter or
reassemble the tubes.
Power cord will not
fully feedback.
Check if the power cord is
twisted.
Pull out the power cord at
its optimal length and
rewind it.
Power cord cannot
be pulled out.
The power cord may be
twisted.
Rewind or pull the cord in
and out several times by
pressing the cord rewind
button.
SPECIFICATIONS
EG-8
Ratings:
220V‐240V ，50‐60Hz 700 W
Downloaded from www.vandenborre.be
