Proline VCB3Aparquet Bedienungsanleitung

VCB3Aparquet

Bagged vacuum cleaner

Aspirateur avec sac

Stofzuiger met zak

Aspirador con bolsa

Aspirador com saco

OPERATING INSTRUCTIONS

MANUEL D'UTILISATION HANDLEIDING

MANUAL DE INSTRUCCIONES

MANUAL DE INSTRUCÕES

Downloaded from www.vandenborre.be

Language of Introduction

English

French

Dutch

EN1 - EN12

FR13 - FR25

NL26 - NL38

Spanish

Portuguese

ES39 - ES50

PT51 - PT62

Page

Catalogue

Downloaded from www.vandenborre.be

WARNINGS

This appliance is intended for domestic

household use only and should not be used for

any other purpose or in any other application,

such as for non-domestic use or in a

commercial environment.

If the supply cord is damaged, it must be

replaced by a special cord or assembly available

from the manufacturer or its service agent.

This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved. Children

shall not play with the appliance. Cleaning and

user maintenance shall not be made by

children without supervision.

Regarding the detailed instructions for the

method and frequency of cleaning and the

precautions during user maintenance, refer to

the section “Cleaning and Maintenance” on

page EN 8-EN 10 of the manual.



Downloaded from www.vandenborre.be

Regarding the detailed instructions for the safe

use of the appliance, refer to the section

“Operation”.

Following objects are strictly banned, otherwise

the vacuum cleaner will be damaged or fire

calamity will be caused, which bring such

accidents as human body injuries:

Don’t pick up large or sharp broken such as

glasses.

Don’t pick up harming or erodent liquids

(solvent, corrosive, detergent…).

Don’t pick up inflammable or explosive

substance such as gasoline or alcohol.

Don’t pick up/ vacuum burning or glowing

objects (cigarettes, matches, hot ashes).

The plug must be removed from the

socket-outlet before cleaning or maintaining

the appliance.



Downloaded from www.vandenborre.be

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, or injury:

xRead all the instructions carefully before using your appliance and

keep them for future reference.

xAlways switch off and unplug the appliance from the mains socket

when not in use, assembling or disassembling parts and before

cleaning.

xDo not unplug by pulling on the power cord. To unplug, grasp the

plug not the power cord.

xDo not use the appliance outdoors or on wet surfaces.

xDo not pull or carry the appliance by the power cord.

xThe appliance should only be used for its intended purpose as

described in this instruction manual.

xDo not operate the vacuum cleaner with wet hands or feet.

xNever operate the vacuum cleaner without filters in place.

xTo prevent electrical shock, do not immerse the appliance, power

cord or power plug into water or other liquids.

xDo not use the appliance to suck up water or any other liquid.

xDo not use attachments or accessories not recommended by the

manufacturer.

xDo not use the vacuum cleaner if it is damaged.

xDo not operate the vacuum cleaner too close to the heaters,

radiators and other hot surfaces.

xDo not leave the appliance unattended when it is in operation.



Downloaded from www.vandenborre.be

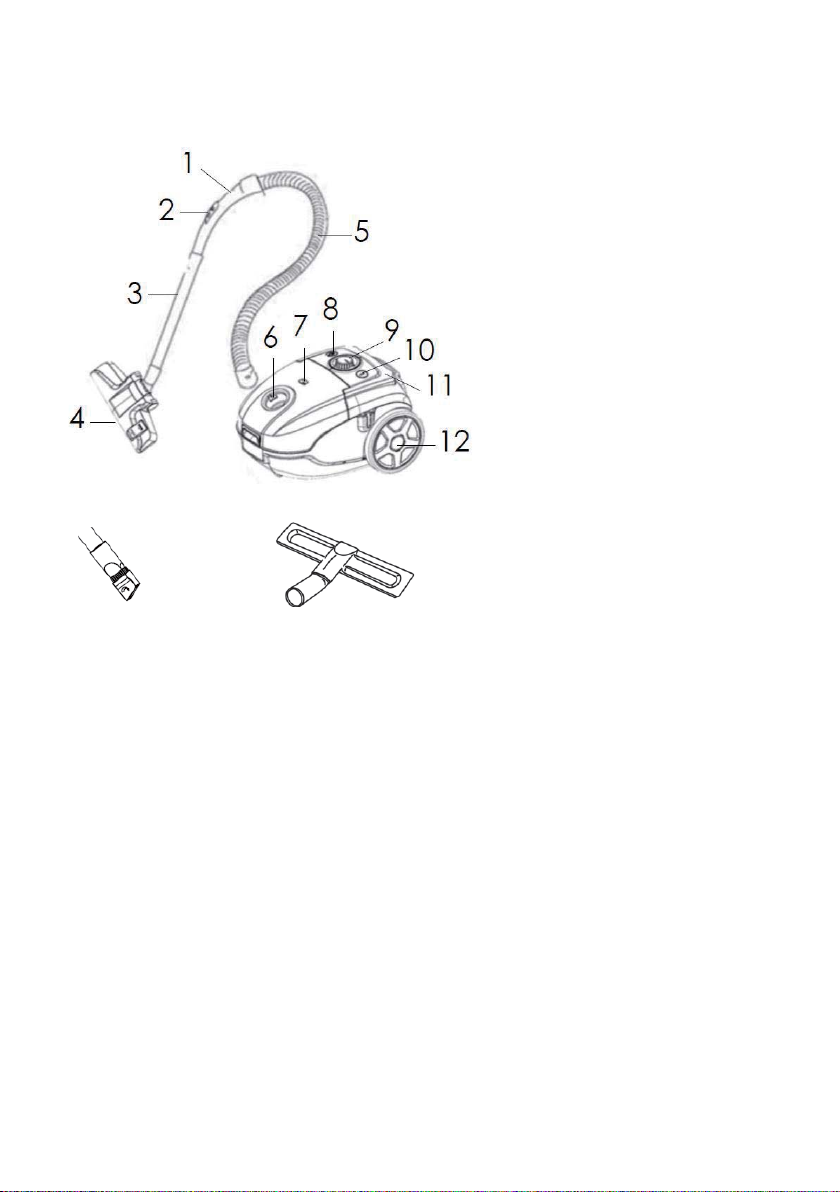

PARTS

13 1

1. Hose handle

2. Air flow regulator

3. Telescopic tubes

4. Floor brush

5. Hose

6. Hose socket

7. Dust full indicator

8. Cord rewind button

9. Suction power regulator

10. Power button

11. Handle

12. Wheel

13. Combination tool

(Dusting brush and

crevice tool)

14. Parquet floor brush



Downloaded from www.vandenborre.be

ASSEMBLY

Always remove the plug from the mains socket before assembling or

disassembling accessories.

Hose

1. To fit the hose, push the hose end into

the hose socket and turn it clockwise

until it locks into place.

2. To remove the hose, hold the hose end

and turn it anticlockwise.

Connecting tubes and accessories

1. Attach the bigger end of the tubes into the hose handle.

2. Adjust the tubes to your desired length.

xPush forward the switch on the tube then adjust. Release the

switch until the desired length is achieved.

3. Attach the desired cleaning accessory to the end of the tube.

To remove the tubes and accessories, hold each piece tightly and pull

firmly apart.



Downloaded from www.vandenborre.be

OPERATION

1. Pull the power cord out of the appliance and insert the mains plug

into the mains socket.

xA YELLOW mark on the power cord indicates the ideal cable

length. Do not extend the power cord beyond the RED mark.

2. Press the power button on top of the appliance to switch on the

appliance.

xMake sure that the suction power regulator is set to the

minimum position before switching on the appliance.

3. You can quickly reduce the suction power by pushing the air flow

regulator on the hose handle. Push it forward, suction power will

increase; push it backward, suction power will reduce.

xYou can also adjust the suction power by setting the suction

power regulator.

Air flow regulator

Suction power regulator



Downloaded from www.vandenborre.be

Using the Cleaning Accessories

●Dual position carpet / floor brush (Drawings for reference only)

Position 1: Bristles extended

- For hard floors

Position 2: Bristles retracted

- For carpets

●Combination tool (dusting brush and crevice tool)

This combination tool is a dual-

purpose tool. Use it as

a crevice tool to vacuum down the side of cushions,

corners, edges or small spaces. Use it as a dusting

brush by turn the head to clean curtains, etc.

xParquet floor brush

For hardwood and tile floor



Downloaded from www.vandenborre.be

CLEANING AND MAINTENANCE

Always switch off the appliance and unplug from the mains socket

before carrying out any maintenance or cleaning.

Clean the outside of the appliance with a slightly damp cloth. Dry

thoroughly before use.

Emptying the Dust Tank

When the dust full indicator is coloured

red, the dust bag is full. You need to

empty or replace the dust bag if it is

clogged.

1. Lift up the front cover clamp to open the dust tank.

2. Lift the dust bag in its holder out of the appliance.

3. Empty the dust bag or replace it with a new one.

4. Attach the dust bag to its holder and close the front cover until a

click is heard.

Dust full indicator


