Survivor Series HEPA Vacs

Model 86ASBDH

The 86ASB Dual HEPA Vacuum is an adaptation to our time tested

and trusted model 86ASB5D4C. This newest member to Pullman-

Holt’s HEPA Vacuum line-up includes two HEPA ﬁlters, one on the

sealed or intake side of the motor, and a second ﬁlter mounted

on the discharge or exhaust side of the motor. The purpose of the

second HEPA ﬁlter is to trap the carbon dust particles generated

by the vacuum motor. This ﬁnal ﬁltration is critical for meeting

cleanroom standards related to the manufacturing of semicon-

ductor, medical, pharmaceutical, biotech and other high-tech

products.

• Powerful Vacuum – 1 horsepower, 2 stage by-pass, 7.2 amp

motor delivers 85” waterlift and 101 CFM. Plenty of power for

fast pick-up of dry hazardous materials.

• True 99.97% Type A Large Capacity HEPA Filter –Individually

tested and certiﬁed to have a minimum efﬁciency of 99.97%

at .3 microns in accordance with IEST-RP-CC001 test require-

ments.

Pullman-Holt Coroporation

800-237-7582 • Fax 800-833-8875

www.Pullman-Holt.com

Model 86ASBDH

Pullman-Holt HEPA Filter System

HEPA Media (Exhaust) – Radial pleated ﬁlter traps dust gener-

ated by the motor.

Air Seal Gasket – Provides tight air seal and prevents leakage.

HEPA Media (Intake) – The ﬁlter is made from a single piece

of high-grade HEPA media to eliminate the possibility of leaks.

The pleats in the media are held open by corrugated aluminum

separators for maximum airﬂow.

Spacer Sleeve – The purpose of the spacer sleeve is to space the

Dacron bag away from the HEPA ﬁlter body so as to utilize the full

area of the “Never Clog” Dacron bag.

Polyester Preﬁlter – This impact ﬁlter is about one inch thick

and is attached to the inlet (bottom) surface of each HEPA ﬁlter.

Its function is to provide ﬁnal protection to the HEPA ﬁlter from

premature failure due to clogging.

“Never Clog” Filter Bag – Sheds dirt and debris like a duck sheds

water. Shakes clean to maintain maximum airﬂow.

10702 N. 46th Street • Tampa, FL 33617

800-237-7582 • Fax 800-833-8875

www.Pullman-Holt.com

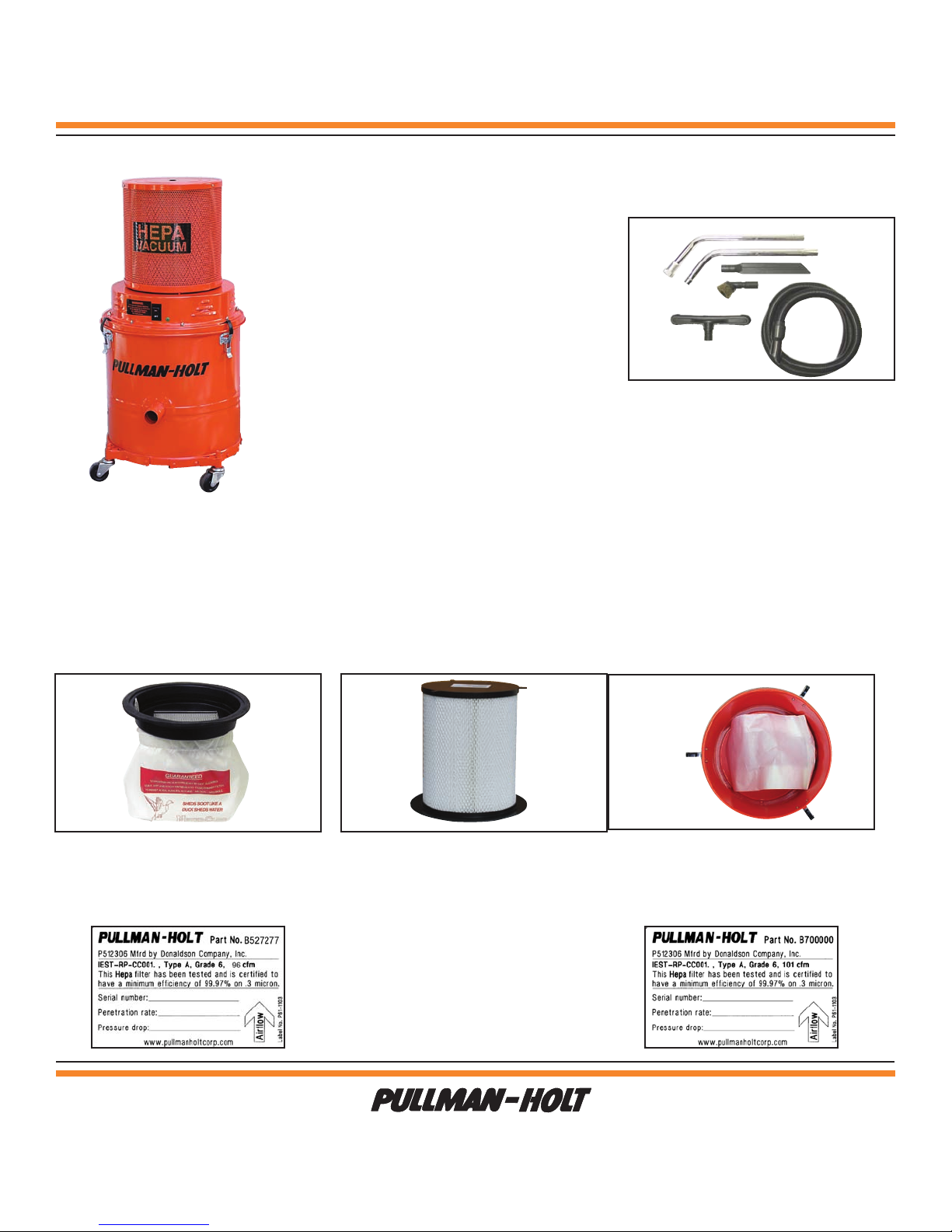

Survivor Series HEPA Vacs

Model 86ASBDH

Features:

Complete HEPA Filter Assembly consisting of air

seal gasket, polyester preﬁlter, spacer sleeve

and Dacron ﬁlter bag (B526520)

High efﬁciency 2-ply enclosed,disposable paper

ﬁlter bag acts as the primary ﬁlter to trap and

hold dry material for easy handling and disposal.

(B700408)

Each Pullman-Holt HEPA ﬁlter is tested and

certiﬁed to provide a minimum efﬁciency of

99.97% at .3 microns based on IEST-RP-

CC001 test requirements.

Model 86ASBDH:

Tool Kit (B160450)

5’ two-piece metal wand (B521007)

10’ X 1.5” crushproof hose (B000311)

14” ﬂoor brush tool (B527095)

17” crevice tool (B701615)

3” round dusting tool (B000394)

Replacement Filters

Polyester preﬁlter 3 each (B527302)

Disposable paper ﬁlter bags 3 each

(B700408)

Disposable Poly Bags

3 each (B524263)

Included Attachments &

Accessories:

Large capacity, radial pleated ﬁlter (B700000)

traps dust generated by the motor.

Style: Dry

Horsepower: 1

Waterlift: 85”

CFM: 101

Tank capacity: 5 Gal.

Recovery capacity: .75 bushel

Cord length: 25 feet

Shipping weight: 45 lbs.

Motor warranty: 1 year

Speciﬁcations:

Meets & exceeds EPA & OSHA standards

B200676 6/07
