Q-See QSD004 Bedienungsanleitung

INDEX

1. DVR Features ........................................................................1

2. Layout

2.1 Front Panel............................................................................................... 1

2.2 Rear Panel................................................................................................ 2

2.3 Remote Control..................................................................................... 2

3. Installation

3.1 Installing the Hard Drive.................................................................. 3

3.2 Connecting Camera and Monitor................................................. 3

3.3 Connecting Power Supply…………………………..…..3

4. System Boot

4.1 Detecting Installed Hard Drive ..................................................... 4

4.2 Recovering Lost Data ........................................................................ 4

4.3 Restore Recording Feature.............................................................. 4

4.4 Main Screen ............................................................................................ 5

5. DVR Setup

5.1 Setup Menu ............................................................................................. 5

5.2 Camera Select ........................................................................................ 6

5.3 Record Select ......................................................................................... 6

5.4 Resolution ................................................................................................ 7

5.5 Record Frame......................................................................................... 7

5.6 Record Quality ...................................................................................... 8

5.7 Schedule Set............................................................................................ 8

5.8 Miscellaneous Menu - Auto Record.................................9

5.9 Miscellaneous Menu - Password Enable .........................9

5.10 Miscellaneous Menu – Change Password........................9

5.11 Miscellaneous Menu - Color Set......................................9

5.12 Miscellaneous Menu - Time Set.....................................10

5.13 Hard Disk Setup................................................................................. 10

5.14 Motion Setup ........................................................................................11

5.15 Video Mode.......................................................................................... 12

5.16 Factory Reset....................................................................................... 12

6. Recording

6.1 Start Recording................................................................................... 12

6.2 Stop Recording................................................................................... 13

6.3 Recording Time on Hard Drive ................................................. 13

7. Playback ...............................................................................14

8. USB Programming..............................................................15

8.1 PC Viewer Program.........................................................15

8.2 Program Buttons..............................................................15

8.3 PC Backup ............................................................................................. 16

9. Specifications .......................................................................17

10. Appendix

10.1 System Connection Diagram..........................................18

10.2 DVR Accessories (included) ..........................................18

Q-SEE Product Warranty ...........................................................19

- 1 -

QSD004 User’s Manual

4 Channel BNC Camera Input

1 Channel BNC Video Output

Video Source Option: NTSC / PAL

Motion Detection with Sensitivity and Area Settings

Time Schedule Recording / Motion Triggered Recording

One ATA-100 Hard Disk Interface

USB 2.0 Back up to computer

Remote Control

2.1 Front Panel

CH1 #1 Channel #1 Stop #10 Stop recording / playing

back

CH2 #2 Channel #2 REC #11 Record

CH3 #3 Channel #3 Menu/Esc #12 Enter / exit setup menu

CH4 #4 Channel #4 SEL/Edit #13 Select / modify item

Quad #5 Quad View Up #14 Move up / left cursor

REW #6 Rewind Down #15 Move down / right cursor

Pause #7 Pause PWR #16 Power indicator LED

Play #8 Play recorded video HDD #17 Hard disk indicator LED

FWD #9 Forward

Chapter 1: DVR Features

Chapter 2: Layout

IR Receiver

- 2 -

QSD004 User’s Manual

2.2 Rear Panel

USB Port is located on the right side of the case.

2.3 Remote Control

CH1 Select or enlarge Channel #1

CH2 Select or enlarge Channel #2

CH3 Select or enlarge Channel #3

CH4 Select or enlarge Channel #4

Quad Quad View

Rewind

Play recording list

Forward

Record

Pause

Stop recording / playing back

Menu Enter or exit setup menu

Move up / left cursor

SEL Select / modify item

Move down / right cursor

Power Supply Input Grounding Terminal

4 BNC video inputs

1 BNC video output

Fan

- 3 -

QSD004 User’s Manual

3.1 Installing Hard Drive

1. Unplug the power supply. Don’t install or uninstall HDD when DVR is on!!

2. Carefully open the DVR case.

3. Connect the power cord and data cable to hard disk drive.

The 4 pin connection is the DC power cable for HDD, and the wider cable is the standard

hard drive IDE type connection.

Make sure the HDD is set as MASTER according to the hard drive manual.

4. Carefully replace the case cover.

3.2 Connecting Camera and Monitor

There are 4 camera inputs and 1 video output with BNC connectors (Refer to

2.2 Rear Panel). Attach the cable from each of the cameras to one of the BNC video

input ports. Attach a RCA video cable (not included) to the video out put port on the

DVR using a RCA to BNC adapter (included) and to a RCA video in port on the TV.

3.3 Connecting Power Supply

Please only use the power adapter supplied with the DVR. The standard power

supplied to the DVR is DC 12 Volts, 3 Amps.

Chapter

Installation

(optional)

- 4 -

QSD004 User’s Manual

4.1 Detecting Installed Hard Drive

4.2 Recovering Lost Data

4.3 Restore Recording Feature

After connecting the power, the system

will boot-up and detect the installed hard

drive.

On the screen it will show the hard drive

information.

A power error can cause data to be lost,

and the DVR system can automatically

recover lost data after power is reconnected.

If a power error occurs during the

recording process, the system will

automatically resume recording after

power is reconnected.

Chapter 4: System Boot

Checking HDD ……

MASTER…

RECOVER HDD?

04811-101735

(SELECT)YES/(MENU)NO

Power Error Detected

Restore Hard Disk (Master) OK

Restore REC Mode…………

- 5 -

QSD004 User’s Manual

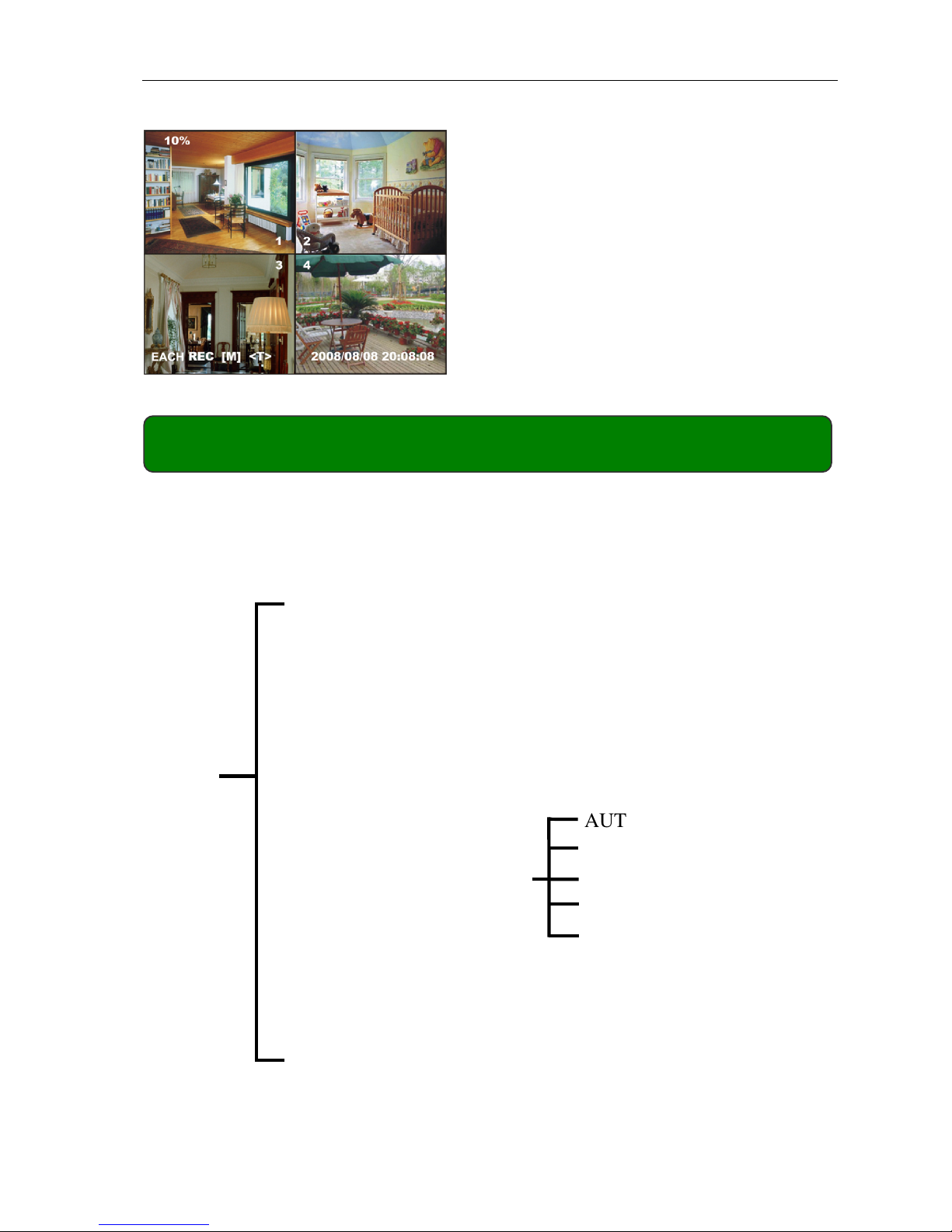

4.4 Main Screen

5.1 Setup Menu

Menu Directory

CAMERA SELECT

RECORD SELECT

RESOLUTION

RECORD FRAME

RECORD QUALITY

SCHEDULE SET

MISCELLANEOUS MENU

HARD DISK SET

MOTION SET

VIDEO MODE

FACTORY RESET

Chapter 5: DVR Setup

MAIN

＞

＞＞

＞

AUTO RECORD

PASSWORD ENABLE

PASSWORD CHANGE

COLOR SET

TIME SET

While the DVR is running, the

monitor will display the information from

the cameras as follows:

Upper left: Percentage of space used on

hard drive.

Middle: Channel number (CH1 through

CH4)

Bottom right: Date and Time

Bottom left: System status. (Refer to 6.1

Start Recording)

- 6 -

QSD004 User’s Manual

5.2 Camera Select

If a channel is disabled, the system will display “OFF” on the monitor, and this

channel will not be selected to record. (Refer to 5.3 Record Select)

5.3 Record Select

Configure which channels you want to record.

Note: If no channels are selected, an error message will appear briefly on

the screen when record is selected.

The DVR system can display 4

camera feeds in one picture (Quad Mode).

You can configure which cameras are

displayed.

Press [ SEL] to modify setting, or

press [CH1], [CH2], [CH3] and [CH4] to

select each channel separately.

[Menu]: enter system menu

Note: If you are recording to enter

Menu you need to push stop button to

stop recording first.

[

Up] and [

Down]: move the cursor

[SEL]: select/modify settings

[Menu]: press again to exit

MAIN MENU

CAMERA SELECT 1 2 3 4

RECORD SELECT

1 2 3 4

RESOLUTION

EACH

RECORD FRAME

RECORD QUALITY HIGH

SCHEDULE SET

MISCELLANEOUS MENU

HARD DISK SET

MOTION SET

VIDEO MODE PAL

FACTORY RESET

PRESS (UP

，

，，

，

DOWN), ENTER (SELECT)

PRESS (MENU) TO EXIT

- 7 -

QSD004 User’s Manual

5.4 Resolution

There are two resolutions for video recording:

EACH Mode:

The DVR compresses and records each video channel separately so you can

enlarge a single channel to full screen display and still be recording on all channels.

You can also record on specific channels, for example, you can turn off the

recording function of CH1 and CH2 and then the system will only record video on

CH3 and CH4.

Press [CH1], [CH2], [CH3], and [CH4] to enlarge relative channel to full

screen display.

In EACH Mode you can use the Auto Switch Function.

Auto Switch Function:

When the system is in live mode or recording mode, press the [QUAD] button

and hold for three (3) seconds to make each video channel enlarge to full screen in

sequence.

The full screen view of each channel will be displayed for three (3) seconds,

including Quad view.

The switch will last until any button is pushed.

For example, [ Stop] will stop the switch and may stop the recording

depending on Record Schedule Settings (5.7 Schedule Set).

QUAD Mode:

The DVR will compress and record all 4 video channels into one file, therefore,

you cannot enlarge a single channel to full screen in play back mode or live

monitoring mode.

Auto Switch Function is not available in QUAD Mode.

5.5 Record Frame

Record frame will affect the movement of objects in recorded video. More

frames per second gives smoother movement and uses more hard disk space.

System default value is 30fps (frames per second) for NTSC (PAL is 25fps),

which means the system will record 30 frames per second shared by all cameras.

You can set frame rate for NTSC to 30,15,10,7,5,4,3,2,1 frames per second (PAL is

25,12,8,6,4,3,2,1)
