Raidon IR2620-2S-S2 Bedienungsanleitung

v.2.2 (Jun, 2011)

InTANK Series

iR2620-2S-S2 / SR2611-2S-S2R

User Manual

iR2620-2S-S2 SR2611-2S-S2R

Index

Chapter 1 Check Package Contents and Accessories..................................... 3

Chapter 2 Hardware Introduction..................................................................... 4

Chapter 3 Precaution before Usage................................................................. 5

Chapter 4 Hardware Installation Procedure..................................................... 6

Chapter 5 Connecting iR2620 / SR2611 to your computer.............................. 7

Chapter 6 Setting the Hard Drive Array Mode.................................................. 8

Chapter 7 Computer Set Up............................................................................. 9

Chapter 8 Hard Disk status on LCD screen..................................................... 10

Chapter 9 Data Rebuilding Operation.............................................................. 11

Chapter 10 GUI Monitoring Software & FW Updating........................................ 12

Appendix : Trouble Shooting / Q&A..................................................................... 16

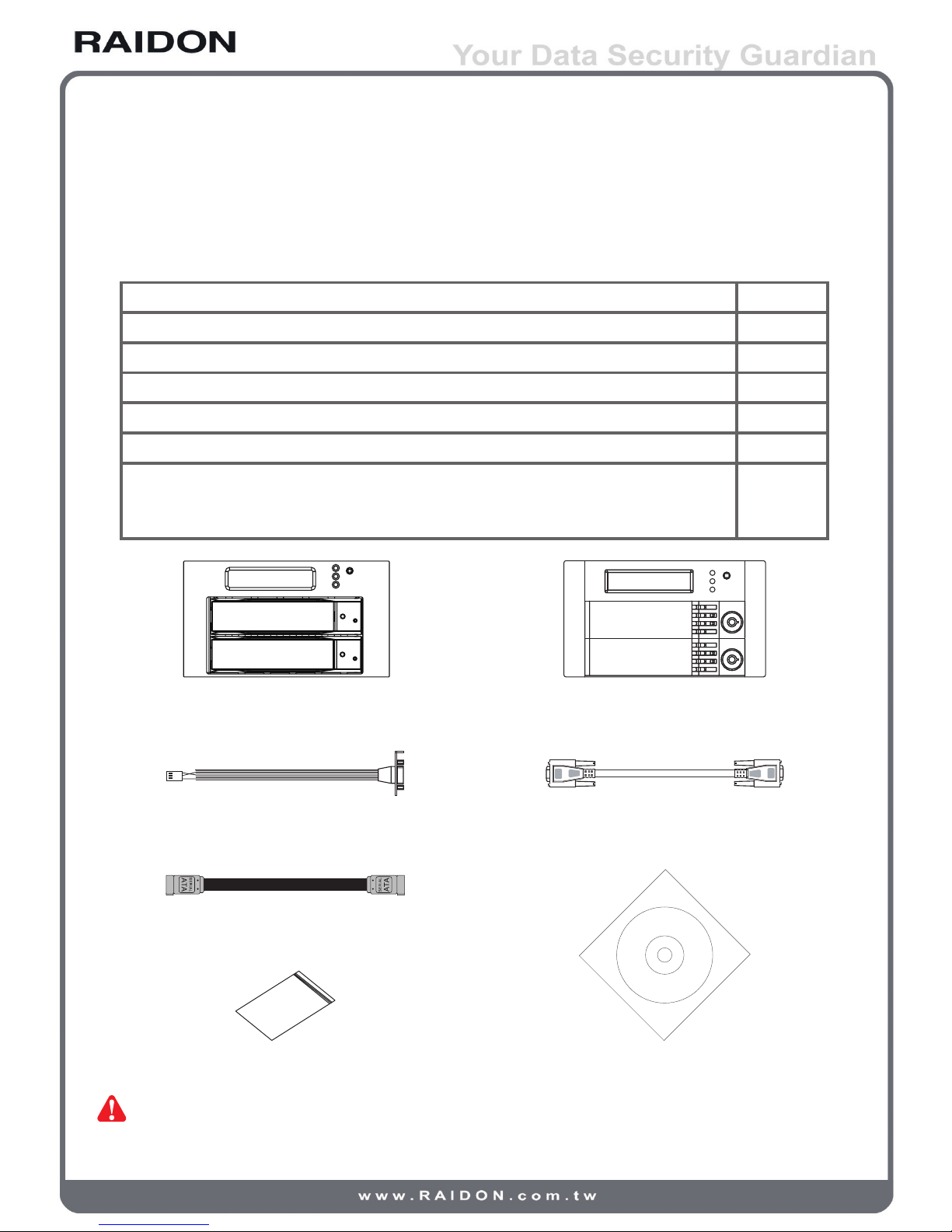

Chapter 1 Check Package Contents and

Accessories

iR2620 / SR2611 system includes the following:

Item Quantity

iR2620 / SR2611 1 / 1

Internal RS232 Cable 1

External RS232 Cable 1

SATA Cable 1

CD 1

Accessory bag

iR2620 : includes 6 of screws for device, 6 of screws for HDD tray, and 2 of keys for key lock

SR2611 : includes 8 of screws and, 2 of keys for key lock

iR2620 SR2611

Internal RS232 Cable External RS232 Cable

SATA Cable

Accessory bag CD

Note : Please check above parts are included prior to installation. The accessory bag contains

screws and a plastic key.

Check Package Contents and Accessories 3

Chapter 2 Hardware Introduction

iR2620 Front Panel SR2611 Front Panel

1 LCD Display 2LED of Failure Alarm 1 LCD Display 2LED of Failure Alarm

3LED of Pri HDD 4LED of Sec HDD 3LED of Pri HDD 4LED of Sec HDD

5Mute Button 6LED of Pri HDD 5Mute Button 6Key Lock

7LED of Sec HDD 8Key Lock

iR2620 Real Panel SR2611 Real Panel

Fan

RAID Mode

Fan

RAID Mode

RS232 Port 4SATA Port

4 Pin Big Power Connector

Note : 1. Status Indications of LEDs:

1) iR2620:

A. LED of Pri / Sec HDD which near LCD display will ash yellow when the data is

accessed from the hard drive.

B. LED of Pri / Sec HDD on the HDD tray will ash blue when the data is accessed

from the hard drive.

C. LED of failure alarm will light red when HD failed, temperature is higher than 60ºC

or fan fails.

Tray of Pri HDD

Tray of Sec HDD

Tray of Pri HDD

Tray of Sec HDD

4 Hardware Introduction

2) SR2611:

A. LED of Pri / Sec HDD will ash yellow when the data is accessed from the hard

drive.

B. LED of failure alarm will light red when HD failed, temperature is higher than 60ºC

or fan fails.

2. Mute Button : Press to turn on mute function, to shut off the buzzer alarm, just press the

bottom again.

Chapter 3 Precaution before Usage

1. Hardware Requirement

1) Computers or servers with SATA I& SATA II

2) Hard drive with SATA I& SATA II

2. Notices

1) iR2620 / SR2611’s brilliant design allows the user to simultaneously utilize two hard

drives manu factured by different companies. However, if the user expects better

efciency, we strongly recommend the users to use hard drives manufactured by

the same manufacturer.

2) The iR2620 / SR2611 had undergone strict hard drive compatibility test. The result

shows that it is compatible with most hard drives on the market such as

Western Digital, Seagate, Fujitsu, Hitachi, and etc. However, due to the new types

of hard drives appearing on the market, if your hard drive is not compatible with the

system, please contact us through the following email:[email protected]

and we will reply as soon as possible.

3) The iR2620 / SR2611 is equipped with a ball bearing cooling fan that will provide

effective cooling for the 7200 & 10000 rpm hard drive. We highly recommend using

computer chassis with effective cooling design to avoid disk array crashing due to

ineffective cooling.

4) iR2620 / SR2611 supports RAID 0 & RAID 1.

Precaution before Usage 5

Chapter 4 Hardware Installation Procedure

1. Install your hard disks into the removable trays and secure them with the screws from

accessory kit. This will protect your hard disk from any unnecessary movement.

iR2620

SR2611

2. Once the hard disks have been installed, insert the removable trays into device and close

the handles.

6 Hardware Installation Procedure

Chapter 5 Connecting iR2620 / SR2611 to your

computer

1. Connect DC12V&5V power cables and SATA cables to iR2620 / SR2611.

2. Connect SATA cable to SATA port on the motherboard.

Internal RS232 Cable External RS232 Cable

SATA Cable Power Supply Connector

iR2620 Real Panel

Internal Case

SR2611 Real Panel

Note : 1. RS232 Port and RS232 Cable: Provides hardware status monitoring to industrial control

system or IPC via RS232. If more information required, please contact at

[email protected]

Power Supply iR2620 / SR2611

SATA Ports

Motherboard

COM 1

COM 2

Connecting iR2620 / SR2611 to your computer 7

2. We do not recommend users to disassemble the device without proper instructions and

authorization. The manufacture warranty will not cover the damages caused by

unauthorized disassembling.

3. To prevent the device from malfunction, please make sure the device is connected with a

direct and dedicated power connection of a stable power input.

Chapter 6 Setting the Hard Drive Array Mode

Please select the RAID mode with the jumper located at the back panel. The original default

is RAID 1, still there are three pins at the back panel for RAID mode selection:

RAID 0 mode by setting the jumper on the bottom of the two pins.

RAID 1 mode by setting the jumper on the top of the two pins.

1. RAID 0 Mode

1). Place two new hard drives into iR2620 / SR2611 and strongly suggest you to use two

identical hard drives to get the equal capacity. If the capacity is different, iR2620 /

SR2611 is downward to the small hard drive capacity.

2). Under RAID 0 mode, capacity is add up to a one big volume, also with the feature of

faster read/write performance efcient.

2. RAID 1 Mode

1). Place two new hard drives into iR2620 / SR2611 and strongly suggest you to use two

identical hard drives to get the equal capacity. If the capacity is different, iR2620 /

SR2611 is downward to the small hard drive capacity.

2). Under RAID 1 mode, two hard drives has the identical information as one to mirror to

the other one, therefore each of the hard drive failed is still able to function normally.

When you replace the failed hard disk to the new one the system automatically

rebuilding the data to the newly place hard disk.

8 Setting the Hard Drive Array Mode

Chapter 7 Computer Set Up

When the hardware setup for iR2620 / SR2611 is complete, you are now ready to turn the

machine on.

1. After the hardware installation is complete, the iR2620 / SR2611 will be treated as one

single hard drive. Set the hard drive to AUTO in the computer’s BIOS. When the

computer is turned on, the system will retrieve the following information:

2. In iR2620 / SR2611, the installed hard drive can be detected by the Device Manager of

Computer Management for Windows.

3. Customers can choose to format the hard drive by using the Disk Management tool of the

operating system before using the iR2620 / SR2611.

At this point, the installation process is completely nished. The user can freely retrieve and

save data to iR2620 / SR2611 just like retrieving and saving data to a regular hard drive.

If the user experiences any abnormality during the operation, please refer to the trouble

shooting Q&A section in Appendix.

Computer Set Up 9

Chapter 8 Hard Disk status on LCD screen

1. Normal hard drives

2. Primary hard drive is failure, but secondary hard drive is normal

3. Primary hard drive storage capacity larger than secondary hard drive

4. Secondary hard drive storage capacity larger than primary hard drive

5. Rebuilding

6. Overheat

7. Fan failure

10 Hard Disk status on LCD screen
