PCIU2
User’s Manual
June 2001
Rev.1.0
USB2.0 PCI Host Board
2
Contents
1. Introduction........................................................................... 3
1-1. Features.......................................................................................................3
1-2. Restrictions .................................................................................................3
1-3. Required Operating Systems ....................................................................3
1-4. Other Requirements...................................................................................3
2. Before installing... ................................................................. 4
2-1. Package .......................................................................................................4
2-2. Using Low-Profile Bracket .......................................................................4
3. Setting up............................................................................... 5
3-1. Installing the PCI board ............................................................................5
3-2. Installing the driver(Windows 98SE).......................................................6
3-3. Installing the driver(Windows 2000) .....................................................11
3-4. Installing the driver(Windows Me) ........................................................14
4. Registration and Tech-support .......................................... 16
4-1. How to Register........................................................................................16
4-2. Software Update and Support ................................................................16
5. Options................................................................................. 17
6. Specifications....................................................................... 18
Appendix.................................................................................. 19
3
•Supports480Mbps(High-speed), 12Mbps(Full-speed), 1.5Mbps(Low-speed)data transfer mode.
ThisUSB2.0 hostadapter isfully backwards compatible withthe currrentUSB1.1 devices.
•Certifiedand passed USBHI-SPEED Compliancetest.
•IncludesouroriginalUSB2.0 EHCIdriver.
Supports Windows 98SE, Windows Me, Windows 2000.
•500mAmax. per portavailable.
•Includes Low-ProfilePCI bracket. Youcan use thisPCIU2 PCI boardwith a Low-ProfilePC.
•You can’tconnect aUSB2.0 device viaa USB2.0 HUB.
•Thedriverdoesn’t supportIsochrounous transfermode.
•Whenyouremove aUSB deviceand connectit again,you haveto waitfor over3 secondsbefore you
connectit again.
•Youcan’tremove/connecta USBdevicewhen PCis inthefollowing status:
Instandby mode, gettingready forstandy mode,resuming fromstandbymode.
Inhybernationmode, gettingreadyforhybernation mode,resumingfromhybernation mode.
•This driverdoesn’t support remotewake upfrom a USBdevice.
•Otherrestrictionsare writteninthe readme.txtfile.
1-3. Required Operating Systems
•Windows 98SE(Second Edition)
•Windows 2000
•WindowsMe(MillenniumEdition)
1-4. Other Requirements
•AvailablePCIslot
ThisUser’s Guidedescribes howto install theRATOCUSB2.0PCI HostAdapter Board.
(calledPCIU2in thisUser’sGuide).
TheinformationintheREADME.TXTfileontheCD-ROM mayincludethelatestinformation.
Besure toread thefile aswell.
1. Introduction
1-2. Restrictions
1-1. Features
4
2. Before installing...
2-1. Package
Check the packagecontents:
•PCIU2 PCI Board
•Low profile bracket
•Software CD-ROM
•User’s manual
NOTE
Ifanyof these items are missingfromthePCIU2retail package, contact yoursupplier
immediately.
2-2. Using Low-Profile Bracket
Ifyou usethe PCIU2 witha Low-Profile PC,you haveto replace thebracket withthe bundled
Low-Profilebracket as shownbelow.
5
Afterinstallingit, startyourPC. Then,youneed toinstall thedriverfor thePCIU2.
A)When you use Windows 98SE----------- Proceed to Chapter 3-2.
B)When you use Windows 2000------------Proceed to Chapter 3-3.
C)When you use Windows Me--------------Proceed to Chapter 3-4.
Turnoffyour computerandinstall thePCIU2 intoaPCI slot.
Pleasenotethefollowing:
1.YouhavetoinstallthePCIU2firmly.IfthePCIU2isn’tinstalledfirmly,thisproductor
your PC may get damaged.
2.Besure thegold contact ofthe PCIboard iscompletely in awhite PCIslot.
3.Besure to fasten thebracket of the PCIboard with ascrew as shown below.
3. Setting up
3-1. Installing the PCI board
6
3-2. Installing the driver(Windows 98SE)
Whenyouuse Windows 98SE,followthe stepstoinstall thedriver.

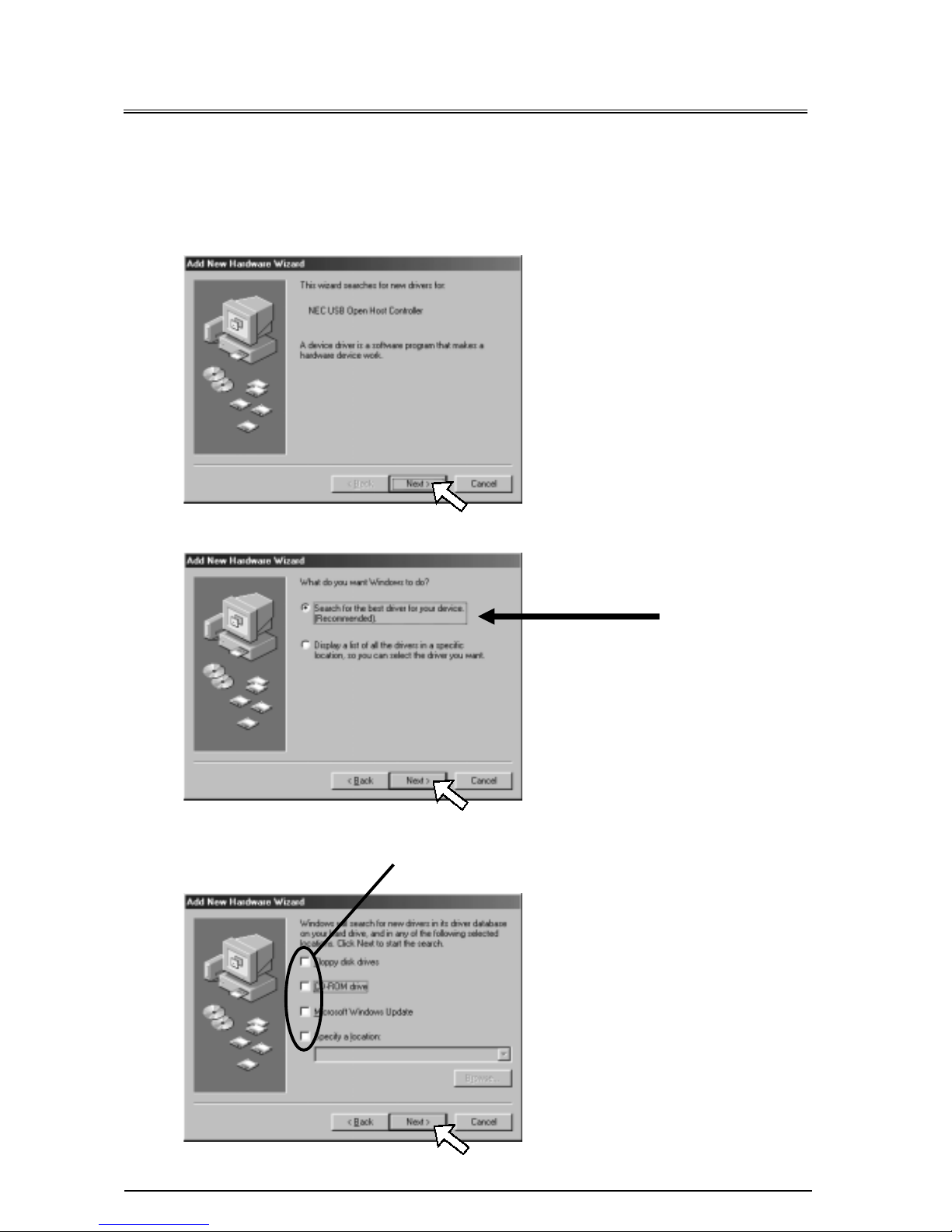

1. When youstartyourPCafter installingthePCIU2,thefollowing HardwareWizard will
appear. Insert the PCIU2 CD-ROM into the CD-ROM drive and click [Next].
2. Select [Searchforthe bestdriverfor your device.(Recommended)]and click [Next].
3. Click [Next]. Uncheck allthe options.
7

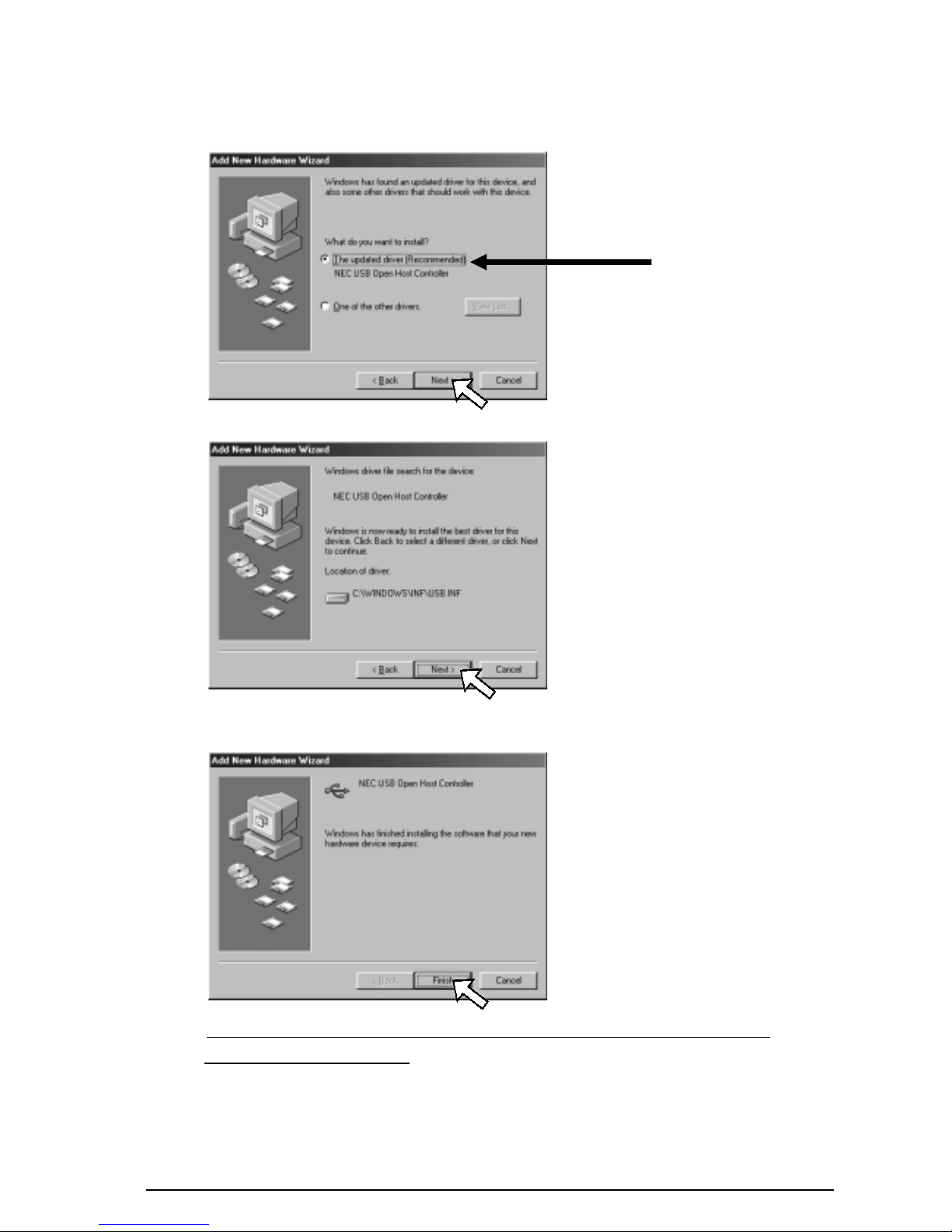

4. Select [Theupdateddriver(Recommended)NEC USBOpen HostController]and click
[Next].
5. Click [Next].
6. Click[Finish].
7. Thesame hardwarewizardas shownatthe step 1through6 willappearagain.
Follow the same procedure.
8
10. Select [Specifya location]andtype in [D:\PCIU2]and click [Next].
(D means your CD-ROM drive letter. If your CD-ROM is “E”, you have to type in
[E:\PCIU2].)

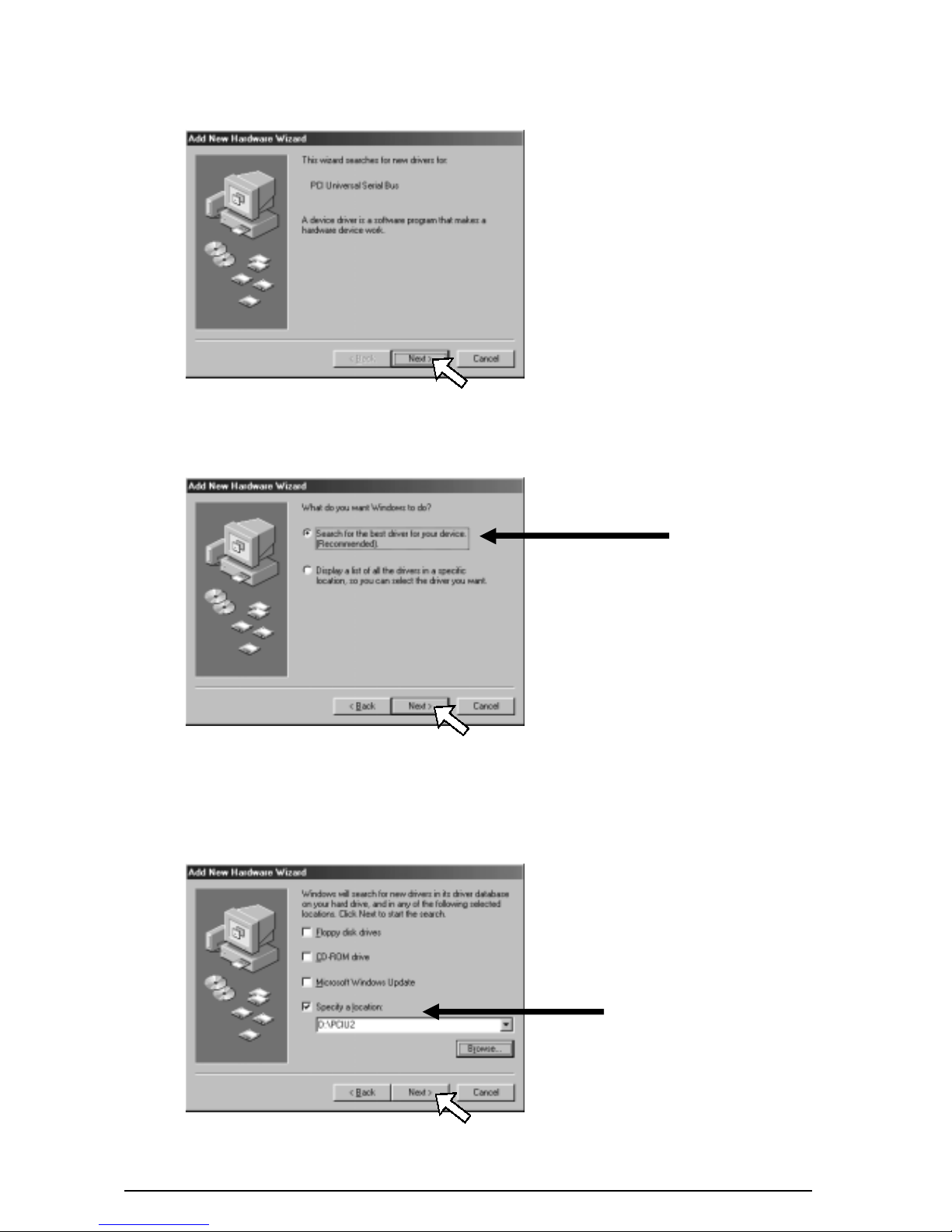

8. Then,thefollowinghardwarewizardwillappear.
9. Select [Searchforthe bestdriverfor your device.(Recommended)]and click [Next].
9

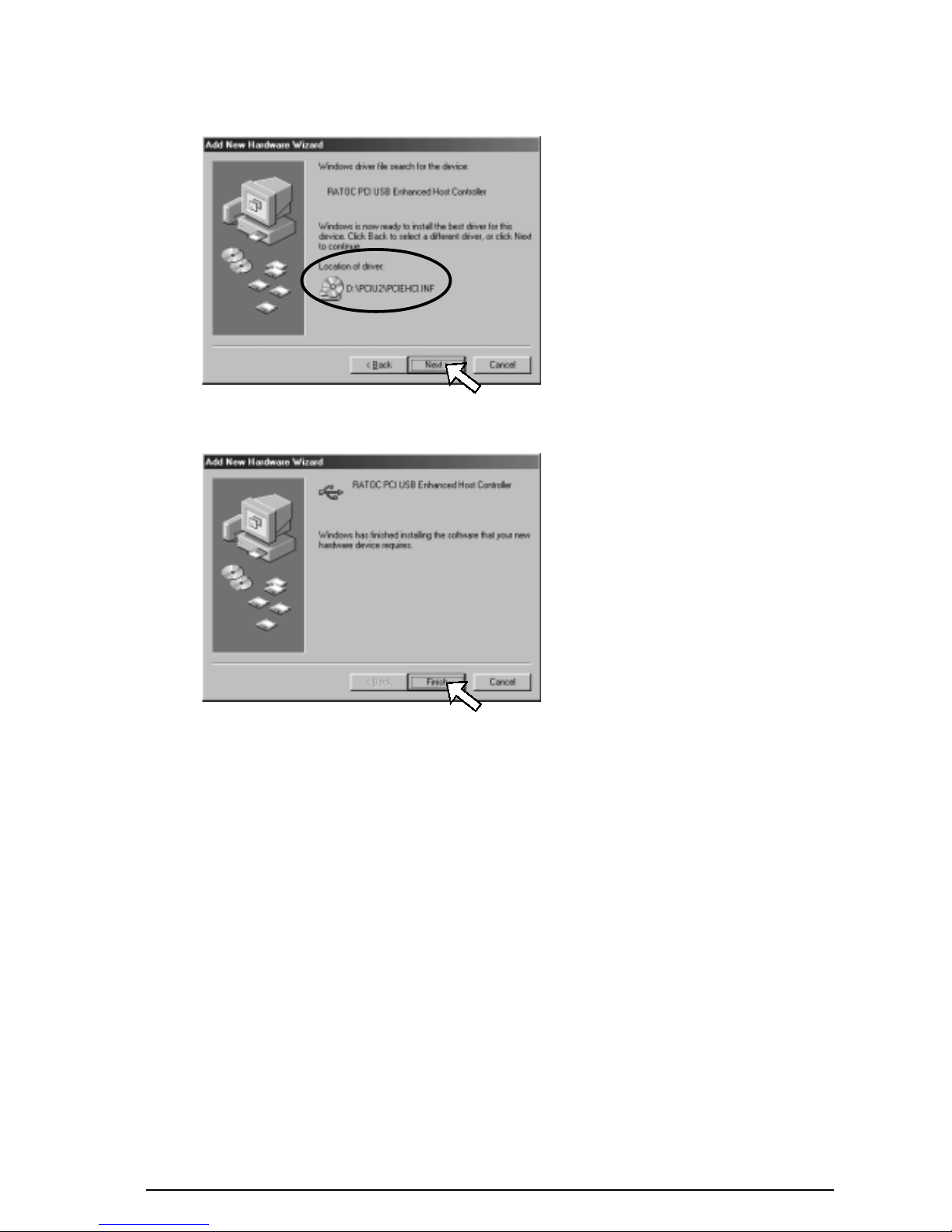

11. Make sure Windowsfound thePCIEHCI.INF filein thePCIU2 folderin theCD-ROM drive.
Then,click [Next].
12. Click[Finish].
13. Restart your PC.
You have now finished installing the driver.
10

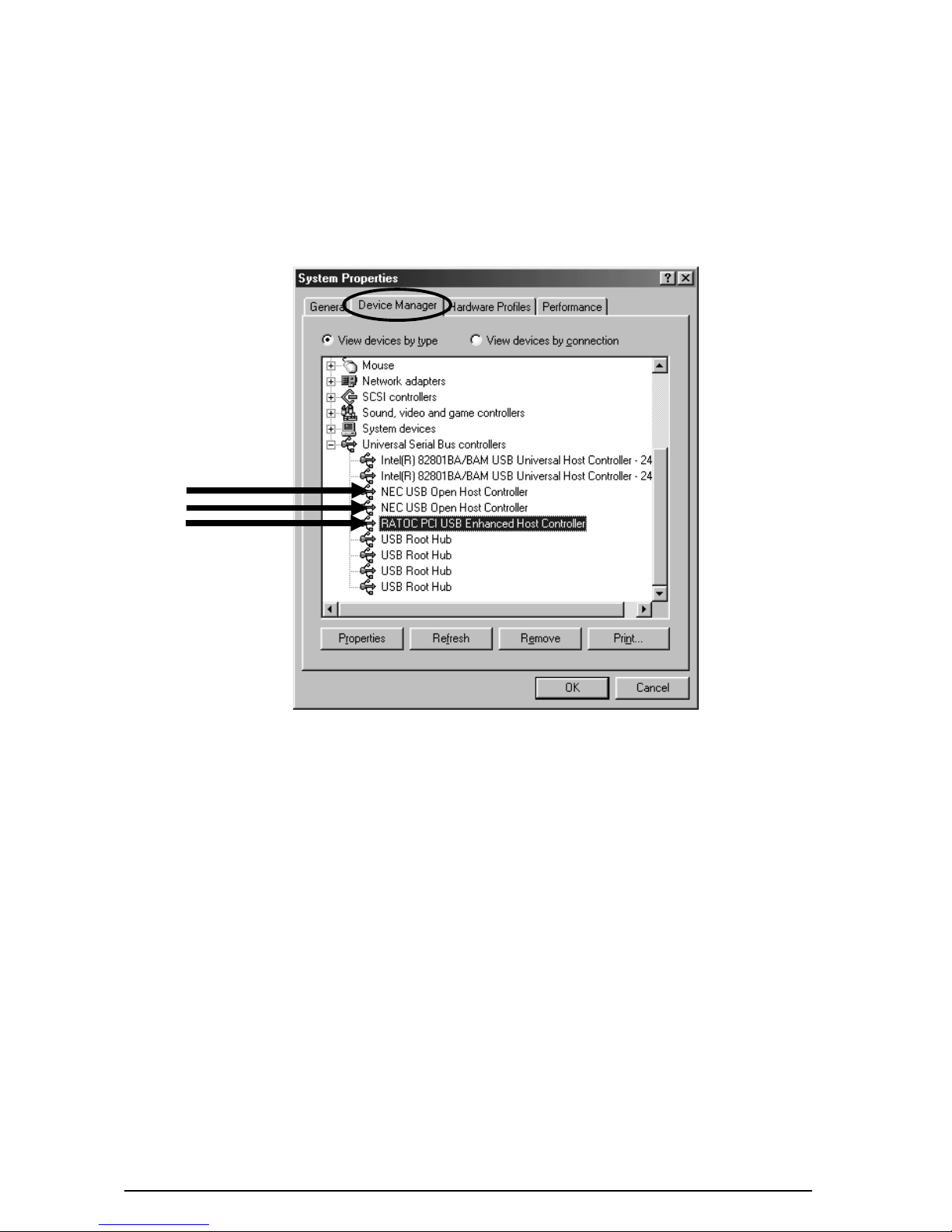

14. Toverifythatthe driveris installed correctly,right-clickon [MyComputer],select[System
Properties], and then select the [DeviceManager] tab.
If you can find two [NEC USB Open Host Controller] strings and a [RATOC PCI USB
EnhancedHost Controller]string under the[UniversalSerialBusControllers],the
driverisinstalledcorrectly.
