Raven SmarTrax Bedienungsanleitung

Supplement & Installation Manual

CaseIH MXM Maxxum Series

Manual # 016-0190-074 Rev B 06/07

CHAPTER

NTRODUCTION

Congratulations on your purchase of the Raven SmarTrax system! This

system is designed to provide cutting-edge, hands-free steering of your

machine via GPS coordinates.

CaseIH MxM Series Maxxum SmarTrax Supplement & Installation Manual

Basic Kit

Contents

Below you will see the kit contents that you should have received with this

SmarTrax kit.

CaseIH MXM Series Maxxum SmarTrax Kit Contents

Quantity Item Description Part Number

1KIT, S.P.S. 063-0181-001

1 WELDMENT, BRACKET, UNIVERSAL MOUNTING,

PART "A" 116-0159-527

1 HOSE, HYD., -4 ORFS (F) 90° ELBOW TO -6 JIC

(F), 48" 214-1000-443

2 HOSE, HYD., -6 JIC (F) TO -6 ORFS (F), 90°, 60" 214-1000-444

2 HOSE, HYD., -6 JIC (F) TO -8 ORFS (F), 76" 214-1000-445

2 HOSE, HYD., -6 ORFS (F) TO -8 ORFS (F), 90°

ELBOW, 30" 214-1000-446

1 HOSE, HYD., -6 JIC (F) 90° TO -4 ORFS (M), 6" 214-1000-447

1 CABLE, HYD., DUAL COUNTERBALANCE W.

ORFS FITTINGS 334-0003-030

1 SWITCH, PRESS., MICRO, H. D., 15 -100 BAR,

ADJ., W. FTG. 422-0000-074

2 FITTING, ELBOW, 45° SWIVEL, -6 JIC M/F 333-0012-027

2 FITTING, ADAPTER, -10 ORFS RUN TEE M/M/F 333-0012-031

2 FITTING, REDUCER, -10 ORFS (F) TO -8 ORFS (M) 333-0012-032

6 FITTING, ELBOW, 90° SWIVEL, -6 JIC M/F 333-0012-042

2 FITTING, ELBOW, 90° SWIVEL, -8 ORFS M/F 333-0012-067

2 FITTING, ADAPTER, -6 ORFS RUN TEE M/M/F 333-0012-069

2 FITTING, ELBOW, 90° SWIVEL, -10 ORFS M/F 333-0012-096

2 FITTING, STRT., ADPTR., -6 ORFS (M) TO -10 SAE

O-RING (M) 333-0012-233

4 BOLT, 5/16-18 x 7/8" HEX HEAD 311-0052-104

4 BOLT, HEX, 3/8"-16 UNC x 1" 311-0054-105

4 NUT, 3/8"-16 312-1001-037

4 WASHER, LOCK, 5/16" 313-1000-019

4 WASHER, LOCK, SPLIT, 3/8" 313-1000-022

4 WASHER, FLAT, 3/8" 313-2300-013

1 VALVE, HYD., CLOSED CENTER LOAD SENSE 334-0003-062

1 MANUAL, INSTALLATION, CASE IH MXM

TRACTORS 016-0190-074

1 MANUAL, INSTALLATION, SMARTRAX 016-9001-021

1 LABEL, WARNING, DO NOT STEP 041-0159-688

1 LABEL, WARNING, TAMPERING 041-0159-689

1 CABLE, HYDRAULIC SOLENOID / OVERRIDE 115-0171-466

Manual # 016-0190-074 Rev B 06/07

CHAPTER

AFETY

Hydraulic

Safety

Precautions

When disconnecting the hydraulic hoses or when purging is required, be aware

that the hydraulic oil within the machine system may be extremely hot and under

high pressure. Caution must be exercised. Any work carried out on the hydraulic

system must be performed in accordance with the machine manufacturer’s

approved maintenance instructions. Raven Industries recommends that

appropriate protective equipment be worn when working on the hydraulic

system.Objects or materials that are able to bypass the machine’s hydraulic

filtration system will adversely reduce performance and possibly damage the

hydraulic valves.

Electrical Safety

Precautions

Do not reverse the power leads. Doing so will cause severe damage to the

equipment. Always check to make sure that the power leads are connected to the

correct polarity as marked. Ensure that the power cable is the last cable to be

connected.

Important: Hydraulics are under pressure. Never attempt to

open or work on a hydraulic system with the equipment

running. Care should always be taken when first opening a

system that was previously pressurized.

CaseIH MxM Series Maxxum SmarTrax Supplement & Installation Manual

Contacting

Raven

Industries

We welcome your feedback about this manual. If you have any comments or

suggestions for improvement, please let us know by contacting our Customer

Support Center by any of the following methods:

•Via phone: 1-800-243-5435

•Via mail:

Raven Industries

Flow Control Division

205 E. 6th St.

Sioux Falls, SD 57104

•Via email: fcdinfo@ravenind.com

Manual # 016-0190-074 Rev B 06/07

CHAPTER

OUNTING

THE

NIVERSAL

RACKET

AND

ALVE

1. Attach pressure switch to PS port on SmarTrax valve before mounting

valve to ensure proper clearances.

2. Using the t-shaped bracket, mount the valve on the right side of the

machine, either between the steps (by drilling holes in front of the rear

fender), or by using the steel plate on the lower right front corner of the

cab.

Remember: The supplied hoses are meant to reach to the side

of the tractor and will have excess length when the valve is

mounted on the corner of the cab.

CaseIH MxM Series Maxxum SmarTrax Supplement & Installation Manual

Optional

Mounting

Point

Manual # 016-0190-074 Rev B 06/07

CHAPTER

YDRAULICS

Installing Load

Sense Lines

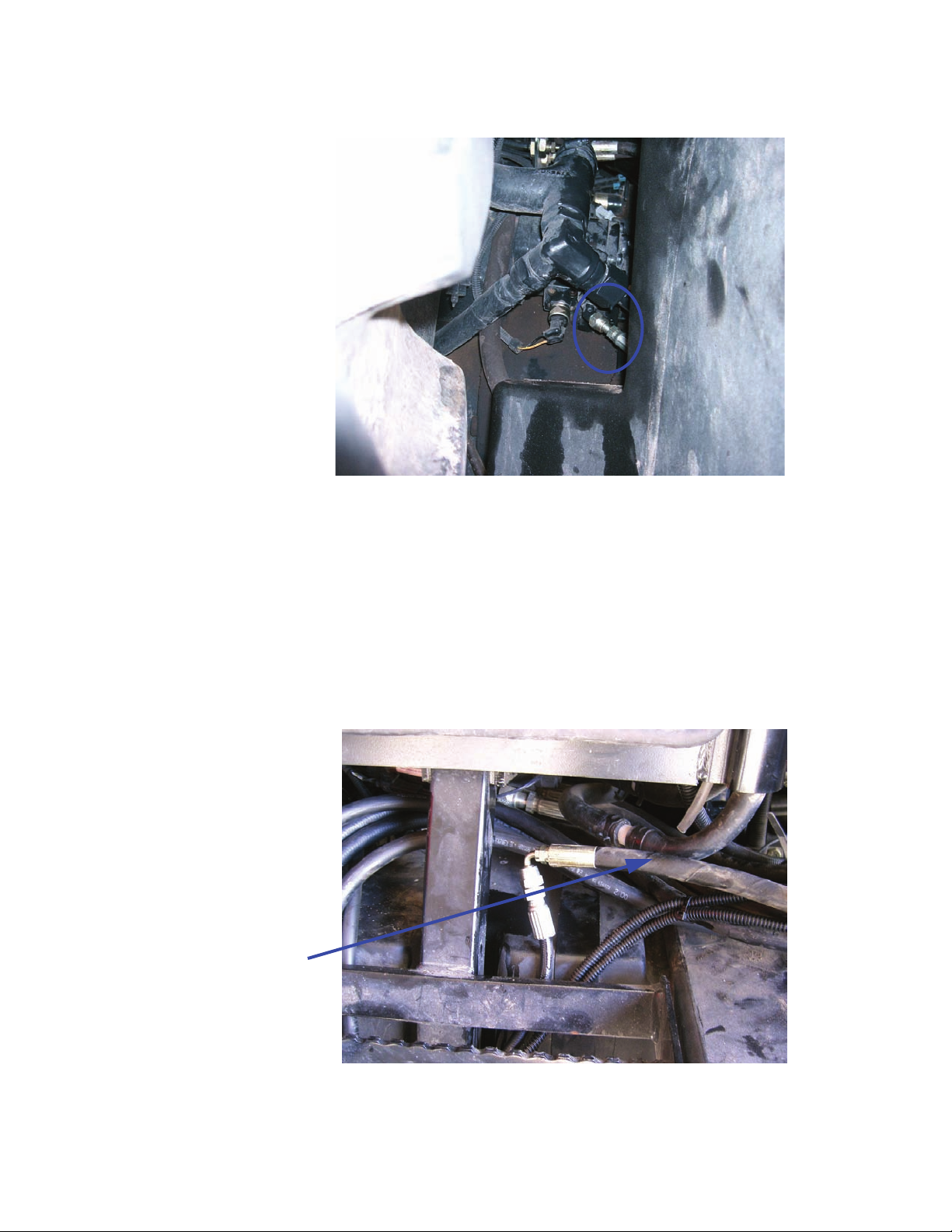

1. Remove the steering load sense line from the pump located on the right

side of the tractor, in front of the rear tire.

2. Trace the load sense line from the orbital back to be sure you have the

correct line. The orbital load sense line is the smallest of the 5 fittings

that are on the orbital and is located between two of the larger fittings.

CaseIH MxM Series Maxxum SmarTrax Supplement & Installation Manual

3. Attach the 90 degree end of the supplied hose (P/N 214-1000-443) to

the open Load Sense Port on the tractor pump.

4. Route the hose to the SmarTrax valve and connect it to the LS PV Port

using a 90 degree fitting.

5. Attach the 90 degree end of the supplied short adapter hose (P/N 214-

1000-447) to the LS Steer Port.

6. Route the original steering load sense line to the SmarTrax valve and

connect it to the adapter hose that is attached to the LS Steer Port.

Original LS

Line
