RIOTEC DC9252NP Bedienungsanleitung

1

Quick Guide

-DC9252NP (with Battery)

-DC9252NN (without Battery)

1 H92P/H92N

Connect to micro USB port of OTG device

2 H92P/H92N

3



* Before you use it, please switch to "C" for battery charge for

3~4 hours.

*Under “C mode”, you can raise/lower soft-keyboard easily.



H92P Scan Holder is with Li-Ion battery inside. When in

charging, please use the original power adaptor of

smartphone (recommend). Through it, it charges both OTG

device and H92P internal battery at the same time. When in

low battery (Red LED flashing), please charge it

immediately.

LED Indicator Information

Green LED OFF Full charged (Charge mode)

Green LED ON Charging (Charge mode)

Red LED Flashing Low battery (Operation mode)

Attention: Under “Operation mode” please do not charging,

otherwise the OTG device's battery will be charging back to

H92P’s battery.



The touch trigger is in the central area of mini scanner. (for both side).

Please check the above drawing for your reference.

Installation

Before using scanner, please make sure that the OTG device is fully charged.

1. Under USB HID interface

** When plugged into OTG device, it will be recognized and begin to scan

the barcode.

2. Under USB Serial interface

** Please install PL-2303 driver into your OTG device first. PL-2303 driver

can be downloaded from Google Play

** Connect scanner to your OTG device, then, you can know which serial

port scanner connects to.

** The data you scan will be sent to serial port and your APP can get the

data from serial port directly.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect

codes, please scan from A1 for USB HID or B1 to B2 for RS232 or USB Serial.

This will reset the scanner to its factory defaults.

USB HID

USB Serial

A1 B1



* Note: Please install PL-2303 driver for USB Serial.

Trigger

Area

Suction Cup

PU Glue

(Can be used

repeatedly)

Micro USB

cable (OTG)

Mini

scanner

Micro USB

H92P with

Li- Ion Battery/

H92N without

Battery

Micro USB

LED Indicator

H92P only

O = Operation mode C = Char

e mode

LED Indicator

H92P only

2

Keyboard Language (For USB HID Only)

Scan the appropriate country code as below to program the keyboard

layout for your country or language. As a general rule, the following

characters are supported, but need special care for countries other

than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

North American

Standard USB

Keyboard

German

Windows

French

Windows

French Canadian

Windows 95/98

French Canadian

Windows 2000/XP

French Belgian

Windows

Spanish

Windows

Italian

Windows

Swedish

Windows

UK English

Windows

Japanese

Windows (ASCII)

Portuguese-

Brazilian Windows

1D Symbologies -1

ENABLE Code 128 DISABLE

ENABLE ISBT 128 DISABLE

ENABLE Code 39 DISABLE

ENABLE

Code 39

FULL ASCII DISABLE

ENABLE

rioptic

Code 39 DISABLE

ENABLE UPC-A DISABLE

ENABLE UPC-E DISABLE

ENABLE EAN-8 DISABLE

ENABLE EAN-13 DISABLE

1D Symbologies -2

ENABLE

Composite

CC-C DISABLE

ENABLE

Composite

CC-A/B DISABLE

ENABLE

Composite

TLC 39 DISABLE

ENABLE Code 32 DISABLE

ENABLE CODE 93 DISABLE

ENABLE CODE 11 DISABLE

ENABLE Interleaved 25 DISABLE

ENABLE Discrete 25 DISABLE

ENABLE CODABAR DISABLE

3

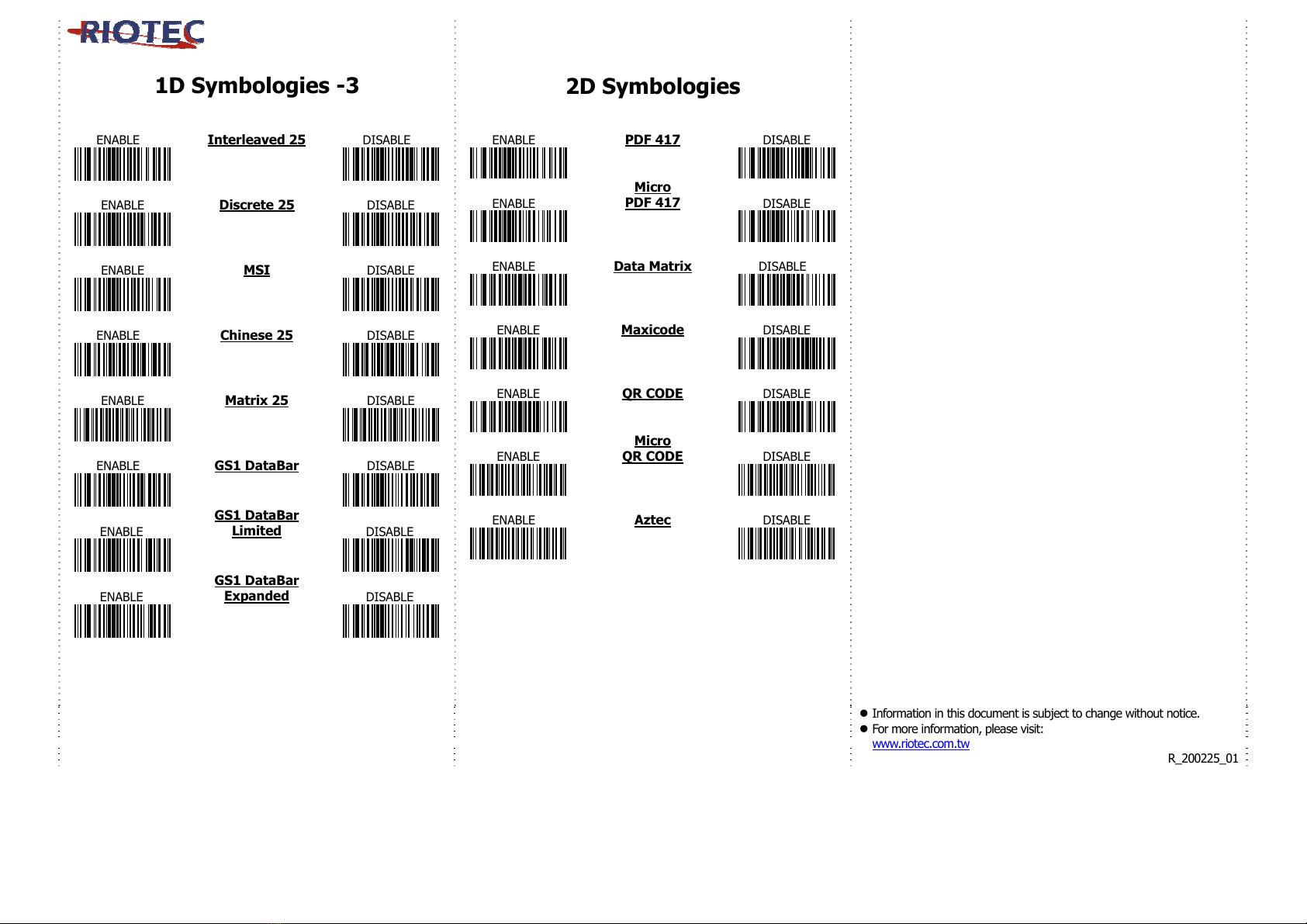

1D Symbologies -3

ENABLE Interleaved 25 DISABLE

ENABLE Discrete 25 DISABLE

ENABLE MSI DISABLE

ENABLE Chinese 25 DISABLE

ENABLE Matrix 25 DISABLE

ENABLE GS1 DataBar DISABLE

ENABLE

GS1 DataBar

Limited DISABLE

ENABLE

GS1 DataBar

Expanded DISABLE

2D Symbologies

ENABLE PDF 417 DISABLE

ENABLE

Micro

PDF 417 DISABLE

ENABLE Data Matrix DISABLE

ENABLE Maxicode DISABLE

ENABLE QR CODE DISABLE

ENABLE

Micro

QR CODE DISABLE

ENABLE Aztec DISABLE

 Information in this document is subject to change without notice.

 For more information, please visit:

www.riotec.com.tw

R_200225_01
