RIOTEC IDC9600KW Bedienungsanleitung

1

Bluetooth 2D

Pocket barcode scanner

Quick Guide

Model no.: iDC9600KW

Introduction

Designed primarily for P.O.S. retail environments, the

iDC9600KW is a Bluetooth pocket barcode scanner that

allows you to scan various barcoded items.

Its in-built excellent 2D engine allows you to reliably read

1D / 2D barcodes on various shapes and is a great space-

saver for busy or limited workspaces.

It supports iOS, Android, and Windows devices through

Bluetooth HID or SPP communication.

Delivery content

* Pocket Barcode scanner + Strap x 1

* Mini USB cable x 1 (charged by original USB power

adapter)

* Quick instructions x 1

* Glove set (Glove + Holder + Ring Trigger Cable) x 1set

Limited Warranty

We provide one-year limited warranty.

We will not warranty any product which has been subjected

to improper usage, neglect or unauthorized repair or

installation.

Besides, warranty does not cover the faulty usages or

consumable parts. (Cable & battery are consumable.)

Safety instructions

Read the operating instructions carefully and especially

observe the safety information.

If you do not follow the safety instructions and information

on proper handling in this manual, we assume no liability for

any resulting personal injury or damage to property.

* Don’t put scanner in places excessively high temperatures,

such as expose under direct sunlight

* Don’t use scanner in extremely humid area or drastic

temperature change

* The rechargeable battery is permanently built into the

product and cannot be replaced.

* Never damage the rechargeable battery. Damaging the

casing of the rechargeable battery might cause an

explosion or a fire!

Operating elements

** Please switch ON and charge scanner for 3~4 hours at first time

before use.

** In the beginning, you must press the orange

trigger button for 8 seconds to turn on the pocket

barcode scanner.

Then, press it for scanning barcodes & waking up

from sleeping mode.

** If you won’t use pocket scanner for quite a long

time, you can press 2 grey buttons to enter “Deep

Sleep Mode” (like turn-off).

Power Saving button:

Press the button for

2~3 seconds then

enter power saving

mode

SCAN/ENTER/Power

ON Button

The button to

raise/lower ON-Screen

Keyboard (refer to left

column of page #3)

LED Indicator

Exit Window

Mini USB port, with protective cover

Pocket scanner is charged by USB power

adapter only via mini USB cable

2

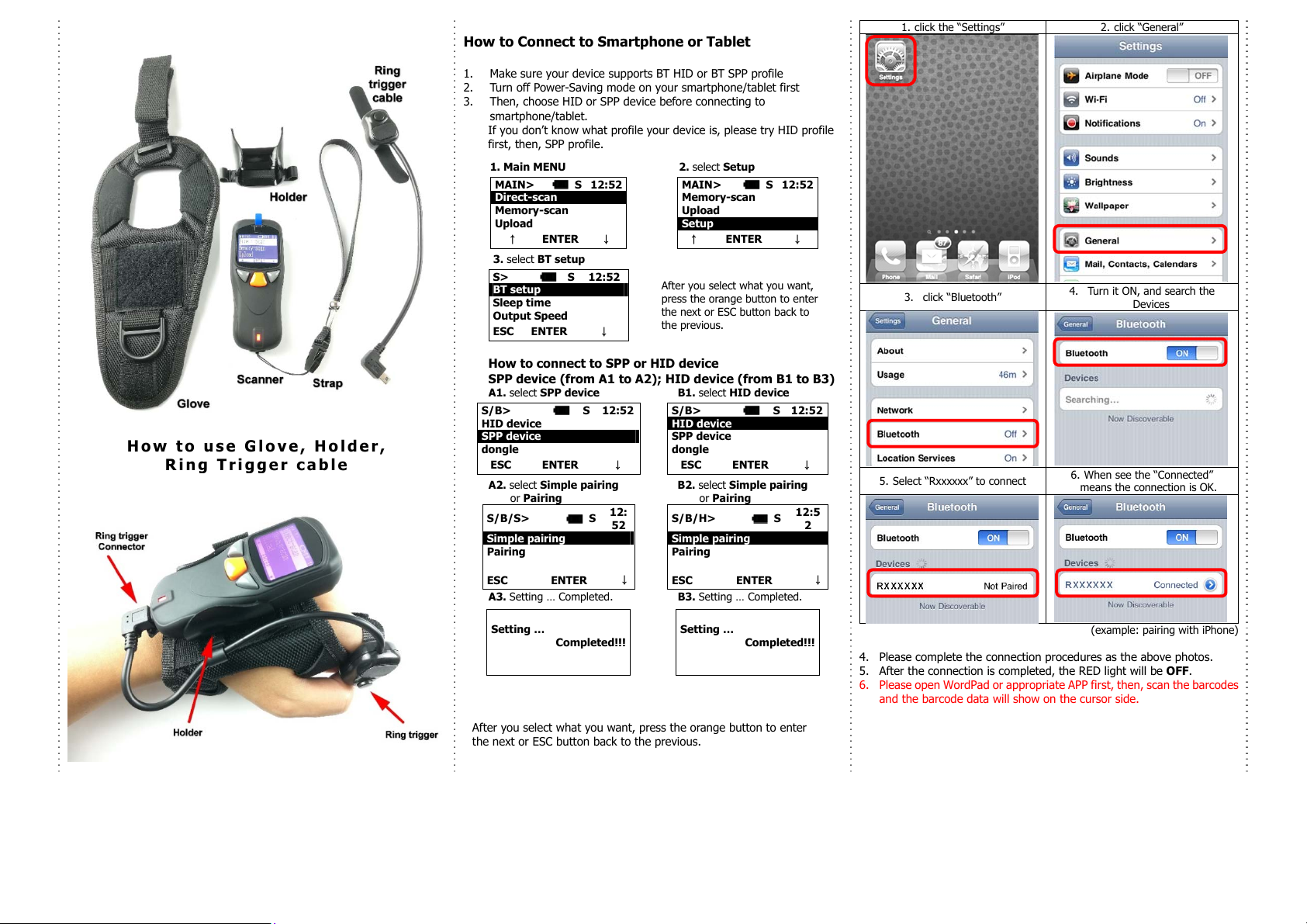

How to use Glove, Holder,

Ring Trigger cable

How to Connect to Smartphone or Tablet

1. Make sure your device supports BT HID or BT SPP profile

2. Turn off Power-Saving mode on your smartphone/tablet first

3. Then, choose HID or SPP device before connecting to

smartphone/tablet.

If you don’t know what profile your device is, please try HID profile

first, then, SPP profile.

1. Main MENU 2. select Setup

MAIN> S 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

MAIN> S 12:52

Memor

-scan

Upload

Setup

↑ENTER ↓

3. select BT setup

S> S 12:52

BT setup

Sleep time

Output Speed

ESC ENTER ↓

After you select what you want,

press the orange button to enter

the next or ESC button back to

the previous.

How to connect to SPP or HID device

SPP device (from A1 to A2); HID device (from B1 to B3)

1. select SPP device B1. select HID device

S/B> S 12:52

HID device

SPP device

don

ESC ENTER ↓

S/B> S 12:52

HID device

SPP device

don

ESC ENTER ↓

2. select Simple pairin

or Pairing

B2. select Simple pairin

or Pairing

S/B/S> S12:

Simple pairin

Pairin

ESC ENTER ↓

S/B/H> S12:5

Simple pairin

Pairin

ESC ENTER ↓

3. Settin

… Completed. B3. Settin

… Completed.

Settin

…

Completed!!!

Settin

…

Completed!!!

After you select what you want, press the orange button to enter

the next or ESC button back to the previous.

1. click the “Settin

s” 2. click “General”

3. click “Bluetooth” 4. Turn it ON, and search the

Devices

5. Select “Rxxxxxx” to connect 6. When see the “Connected”

means the connection is OK.

(example: pairing with iPhone)

4. Please complete the connection procedures as the above photos.

5. After the connection is completed, the RED light will be OFF.

6. Please open WordPad or appropriate APP first, then, scan the barcodes

and the barcode data will show on the cursor side.

3

Notes:

* This product complies with Bluetooth standards. This device that communicated

with this product must support the same SPP or HID. For other Bluetooth devices

with other profiles we cannot guarantee a connection before the product has been

tested.

* The communication speed and range of the product may vary due to obstacles and

radio wave condition between the product and device to which it is connected.

Condition on the host device may also affect the communication speed and range

of the scanner.

LED Indicator Information

Orange LED ON Full charged

Orange LED Flashing Charging / Low battery

Red LED ON Offline / out of service

Green LED ON Good read

Orange LED ON Good read (Batch mode)

Remark:

* When the battery power is too low, the Orange LED will flash and beep

once. Scanner should be charged immediately.

* In case the power consumed out totally; the RTC (Real Time Clock) will back to

original setting 01012000.

* If scanner shuts down, it is recommended to charge it fully before turning

it on. (charged by USB power adapter of smartphone only)

* Under power-saving mode, there will not be LED indication when charging.

Soft-Keyboard setting code for Android / iOS

For Android

For iOS

* Under Android system:

If you want to raise/lower soft-keyboard, please read the above setting

code first. Then, press left button for 2 seconds to raise keyboard (refer

to drawing #5 on page #1, LED is RED /Bluetooth is offline), press it

again to lower keyboard (LED is off/ Bluetooth is online).

*It will take 5~10 seconds to make BT online/offline.

*Please be noted that when BT is offline, scanning function is

stopped.

* Under iOS system:

If you want to raise/lower soft-keyboard, please read the above setting

code first. Then, press Left button for 2 seconds to raise/lower soft-

Keyboard;

Press the left button for 4 seconds to un-pair. Then, scanner can be

connected with other BT device.

Reset Configuration to Default :

(scan from A1 to A14 for HID profile or B1 to B14 for SPP profile)

USB HID

SPP profile



A4 B4 

 

A5 B5 

 

A6 B6 

 

A7 B7 

 

A8 B8 

A10

B10



A11

B11 



A12 B12 

 

A13 B13 

 

A14



B14



4

There are two operating modes on the

scanner

1. Direct-scan Mode

1. select Direct-scan 2a. BT connected, be

in to

scan the barcodes

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

D> H 12:52

ESC SCAN

2b. BT is disconnected.

D> H 12:52

line !!!

…Linkin

ESC

If BT is disconnected, please back

to page #2 and do the pairing

procedure again.

2. Memory-scan Mode

1. select Memor

-scan 2. be

in to scan the barcodes

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

M> H 12:52

ESC SCAN

Under Memory-scan mode, enable/disable “Quantity

entry” function

Disable “Quantity entry” (default)

1. disable “Quantity entry”

Setting code 2. begin the scan the barcodes

M> H 12:52

ESC SCAN

3. press DEL to delete the last

barcode data

4. be sure that you want to

delete the last barcode.

M> H 12:52

1234567

ESC SCAN DEL

M> H 12:52

The last code

Will be deleted !

re you sure ?

Enable “

uantity Entry” function,

decide the order of the output data to your device first

’ty first, then, barcode 2. Barcode first, then,

’t

3. Enable “

uantity Entry”

Setting code 4. begin the scan the barcodes

M> H 12:52

Scan code:

’ty:

ESC SCAN

When “Quantity Entry” is enabled, decide how to type-in

the number.

By button (default) By scannin

the number code

C1. enable D1. enable

C2. scan the barcode D2. scan the barcodes

M> H 12:52

1234567

’ty: 1

ESC SCAN ENTER

M> H 12:52

7654321

’ty: 1

ESC SCAN ENTER

C3. Press the ENTER to type the q’ty D3. Press the ENTER to type the q’ty

M> H 12:52

1234567

’ty: 1

ESC SCAN ENTER

M> H 12:52

7654321

’ty: 1

ESC SCAN ENTER

C4. press ↓ to choose number,

then, press ENTER to confirm D4. scan numeric code (page #5)

M> H 12:52

1234567

’ty: 5---

ESC ENTER ↓

M> H 12:52

7654321

’ty: 5---

ESC SCAN

5. Then, scan the next barcode 5. end by X code, then,

be ready to scan the next

M> H 12:52

SCAN:

’ty:

ESC SCAN

M> H 12:52

SCAN:

’ty:

ESC SCAN

Upload data (Memory-scan)

1. press ESC, select Upload 2. BT connected, press

START to send data

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

U> H 12:52

Push START ke

to send data…

ESC START

3. After data upload, press

ERASE to delete memory data

4. be sure that you want to delete

memory data.

U> H 12:52

ESC SPEED ERASE

U/E> H 12:52

Data in memor

Will be erased!

re you sure?

5. After you delete the memory data, it will be back to MAIN MENU

Switch from Memory-scan to Direct-scan mode

1. switch Memor

-scan to

Direct-scan mode

2. must delete all data in the

memory

D> H 12:52

Data in memor

will be erased!

Are you sure?

Completed!!!

3. be

in to scan the barcode

D> H 12:52

ESC SCAN

Power-saving Mode

1. Main MENU 2. select Setup

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

MAIN> H 12:52

Memor

-scan

Upload

Setup

↑ENTER ↓

3. select Sleep time 4. press ↓, decide the time to

enter sleeping mode

S> H 12:52

BT setup

Sleep time

Output Speed

ESC ENTER ↓

S/P/S> H 12:52

Sleep time

ESC ENTER ↓

* When charging, the scanner will not enter power-saving mode

5

Transmission Speed

Transmission speed is dependent on your device. In order not to lose

data, please choose the correct speed.

1. Main MENU 2. select Setup

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

MAIN> H 12:52

Memor

-scan

Upload

Setup

↑ ENTER ↓

3. select Output Speed 4. select the speed type,

S> H 12:52

BT Status

Sleep time

Output Speed

ESC ENTER ↓

S/O> H 12:52

Unlimited

Extra hi

ESC ENTER ↓

RTC (Real-time clock)

1. Main MENU 2. select Setup

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

MAIN> H 12:52

Memor

-scan

Upload

Setup

↑ ENTER ↓

3. select Time setup 4. select Stamp

S> H 12:52

Sleep time

Output Speed

Time setup

ESC ENTER ↓

S/T> H 12:52

Stamp

Format

Date ad

ESC ENTER ↓

5. select Date Stamp 6. Date Stamp is on or off.

S/T/S> H 12:52

Date Stamp

Time Stamp

Interval char.

ESC ENTER ↓

S/T/S/D> H 12:52

Date Stamp

ESC ENTER ↓

7. press ESC, select

ime

Stamp 8. Time Stamp is on or off

S/T/S> H 12:52

Date Stamp

Time Stamp

Interval char.

ESC ENTER ↓

S/T/S/T> H 12:52

Time Stamp

ESC ENTER ↓

9. press ESC, select

Interval char. 8. select Interval char.

S/T/S> H 12:52

Date Stamp

Time Stamp

Interval char.

ESC ENTER ↓

S/T/S/P

> H 12:52

Interval char.

ESC ENTER ↓

The format of Date setting

1. Main MENU 2. select Setup

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

MAIN> H 12:52

Memor

-scan

Upload

Setup

↑ENTER ↓

3. select

ime setup 4. select Format

S> H 12:52

Sleep time

Output Speed

ime setup

ESC ENTER ↓

S/T> H 12:52

Stamp

Format

Date ad

ESC ENTER ↓

5. select the format of date

S/T/F> H 12:52

MM/DD/Y

DD/MM/Y

Y/MM/DD

ESC ENTER ↓

Date setting

1. Main MENU 2. select Setup

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

MAIN> H 12:52

Memor

-scan

Upload

Setup

↑ENTER ↓

3. select

ime setup 4. select Date ad

S> H 12:52

Sleep time

Output Speed

ime setup

ESC ENTER ↓

S/T> H 12:52

Stamp

Format

Date ad

ESC ENTER ↓

5. Set the date, press ↓ to select

number, then, press ENTER to

go to the next

6. Save the date data

S/T/D> H 12:52

ear (00-99) : 11

Month (01-12) : 12

Date (01-XX) : 02

ESC ENTER ↓

Save it ?

Time setting

1. Main MENU 2. select Setup

MAIN> H 12:52

Direct-scan

Memor

-scan

Upload

↑ ENTER ↓

MAIN> H 12:52

Memor

-scan

Upload

Setup

↑ENTER ↓

3. select

ime setup 4. select Clock ad

S> H 12:52

Sleep time

Output Speed

ime setup

ESC ENTER ↓

S/T> H 12:52

Format

Date ad

Clock ad

ESC ENTER ↓

5. set the time. Press ↓ to

select the number, then,

press the ENTER to go the next

6. save the time setting

S/T/T> H 12:52

Hour (00-23) : 00

Min (00-59) : 00

Sec (00-59) : 00

ESC ENTER ↓

Save it ?

Trigger Mode

Trigger always

(You can read the next code, even the data is

under transmitting or transmitting

completely.)

Trigger standard (Default)

(You can read the next code after the data is

transmitting completely.)

Multi-language UI setting

(can be changed to different UI by reading the below setting code)

Germany UI Japan UI

English UI (Default) Spain UI

French UI

6

How to append a “prefix” or a “suffix” to the

barcode data

prefix suffix

1. Scan above configuration code for Prefix or Suffix

2. Enter the required values (right, numeric barcode) for Prefix or Suffix

using the hex values for the desired HEX values from Prefix & Suffix

TABLE (below page)”

3. Then, end by scanning Code X (below, right)

* The max. of special characters is 5.

* When you append 1~4 required values for Prefix or Suffix, it must end

with Code X.

* It doesn’t need Code X, if you append 5 values to barcode data.

How to delete Prefix or Suffix

1. Scan above configuration code for Prefix or Suffix

2. Enter the “0” “0” (above, right)

3. Then end by scanning Code X (below, right)

Numeric barcode for settings

Prefix & Suffix TABLE

HEX HID

(SPP) HEX HID

(SPP) HEX HEX HEX HEX

01 CTRL A

(SOH) 19 CTRL

(EM) 20SPACE388 50 P68h

02 CTRL B

(STX) 1A CTRL

Z(SUB) 21 ! 39 9 51 Q69 i

03 CTRL C

(ETX) 1B ESC

(ESC) 22 " 3A : 52 R 6A j

04 CTRL D

(EOT) 1C CTRL \

(FS) 23 # 3B ; 53 S6B k

05 CTRL E

(ENQ) 1D CTRL ]

(GS) 24 $ 3C < 54 T 6C l

06 CTRL F

(ACK) 1E CTRL ^

(RS) 25 % 3D = 55 U6D m

07 CTRL G

(BEL) 1F CTRL _

(US) 26 & 3E > 56 V 6E n

08 Backspace

(BS) 27 ' 3F ? 57 W6F o

09 Tab

(HT) HEX HID

Only 28 ( 40 @ 58 X 70 p

0A CTRL J

(LF) 80 F1 29 ) 41 A 59 Y71 q

0B CTRL K

(VT) 81 F2 2A * 42 B 5A Z 72 r

0C CTRL L

(FF) 82 F3 2B + 43 C 5B [73 s

0D Ente

(CR) 83 F4 2C , 44 D 5C \ 74 t

0E CTRL N

(SO) 84 F5 2D - 45 E 5D ]75 u

0F CTRL O

(SI) 85 F6 2E . 46 F 5E ^ 76 v

10 CTRL P

(DLE) 86 F7 2F / 47 G 5F _77 w

11 CTRL Q

(DC1) 87 F8 30 0 48 H 60 ` 78 x

12 CTRL R

(DC2) 88 F9 31 1 49 I 61 a79 y

13 CTRL S

(DC3) 89 F10 32 2 4A J 62 b 7A z

14 CTRL T

(DC4) 8A F11 33 3 4B K 63 c7B {

15 CTRL U

(NAK) 8B F12 34 4 4C L 64 d 7C |

16 CTRL

(SYN) 35 5 4D M 65 e7D }

17 CTRL W

(ETB) 36 6 4E N 66 f 7E ~

18 CTRL

(CAN) 37 7 4F O 67 g

Keyboard Country

Scan the appropriate country code below to

program the keyboard for your country or

language. As a general rule, the following

characters are not supported by the scanner for

countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

Follow the steps mentioned below to program.

1. Keyboard Country setting code.

2. “Select Country Code”

Read numeric barcode (according to country code table).

Country/

Language No. Country/

Language No.

U.S. 10 Netherlands 26 Switzerland

French 45

Latin

America 11 Hungary 27 Switzerland

German 46

Brazil 12 Italian 28 Sweden 47

Belgium 20 Icelandic 29 Turkey F 48

Bulgarian

Latin 21 Norway 30 Turkey Q 49

Denmark 22 Poland 41 Japan 71

Finland 23 Portugal 42 Korea 72

France 24 Russia 43 Thai 73

Germany 25 Spain 44 Vietnam 74

1 7 D

2 8 E

3 9

5B X

7

1D Symbologies – 1

ENABLE CODE 93

DISABLE

ENABLE CODE 128

DISABLE

ENABLE GS1-128

DISABLE

ENABLE UPC-A DISABLE

ENABLE UPC-E DISABLE

ENABLE EAN 8 DISABLE

ENABLE EAN 13

DISABLE



1D Symbologies – 2

ENABLE

GS1

DataBar DISABLE

ENABLE Interleaved 25 DISABLE

ENABLE MSI DISABLE

ENABLE CODABAR DISABLE

ENABLE CODE 39 DISABLE

ENABLE

ISBN

DISABLE

ENABLE GS1-128

DISABLE

2D Symbologies

ENABLE PDF 417 DISABLE

ENABLE QR Code DISABLE

ENABLE Data Matrix DISABLE

ENABLE Aztec Code DISABLE



8

1. Pull out the USB cover its

slot

2. Press inward firmly on the

USB cover to reattach it

Top

Bottom

Insert a thin object (e.g. a bent paper clip) into the small hole.

To click the reset button inside

How to assemble the Glove set

(Glove, Holder, Ring Trigger cable)



1. how to assemble the glove-1

2. how to assemble the glove-2



3. Put Holder on glove (VELCRO area)

4. Put pocket scanner onto holder. (pay attention to

assembling direction)

Pressing

direction

Reset

9

5. Connect trigger cable with pocket scanner and wear ring

trigger unit. (you can use plastic hook to adjust the trigger

cable.)



6. Glove set can be used for the right hand also.

7. If you want to remove pocket scanner from Glove set, you can

disassembled it as per above photo.

Quick guide is subject to change without notice.

R_191015_01

Inhaltsverzeichnis

Andere RIOTEC Barcode-Lesegerät Handbücher

RIOTEC

RIOTEC iLS6300FBQ Bedienungsanleitung

RIOTEC

RIOTEC LS6007 Bedienungsanleitung

RIOTEC

RIOTEC iLS6300JBQ Bedienungsanleitung

RIOTEC

RIOTEC DC9277L Bedienungsanleitung

RIOTEC

RIOTEC FS5103A Bedienungsanleitung

RIOTEC

RIOTEC iDC9277A Bedienungsanleitung

RIOTEC

RIOTEC DC9270D Bedienungsanleitung

RIOTEC

RIOTEC iLS6300JBU Bedienungsanleitung

RIOTEC

RIOTEC DC9257LP Bedienungsanleitung

RIOTEC

RIOTEC iDC9507J Bedienungsanleitung

RIOTEC

RIOTEC LS6300V Bedienungsanleitung

RIOTEC

RIOTEC iLS6303XBU Bedienungsanleitung

RIOTEC

RIOTEC iLS6302J/KBU Bedienungsanleitung

RIOTEC

RIOTEC LS6000B series Bedienungsanleitung

RIOTEC

RIOTEC iDC9600K Bedienungsanleitung

RIOTEC

RIOTEC LS6000B series Bedienungsanleitung

RIOTEC

RIOTEC OM7220J Bedienungsanleitung

RIOTEC

RIOTEC RIOSCAN iLS6300JS Bedienungsanleitung

RIOTEC

RIOTEC iLS6303XBQ Bedienungsanleitung

RIOTEC

RIOTEC LS6308K Bedienungsanleitung

RIOTEC

RIOTEC iDC9270D Bedienungsanleitung

RIOTEC

RIOTEC DC9257L Bedienungsanleitung

RIOTEC

RIOTEC iDC9607LW Bedienungsanleitung

RIOTEC

RIOTEC DC9257LP Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Element

Element P130BT Bedienungsanleitung

Motorola

Motorola Symbol LS3008 Installations- und Betriebshandbuch

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Motorola

Motorola MP6000 Montageanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung

RIOTEC iDC9600KW Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken
