Riva RC3502HD-5311IR Bedienungsanleitung
1
www.rivatech.de
Quick Installation Guide
This manual provides instructions for quick installation and basic configuration of your IP device.
2
www.rivatech.de
Step1. Connect cables to IP device
Connect required cables to the device including the power cable and LAN cable. To see the
correct positions of all connectors, refer to the following image below.
Make sure the polarity is correct. Incorrect connection
may cause malfunction or damage to the IP device.
Caution
!
Power Adaptor Connector
(DC 12V)
* Model design and appearance are subject to change without any prior notice
Reset Button
Output Configuration
buttons with
PAL/NTSC button*
This button is located
under PCB.
*Pressing the button
cycles through PAL, NTSC,
and no video output mode:
No video output -> PAL-
>NTSC
. Video out is used
only for installation and
works for 3 minutes when
PAL/NTSC button is
pushed.
LAN Connector
Power Connector
* Clamping core is used to prevent
electromagnetic interference
Clamping Core
3
www.rivatech.de

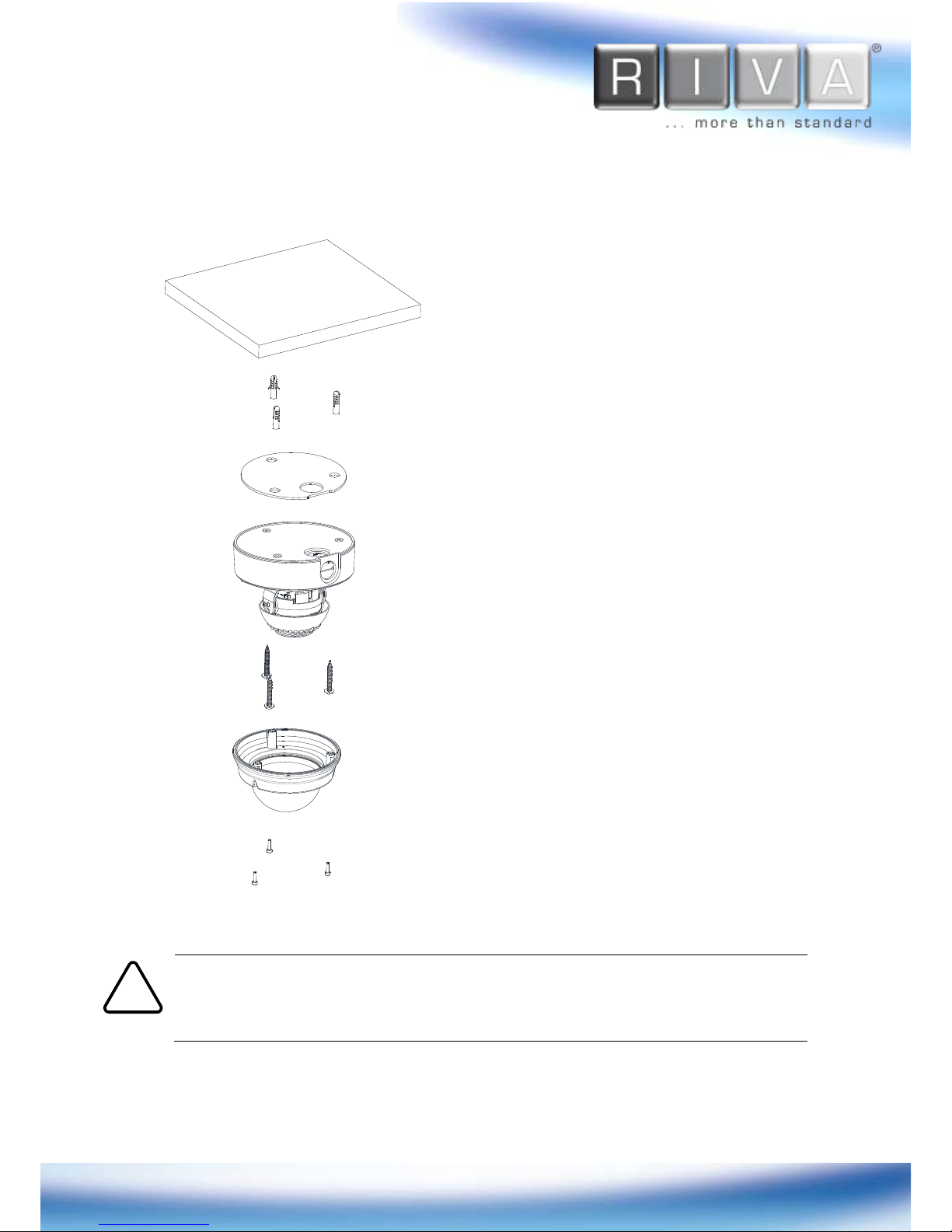

Step2. Install IP device
To prevent products from damaging, place the camera on stable and non-
vibrating surfaces If the stability is in doubt, consult with safety personnel for
reinforcements, and then proceed with the installation.
Caution
!
1) Place the installation template (paper)
that is included in the package on the
desired installation surface.
2) Drill three holes in correct positions
based on the template paper, and insert
anchor blocks into the holes.
3) Place the waterproof silicon band on
the bottom plate of the device and make
it align with screw holes.
4) Place the camera body to the
installation surface and match three
alignment holes with three anchor
blocks. Then tighten the surface anchor
studs.
5) Connect all the required cables to the
camera.
6) Adjust the lens position.
7) Place the dome cover on the main
body of the camera. Dome cover has
three alignment holes that match
camera body’s alignment holes.
8) Once properly placed, insert screws
into the three holes of the body and
tighten them up.
4
www.rivatech.de

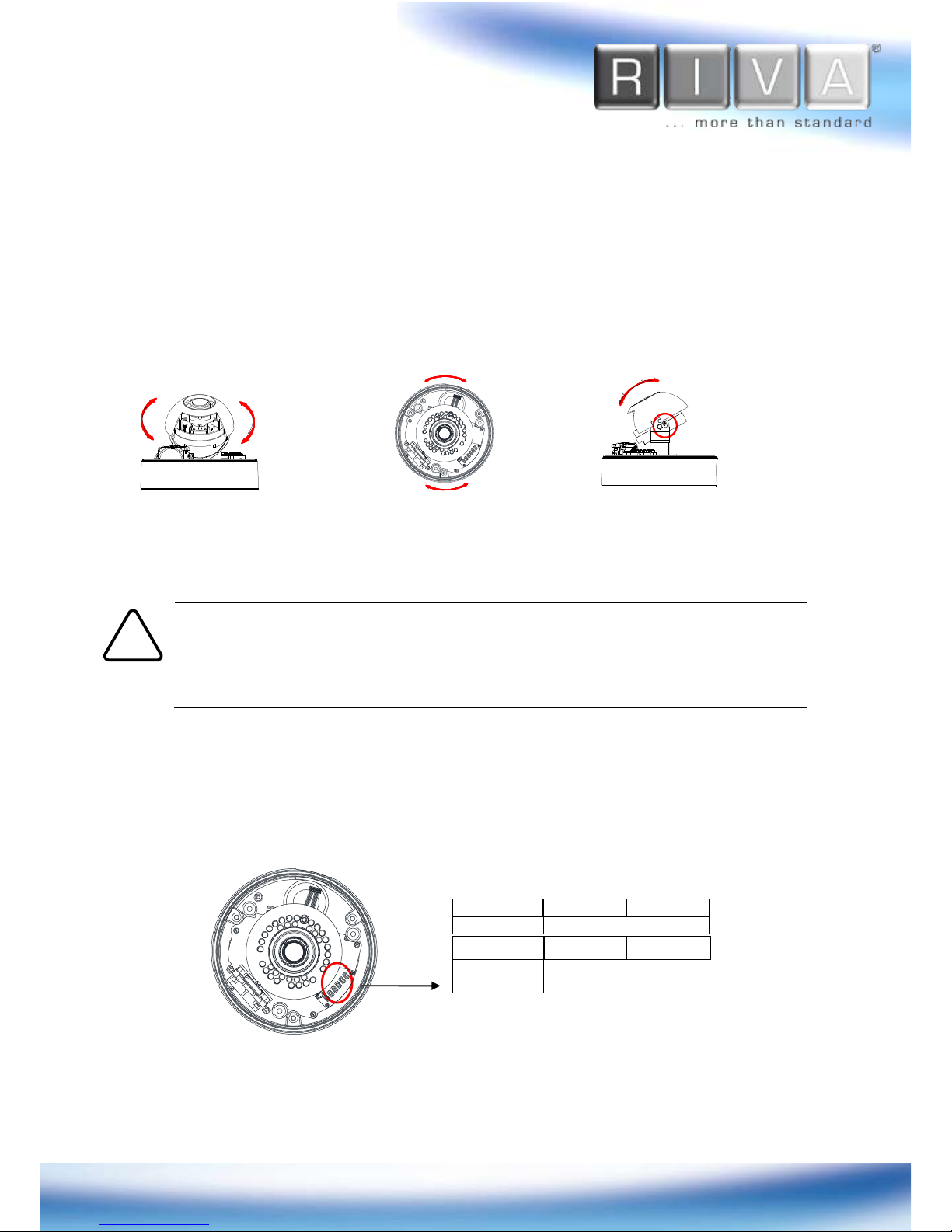

Step3. Set the lens position
1) Remove the dome cover.
2) Set the lens position by rotating the camera gimbal; to pan, rotate the reinforced lower
body of the gimbal; to tilt, vertically adjust the camera gimbal.
Refrain from continuously rotating the camera gimbal with excessive force to a
single direction as it is attached with the IR-LED cable inside the dome.
3) The figure and table below explains the lens push buttons settings.
Caution
!
SW1
SW2
SW3
PAL/NTSC
TELE
WIDE
SW4
SW5
SW6
FAR
NEAR
Auto-
Focus
B. To pan, rotate the lower
body of the camera gimbal
C. Tilt the lens by vertically
adjusting the camera gimbal
A. To adjust lens position,
rotate the camera gimbal
5
www.rivatech.de
Step4. Set up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of
the device from converting the MAC address’s hexadecimal numbers, which is attached to the
device. Be sure that the device and PC are on a same area network before running the
installation.
Generic IP Environment
In case of generic private network environment where IP address 192.168.XXX.XXX are
used, users may view the live streaming images on a web page using the device’s default IP
address:
1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal
Conversion Chart at the end of the manual.
(The MAC address of the device is attached on the side or bottom of the device.)
2. Start the Microsoft® Internet Explorer web browser and enter the IP address of the device.
3. Web streaming and device configurations are supported through ActiveX program. When
the ActiveX installation pop-up window appears, authorize and install the ActiveX setup.exe,
MAC address = 00-13-23-01-14-B1 →IP address = 192.168.20.177
Convert the last two set of hexadecimal numbers to decimal numbers.
6
www.rivatech.de
Custom IP Environment
IPAdminTool and the manual are provided on USB stick or can download from www.rivatech.de
homepage.
IPAdminTool is a management tool, which automatically scans all of the network products for
users to perform administrative tasks, which includes network configurations, firmware update,
device reboot, and device organizations.
To modify the device’s default IP address for customized network area;
1. Find the device from the IPAdminTool’s list and highlight the device’s name.
2. Right-click the mouse and select “IP Address”; IP Setup window appears.
7
www.rivatech.de
3. In the IP Setup’s window, information under ‘Local Network information’ displays the
user/PC’s network area information. Those information need to be incorporated to the
IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP
Address, which are to be the unique numbers for the device. Refer to the image above
for the setting
4. Click ‘Setup’ to complete the modification. When the dialog box appears to request user
name and password, enter the default value for the administrator account (case-
sensitive) as below:
ID:
root
Password:
pass
PC environment Info
Give new unique IP address in
last two sets and mirror other
information in other boxes
8
www.rivatech.de
Step5. View video on web page
Once the device has the proper IP address, users can view the live streaming images
through a web browser.
The default username and password is
root / pass
.
1. When the device’s web address is accessed, the browser asks to install the ActiveX.
Click Allow.
2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet
Explorer version. Proceed with rest of setup installation.
9
www.rivatech.de
Caution
!
3. Follow the instructions of the dialog boxes and complete the installation. Once the
installation is complete, start the web browser again and check if video stream is
displayed in the main view frame.
If “
This software requires the Microsoft XML Parser V6 or higher.
Please download MSXML6 from the Microsoft website to continue.
Error code: Cannot create XMLDOMDocument.
” message appears,
download and install the Microsoft Core XML Services (MSXML)
6.0.
10
www.rivatech.de
Rebooting
Perform the following procedures to reset your device:
1. While the device is on, press the reset button for 1~2 seconds.
2. Wait for the system to reboot.
Resetting to the Factory Default Settings
When reset the device to the factory default setting, all parameters including the IP address
will be initialized.
To proceed back to the Factory Default reset:
1. While the device is on, press reset button and hold.
2. Release the Reset button after about 5 seconds when green LED blinks at rate of 200ms.
3. Wait for the system to reboot.
More Information
To learn more about using other features of your devices, refer to the manuals as “Web
Interface Manual” or “VCAsys_Online_Help”, which is available on USB stick or on
www.rivatech.de homepage.
