ROSE DISPLAYS ANOQUICK ROUND WITH WINDOW MOUNTS Bedienungsanleitung

35 Congress Street, Salem, MA 01970

Tel# 1-800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

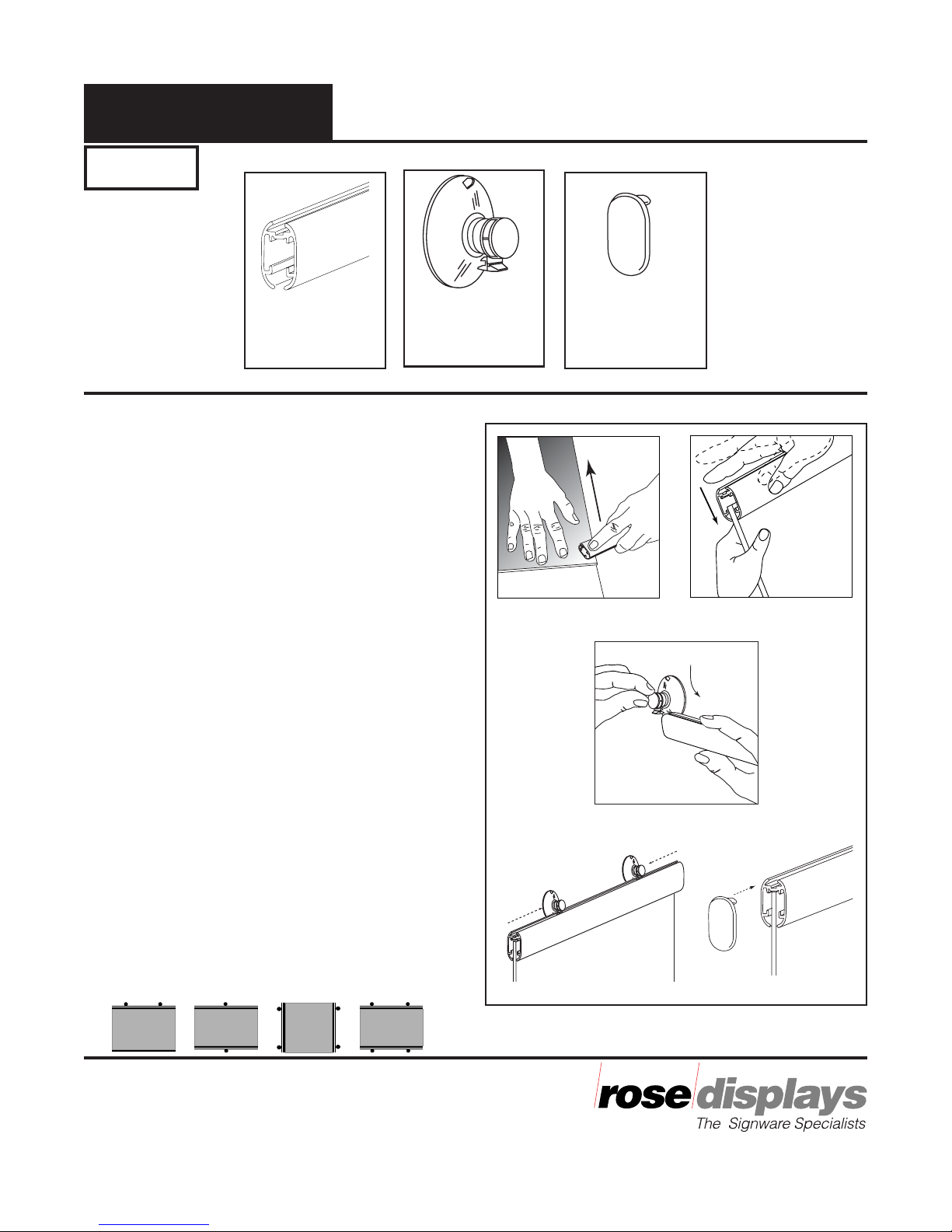

Parts

Instructions for Hanging

Step 1

Prepare edges of graphic by placing the graphic on

a tabletop with one edge at the table edge. Using

the AnoQuick Holder, run it across the graphic

edge, crushing it slightly. Fig. 1

Step 2

Starting at one corner, push the holder onto the

graphic. Work your way down the holder tapping

it down firmly to seat the graphic fully. Fig. 2

Step 3

Slide Window Suction Cups into the top

rail of the AnoQuick Holder. The AnoQuick

Holder is available in either a round or square

profile. Fig. 3&4

Step 4

Push end caps into place. Fig. 5

Step 5

Suspend poster. Make sure glass and suction cups

are clean and free of dust and dirt.

Important note:

For best performance when first applied and

occasionally thereafter, press the middle of the

cup (on the cap) to “burp” extra air out.

End Caps

06-5525

Note: Use only

with graphics

mounted on 3/16”

foamboard or other

similar thickness.

Can also use a

folded edge thinner

substrate.

Instructions for Hanging

Incept-9.12.02

Figure 2

AnoQuick

12A300

The AnoQuickTM is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoQuickWindowMounts

Figure 3

Figure 5

Figure 4

Figure 1

Sign Mounting Systems for Windows

AnoQuick™

Window

Mounts

20-0038

Parts

Instructions for Hanging

Step 1

Prepare edges of the graphic by placing the graphic

on a tabletop with one edge at the table edge.

Using the AnoQuick Holder, run it across the

graphic edge, crushing it slightly. Fig. 1

Step 2

Starting at one corner, push the holder onto the

graphic. Work your way down the holder tapping

it down firmly to seat the graphic fully. Fig. 2

Step 3

Slide the Window Suction Cups into the top rail

of the AnoQuick Holder. The AnoQuick holder

is available in either a round or square profile.

Fig. 3&4

Step 4

Push end caps into place. Fig. 5

Step 5

Suspend poster. Make sure glass and suction cups

are clean and free of dust and dirt.

Important note:

For best performance when first applied and

occasionally thereafter, press the middle of the

cup (on the cap) to “burp” extra air out.

End Caps

06-5525

Note: Use only

with graphics

mounted on 3/16”

foamboard or other

similar thickness.

Can also use a

folded edge thinner

substrate.

Instructions for Hanging

Incept-9.12.02

Figure 2

AnoQuick

12A300

The AnoQuickTM is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoQuickWindowMounts

Figure 3

Figure 5

Figure 4

Figure 1

Sign Mounting Systems for Windows

AnoQuick™

Window

Mounts

20-0038
