ROSE DISPLAYS ANOSCREEN WITH BASE RAIL Bedienungsanleitung

The AnoScreen™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part#02INSAnoScreenBaseRail

Incept-8.15.02

35 Congress Street, Salem, MA 01970

Tel# 1-800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

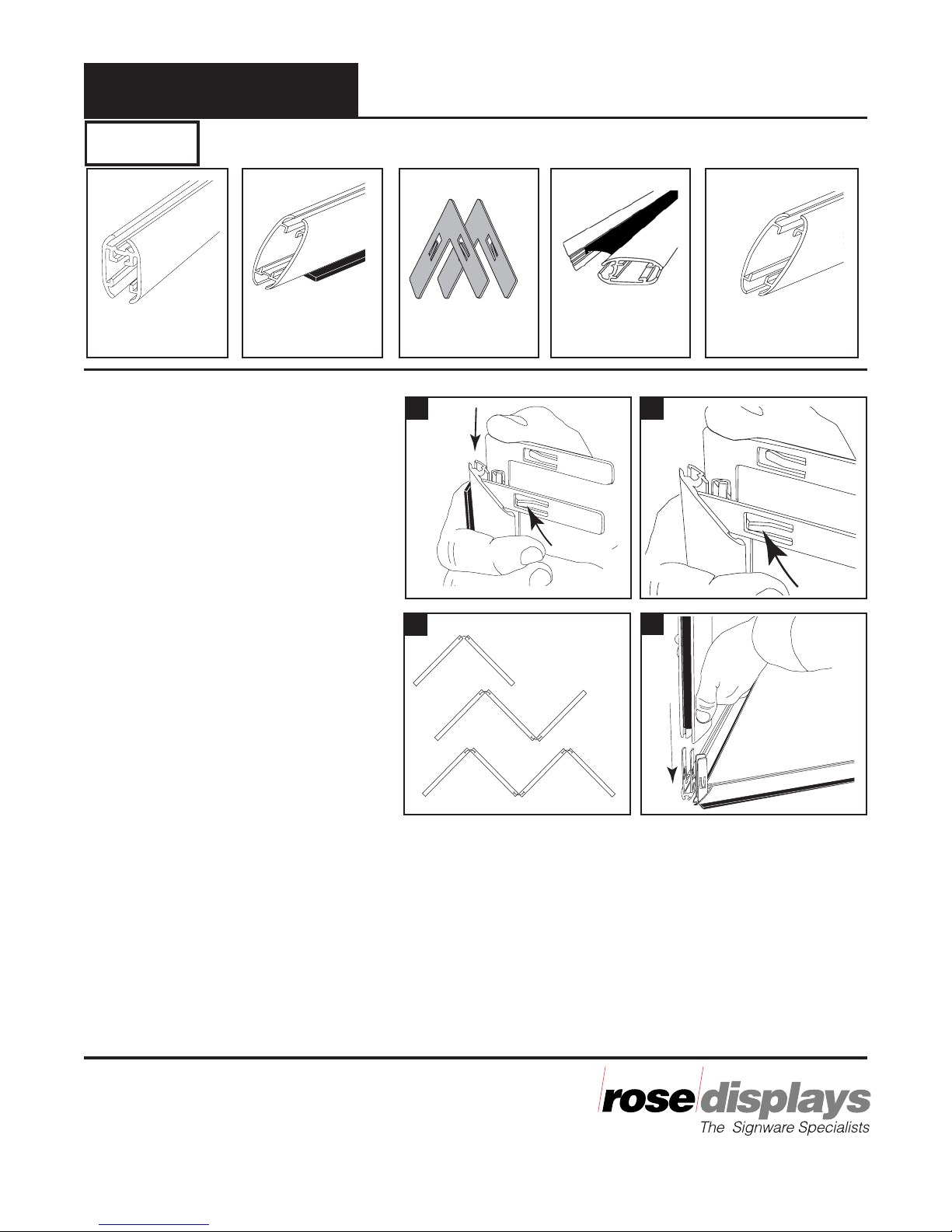

Instruction Sheet

Step 1

Insert corner brackets into ends of

bottom base rails, using thumb, as

shown in illustration. 2 brackets per

end of each rail. Fig. 1

Detail Fig. 1a- Corner bracket tension

tabs face toward outside of frame.

Step 2

Lay out parts as they will be configured

on the floor. (2, 3 or 4 panels)

Step 3

Assemble the vertical rail assemblies

onto the upward facing corner brackets

already inserted into the bottom base

rails. All 4 brackets can go into the

vertical rails at one time, or you can do

one side at a time.

Note: Make sure grommets are on the

top end of the vertical panels. Use the

two vertical rails without flex spine

connectors on the outside edges of the

outermost panels.

AnoScreen™

Instructions For Assembly

1 1a

Parts

(continued on other side)

Base Rails Corner Brackets Split Rails

Vertical Rails

with Flex Spine

Ano rails

2 Panel

3 Panel

4 Panel

The AnoScreen™ is a registered trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part#02INSAnoScreenBaseRail

Incept-8.15.02

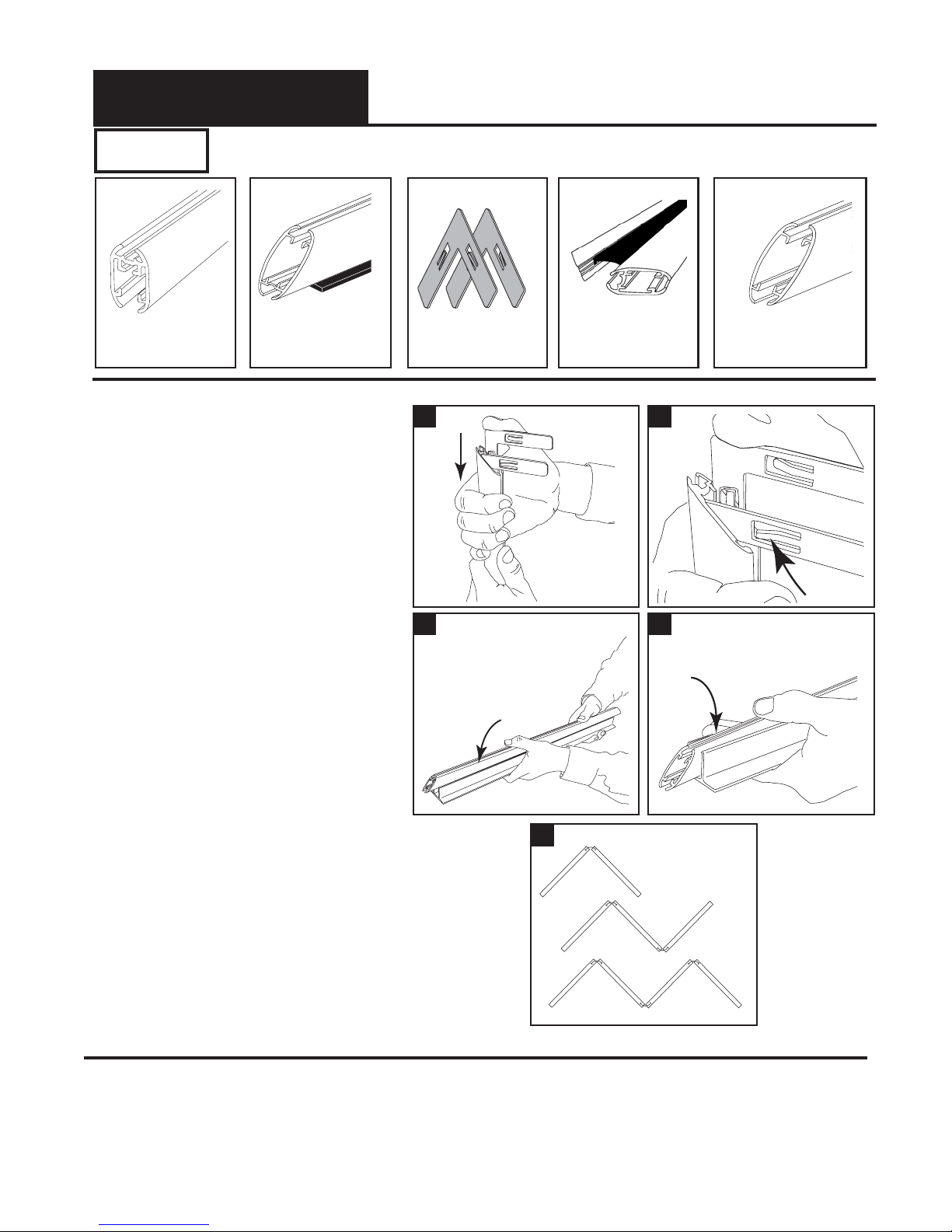

Instruction Sheet

AnoScreen™

Instructions For Assembly

Parts

(continued on other side)

1 1a

2 2a

2 Panel

3 Panel

4 Panel

Step 1

Insert corner brackets into ends of

bottom rails, using thumb, as shown

in illustration. 2 brackets per end of

each rail. Fig. 1

Detail Fig. 1a- Corner bracket tension

tabs face toward outside of frame.

Step 2

Snap base Ano rail sections into the

Vario base section.

Start at one end and work the Vario

base onto the Ano rail.

Step 3

Lay out parts as they will be configured

on the floor. (2, 3 or 4 panels)

Vario Base Corner Brackets Split Rails

Vertical Rails

with Flex SpineAno rails

The AnoScreen™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part#02INSAnoScreenBaseRail

Incept-8.15.02

35 Congress Street, Salem, MA 01970

Tel# 1-800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

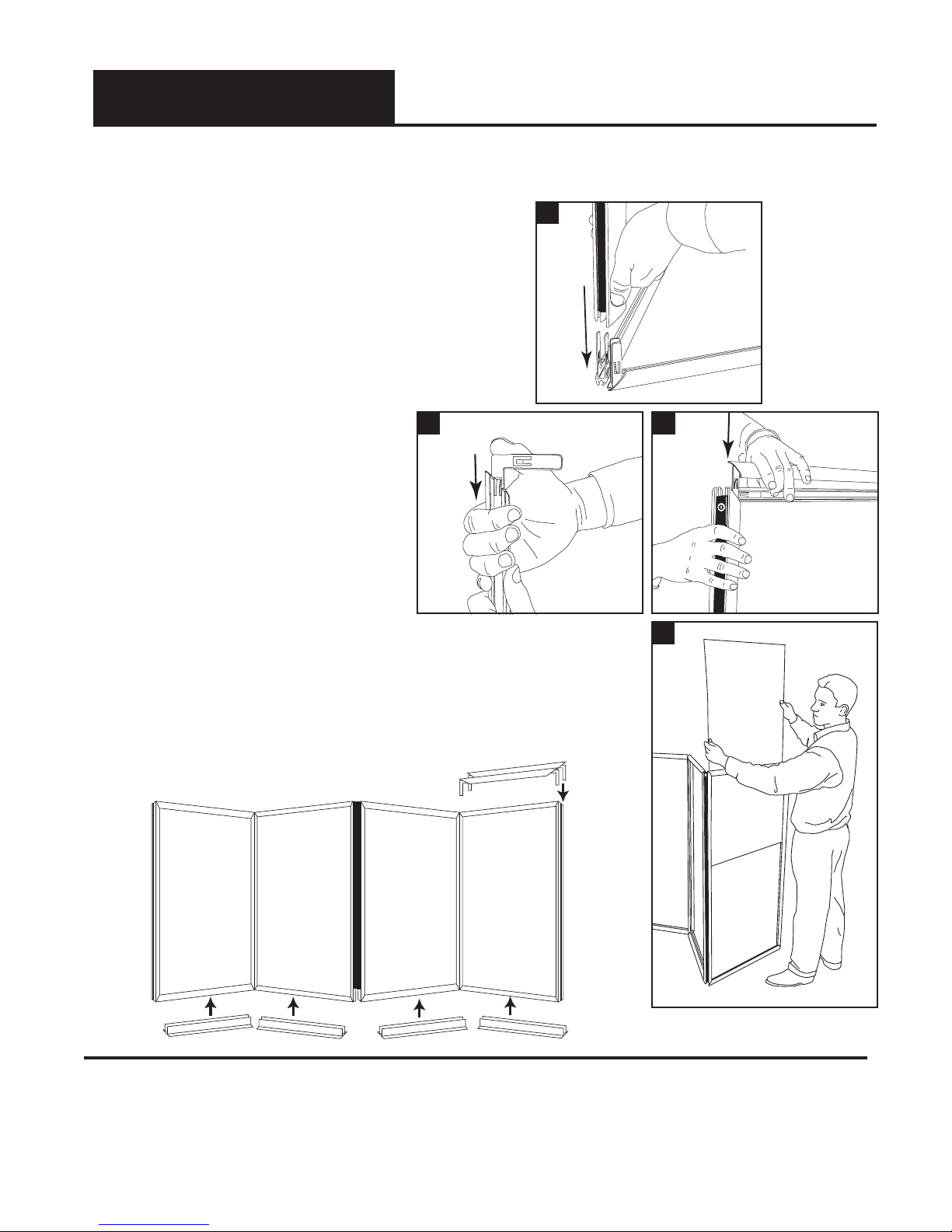

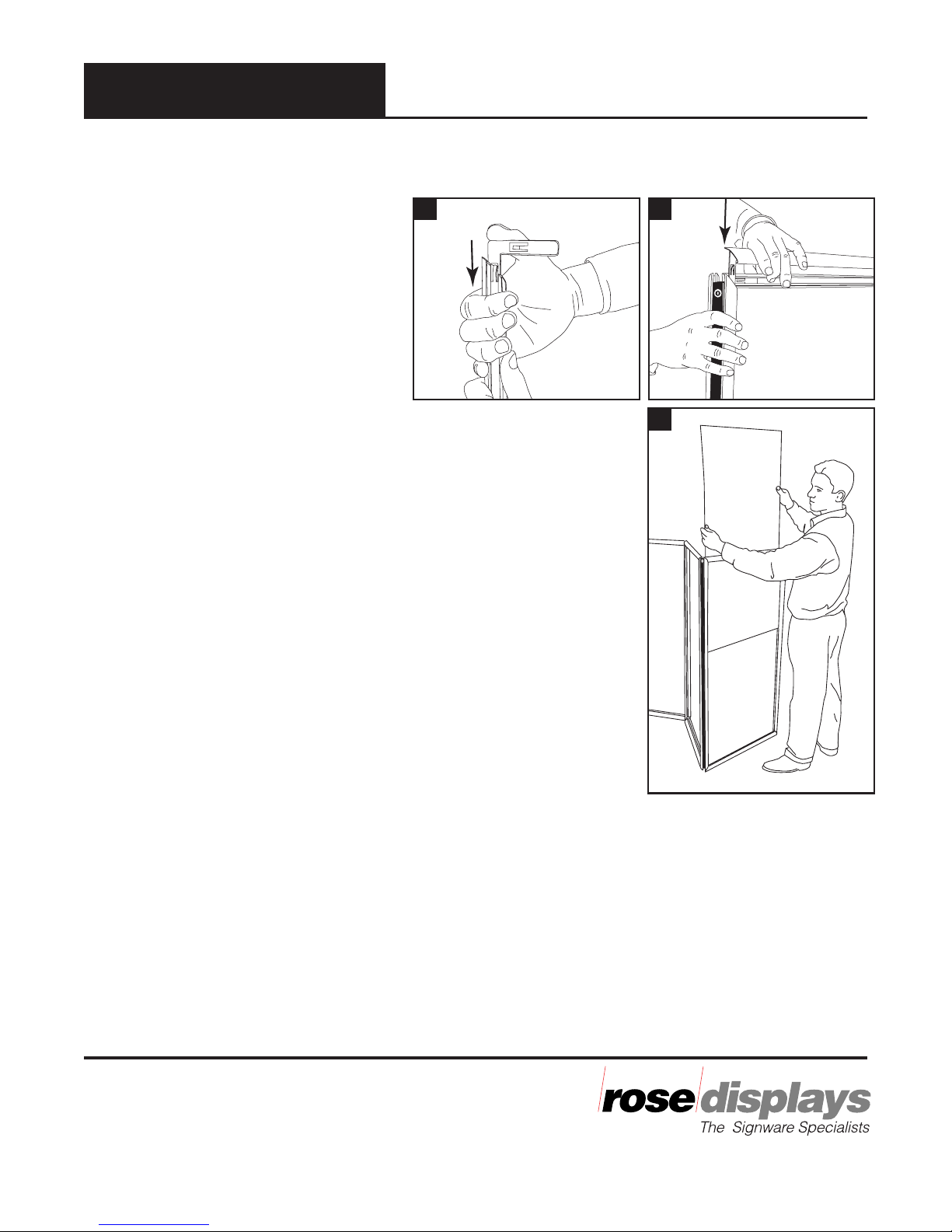

Instruction Sheet (side 2)

Instructions For Assembly Continued

Step 4

Insert corner brackets into ends of split

rails, using thumb, as shown in illustra-

tion. 1bracket per end of each split rail.

Step 5

Assemble split rails onto top ends of

vertical rails, one inside and one

outside of each panel of the

AnoScreen.

Step 6

Insert and change signs through top

of each panel.

AnoScreen™

4 5

The AnoScreen™ is a registered trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part#02INSAnoScreenBaseRail

Incept-8.15.02

Instruction Sheet (side 2)

Instructions For Assembly Continued

AnoScreen™

5 6

Vario Base

Corner brackets

& Split Rails

Step 4

Assemble the vertical rail assemblies onto

the upward facing corner brackets already

inserted into the bottom rails. All 4

brackets can go into the vertical rails at

one time, or you cando one side at a

time.

Note: Make sure grommets are on the

top end of the vertical panels. Use the

two vertical rails without flex spine

connectors on the outside edges of the

outermost panels.

Step 5

Insert corner brackets into ends of split

rails, using thumb, as shown in illustra-

tion. 1bracket per end of each split rail.

Step 6

Assemble split rails onto top ends of

vertical rails, one inside and one

outside of each panel of the

AnoScreen.

Step 7

Insert and change signs through top

of each panel.
