ROSE DISPLAYS ECONOFRAME WITH CABLE CLIP AND LOOP AND... Bedienungsanleitung

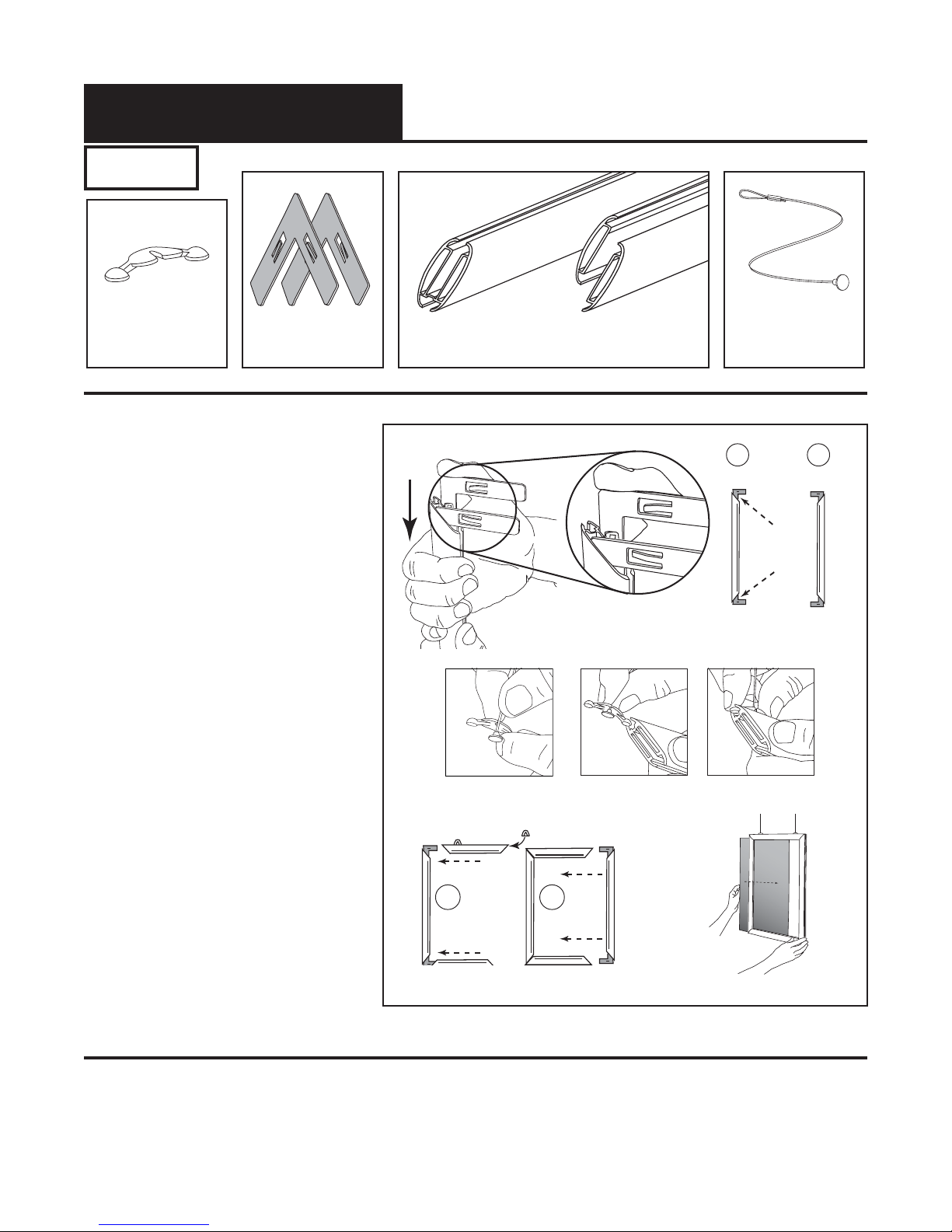

Parts

Instructions for Hanging

Instruction Sheet

Step 1

Insert corner brackets into split

rails and into rail opposite split

rail. Split rail side is made up of

two separate pieces. Fig. 1

Note: Corner bracket tension

tabs must face toward inside

of frame.

Step 2

Place cable into inner channel of

CableClip. The cable should snap

into place. Fig. 2

Step 3

Align one end of the CableClip

with the top channel of the frame.

Then insert one round end, press

down on the other round end

and slide CableClip into rail.

Fig. 3 Repeat steps 2 & 3 for

second CableClip.

Step 4

Assemble frame following steps in.

Fig. 4 sliding sides together in the

order shown.

Step 5

Insert poster. Fig 5.

Instructions for Hanging

Incept-11.13.02

The EconoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSEconoFCCLoop

Corner

brackets

EconoFrame

Figure 1

Figure 2 Figure 3

solid rail w/

solid rail

split rails

Figure 4 Figure 5

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

split rails

solid rail

EconoFrame rails

12EF-100

EconoFrame

split rails

Cable Clips

06-5050

Loop & Saucer

16-0018SL

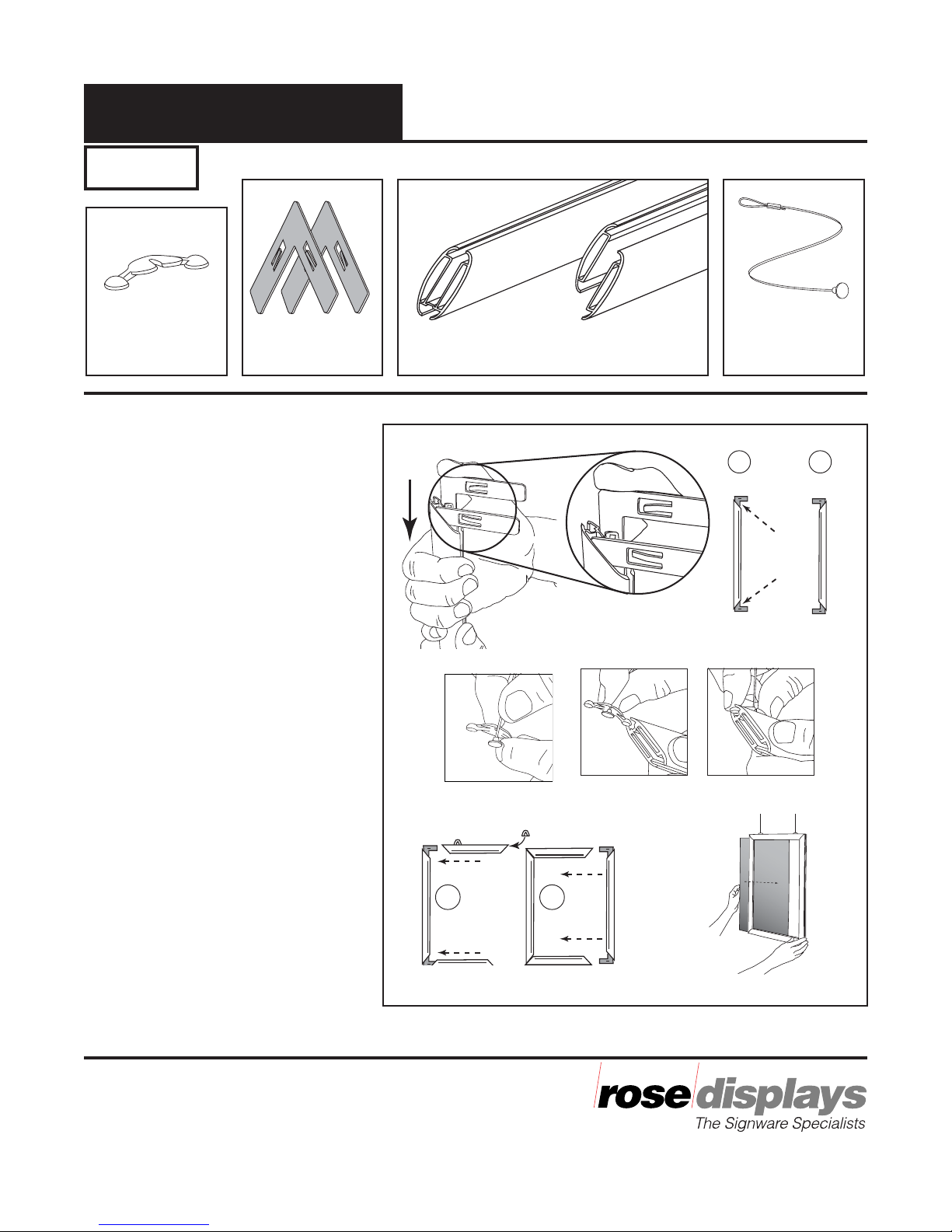

Parts

Loop & Saucer

16-0018SL

Instructions for Hanging

Instruction Sheet

Step 1

Insert corner brackets into split

rails and into rail opposite split

rail. Split rail side is made up of

two separate pieces. Fig. 1

Note: Corner bracket tension

tabs must face toward inside

of frame.

Step 2

Place cable into inner channel of

CableClip. The cable should snap

into place. Fig. 2

Step 3

Align one end of the CableClip

with the top channel of the frame.

Then insert one round end, press

down on the other round end and

slide CableClip into rail. Fig. 3

Repeat steps 2 & 3 for

second CableClip.

Step 4

Assemble frame following steps in

Fig. 4 sliding sides together in the

order shown.

Step 5

Insert poster. Fig 5.

Instructions for Hanging

Incept-11.13.02

The EconoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSEconoFCCLoop

EconoFrame

Figure 1

Figure 3

solid rail w/

solid rail

split rails

Figure 4 Figure 5

Figure 2

split rails

solid rail

Corner

brackets

EconoFrame rails

12EF-100

EconoFrame

split rails

Cable Clips

06-5050
