Ruckus Wireless ZoneFlex R300 Bedienungsanleitung

Published October 2013, Part Number 800-70507-001 Rev C

ZoneFlex R300 802.11n

Multimedia Wi-Fi Access Point

Quick Setup Guide

This Quick Setup Guide provides step-by-step instructions

on how to set up your Ruckus Wireless ZoneFlex Access

Point. After completing the steps described in this Guide,

you will be able to place the Access Point (AP) at your site

and provide wireless network access to users.

THIS GUIDE IN OTHER LANGUAGES

请从以下网站获得该指南的简体中文版

https://support.ruckuswireless.com.

Vous trouverez la version française de ce guide à l'adresse

suivante https://support.ruckuswireless.com.

このガイドの日本語版は https://support.ruckuswireless.com

でご覧ください。

이가이드의 한국어 버전은 웹사이트

(https://support.ruckuswireless.com)에서 확인하시기 바랍니다 .

Veja a versão em português (Brasil) deste guia em

https://support.ruckuswireless.com.

Puede ver la versión en español (América Latina) de esta guía en

https://support.ruckuswireless.com.

BEFORE YOU BEGIN

Before deploying Ruckus Wireless products, please check for

the latest software and the release documentation.

• User Guides and Release Notes are available at

http://support.ruckuswireless.com/documents.

• Software Upgrades are available at

http://support.ruckuswireless.com/software.

• Open Source information is available at

http://opensource.ruckuswireless.com.

• Software License and Limited Warranty available at

http://support.ruckuswireless.com/warranty.

PACKAGE CONTENTS

• ZoneFlex R300 Access Point

• Mounting screws and anchors (2)

• Security screw

•Unitremovalpin

• Regulatory flyer

• Product warranty statement

•ThisQuick Setup Guide

SETUP REQUIREMENTS

• A computer running Windows 7 (procedures for other OS’s

are similar)

• One or more of the following:

• A modem (DSL or cable), broadband router, or other

device provided by your Internet Service Provider

that brings Internet access to your site.

• A network switch or a DSL/Internet gateway device.

• Two Cat 5e Ethernet cables

• An AC power adapter (sold separately), or

• An 802.3af or 802.3at -compliant Power over Ethernet (PoE)

switch or PoE injector

STEP 1: CONNECT THE AP TO YOUR COMPUTER

1After removing your Ruckus Wireless AP from its package,

place it next to your computer.

2Using an Ethernet cable, connect your computer’s network

port to the 10/100/1000 port on the AP.

3Using the AC adapter (sold separately), connect the AP to a

convenient (and protected) power source.

• Alternatively, connect the 10/100/1000 port to a PoE

injector or PoE switch for both power and network

connectivity.

4Verify that the Power LED on the external enclosure is a

steady green.

STEP 2: PREPARE YOUR COMPUTER FOR AP

SETUP

1On your Windows 7 computer, configure your network

adapter from the Local Area Connection settings as follows:

• Start > Control Panel > Network and Sharing

Center > Change Adapter Settings

2Edit the TCP/IPv4 address settings as follows:

• Local Area Connection > Properties > Internet

Protocol Version 4 (TCP/IPv4) > Properties

The TCP/IPv4 Properties dialog box appears.

3Select Use the following IP address (if it is not already

selected) and then make the following entries:

•IP address: 192.168.0.22 (or any address in the

192.168.0.x network)

•Subnet mask: 255.255.255.0

•Default gateway: 192.168.0.1

Leave the DNS server fields empty.

4Click OK to save your changes.

Your changes are put into effect immediately.

STEP 3: LOG INTO THE AP

As specified earlier, the AP should be directly connected to

your computer (through the Ethernet port) and powered on,

ready for setup.

1On your computer, open a Web browser window.

2In the browser, type this URL to connect to the AP:

https://192.168.0.1

NOTE: The ZoneFlex R300 requires a minimum of Zone-

Flex firmware version 9.7 and above to operate.

IMPORTANT!

If the AP is deployed with a ZoneDirector, follow the

ZoneDirector Quick Setup Guide, and connect the AP to your

local network.

NOTE:

The following procedures assume Windows 7 as the operating

system. Procedures for other OS’s are similar.

Published October 2013, Part Number 800-70507-001 Rev C

NTING TEMPLATE

3Press <Enter> to initiate the connection. When a security

alert dialog box appears, click OK/Yes to proceed.

4When the Ruckus Wireless Admin login page appears, enter

the following:

•Username: super

•Password: sp-admin

5Click Login.

STEP 4: CUSTOMIZE THE WIRELESS SETTINGS

1On the Web interface menu, click Configuration > Wire-

less [2.4G/5G]. The Configure :: Wireless :: Common

options appear.

2Verify that the following options are active:

•Channel: SmartSelect

•Country Code: If you are not located in the United

States, select your current country.

3Click Update Settings if you made any changes.

4Click any of the eight “Wireless #” tabs at the top of the

page.

5In Wireless Availability, click Enabled.

6Delete the text in the SSID field, and then type a name for

your network that will help your users identify the AP in their

wireless network connection application.

7Click Update Settings to save your changes.

8Repeat Steps 4-7 for each Wireless # interface that you want

to enable.

9Click Logout to exit the Web interface.

10 Disconnect the AP from the computer and from the current

power source, and then restore your computer to its original

network connection configuration.

STEP 5: PLACE THE AP IN YOUR SITE

1Move the AP to its permanent location (accessible to both

AC power and network connection).

2Use an Ethernet cable to connect the 10/100/1000 port of

the AP to your network.

3Connect the AC power adapter (or PoE power supply) to the

AP, then to a convenient power source.

4Verify that the 10/100/1000 port LED is lit.

STEP 6: VERIFY THE INSTALLATION

1Using any wireless-enabled computer or mobile device,

search for and select the wireless network you previously

configured.

2If you can connect, open a browser and link to any public

Web site.

Congratulations! Your wireless network is active and ready

for use. If you need to configure advanced wireless settings,

such as enabling security, see the ZoneFlex AP User Guide.

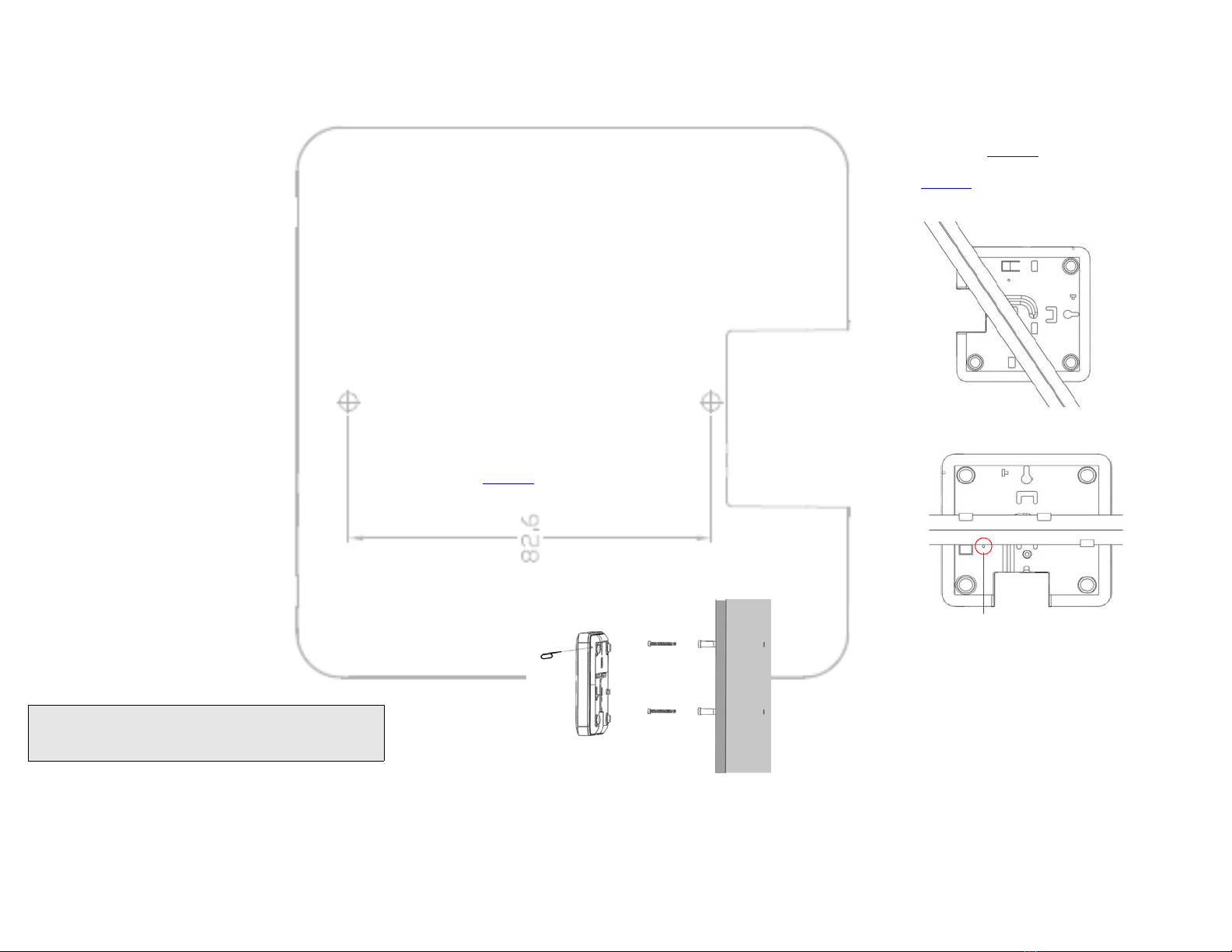

(OPTIONAL) MOUNTING INSTRUCTIONS

The ZoneFlex R300 can be mounted to a wall, ceiling or to a

T-bar using the supplied mounting screws or the T-bar clips

built into the bottom of the AP enclosure.

Mounting to a Flat Surface

1Use this Quick Start Guide template to mark the locations

for screw holes on the mounting surface. Use a 5mm drill bit

to drill approximately 25mm into the mounting surface.

2Insert the anchors and mounting screws into the mounting

surface, leaving approximately 1/4” (6 mm) of the screw

heads protruding for the AP enclosure.

The screws should be approximately 3.25” (82.6mm) apart

per the template.

3Insert the unit removal pin into the hole on the side of the

AP (Figure 1.), to release the locking mechanism.

Figure 1. Insert the unit removal pin into the pinhole

4Place the AP onto the mounting screws so that the screw

heads enter the mounting holes on the AP enclosure, and

push the AP (to the left or down depending on orientation)

to lock in place.

5Remove the unit removal pin to release the lock mechanism

and secure the AP.

6To unmount, insert the unit removal pin into the hole on the

side of the AP to unlock, then push the AP (to the right or up,

depending on orientation) to release the AP enclosure from

the mounting screws.

Mounting to a T-Bar

1Orient the AP so that the T-bar is positioned between the T-

bar clips as shown in Figure 2., then rotate the AP until the

third T-bar clip catches the T-bar and the latch locks the T-bar

in place (Figure 3.).

Figure 2.

Figure 3.

2For added physical security, use a Torx screwdriver to insert

the security screw into the hole shown in Figure 3.

3To remove the unit, first remove the security screw, then

depress the latch while rotating the AP so that the T-bar clips

disengage the T-bar.

FOR MORE INFORMATION

For information on how to configure the AP from the Web

interface, refer to the Ruckus Wireless ZoneFlex Access Point

User Guide or the Online Help, available from within the

Web interface.

NOTE: If you will be using PoE, you will need a Cat 5e (or

better) Ethernet cable to connect the AP to the PoE injec-

tor or switch.

Hold unit removal pin

in while mounting

Security screw hole
