iT500 User Reference Manual

PRODUCT COMPLIANCE

This product complies with the essential requirements of the following EC Directives:

• Electro-Magnetic Compatibility Directive 2004/108/EC

• Low Voltage Directive 2006/95/EEC

• EC Marking directive 93/68/EEC

SAFETY INFORMATION

These instructions are applicable to the Salus Controls model stated on the front cover of this manual only,

and must not be used with any other make or model.

These instructions are intended to apply in the United Kingdom only, and should be followed along with any

other statutory obligations - if you are in any doubt, please contact the Salus Controls technical helpline.

This accessory must be tted by a Competent person, and installation must comply with the guidance

provided in the current editions of BS7671 (IEE Wiring Regulations) and Part ‘P’ of the Building Regulations.

Failure to comply with the requirements of these publications could lead to prosecution. Always isolate the

AC Mains supply before opening or removing the unit from the wall or wall box.

Please leave these instructions with the end user where they should be kept in a safe place for future

reference.

PLEASE READ THIS INSTRUCTION MANUAL BEFORE USING THE EQUIPMENT.

THIS INSTRUCTION MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.

iT500 User Reference Manual

4 INTRODUCTION

4 Features

5 GETTING STARTED

5 In the Box

5 Optional Equipment

6 INSTALLATION

6 Introduction

10 Installing the iT500RX Receiver

18 Installing the iT500 Thermostat

20 Pairing the iT500 System Units

for the First Time

21 Installing the iTG500 Gateway

22 Installing an iT300

Temperature Sensor

Transmitter (optional)

23 CONTROLS AND DISPLAY

23 iT500 Thermostat Keypad and

Display

25 iT500RX Receiver Controls

26 INSTALLATION

PROGRAMMING

26 Installation Setup Mode

26 Entering Installation Setup

Mode

27 Selecting the System

Conguration

28 Select Heating or Cooling

Mode

29 Select Temperature Units

29 Set the Time Zone

31 Turning Daylight Saving Time

On or O

33 PAIRING THE iT500 AND

iT300 WITH THE iT500RX

33 Pairing the iT500 Thermostat

with the iT500RX Receiver

35 Pairing an iT300 with the

iT500RX Receiver (optional)

37 Registering your iT500 Online

40 Download the Smartphone

App

43 USER PROGRAMMING

43 Program Times and Setpoint

Temperatures

45 Default Program Schedules

46 Control using the PC or

Smartphone App

51 Local Control using the

iT500TR Thermostat

59 Override Central Heating Zone

Settings

61 Override Hot Water Settings

64 Other Overrides

65 Frost Protection

65 Lock and Unlock the Keypad

66 OTHER INFORMATION

66 Low Battery Indication

66 Battery Installation or

Replacement

67 Resetting the iT500

Thermostat

68 Firmware Updates

69 TECHNICAL SPECIFICATIONS

69 Operating Environment

69 iT500 Central Thermostat

70 iT500RX Thermostat Receiver

70 iTG500 Gateway

71 iT300 Temperature Sensor

Transmitter

CONTENTS

iT500 User Reference Manual

INTRODUCTION

Thank you for choosing the Salus iT500 Series of Internet enabled programmable heating/cooling controls.

We hope that your purchase will give you many years of active and trouble-free service.

This equipment can replace an existing domestic central heating and hot water programmable controller and

thermostat or can control a completely new installation.

It is estimated that using a programmable thermostat can save up to 20% of the energy used by a traditional

installation.

The equipment can be used without the Gateway unit. In this case the battery powered central Thermostat

unit will communicate only with the Thermostat Receiver and cannot be accessed remotely.

Features

• Access and control your heating and hot water system via the internet using a smartphone or computer

• Programmable using your smartphone or computer

• Secure and energy ecient

• Three system and display congurations

iT500 User Reference Manual

GETTING STARTED

In the Box

The iT500 Thermostat - replaces your xed hardwired thermostat and

also the timer or programmable part of your heating controller. This unit

communicates with the iT500RX Receiver. It can be located anywhere in your

home as it is portable and battery powered.

Includes: 2 x AA Alkaline Batteries.

The iT500RX Receiver - replaces the switching part of your timer or heating

controller that is hardwired to your boiler, pump and 3-way valve. It allows for

manual override in the event of failure of your iT500 Thermostat unit.

The iTG500 Gateway - connects to your router and enables you to control

your central heating and hot water controls from outside of your home, via a

smartphone or computer.

Includes: 12V Power Supply and Ethernet Cable

Optional Equipment

The iT300TX Temperature Sensor Transmitter - replaces the second

hardwired thermostat in a two zone heating system. It can be located in

any part of the zone as it is portable and battery powered, can also be wall

mounted.

Purchased separately.

iT500 User Reference Manual

INSTALLATION

Introduction

The iT500 Thermostat and the iT500RX Receiver are designed to replace the programmer and wired

thermostat in a traditional domestic heating arrangement.

The equipment can be congured to control the following arrangements:

• Heating only, 1 zone

• Heating only, 2 zones

• Heating plus hot water

The system can be remotely controlled, via the internet, by connecting the system to your wireless router.

iT500 User Reference Manual

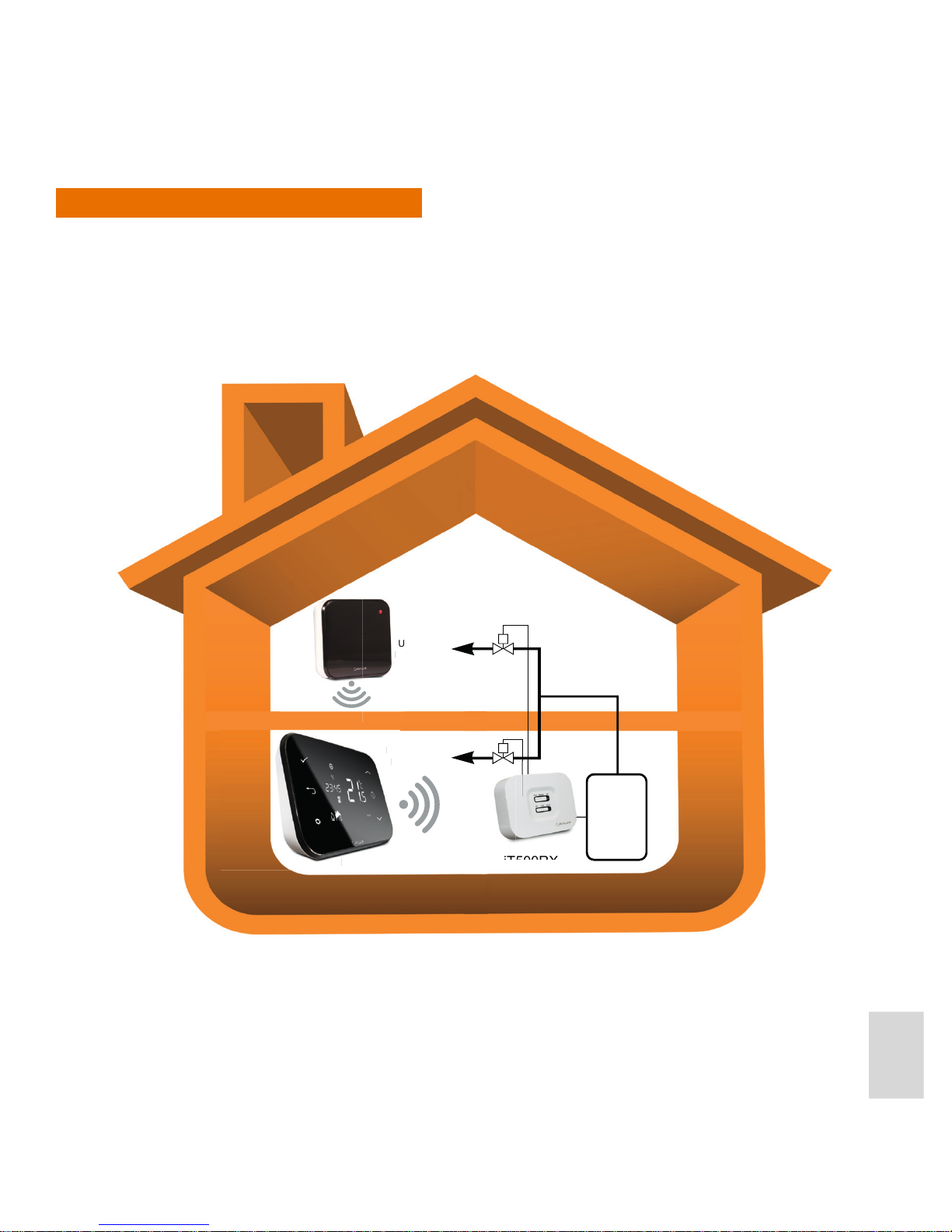

Two Heating Zone Arrangement

In this arrangement, the two outputs on the iT500 Thermostat Receiver are used to control two zone heating

valves.

The temperature in Zone 2 is controlled by the addition of an iT300 Temperature Sensor Transmitter, placed

in the zone.

Boiler

iT500TR iT500RX

iT300TX

Zone 2

Zone 1

UPSTAIRS

RADIATORS

DOWNSTAIRS

RADIATORS

iT5

iT500RX

iT500 User Reference Manual

Heating plus Hot Water Arrangement

This is the arrangement for installing an iT500 based control system with a single heating zone and hot water.

The iT500RX Receiver is hardwired to the heating and water system components.

The iT500 Thermostat is connected wirelessly to the iT500RX Receiver.

Hot

Water

Tank

Boiler

iT500 iT500RX

ALL RADIATORS

iT5

iT500RX

iT500 User Reference Manual

Connection to the Internet

To control the system via your smartphone or a remote computer, the system can optionally be connected to

the Internet. The iT500 Thermostat is connected to your existing broadband router, using the iTG500

Gateway.

iT500

Internet

iTG500

Router

TG500

Rou

iT500

iT500 User Reference Manual

Installing the iT500RX Receiver

Replacing an Existing Programmable Controller with the iT500RX Receiver

1. Turn o the electrical power to your appliance.

Caution: Ensure that the electrical supply to the appliance has been isolated. Failure to completely

isolate the appliance could cause personal injury by electric shock and possible damage

to equipment.

Remove the cover from the existing programmable controller.

2. Note down the wiring sequence and the cable colours connected to the terminals within the electrical

box.

3. Disconnect the wires from the existing programmable controller terminals and remove.

Note: Providing the existing programmable controller was mounted using a standard electrical box, the

iT500RX Receiver will nally mount back onto this.

4. Loosen the screws at the bottom of the receiver unit, unclip the front of the unit and t the back of the

receiver unit to the wall using the ttings supplied.
