RT200 INSTRUCTION MANUAL

PRODUCT COMPLIANCE

This product complies with the essential requirements of the following EC

Directives:

•Electro-Magnetic Compatibility directive 2004/108/EC

•Low Voltage Directive 2006/95/EEC

•EC Marking directive 93/68/EEC

SAFETY INFORMATION

These instructions are applicable to the Salus Controls model stated on the

front cover of this manual only, and must not be used with any other make or

model.

These instructions are intended to apply in the United Kingdom only, and

should be followed along with any other statutory obligations.

This accessory must be fitted by a Competent person, and installation must

comply with the guidance provided in the current editions of BS7671 (IEE

Wiring Regulations) and Part ‘P’ of the Building Regulations. Failure to

comply with the requirements of these publications could lead to

prosecution.

Always isolate the AC Mains supply before carrying out any work on the

RT200 thermostat.

Please leave these instructions with the end user where they should be kept

in a safe place for future reference.

Salus RT200 Manual 002:89 23/11/10 11:05 Page 2

RT200 INSTRUCTION MANUAL 3

INTRODUCTION

A thermostat is a device that is used to switch

the heating system in your home on and off as

needed. It works by sensing the air

temperature and switching on the heating

when the air temperature falls below the

thermostat setting, and switching it off once

the set temperature has been reached.

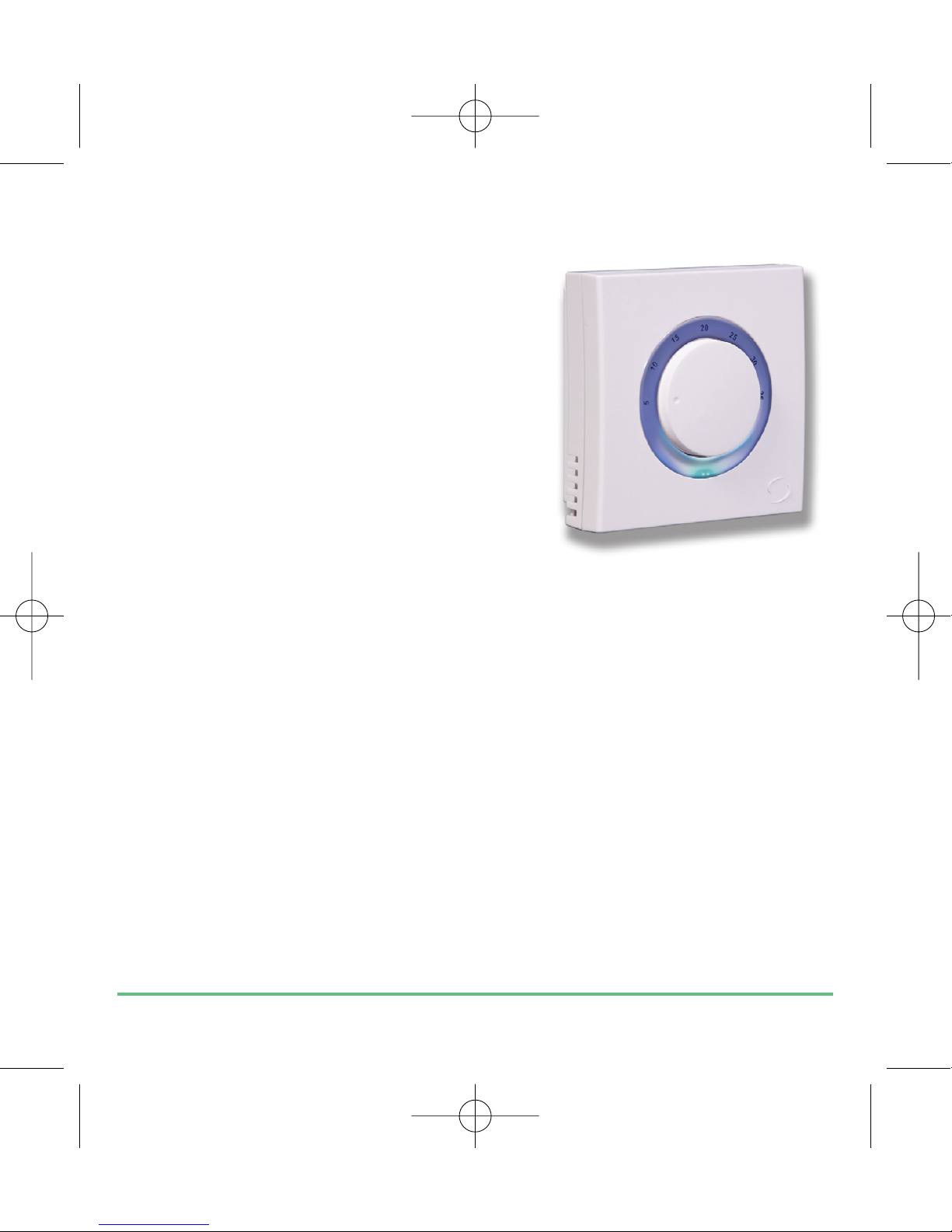

The RT200 from Salus Controls is a stylish and

accurate electronic thermostat with a large,

easy to adjust setting dial. The thermostat has

been specifically designed to be used in 230V

AC heating applications.

Features

•Simple to use

•Large dial

•Stylish Casing

•LED heat call indicator

•Temperature range between 5 ºC and 35 ºC

OPERATION

The RT200 is adjusted very easily by turning the rotary dial on the front of

the thermostat to the required temperature setting. To adjust the set

temperature, turn the rotary dial to the left to set a lower temperature, or to

the right to set a higher temperature.

The Light Emitting Diode (LED) on the front panel will light when the

temperature is below the set value, showing that the thermostat is calling for

heat from the boiler. Once the room reaches the set temperature, the LED

will turn off and the RT200 will stop calling for heat from the boiler.

Salus RT200 Manual 002:89 23/11/10 11:05 Page 3

INSTALLATION

Please read the important safety information at the start of this manual before you

begin to install the thermostat.

The ideal position to locate the RT200 thermostat is about 1.5m above floor level, in

a location where the thermostat is accessible, reasonably lit and free from extremes of

temperature and draughts. Do not mount the thermostat on an outside wall, above a

radiator or in a location where it may be subjected to direct sunlight.

The electrical connections to the RT200 are made to the supplied industry standard

backplate. This simplifies installation, as no connections are made to the controller

itself. Connection details are shown below - no Earth connection is required for the

correct and safe operation of the RT200, but a parking terminal is provided to connect

an Earth wire if one is present.

RT200 INSTRUCTION MANUAL

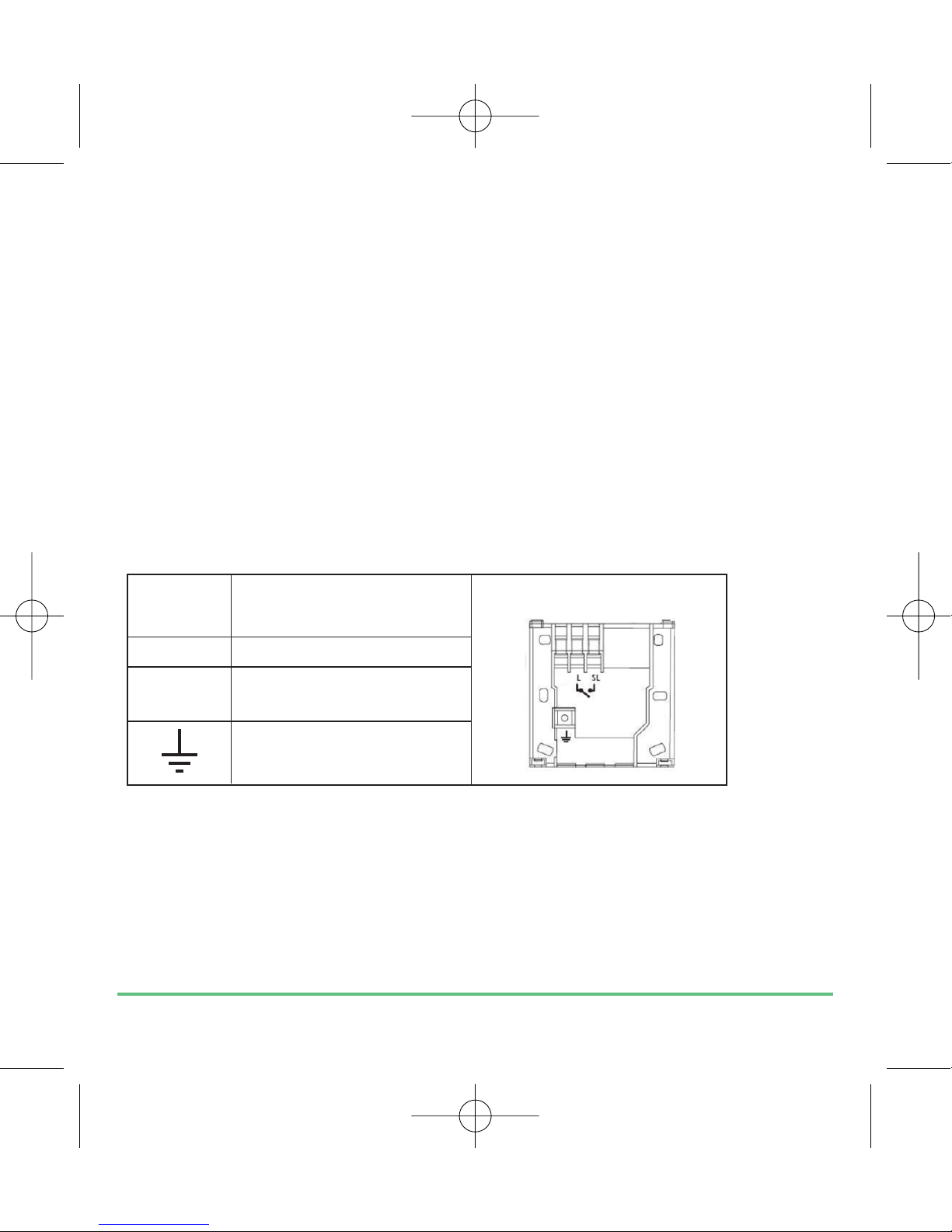

Backplate Connections

Terminal Description Backplate

N Mains Neutral

L Mains Live

SL Switched Live

(Normally Open Contact)

Earth Parking (no electrical

connection)

After installing the backplate in a suitable location, wiring connections can be

made as shown above. The following criteria apply to the installation:

• The incoming AC mains supply should be 230V AC and fused at 5 amps.

• Optimum cable size for installation is 1.5 mm2; wiring colours should be in

accordance with the current requirements of the IEE Wiring Regulations.

• Cable entry should be from the rear of the backplate.

• All wiring connections should be securely made, and be firmly gripped

beneath the square brass washer on each terminal.

Salus RT200 Manual 002:89 23/11/10 11:05 Page 4

RT200 INSTRUCTION MANUAL 5

Do not restore the mains supply to the system until all associated items are fully installed.

NOTE: All electrical installation work should be carried out by a suitably qualified Electrician

or other competent person. If you are not sure how to install this thermostat consult either

with a qualified electrician, heating engineer or your boiler / heating system supplier for

advice on how to continue.

Do not remove or refit the RT200 onto the backplate without the mains supply to

the system being isolated.

ENERGY TIP

One way to set and use your room thermostat is to find the lowest temperature setting

that you are comfortable with, and then leave it set at this temperature. You can do

this by setting the room thermostat to a low temperature, (for example 17 °C) and

then increasing the setting by one degree each day until you are comfortable with

the room temperature - you won’t have to adjust the thermostat further, as

adjustment above this setting will waste energy - a 1 °C increase in temperature is

equal to 3% of your heating costs.

MAINTENANCE

The RT200 thermostat requires no special maintenance. Periodically, the outer casing

can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents

or abrasive cleaners, as these can damage the thermostat).

There are no user serviceable parts within the unit; any servicing or repairs should

only be carried out by Salus Controls or their appointed agents.

Should the RT200 thermostat fail to function correctly, check:

• The RT200 temperature has been set correctly.

• Heating system time switch or programmer is switched on.

WARRANTY

Salus Controls warrants that this product will be free from any defect in materials or

workmanship, and shall perform in accordance with its specification, for a period of

two years from the date of purchase. Salus Controls sole liability for breach of this

warranty will be (at its option) to repair or replace the defective product.

Salus RT200 Manual 002:89 23/11/10 11:05 Page 5

PRODUCT SPECIFICATION

Model: RT200

Type: Surface mounted electronic room

thermostat designed for 230V AC

heating applications.

Switching

Switching Voltage: 230V AC / 50Hz

Switching Current: 3A resistive, 1A inductive

Contact Type: Single Pole Single Throw (SPST)

Temperature

Range: 5 ºC to 35 ºC

Accuracy: ± 1 ºC at 25 ºC

Environment

Operating Temperature: 0 ºC to + 50 ºC

Storage Temperature: - 20 ºC to + 55 ºC

RT200 INSTRUCTION MANUAL

Salus RT200 Manual 002:89 23/11/10 11:05 Page 6

Salus Controls warrants that this product will be free from any defect in materials or

workmanship, and shall perform in accordance with its specification, for a period of

two years from the date of purchase. Salus Controls sole liability for breach of this

warranty will be (at its option) to repair or replace the defective product.

RT200 Warranty

Customer Name: ..............................................................

Customer Address: ...........................................................

.........................................................................................

Post Code: ......................... Tel No: ..................................

Email: ...............................................................................

Engineers Company: ........................................................

Tel No: .............................................................................

Email: ...............................................................................

Intallation Date: ...............................................................

Engineers Name: ..............................................................

Engineers Signature: ........................................................

RT200 INSTRUCTION MANUAL 7

Salus RT200 Manual 002:89 23/11/10 11:05 Page 7

Email: [email protected] Tel: 01226 323961
