Owner's Manual

200-WATT PORTABLE PA SYSTEM

Samson Technologies Corp.

278B Duffy Ave

Hicksville, New York 11801

www.samsontech.com

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,

Inc. and any use of such marks by Samson Technologies is under license. Other trademarks

and trade names are those of their respective owners.”

XP108w • Portable PA System 3

Important Safety Information

AVIS

RISQUE DE CHOC ÉLECTRONIQUE -

NE PAS OUVRIR

This lightning ﬂash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of non-insulated “dangerous voltage”

within the product’s enclosure that may be of sufﬁcient magnitude to constitute

a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance instructions in the

literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

If you want to dispose this product, do not mix it with general household waste.

There is a separate collection system for used electronic products in accordance

with legislation that requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway

may return their used electronic products free of charge to designated collection

facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct meth-

od of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment,

recovery and recycling and thus prevent potential negative effects on the environment and

human health.

Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs,

convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during lightening storms or when unused for long

periods of time.

14. Refer all servicing to qualified personnel. Service is required when the apparatus has

been damaged in any way, such as power supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15. This appliance shall not be exposed to dripping or splashing water and that no object

filled with liquid such as vases shall be placed on the apparatus.

16. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert.

17. Please keep a good ventilation environment around the entire unit.

18. To prevent injury, this apparatus must be securely attached to the stand in accordance

with the installation instructions.

19. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to

excessive heat such as sunshine, fire or the like.

20. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type.

XP108w • Portable PA System 5

Important Safety Information

FCC Notice

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that

may cause undesired operation.

2. Changes or modiﬁcations not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital de-

vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

RF Warning Statement

The device has been evaluated to meet general RF exposure requirement. The device can be

used in portable exposure condition without restriction.

This device complies with RSS-310 of Industry Canada. Operation is subject to the condi-

tion that this device does not cause harmful interference.

Introduction

Features

Thank you for purchasing the XP108w battery-powered portable sound system, featuring

wireless Bluetooth® connectivity, to stream audio from your smart phone, tablet, or

computer. The XP108w is a complete all-in-one solution providing the ﬂexibility of a four-

channel mixer (with inputs for a microphone and line level devices), a line output for linking

multiple speakers, and a master EQ. For a completely untethered performance, the XP108w

includes a wireless handheld microphone.

For added ﬂexibility, the XP108w mixer has a USB jack for connecting the Samson XPD

digital wireless system, creating a dual wireless performance.

Lightweight and compact, the XP108w features 200 watts of power weighing less than

24lbs, makes it an excellent complement to any mobile speaker application. The internal

battery provides up to 20 hours of audio on a full charge. The XP108w can also be AC

powered (with the included power cord) for continuous audio.

Whether you are looking for a sound system for use outdoors, in the classroom, for karaoke,

for presentations, or performing live music, the XP108w provides high quality, portable

audio in a small self-powered package.

We recommend you keep the following records for reference, as well as a copy of your sales

receipt.

Serial number: _________________________________

Date of purchase: ___________________________________________________

If you have any questions or comments regarding the XP108w Portable PA System or any

other products from Samson, do not hesitate to contact us at [email protected].

With proper care and maintenance, your XP108w Portable PA System will operate trouble-

free for many years. Should your XP108w Portable PA System ever require servicing, a

Return Authorization (RA) number must be obtained before shipping your unit to Samson.

Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for

an RA number prior to shipping your unit. Please retain the original packing materials and,

if possible, return the unit in its original carton. If your XP108w Portable PA System was

purchased outside of the United States, contact your local distributor.

• Lightweight, 200 watt PA system that weighs 24 pounds

• Bluetooth connectivity to connect wireless music sources

• 2-way speaker enclosure with 8” woofer and 1” high-frequency driver

• Four channel mixer with microphone, line level, and USB wireless receiver inputs.

• Integrated 1 3/8” speaker stand mount

• Ergonomic top carry handle

• Internal rechargeable battery for up to 20 hours of continuous use

• System equalization contour switch for music and spoken word applications

• Link output for expanding your sound system

XP108w • Portable PA System 7

Controls and Connections

1. MASTER VOLUME - Used to control the overall level of the speaker system.

2. MASTER TREBLE - Controls the high-frequency tone of the entire system.

3. MASTER BASS - Controls the low-frequency tone of the entire system.

4. CH1 VOLUME - Controls the level of the Channel 1 Mic/Line input.

5. LINE / MIC Switch - Adjusts the gain of the CH1 input for a microphone or line level device.

6. CH1 Input - XLR/1⁄4” input for connecting a microphone or a device with a line level signal.

7. CH2 VOLUME - Controls the level of the Channel 2 Aux input.

8. AUX IN - Connect a line level device using a 1/8” audio cable.

9. LINE OUT - Line level 1/4” output jack to connect the XP108w to the input of a another

XP108w to create a dual mono speaker system. The Line Out is before the MASTER

VOLUME and EQ Controls.

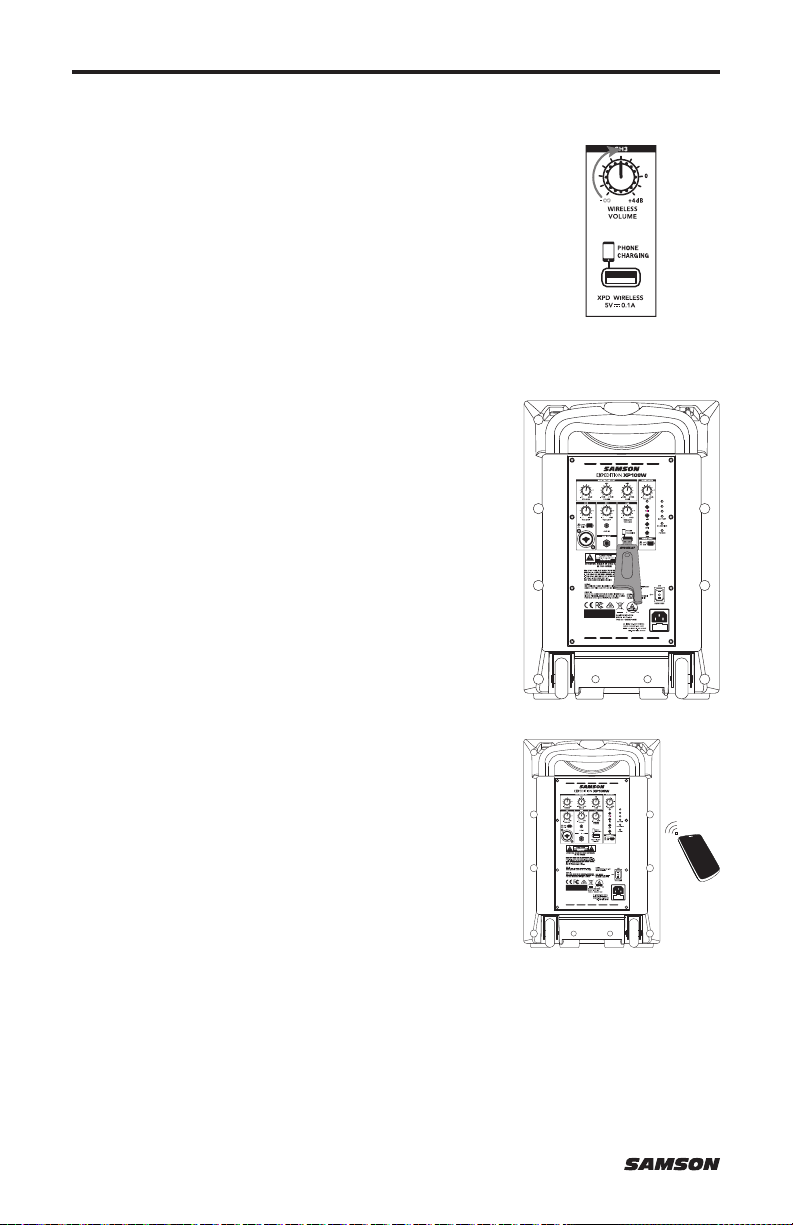

10. CH3 VOLUME - Controls the level of the internal wireless microphone as well as the

optional XPD USB wireless receiver.

11. XPD WIRELESS Input* - Connect the Samson XPD digital wireless USB receiver to this

input. The wireless receiver gets its power from the XP108w, so no additional power

supply is needed. The USB connector supplies 5V 200mA at of power to charge a small

portable USB device like an MP3 player or smartphone.

12. BLUETOOTH® VOLUME - Controls the level of the Bluetooth input.

13. PAIR Button - Press this button to enable pairing mode in order to connect to a

Bluetooth audio device.

Controls and Connections

HT5 Wireless Microphone Controls

14. BLUETOOTH® Transport Buttons - Audio controls for the connected Bluetooth device.

15. VOICEOVER ON/OFF Switch - Turns the VOICEOVER ducking on or off.

16. BATTERY Level Indicators - While the XP108w is powered ON and unit is not plugged in,

these lights displays the status of the battery charge level.

17. CHARGING Indicator - When the XP108w is plugged in and the POWER switch is set

to the RECHARGE position, the CHARGING indicator will illuminate RED while it is

charging. Once charging is complete the indicator will turn off.

18. POWER Indicator - Lights green when the power switch is in the ON position.

19. Power / Recharge Switch - This three position switch is used to turn the XP108w ON,

OFF or place the system into RECHARGE mode to charge the internal battery.

20. AC INPUT - Connect the supplied power cord here.

1. AUDIO ON/OFF Switch - Turns the handheld

transmitter audio signal ON or OFF. When

set to the “OFF” position, the audio signal

is muted. Because the carrier signal remains

on during muting, no “pop” or “thud” will be

heard. Note that turning this off does not turn

off the transmitter power, it is simply a way

to temporarily mute the transmission of audio

signal.

2. Battery level meter - This set of three multicolor

lights indicates relative battery power, indicating

whether the installed battery level is low (red),

mid (yellow) or high (green) strength. One or

more of these will light whenever the transmitter

is powered on. When all three are lit, the battery

is at maximum strength. When only the red “low”

indicator lights, RF performance is degraded and

the battery needs to be replaced.

3. Power ON/OFF Switch - Use this to turn the

transmitter power ON or OFF. To conserve battery

power, be sure to leave it off when not in use.

4. LEVEL Control - Adjusts the input sensitivity of the

transmitter. Use the supplied plastic screwdriver

to raise or lower the input level.

5. Battery holder - Insert a standard 9V battery here,

being sure to observe the plus and minus polarity

markings shown. We recommend the Duracell

MN 1604 type battery. WARNING: Do not insert

the battery backwards; doing so can cause severe

damage to the transmitter and will void your

warranty.

XP108w • Portable PA System 9

Quick Start

1. Set the XP108w power switch to the OFF position, and

fully turn all of the LEVEL controls counterclockwise to 0.

2. If an outlet is available, connect the included power

cord to the AC input of the speaker, and plug it into an

electrical outlet.

3. Set the XP108w power switch to the ON position.

4. Connect your audio sources.

5. Turn the MASTER VOLUME control up and set the input

levels, following the steps below.

Making Connections

Channel 1 (Microphone / Line Input)

6. Connect a microphone using a standard XLR cable or line

level equipment using a 1⁄4” instrument cable.

7. If connecting a microphone, set the LINE / MIC switch to

the down (MIC) position. If connecting a line level device,

set the LINE / MIC switch to the up (LINE) position.

8. While speaking into the microphone or playing music from

a line level audio source, slowly raise the channel CH1

VOLUME control until you have reached the desired level.

NOTE: If not using the Channel 1 input, turn the VOLUME control all

the way down to keep out any unwanted noise.

Channel 2 (Line Input)

9. Connect a line level device using 1⁄8” instrument cable.

10. While playing music from a line level audio source, slowly

raise the channel CH2 VOLUME control until you have

reached the desired level.

Channel 3 - Included Wireless Microphone

11. Physically place the XP108w where it will be used (the

general rule of thumb is to maintain “line-of-sight”

between the receiver and transmitter).

12. Fully extend the antenna on the top of the XP108w.

13. On the HT5 handheld transmitter, unscrew the bottom

section of the microphone by turning it counterclockwise

and then slide it off. Make sure the Power switch in the

battery compartment is set to Off.

14. Place a fresh 9-volt alkaline battery in the transmitter

battery holder, taking care to observe the polarity markings.

Quick Start

15. Turn on the power to the handheld transmitter using

Power ON/OFF switch. Replace the bottom section of the

handheld microphone by sliding it on and then screwing it

back on.

16. Make sure the handheld transmitter is not muted by

setting the Audio switch to the ON position. Speak or sing

into the mic at a normal performance level and raise the

CH3 WIRELESS VOLUME control until the desired level is

reached.

17. If you need to adjust the microphone gain further (signal is

distorted or too week), adjust the LEVEL control inside the

battery compartment using the supplied screwdriver.

Channel 3 - XPD Wireless Microphone (sold separately)

18. Plug the XPD USB receiver into the XPD Wireless USB

jack.

19. Turn the CH3 WIRELESS VOLUME knob on the XP108w

completely counterclockwise to 0.

20. On the wireless handheld transmitter, unscrew the bottom

section of the microphone by turning it counterclockwise

and then slide it off. Place a fresh set of AA (LR6)

batteries in the transmitter battery holder, taking care to

observe the polarity markings, then replace the cover.

21. Turn on the power to the transmitter by pressing and

holding Power switch; the indicator LED will light amber.

22. Speak or sing into the mic at a normal performance level

and raise the CH3 WIRELESS VOLUME control until the

desired level is reached.

Bluetooth®

23. Turn the BLUETOOTH VOLUME control down

counterclockwise to 0.

24. With the XP108w and your Bluetooth device powered on;

press the PAIR button on the rear panel of the XP108w to

make the speaker discoverable. The Bluetooth indicator

will slowly ﬂash blue.

25. In the settings of your Bluetooth device, set it to “discover”

available devices.

26. From the Bluetooth device list, select the “Samson

XP108W” device.

27. If your device asks for a passkey, enter digits 0000 (four

zeros) and press OK. Some devices may also ask you to accept the connection.

28. The XP108w speaker indicates that pairing is complete when the indicator turns steady

blue. You can now stream audio from your device to the XP108w speakers.

29. With the volume control on your Bluetooth device turned up, play some music, and

slowly raise the XP108w BLUETOOTH VOLUME control until you have reached the

desired level.

Using the Master EQ

Inhaltsverzeichnis

Andere Samson Sprecher Handbücher

Samson

Samson RSX M10a Bedienungsanleitung

Samson

Samson MediaOne 3a Bedienungsanleitung

Samson

Samson EXPEDITION XP312w Bedienungsanleitung

Samson

Samson Expedition Express Bedienungsanleitung

Samson

Samson EXPEDITION XP150 Bedienungsanleitung

Samson

Samson dB300 Bedienungsanleitung

Samson

Samson STUDIOGT Bedienungsanleitung

Samson

Samson EXPEDITION XP510 Bedienungsanleitung

Samson

Samson EXPIDETION XP25I Bedienungsanleitung

Samson

Samson Auro X12D Bedienungsanleitung

Samson

Samson PORTABLE PA SYSTEM EXL250 Bedienungsanleitung

Samson

Samson RS Series Bedienungsanleitung

Samson

Samson MEDIAONE BT3 Bedienungsanleitung

Samson

Samson Resolv A6 Bedienungsanleitung

Samson

Samson Sports S9HD Bedienungsanleitung

Samson

Samson Studio GT Bedienungsanleitung

Samson

Samson RSX110 Bedienungsanleitung

Samson

Samson Studio Reference Monitor System Resolv 40a Bedienungsanleitung

Samson

Samson Resolv 65a RESOLV65A RESOLV65A Bedienungsanleitung

Samson

Samson EXPEDITION XP150 Bedienungsanleitung

Samson

Samson Expeditionn XP150 Bedienungsanleitung

Samson

Samson EXPEDITION XP40i Bedienungsanleitung

Samson

Samson RL112A Bedienungsanleitung

Samson

Samson RESOLV5e Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
