BG0634 REV.A1 ENGLISH PRO EM235 Quickstart www.satec-global.com
PRO EM235 Quick Start Manual
This guide instructs the user on installation, wiring, configuring and operating the EM235
multi-meter. This guide does not substitute the full user manual or the detailed safety
instructions. To download the manual and other related material, please visit our website:
www.satec-global.com.
Warning! Only a licensed electrician may perform the installation and wiring
of the EM235.

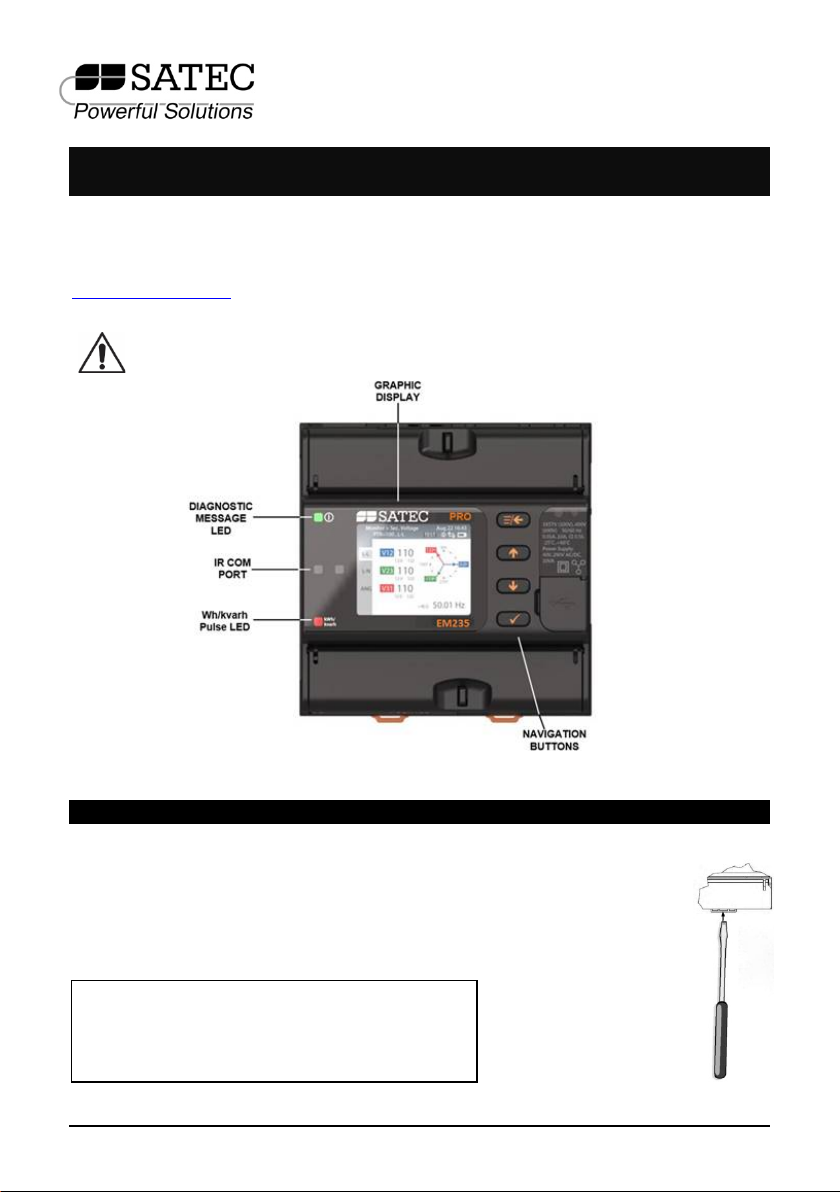

Figure 1: EM235 front panel
INSTALLATION
The PRO EM235 is designed exclusively for installation on DIN-rail.
Please note to leave room for future expansion: when installing a basic unit
(without modules), it is recommended to maintain a minimal gap of 30-100mm to
the right of the unit, allowing future installation of additional detachable SATEC
modules (figure 5; depending on number of added modules, 17.8mm each).
Figure 2:
Opening the latch
Use a flathead screwdriver to dislodge the unit
from the rail by inserting the screw-driver into the
slit in the latch, pushing the latch downwards. To
install the unit push the latch back upwards.
PRO EM235 QuickStart www.satec-global.com
ELECTRICAL CONNECTIONS
The following steps (Figure 3) correspond with a low-voltage three phase network:
1. Make sure all power sources are disconnected.
2. Make sure that your designated power supply corresponds with the unit's rating.
3. Connect the power supply (bottom-left of front panel) via 12 AWG wires and a
designated circuit breaker.
4. Standard external current transformers: connect the CT's (14 AWG minimum) "+" pole to
the device's I1+ current input (unit’s bottom right of front panel, as in figure 3) and the "-
" pole to the adjacent I1- current input. Repeat this for the following two phases, I2 and
I3. Verify proper polarity in your connections in accordance with the arrow printed on
the external CTs.
“HACS” CTs: connect the red/white wire to the "+" terminal and the black/orange (colors
vary according to the CT model) wire to the "-" terminal.
5. Connect the voltage measurement inputs (22-12 AWG; bottom-center of front panel).
6. Connect the com wire (26-12 AWG, shielded) to COM1 (RS485, top-left of front panel).
7. Power-on the unit.

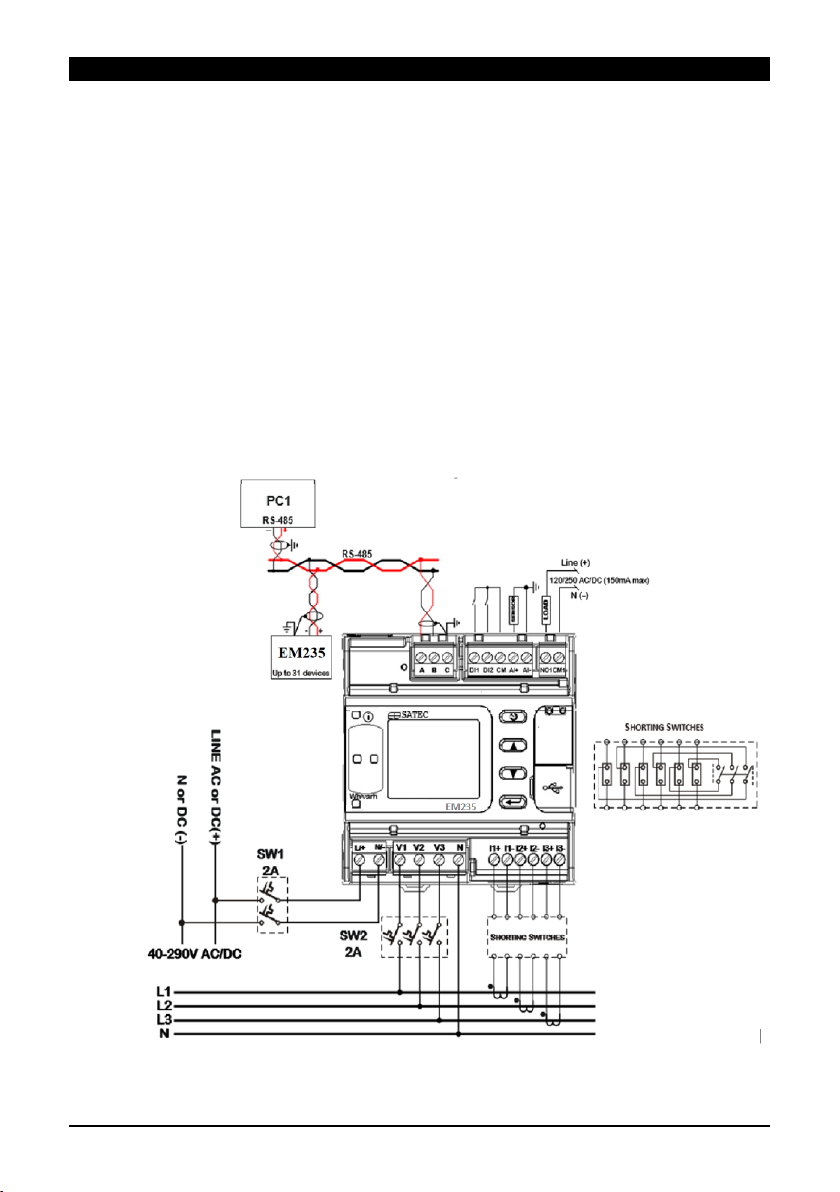

Figure 3: Typical wye installation
PRO EM235 QuickStart www.satec-global.com
BASIC CONFIGURATION AND OPERATION
The PRO EM235 is operated via the LCD display, 2 LEDs and 4 pushbuttons (figure 1: front
panel).
When powered on, the device will default to displaying voltages, for basic setup back up (<-
button) to the home screen navigate with arrows to “setup” (select with ), enter default
password (“9”) and select (“apply”). Open “general setup” to reveal “basic setup” for
configuration. See screenshot sequence in figure 4, below.

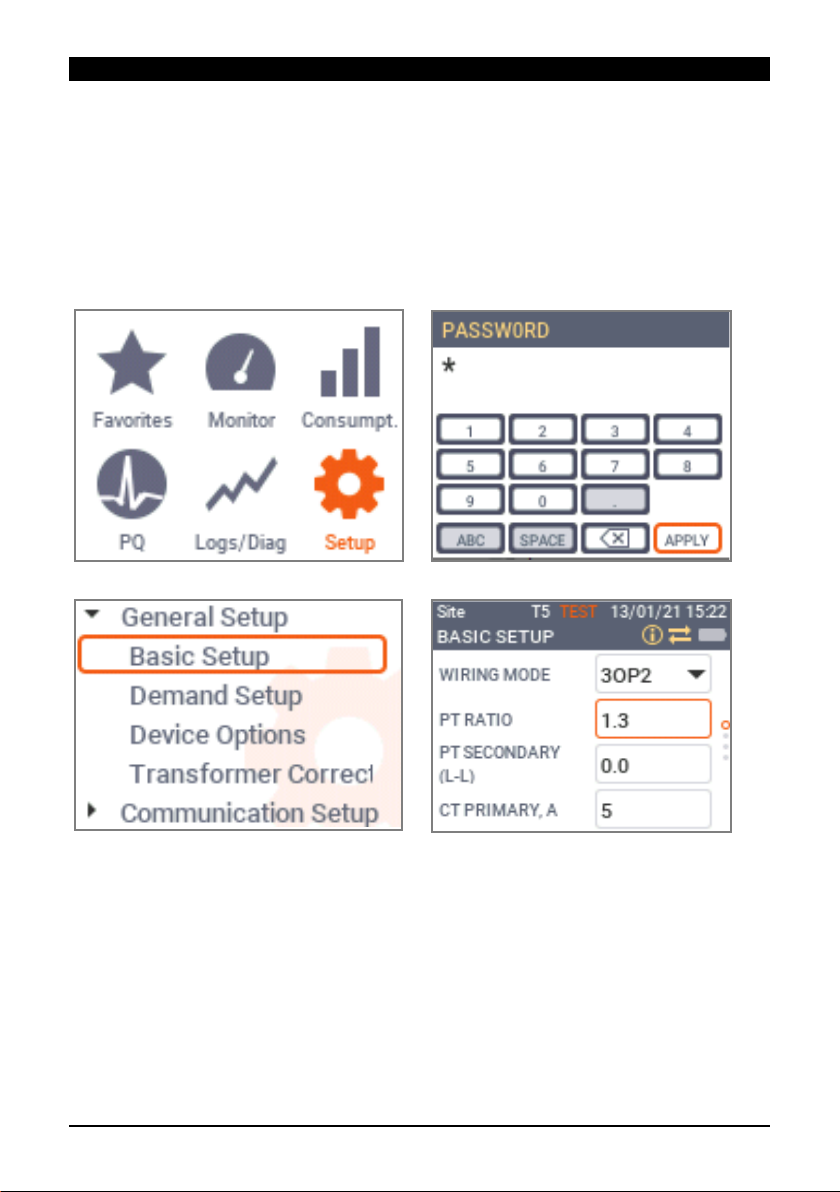

Figure 4: Screenshot sequence for basic setup
PRO EM235 QuickStart www.satec-global.com
CONNECTING OPTIONAL SATEC MODULES
1. DO NOT HOT-SWAP. When adding/removing modules, make sure the unit is
disconnected from power supply
2. Remove cover (sticker on right side of unit) to reveal port
3. Attach the module tightly and tighten the clips
4. Power on the unit

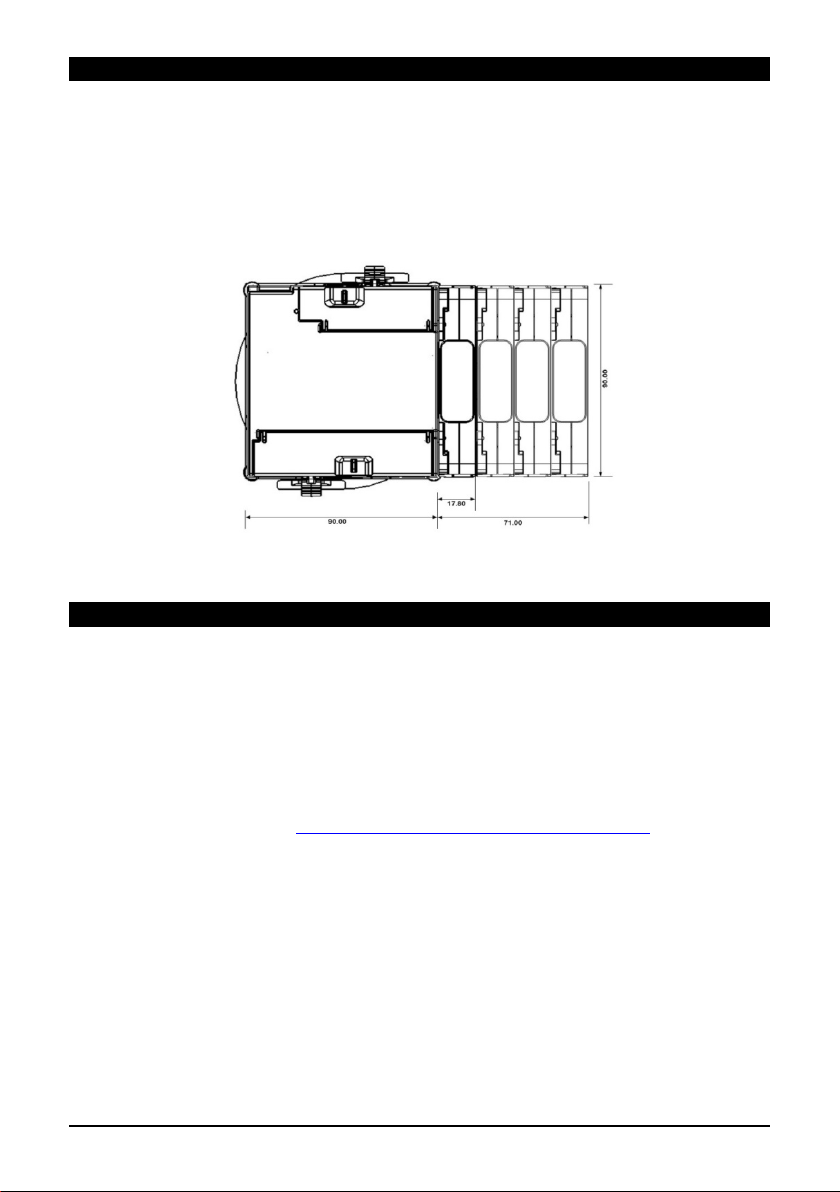

Figure 5: module expansion, front panel view
GENERAL INFORMATION AND SYSTEM DEFAULTS
1. Default password: 9
2. Default IP: 192.168.0.203 (ETH1)
3. Default current mode (HACS model): Alternating Current (AC)
4. Default serial com settings (RS485): 19,200 Baud rate; address = 1
5. For convenient configuration please use SATEC’s PAS engineering software, connecting
your PC to the USB port (type C) at the right side of the front panel)
To download PAS (free): www.satec-global.com/power-analysis-software
make sure to update .exe file with the most recent update available on webpage
Copyright © 2021 SATEC Ltd.
