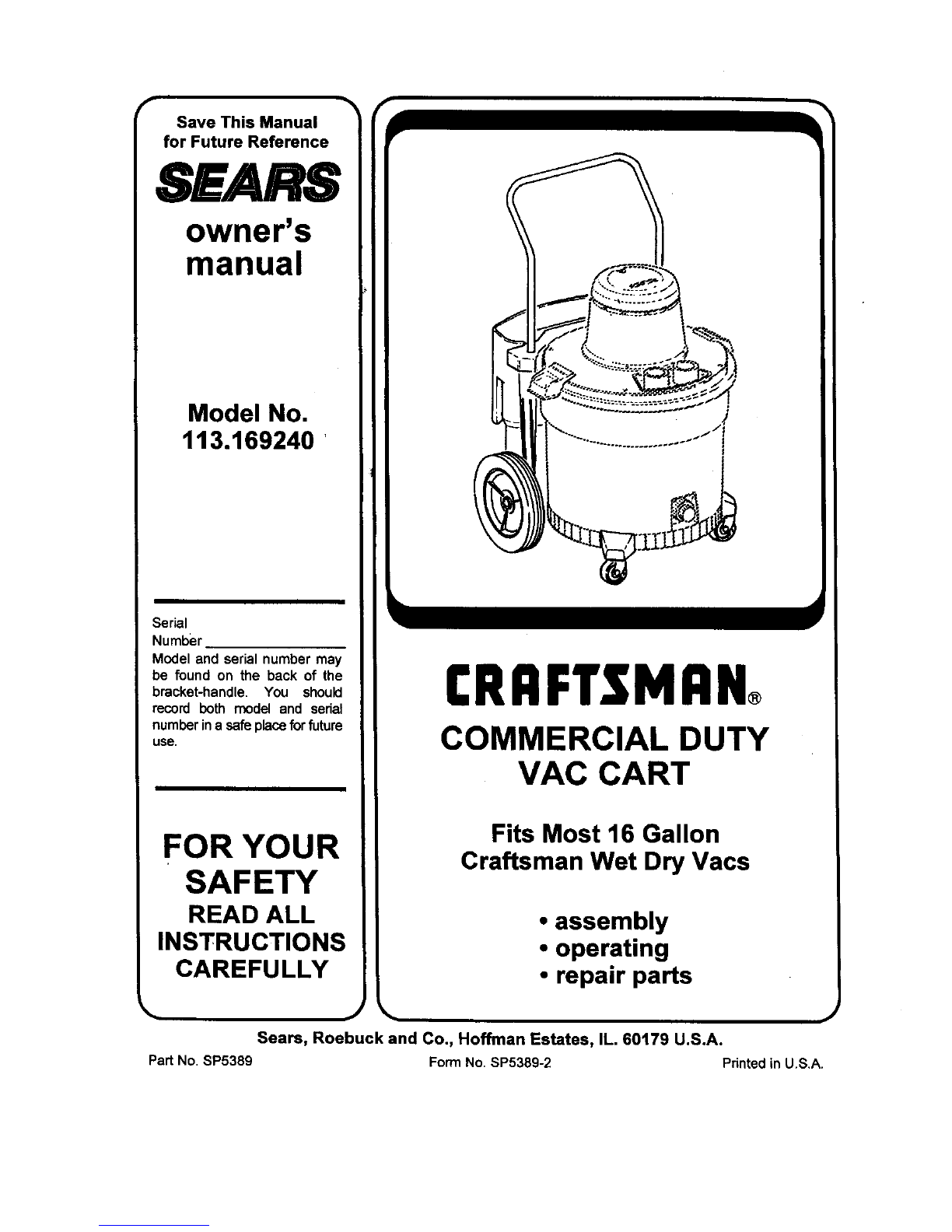

Sears 113.169240 Bedienungsanleitung

Save This Manual

for Future Reference

SEARS

owner's

manual

Model No.

113.169240 '

Serial

Number

Model and serial number may

be found on the back of the

bracket-handle. You should

record both model and serial

numberina sere placeforfuture

use.

FOR YOUR

SAFETY

READ ALL

INSTRUCTIONS

CAREFULLY

I:RRFTSMRN

COMMERCIAL DUTY

VAC CART

Fits Most 16 Gallon

Craftsman Wet Dry Vacs

• assembly

•operating

• repair parts

• _,. •

Seam, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.

PartNo. SP5389 FormNo. SP5389-2 Printedin U.S,A.

Introduction

Thiscartisdesignedespeciallyfor usewith Craftsman16

gallonWetJDryVacs only. Forbest results,be sureto fol-

lowthese instructions.

Table of Contents

Section Page

Introduction.................................................................. 2

Tableof Contents ........................................................ 2

Unpackingand CheckingContents ............................. 2

Listof LooseParts .................................................... 2

Assembly..................................................................... 3

Section Page

Tool Required ............................................................ 3

Maintenance ................................................................. 6

Castersand Wheels .................................................. 6

Frame and Handles ................................................... 6

Repair Parts ................................................................. 8

Unpacking and Checking Contents

List of Loose Parts

Key DncrlpUon Qty.

P PlasticHandle Bracket........................................... 1

Q LeftLeg.................................................................. 1

R RightLeg ............................ :.................................. 1

S Tote........................................................................ 1

T Metal Handle.......................................................... 1

U 3" Caster ................................................................ 2

Key Description Qty.

V 10"Wheel .............................................................. 2

W Caster Feet.................... ,....................................... 2

X Cradle, Right.......................................................... 1

Y Cradle, Left............................................................ 1

Z Axle........................................................................ 1

Bag Of LooseParts - Containingthe following:

L Ring,Retaining 1/2 ................................................ 2

M Screw,Type AB#10 x 3/4 ...................................... 4"(]===,

Phillips Screwdriver Pliers

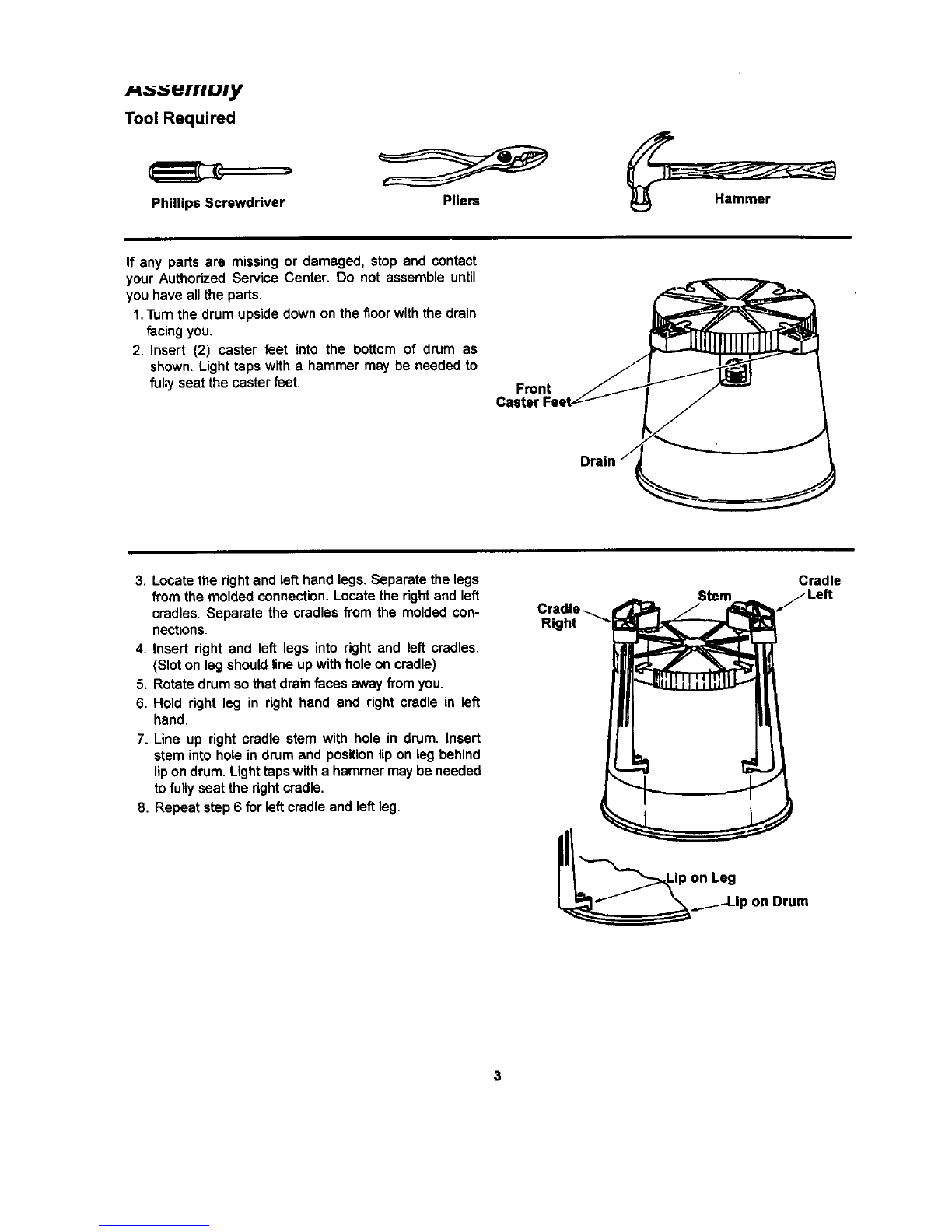

If any parts are missingor damaged, stop and contact

your Authorized Service Center, Do not assemble until

you have all the parts.

1.Turnthe drumupside downon the floorwiththe drain

facing you.

2. Insert (2) caster feet into the bottom of drum as

shown. Lighttaps with a hammer may be needed to

fullyseat the casterfeet. Front

Caster

3. Locate the rightand lefthand legs.Separate the legs

from the molded connection.Locate the rightand left

cradles. Separate the cradles from the moldedcon-

nections.

4. Insert right and left legs into right and left cradles.

(Slot on legshouldlineup with holeon cradle)

5. Rotate drumso thatdrain faces away from you.

6. Hold right leg in right hand and right cradle in left

hand.

7. Line up right cradle stem with hole in drum. insert

stem intohole in drum and positionlip on leg behind

lipon drum. Lighttapswith a hammer maybe needed

to fully seat the rightcradle.

8. Repeat step6 for leftcradleand leftleg.

Stem

Cradle ._

Right _"

Cradle

S Left

on Drum

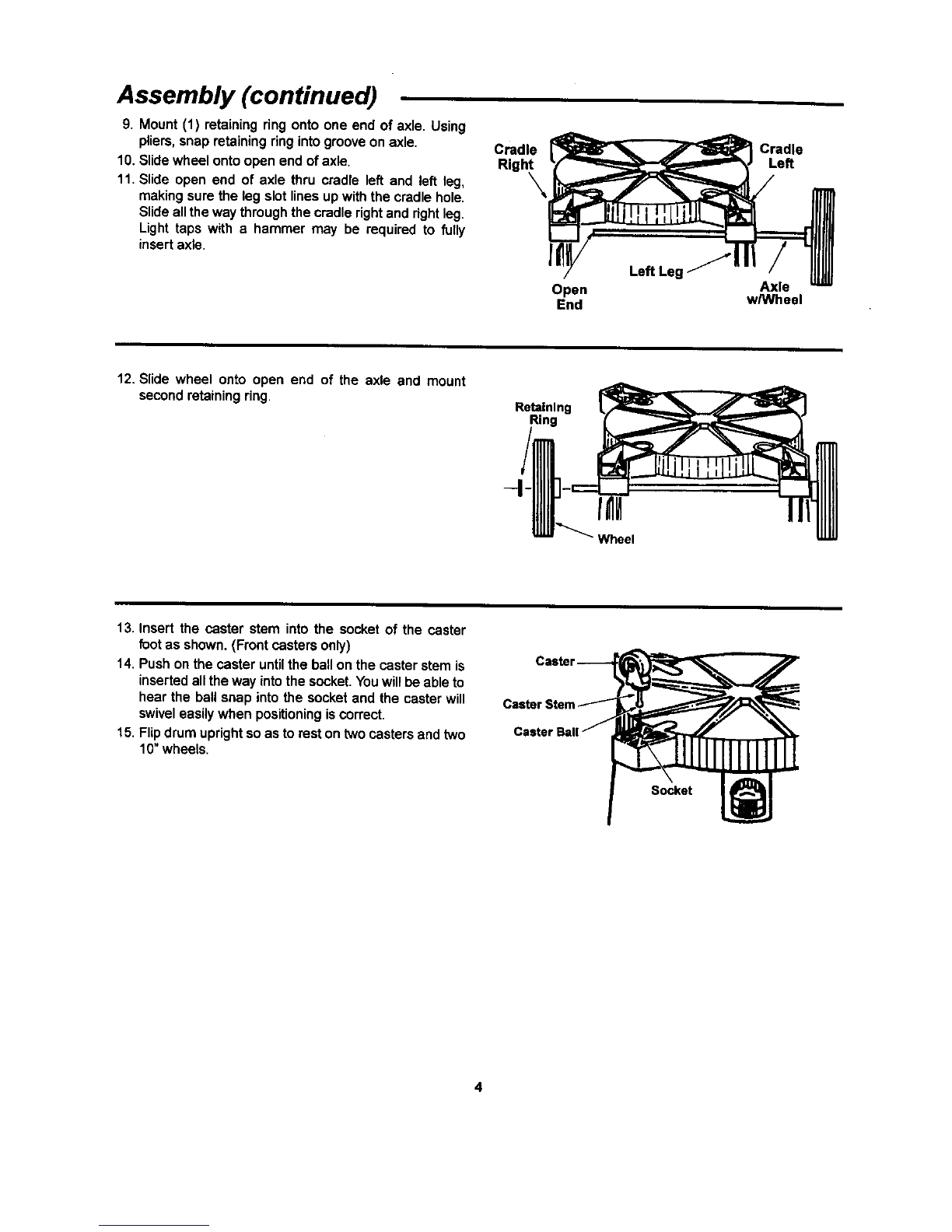

Assembly (continued)

9. Mount (1) retaining ring onto one end of axle. Using

pliers,snap retainingring intogrooveon axle.

10. Slidewheel ontoopen end of axle.

11. Slide open end of axle thru cradle left and left leg,

makingsure the leg slot linesup withthe cradlehole.

Slidealltheway throughthecradle rightand rightleg.

Light taps with a hammer may be required to fully

insertaxle.

Cradle

Righ_

Cradle

Left

Open

End

Left Leg ..j_i Axle

w/Wheel

12. Slide wheel onto open end of the axle and mount

secondretainingring. Retaining

Ung

•Wheel

13. Insert the caster stem intothe socket of the caster

footas shown. (Frontcastersonly)

14. Push on the casteruntilthe ballon the caster stem is

insertedallthe way intothe socket.Youwillbe ableto

hear the ballsnap intothe socketand the casterwill

swiveleasilywhen positioningiscorrect.

15. Flipdrumuprightsoas to reston twocasters and two

10"wheels.

Socket

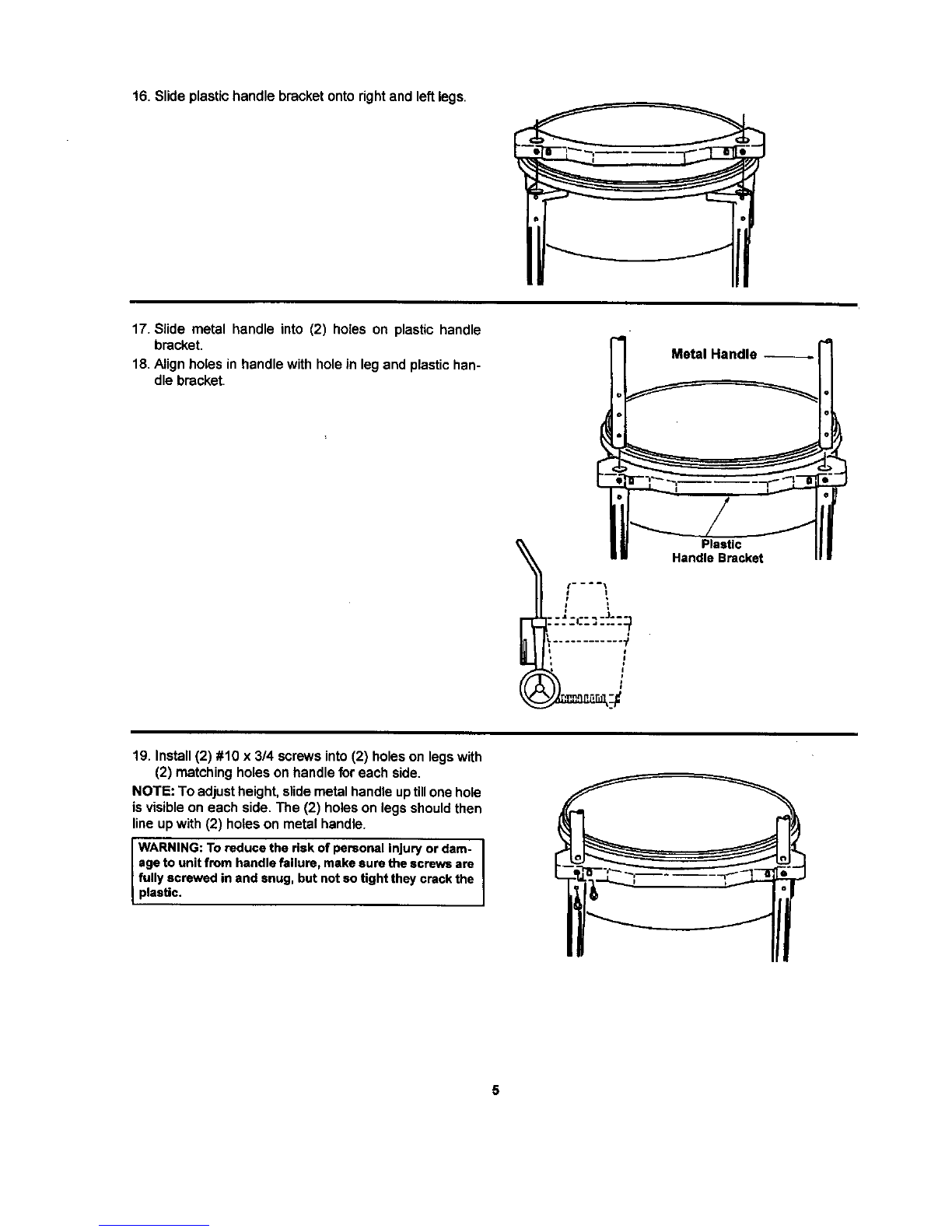

16.Slide plastichandle bracket ontoright and left legs.

17. Slide metal handle into (2) holes on plastic handle

bracket.

18.Align holesin handlewith holein legand plastichan-

dle bracket.

m h

Metal Handle

Plastic

Handle Bracket

19. Install (2) #10 x 314 screws into (2) holes on legs with

(2) matching holes on handle for each side.

NOTE: To adjust height, slide metal handle up till one hole

is visible on each side. The (2) holes on legs should then

line up with (2) holes on metal handle.

WARNING: To reduce the risk of personal Injury or dam-

age to unit from handle failure, make sure the SCIONSare

fully screwed in and snug, but not so tight they crack the

p astic.

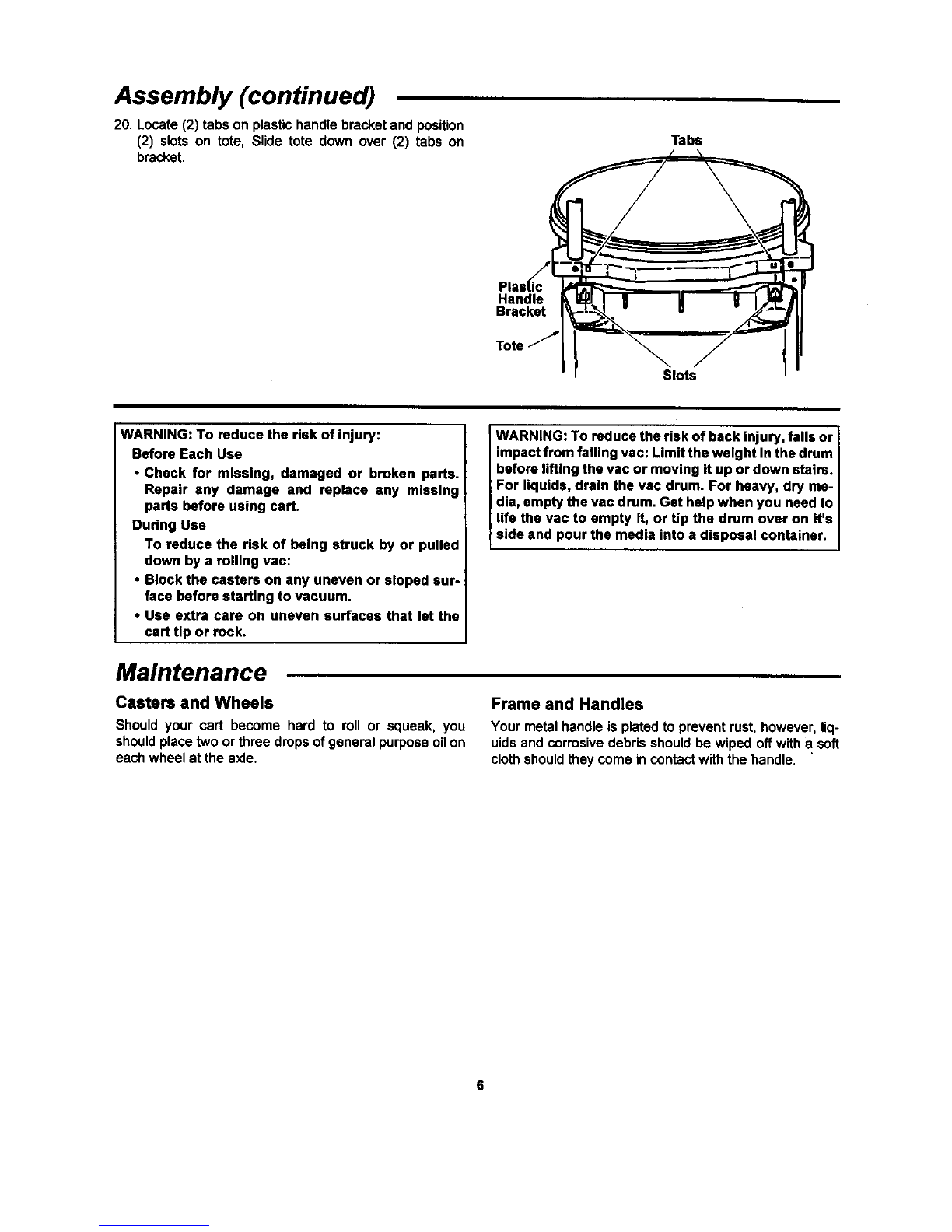

Assembly (continued)

20. Locate(2) tabson plastichandlebracketand position

(2) slots on tote, Slide tote down over (2) tabs on

bracket. Tabs

Handle

Bracket

ToteJ

Slots

WARNING: To reduce the risk of injury:

Before Each Use

• Check for missing, damaged or broken pads.

Repair any damage and replace any missing

parts before using cart.

During Use

To reduce the risk of being struck by or pulled

down by a rolling vac:

•Block the casters on any uneven or sloped sur-

face before starting to vacuum.

• Use extra care on uneven surfaces that let the

cart tip or rock.

WARNING: To reduce the risk of back injury, falls or

impact from falling vac: Limit the weight in the drum

before lifting the vac or moving it up or down stairs.

For liquids, drain the vac drum. For heavy, dry me-

dia, empty the vac drum. Get help when you need to

life the vac to empty It, or tip the drum over on it's

side and pour the media into a disposal container.

Maintenance

Casters and Wheels

Should your cart become hard to roll or squeak, you

shouldplace twoor three drops ofgeneral purposeoilon

each wheel at the axle.

Frame and Handles

Your metal handle isplatedto prevent rust,however, liq-

uidsand corrosivedebris shouldbe wiped offwitha soft

clothshouldtheycome in contactwith the handle.

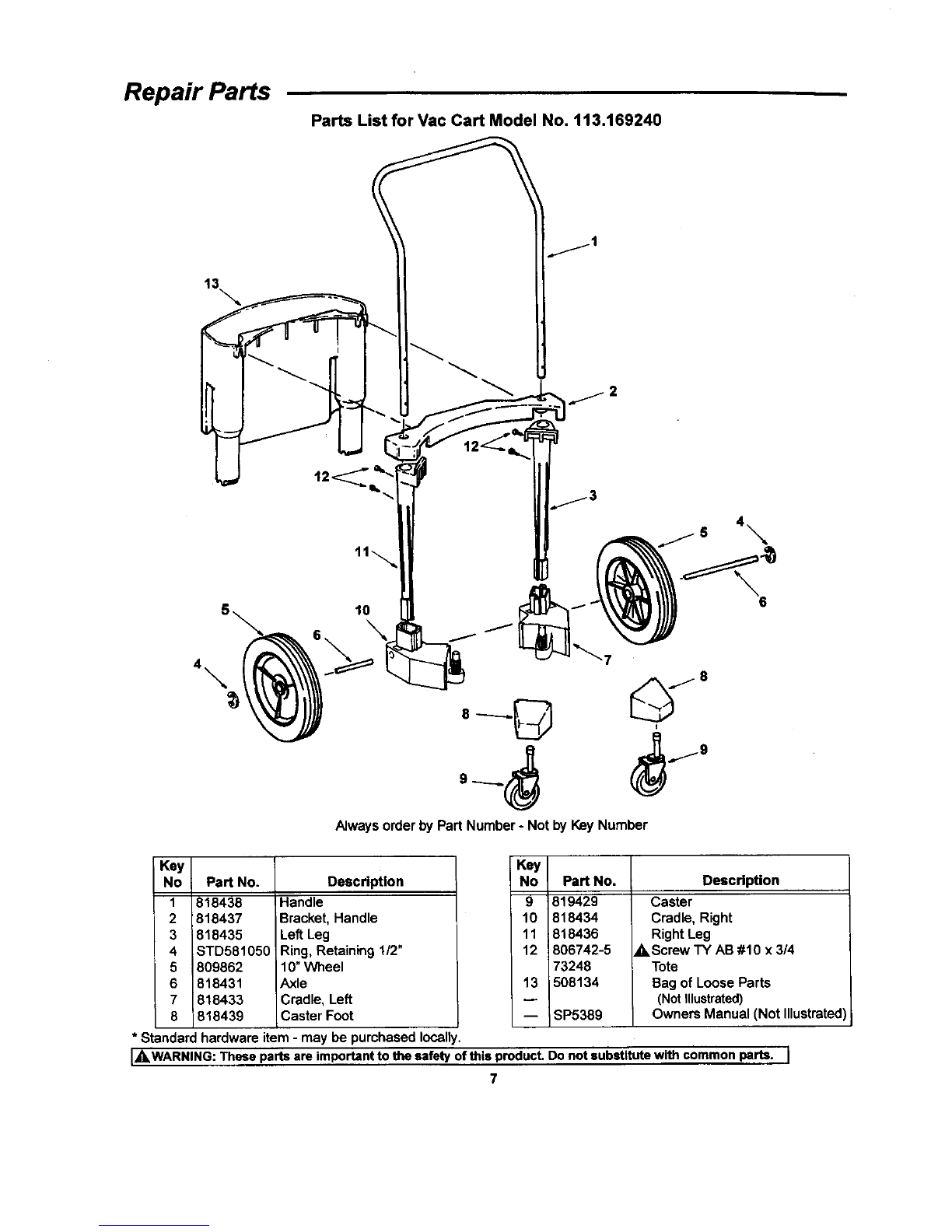

Repair Parts Parts List for Vac Cart Model No. 113.169240

13\

10 i j

Alwaysorder byPart Number- Not byKeyNumber

Kay

Part No. Description

818438 Handle

818437 Bracket,Handle

818435 LeftLeg

STD581050 Ring,Retaining 112"

809862 10"Wheel

818431 Axle

818433 Cradle, Left

818439 Caster Foot

Key

Pa_ No.

819429

818434

818436

806742-5

73248

508134

SP5389

Descrtption

Caster

Cradle, Right

Right Leg

,_LScrewTY AB #10 x 3/4

Tote

Bag of LooseParts

(NotIllustrated)

Owners Manual (Not Illustrated)

* Standard hardware item - may be purchased locally,

I_,WARNING: These parts are important to the safety of this product. Do not substitute with common parts. I

)1,

#.- _#r

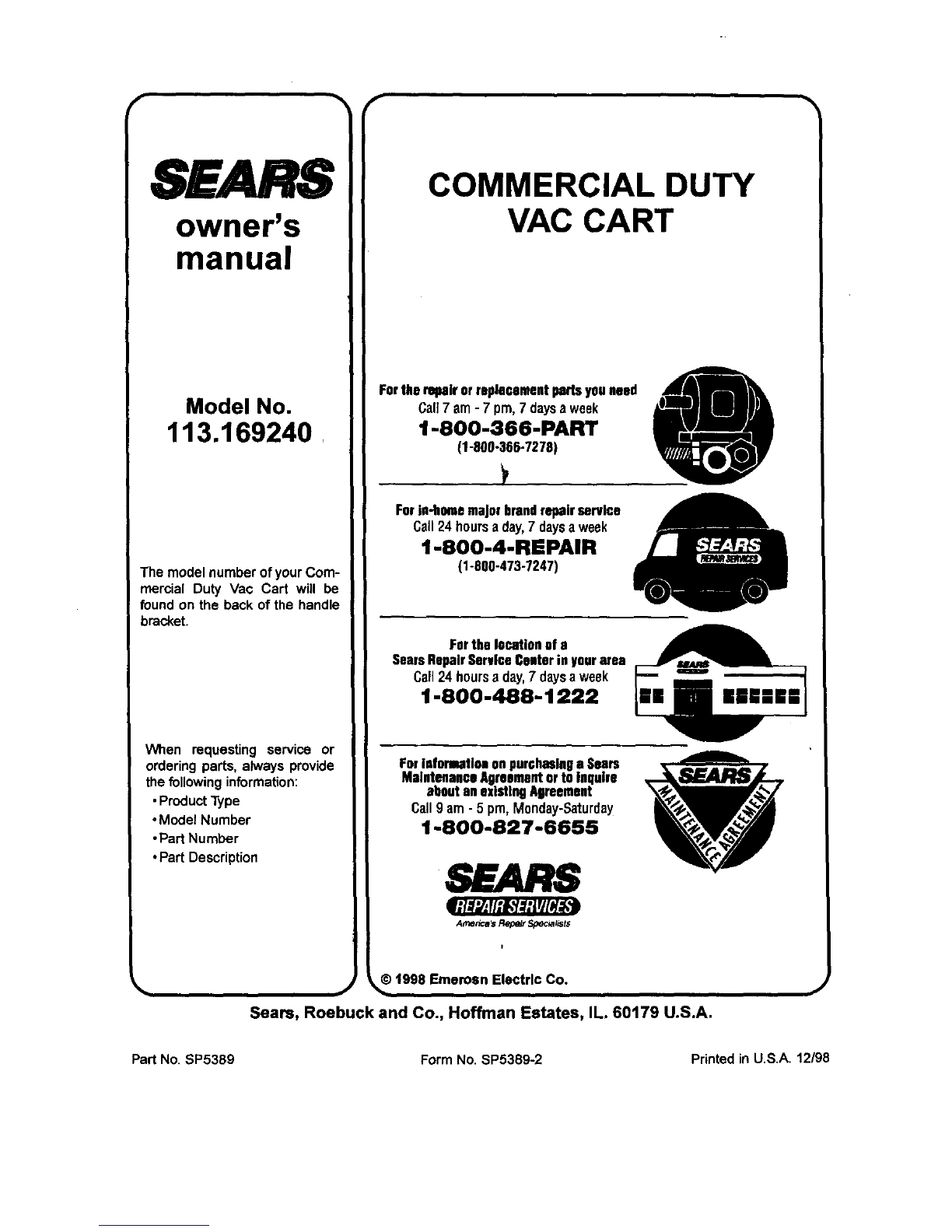

SEARS

owner's

manual

Model No.

113.169240,

The modelnumber of yourCom-

mercial Duty Vac Cart will be

found on the back of the handle

bracket.

When requesting service or

orderingparts, always provide

thefollowing information:

•ProductType

• Model Number

•Part Number

•Part Description

COMMERCIAL DUTY

VAC CART

Fortke repairorreplecementparisyouneed

(;all7 am-7pm,7 daysaweek

1-800-366-PAITT

(1-800-360-7278)

Forin-homemajorbrandrepairservice

Call24 hoursa day,7daysa week

1-800-4-REPAIR

(1-800-473-7247)

Forthe locationofa

SearsRepairServiceCenterin yourarea

Call24 hoursaday,7 daysa week

1-800-488-1222

Forinfornmtlononpurchasinga Sears

MaintenanceAgreementor toinquire

aboutanexistingAgreement

Call9 am - 5 pro,Monday-Saturday

1-800-827-6655

SEARS

_t998 Emerosn Electric Co.

Seam, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.

Part No. SP5389 Form No. SP5389-2 Printed in U.S.A. 12/98
