SEARS KENMORE CANISTER

VACUUM CLEANER

MODEL: 721.26082B

FOREWORD [_oo_.,_,_°°_.]

BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS" IN

THIS MANUAL.

MODEL 721.26082B

MECHANICAL SERVICE INFORMATION

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ................................................................................ 3

2. CAUTIONS ....................................................................................................... 3

3. DESCRIPTION/SPECIFICATIONS .................................................................. 4

4. DISASSEMBLY ............................................................................................. 5-7

5. TROUBLE SHOOTING ............................................................................... 8-10

6, BLOCK DIAGRAM/SCHEMATIC DIAGRAM/CIRCUIT DIAGRAM ................ 11

7. EXPLODED VIEW/REPLACEMENT PARTS LIST ................................... 12-16

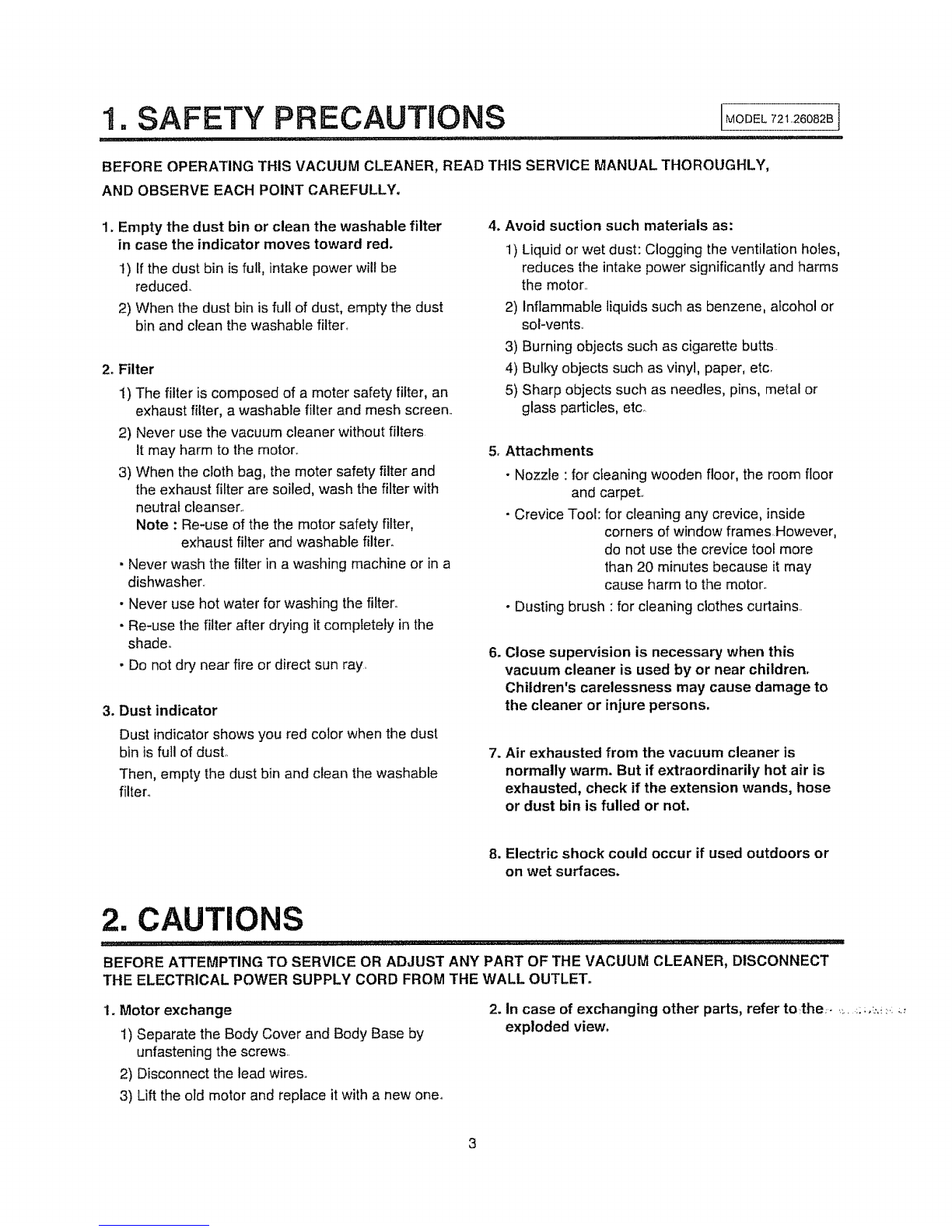

1. SAFETY PRECAUTIONS

t i i i.i i_11,1,1,_

I MODEL 721 ,,26082B I

BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY,

AND OBSERVE EACH POINT CAREFULLY.

1. Empty the dust bin or clean the washable filter

in case the indicator moves toward red.

1) If the dust bin is full, intake power will be

reduced.

2) When the dust bin is full of dust, empty the dust

bin and clean the washable filter.

2. Filter

i) The filter is composed of a moter safety filter, an

exhaust filter, a washable filter and mesh screen..

2) Never use the vacuum cleaner without filters

It may harm to the motor,

3) When the cloth bag, the moter safety filter and

the exhaust filter are soiled, wash the filter with

neutral cleanser..

Note : Re-use of the the motor safety filter,

exhaust filter and washable filten

• Never wash the filter in a washing machine or in a

dishwasher.

• Never use hot water for washing the filter.

• Re-use the filter after drying it completely in the

shade.

• Do not dry near fire or direct sun ray,

3. Dust indicator

Dust indicator shows you red color when the dust

bin is full of dust..

Then, empty the dust bin and clean the washable

filter..

4. Avoid suction such materials as:

1) Liquid or wet dust: Clogging the ventilation holes,

reduces the intake power significantly and harms

the motor..

2) Inflammable liquids such as benzene, alcohol or

sol-vents.

3) Burning objects such as cigarette butts

4) Bulky objects such as vinyl, paper, etc.

5) Sharp objects such as needles, pins, metal or

glass particles, etc.

5. Attachments

• Nozzle : for cleaning wooden floor, the room floor

and carpet,.

, Crevice Tool: for cleaning any crevice, inside

corners of window flames,However,

do not use the crevice tool more

than 20 minutes because it may

cause harm to the motor..

- Dusting brush : for cleaning clothes curtains,,

6. Close supervision is necessary when this

vacuum cleaner is used by or near children,

Children's carelessness may cause damage to

the cleaner or injure persons.

7• Air exhausted from the vacuum cleaner is

normally warm. But if extraordinarily hot air is

exhausted, check if the extension wands, hose

or dust bin is fulled or not.

8. Electric shock could occur if used outdoors or

on wet surfaces•

2. CAUTIONS

BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE VACUUM CLEANER, DISCONNECT

THE ELECTRICAL POWER SUPPLY CORD FROM THE WALL OUTLET.

1. Motor exchange

1) Separate the Body Cover and Body Base by

unfastening the screws.

2) Disconnect the lead wires.,

3) Lift the old motor and replace it with a new one°

2. In case of exchanging other parts, refer to the_ ........_,_.,,:.....

exploded view.

3. DESCRIPTION/SPECIFICATIONS

I ,, ii i1,1iii1,,,M'I'"' ,1"'

IMODEL 72! 26082B

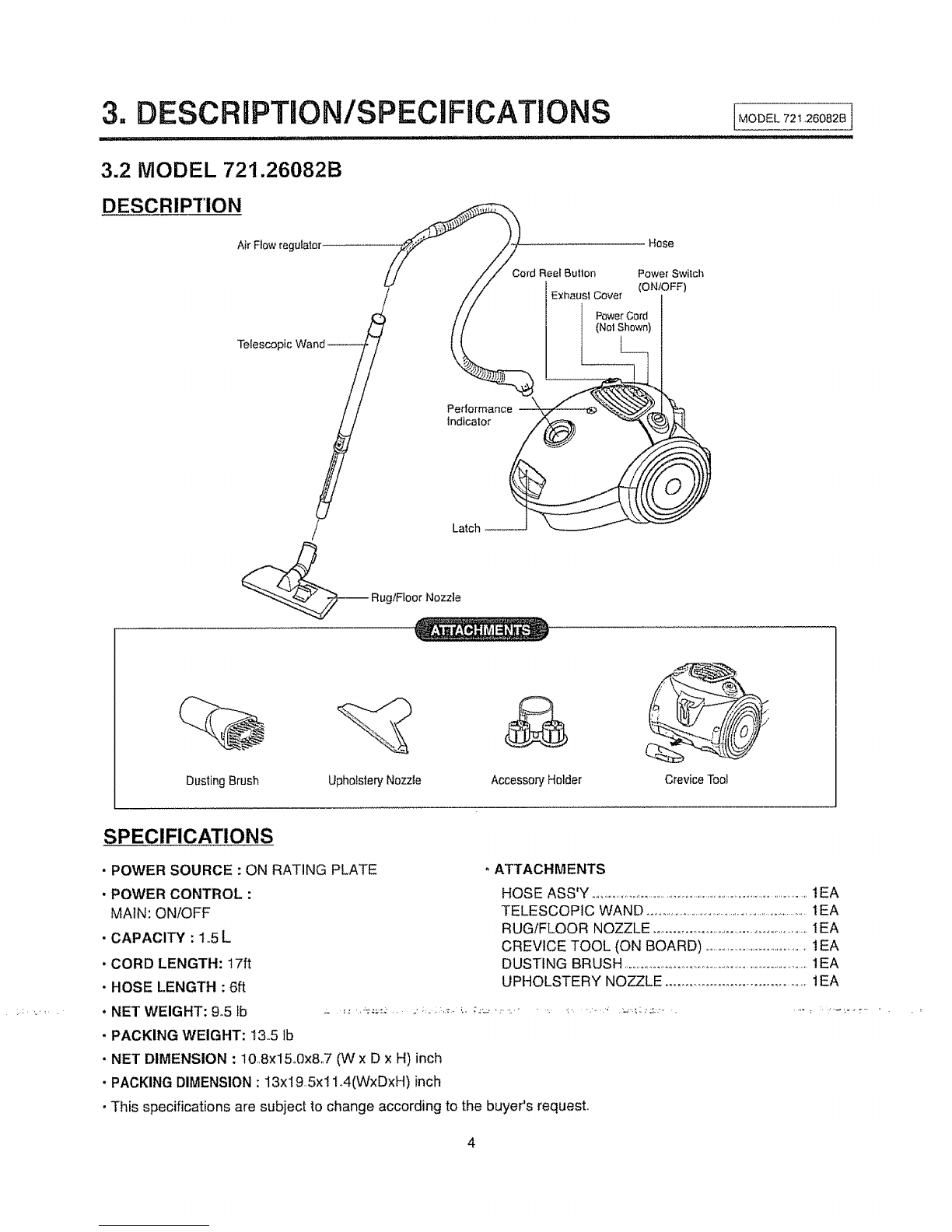

3.2 MODEL 721.26082B

DESCRIPTION

AirFlow

TelescopicWa

Performance

Indicator

Latch

Hose

Cord Reel Button Power Switch

(ON/OFF)

Exhausl Cover

Power Cord

(Nol Shown)

Dusting Brush UpholsteryNozzle AccessoryHolder CreviceTool

SPECIFICATIONS

POWER SOURCE : ON RATING PLATE

POWER CONTROL :

MAIN: ON/OFF

CAPACITY : 1.,5L

CORD LENGTH: 17ft

HOSE LENGTH : 6ft

- ATTACHMENTS

HOSE ASS'Y .............................................................................................! EA

TELESCOPIC WAND .......................................................................lEA

RUG/FLOOR NOZZLE ......................................................1EA

CREVICE TOOL (ON BOARD) ...............................................1EA

DUSTING BRUSH .......................................................................1EA

UPHOLSTERY NOZZLE ....................................... 1EA

NET WEIGHT: &5 lb .... _ : /,_,,_t -¸-¸

PACKING WEIGHT: I3..5 Ib

NET DIMENSION : 10,,8x15o0x8,,7 (W x D x H) inch

PACKING DIMENSION : 13x19,5x11.4(WxDxH)inch

• This specifications are subject to change according to the buyer's request,,

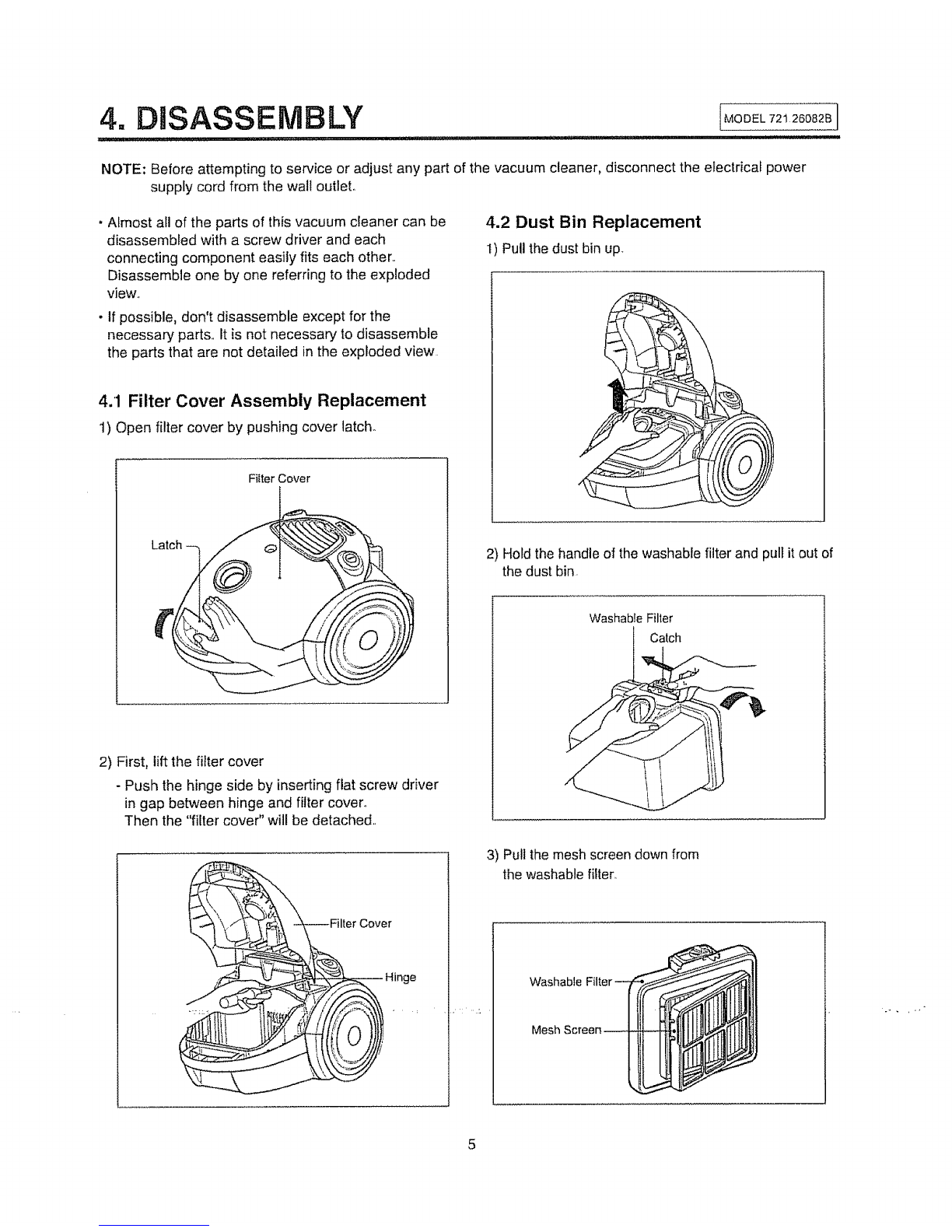

4. DISASSEMBLY

..................................... i. .i..................._,

NOTE: Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power

supply cord from the wall outlet,

• Almost all of the parts of this vacuum cleaner can be

disassembled with a screw driver and each

connecting component easily fits each other.

Disassemble one by one referring to the exploded

view.,

• If possible, don't disassemble except for the

necessary parts. It is not necessary to disassemble

the parts that are not detailed in the exploded view

4.2 Dust Bin Replacement

t) Pull the dust bin up,

4.1 Filter Cover Assembly Replacement

1) Open filter cover by pushing cover latch_

Filter Cover

Latch

2) First, liftthe filter cover

- Push the hinge side by inserting flat screw driver

in gap between hinge and filter cover,.

Then the "filter cover" will be detached,.

2) Holdthe handle of the washable filter and pull itout of

the dust bin

Washable Filter

Catch

3) Pull the mesh screen down from

the washable filter,

Washable

Mesh

MODEL72 26002 ]

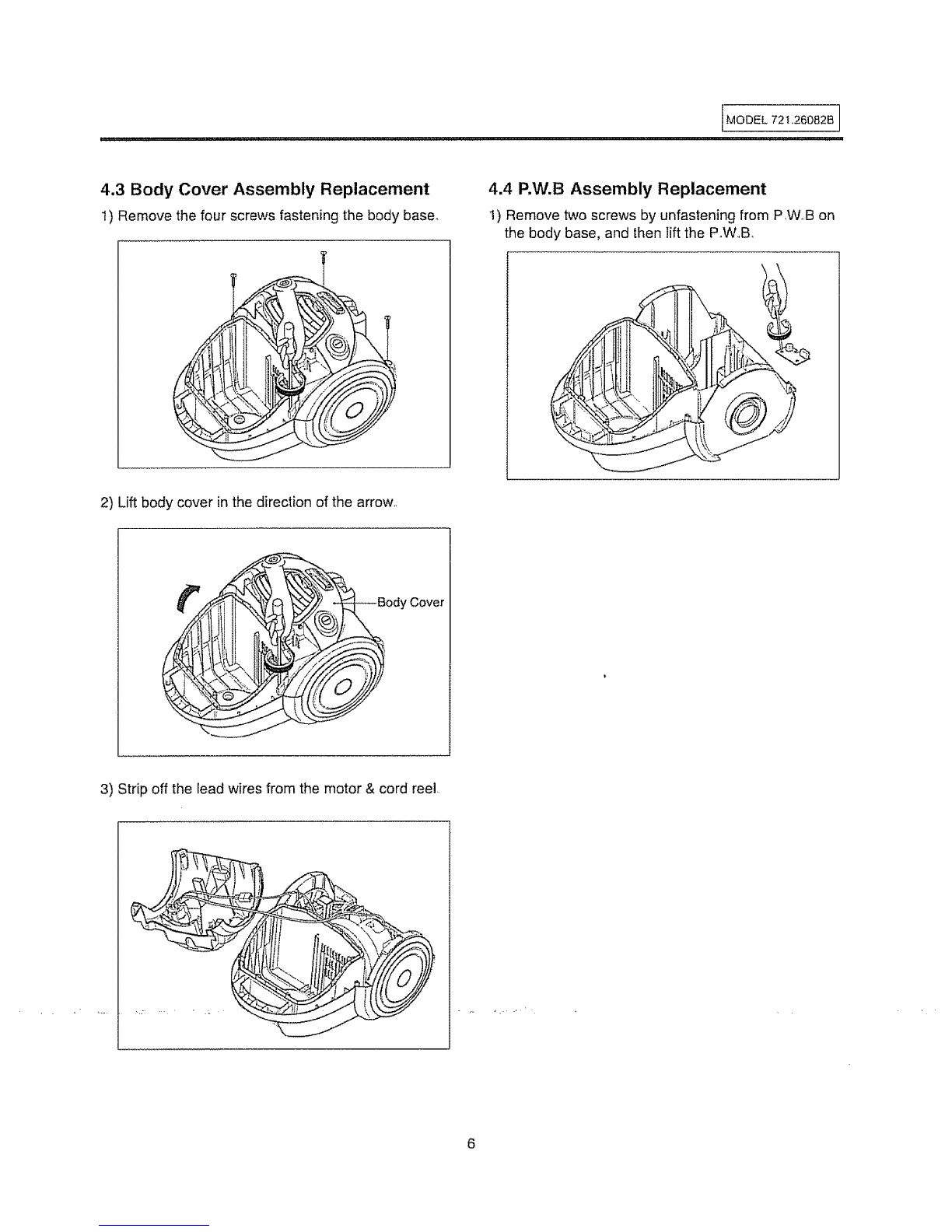

4.3 Body Cover Assembly Replacement

I) Remove the four screws fastening the body baser

2) Lift body cover inthe direction of the arrow,

4.4 P.W.B Assembly Replacement

t) Remove two screws by unfastening from P,W.B on

the body base, and then lift the P,,W,,B_

3) Strip off the lead wiresfrom the motor & cord reel.

MODEL 721 26082B

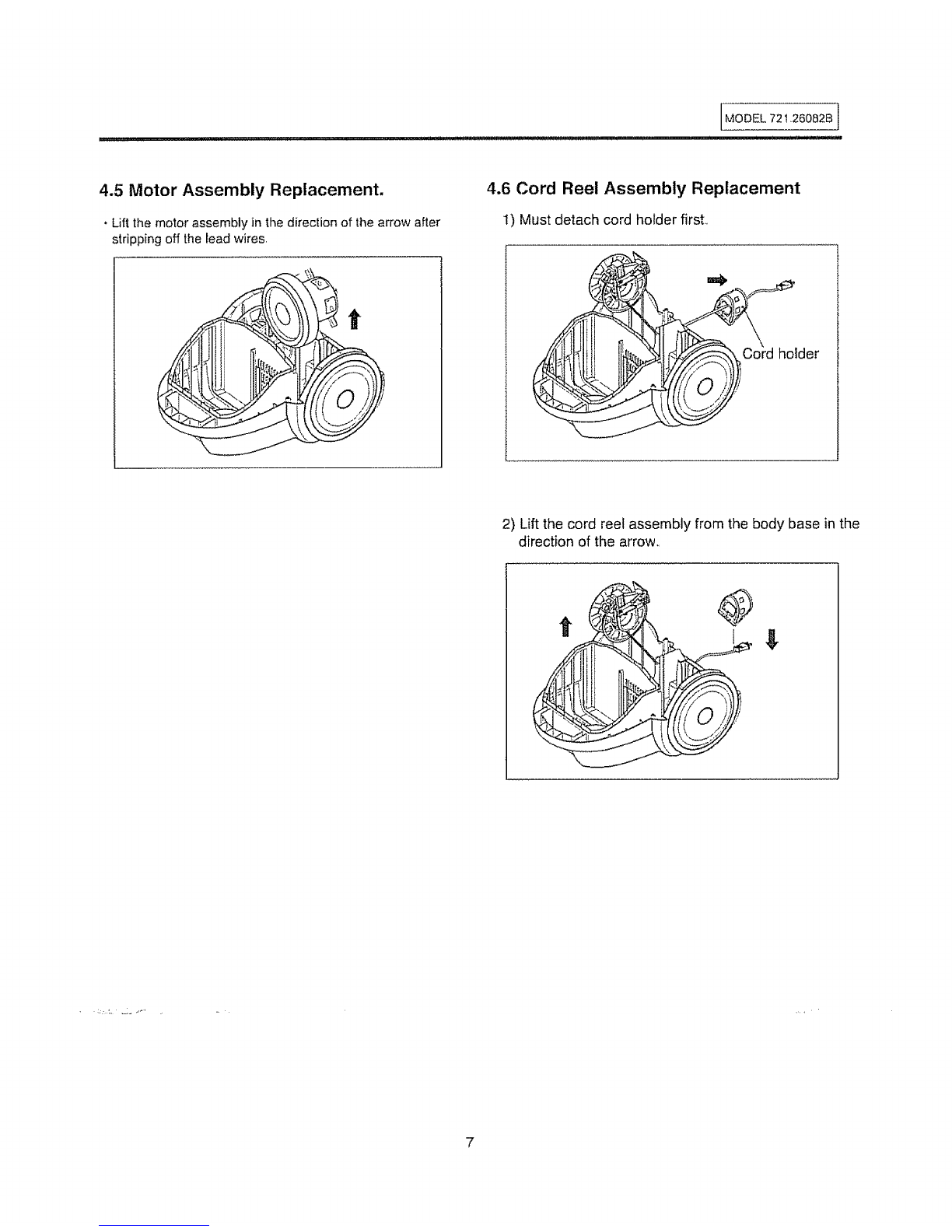

4.5 Motor Assembly Replacement.

*Lift the motor assembly in the direction of the arrow after

stripping off the lead wires.

4.6 Cord Reel Assembly Replacement

t) Must detach cord holder first,,

holder

2) Lift the cord reel assembly from the body base in the

direction of the arrow,,

5. TROUBLE SHOOTING

IIr)I_IIIII'11

IMODEL 72I 26082B ]

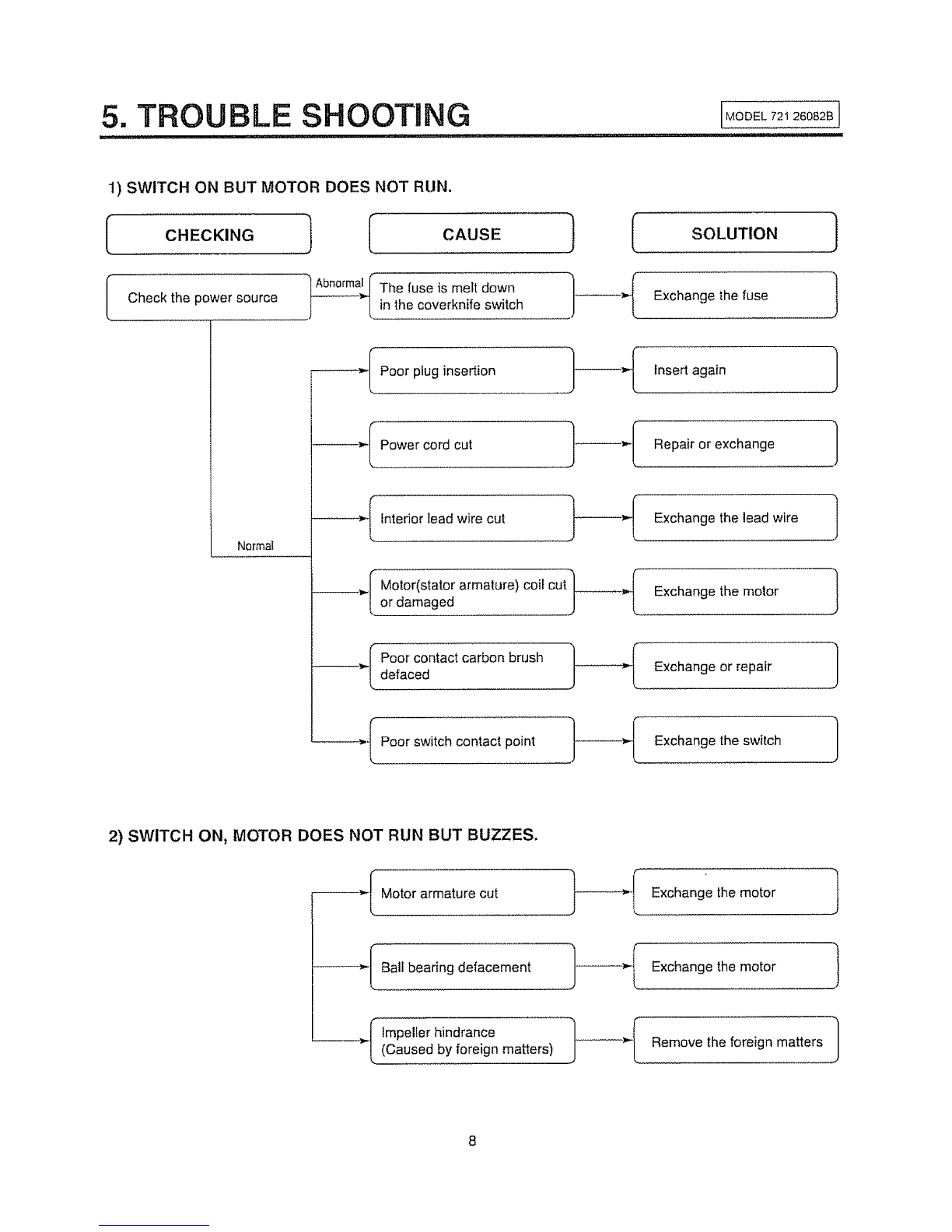

1) SWITCH ON BUT MOTOR DOES NOT RUN.

[CHECKING

Check the power source

CAUSE

The fuse is melt down

in the coverknife switch

Poor plug insertion

Power cord cut

NormaI

Interior Iead wire cut

Motor(stator armature) coil cut

or damaged

Poor contact carbon brush

defaced

_"I Poor switch contact point

--_D" f

SOLUTION

Exchange the fuse

Insert again

Repair or exchange

Exchange the lead wire

Exchange the motor

Exchange or repair

Exchange the switch

]

2) SWITCH ON, MOTOR DOES NOT RUN BUT BUZZES.

_-.! Motor armature cut

LExchange the motor

_-----_I Ball bearing defacement ---_{ Exchange the motor )

!'m°°''°rh'n°ranceF-< 1

(Caused by foreign matters) Remove the foreign matters

t MODEL 721 26082B ]

3) SWITCH OFF BUT MOTOR RUNS,

_ilPoorconnection

_ Poor switch

Repair

Exchange the switch

]

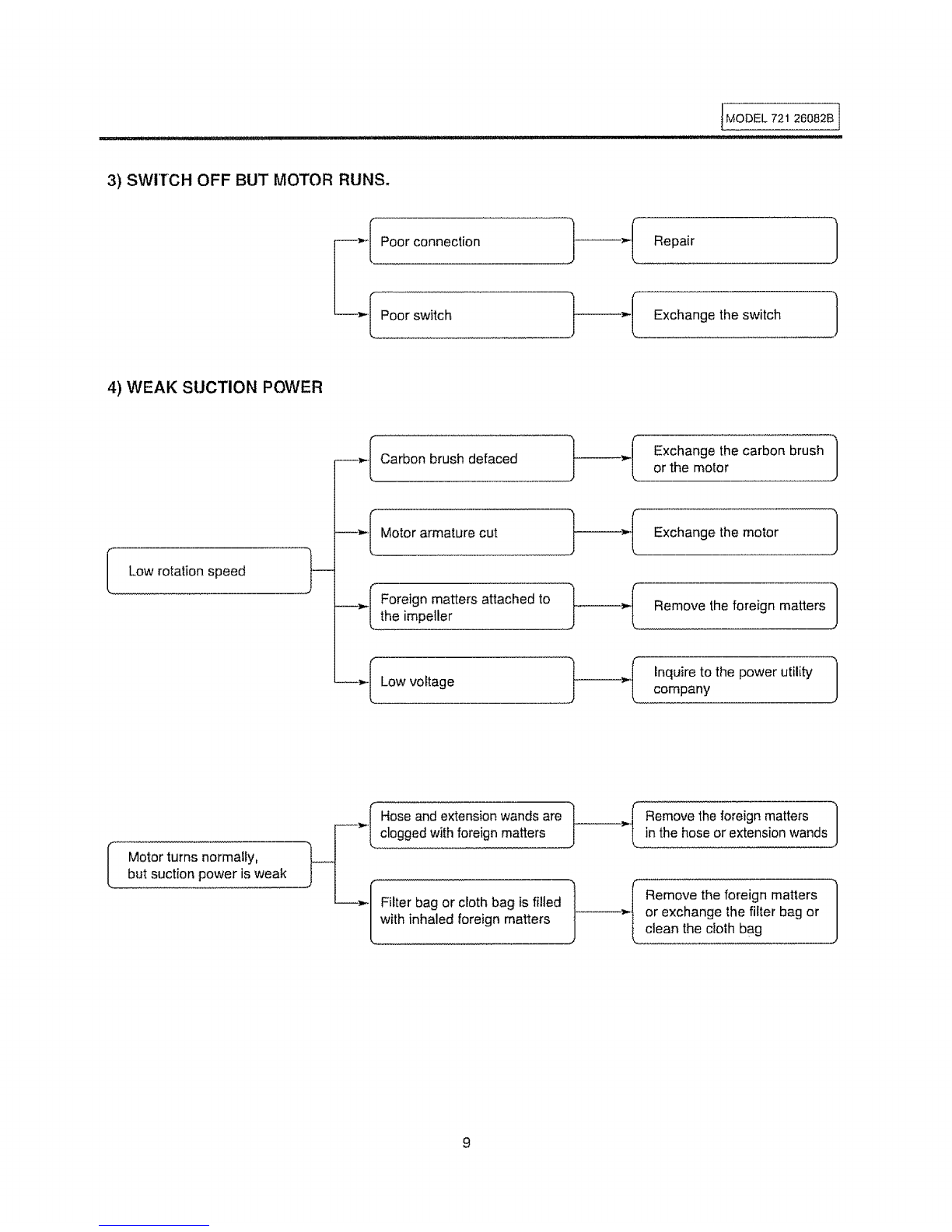

4) WEAK SUCTION POWER

---_! Carbon brush defaced ---_/ Exchange the carbon brush ]or the motor

Low rotation speed

--_'-'[ Motor armature cut

_r Foreign matters attached to

Lthe impeller

Exchange the motor ]

Remove the foreign matters ]

--_"I Low voltage _'( companylnquiret°thep°werutility ]

[Motor turns normally,

but suction power is weak

Hose and extension wands are

clogged with foreign matters

Filter bag or cloth bag is filled

with inhaled foreign matters

Remove the foreign matters |

in the hose or extension wands .J

Remove the foreign matters

or exchange the filter bag or

clean the cloth bag

MODEL72126082B j

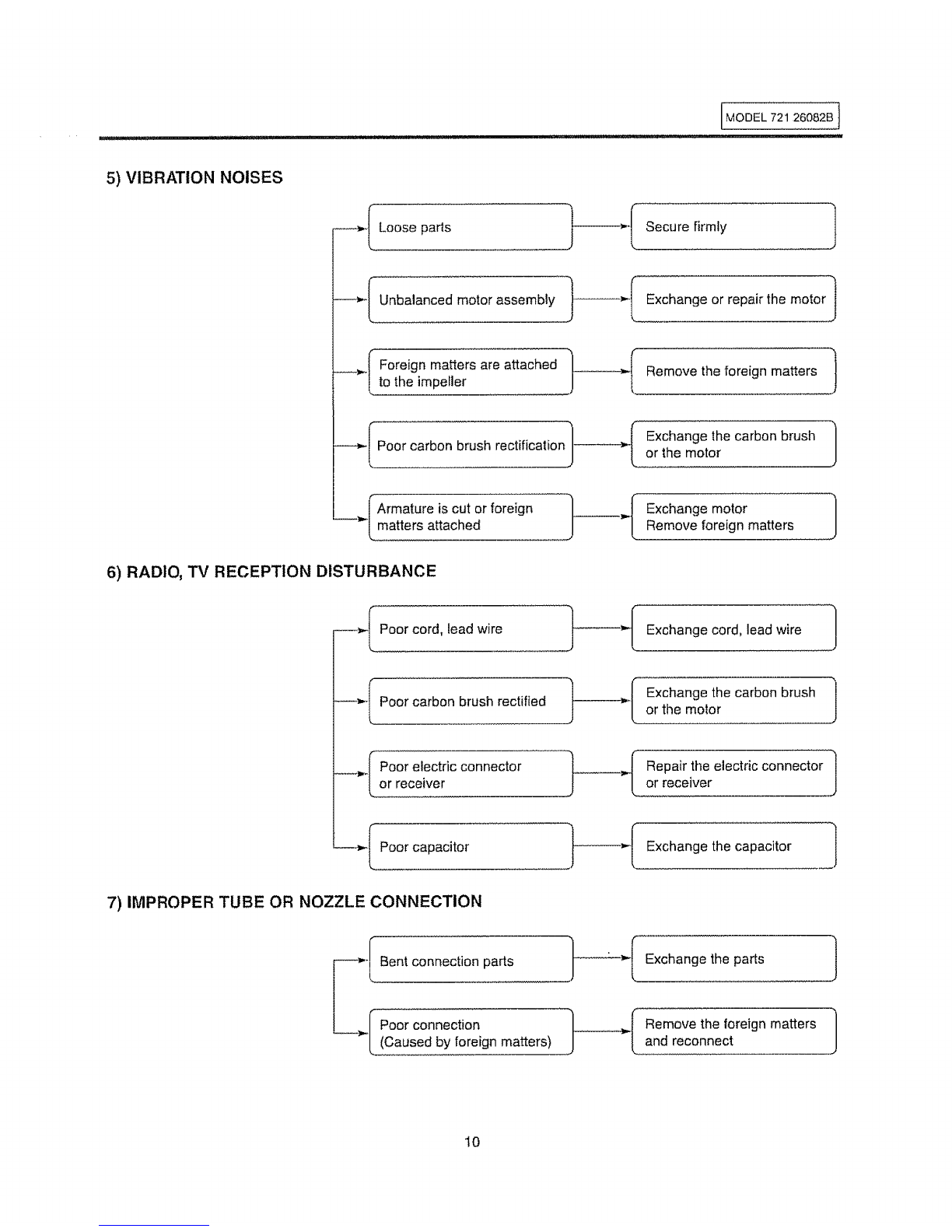

5) VIBRATION NOISES

-I

Loose pads

Unbalanced motor assembly

Foreign matters are attached

to the impeller

Poor carbon brush rectification

Armature is cut or foreign

matters attached

6) RADIO, TV RECEPTION DISTURBANCE

--h I Poor cord, lead wire

--_'I Poor carbon brush rectified

__,,.I Poor electric connector

[or receiver

--h I Poor capacitor

7) IMPROPER TUBE OR NOZZLE CONNECTION

[---_'[I Bent connection parts

Poor connection

(Caused by foreign matters)

Secure firmly 1

Exchange or repair the motor 1

Remove the foreign matters 1

Exchange the carbon brush 1

or the motor J

Exchange motor 1

Remove foreign matters

Exchange cord, lead wire J

Exchange the carbon brush 1

or the motor J

Repair the electric connector 1

or receiver J

Exchange the capacitor 1

Exchangethe parts

Removetheforeign matters

and reconnect
