TECHNICAL SPECIFICATIONS

Voltage: 120V.

Watts: 1200W

Amps: 10A

Hertz: 60Hz

UV420_26_IB_E_120306_2.indd 2 12-03-06 9:53 AM

www.sharkclean.com

Contents

Important Safety Instructions 2

Getting Started 4

Using the Vacuum 6

Cleaning with the Vacuum Accessories 7

Emptying the Dust Cup Assembly 8

Proper Care of Your Vacuum 9

Troubleshooting 10

Checking for Blockages 11

Maintenance 12

Warranty and Registration 13

Thank you for

purchasing

the Shark®

Navigator™

Professional.

UV420_26_IB_E_120306_2.indd 1 12-03-06 9:53 AM

TOLL FREE: 1-800-798-7398

WARNING:

TO REDUCE THE RISK OF ELECTRIC

SHOCK OR INJURY DO NOT USE

OUTDOORS OR ON WET SURFACES.

WHEN USING YOUR SHARK®

NAVIGATOR™PROFESSIONAL VACUUM,

BASIC SAFETY PRECAUTIONS SHOULD

ALWAYS BE FOLLOWED, INCLUDING THE

FOLLOWING:

READ ALL INSTRUCTIONS BEFORE

USING YOUR SHARK®NAVIGATOR™

PROFESSIONAL VACUUM.

POLARIZED PLUG:

This appliance has a polarized plug (one blade

is wider than the other). As a safety feature, this

plug will ﬁt into a polarized outlet only one way.

Do not force into the outlet or try to

modify the plug to ﬁt.

IMPORTANT SAFETY INSTRUCTIONS

For Household Use Only

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR INJURY:

GENERAL ELECTRICAL SAFETY:

1. Unplug from electrical outlet when not in use

and before servicing.

2. DO NOT use vacuum with a damaged cord

or plug. If appliance is not working as it

should, has been dropped, damaged, left

outdoors, or dropped into water, return it to

EURO-PRO Operating LLC for examination,

repair, or adjustment.

3. DO NOT pull or carry vacuum by the cord.

4. DO NOT unplug by pulling on cord; to

unplug, grasp the plug, not the cord.

5. DO NOT handle plug or appliance with

wet hands.

6. DO NOT run the vacuum over the power

cord.

7. DO NOT use the cord as a handle.

8. DO NOT close a door on the cord.

9. DO NOT pull cord around sharp corners.

The use of an extension cord is not

recommended.

10. DO NOT leave appliance when plugged in.

11. Keep cord away from heated surfaces.

12. Turn off all controls before plugging or

unplugging vacuum cleaner.

13. Always turn off this appliance before

connecting or disconnecting motorized

nozzle.

14. Store your appliance with the power cord

secured around the two cord holders-as

shown in the storage instructions.

UV420_26_IB_E_120306_2.indd 2 12-03-06 9:53 AM

www.sharkclean.com

HOSE ATTACHMENTS:

1. DO NOT use if air ﬂow is restricted; if the air

paths, the hose, or the accessories become

blocked, turn the vacuum cleaner off. Remove

all obstructions before you turn on the

unit again.

2. Keep the end of the hose and accessory

openings away from face and body.

3. Keep cleaning tools and hose suction

openings away from hair, face, ﬁngers,

uncovered feet,or loose clothing.

4. Only use manufacturer’s recommended

attachments.

GENERAL USE:

1. Use only as described in this manual.

2. DO NOT put any objects into openings. DO

NOT use with any opening blocked; keep

free of dust, lint, hair, and anything that may

reduce air ﬂow.

3. Keep your work area well lit.

4. Keep the vacuum moving over the carpet

surface at all times to avoid damaging the

carpet ﬁbers.

5. DO NOT place vacuum on unstable surfaces

such as chairs or tables.

6. DO NOT allow young children to operate

the vacuum or use as a toy. Close attention is

necessary when used by or near children.

7. DO NOT use vacuum cleaner if it has

been dropped, damaged, left outdoors, or

submerged in water. Return to EURO-PRO

Operating LLC for examination, repair, or

adjustment.

8. DO NOT use without dust cup and/or ﬁlters

in place.

DUST CUP/FILTERS/ACCESSORIES:

Before turning on the vacuum:

1. Make sure that all ﬁlters are thoroughly dry

after routine cleaning.

2. Make sure that dust cup and all ﬁlters are in

place after routine maintenance.

3. Make sure accessories are free of blockages.

4. Only use ﬁlters and accessories provided by

EURO-PRO Operating LLC. [Failure to do so

will void the warranty.]

GENERAL CLEANING:

1. DO NOT pick up large-sized objects.

2. DO NOT pick up hard or sharp objects such

as glass, nails, screws or coins that could

damage the vacuum cleaner.

3. DO NOT pick up smoking or burning objects

such as hot coals, cigarette butts, or matches.

4. DO NOT pick up ﬂammable or combustible

materials such as lighter ﬂuid, gasoline, or

kerosene or use vacuum in areas where they

may be present.

5. DO NOT pick up toxic solutions such as

chlorine bleach, ammonia, or drain cleaner.

6. DO NOT use in an enclosed space where

vapors are present from paint, paint thinner,

moth-prooﬁng substances, ﬂammable dust or

other explosive or toxic materials.

7. DO NOT vacuum up any liquids.

8. DO NOT immerse vacuum cleaner in water

or other liquids.

9. DO NOT use outdoors or on wet surfaces;

use only on dry surfaces.

10. Use extra care when cleaning on stairs.

SAVE THESE

INSTRUCTIONS

UV420_26_IB_E_120306_2.indd 3 12-03-06 9:53 AM

TOLL FREE: 1-800-798-7398

WHAT’S IN THE BOX YOU JUST

OPENED:

AVacuum Body

BFloor Power Nozzle

CHandle Assembly

DSuper Stretch Hose

ECleaning Wand with Handle

FCleaning Wand

GPet Hair Power Brush

HCleaning Attachments

I16” Crevice Tool*

Getting Started

Your Shark®Navigator™

Professional is easy to

assemble:

1Lay your vacuum body on a

level surface.

2Slide the electrical connection

from the power nozzle into the

main body to click into place.

3Connect the hose from the main

body to the power nozzle; push

with a slight turning motion to

create a snug ﬁt.

4Slide the handle assembly

into the upright unit aligning

the hose hook on the handle

assembly with the power cord

hooks on the back of the unit.

5Secure the handle assembly in

place with included nut/bolt

(shipped attached to handle

assembly).

6Place the vacuum in the upright

position.

7Insert the Cleaning Wand with

the Handle into the center post

on the tool caddy. Insert the

16" Crevice Tool onto the post

in front.

8Store the Crevice Tool, Dusting

Brush on the back of the unit.

Store the Cleaning Wand onto

the back post of the tool caddy.

UV420_26_IB_E_120306_2.indd 4 12-03-06 9:53 AM

www.sharkclean.com

11 To carry the vacuum:

With the unit in the standing

position, lift by the Dust Cup

Assembly Handle (carry handle).

CAUTION: When lifting or

carrying, DO NOT press Dust

Cup Assembly release button.

9Attach the Super Stretch Hose:

a) Snap hose into swivel

connector

b) Route under anti-tip hook

to prevent vacuum from

tipping

c) Route over upper hose

holder

d) Press securely onto cleaning

wand with handle

IMPORTANT:

Insert the hose into the wand

with the handle. This completes

the air path and enables suction

to reach the Floor Power

Nozzle.

10 To store the vacuum:

When storing your vacuum,

wind the cord around the two

cord holders and secure with

cord clip:

 •QuickCordreleaseatthe

top of the unit – place in the

upright position.

 •Cordholdernearthebase–

turn it until it is pointing down.

 Toreleasethecord,turntheQuick

Cord release to the left or right.

Store the Pet Hair Power Brush,

in the accessory bag when not

in use.

c10

UV420_26_IB_E_120306_2.indd 5 12-03-06 9:53 AM

TOLL FREE: 1-800-798-7398

Using the Vacuum

Your Shark®Navigator™

Professional Vacuum can be used to

clean bare ﬂoors or carpets – with the

click of a switch.

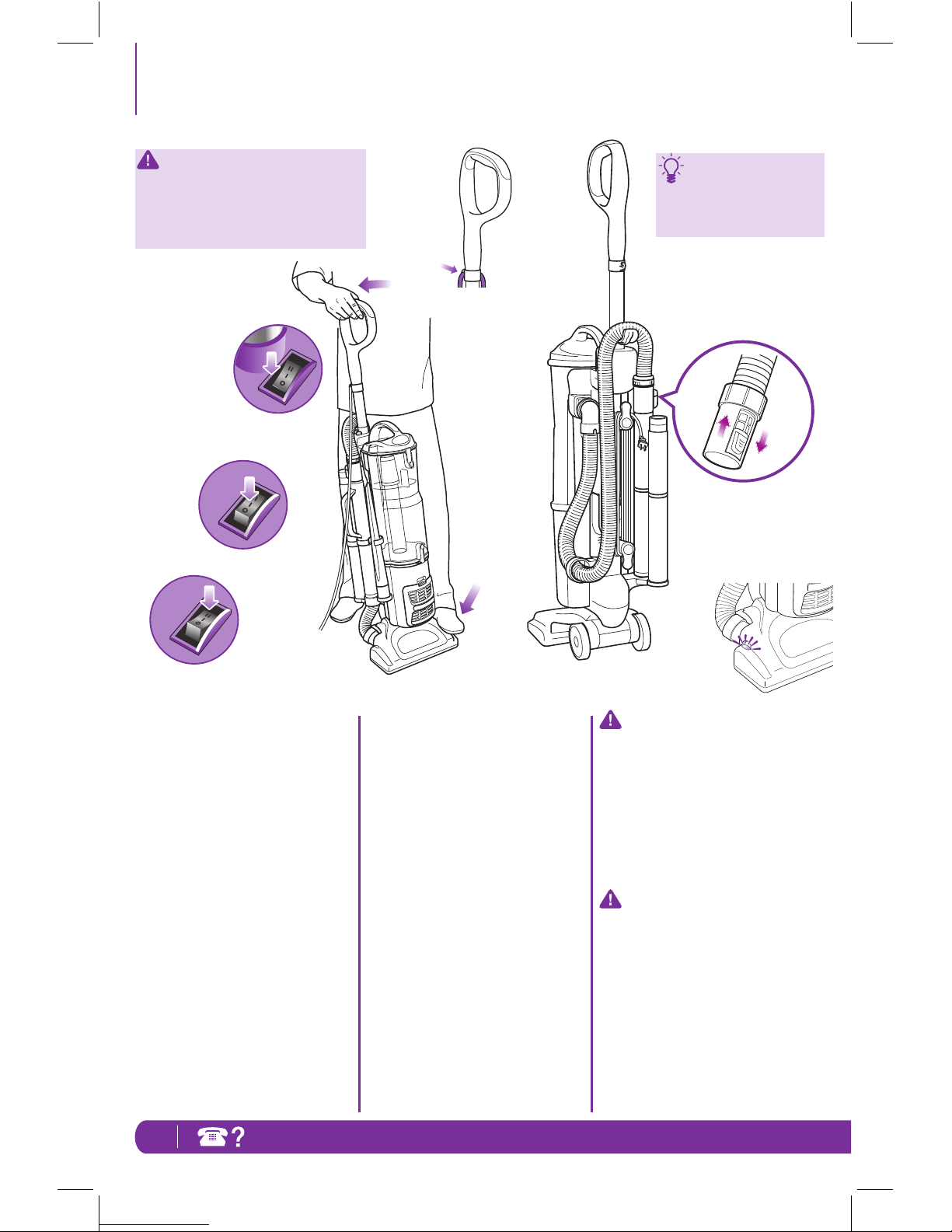

Stand the vacuum into the upright

position.

Plug in the vacuum.

1Start with the Power Switch in the

“O"- Off position.

2Place your foot on the Floor Power

Nozzle and pull handle towards

you.

3Set the Power Switch to desired

cleaning setting.

4Push the power cord into the

groove on the handle and then

secure the power cord into the

cord clip.

5Press the On/Off switch to the“I"

position to vacuum bare ﬂoors or

cleaning with the hose (straight

suction only) or to the "II"

position to engage the motorized

ﬂoor brush (for vacuuming carpets

and rugs).

6Due to the huge suction

power of this vacuum, it may

become necessary to adjust

the suction release on the

hose. If the vacuum is difﬁcult

to push or pull or if it is

lifting up area rugs, adjust the

suction release by opening

the valve at the top end of

the hose. Close the suction

release valve for maximum

suction when vacuuming

ﬂoors or when using the pet

hair power brush.

IMPORTANT:

Your Brushroll Indicator Light

will illuminate solid green when

the brushroll is on, or solid red if

there is a blockage. This feature is

designed to protect your Lifetime

Belt that powers your brushroll.

See Checking for Blockages

on page 11.

NOTE: The height of your power

nozzle has been optimized

for easy pushing and superior

cleaning on all ﬂoor types, so there

is no need to make any height

adjustments as you transition to

different ﬂoor & carpet types.

IMPORTANT: To protect your

carpets, the brushroll will only

turn on when you have pulled

the handle back towards you and

released the Floor Power Nozzle.

OFF

Bare Floors /

Tools

Carpets

Power Switch

Settings

Suction Release

Release suction for

easier push and pull

on high pile carpets

and area rugs.

UV420_26_IB_E_120306_2.indd 6 12-03-06 9:53 AM

www.sharkclean.com

Cleaning with the Vacuum Accessories

Before cleaning with your

accessories:

Stand vacuum into upright position.

Secure Super

Stretch Hose in

the anti-tip hose

hook to prevent

tipping.

Select the “I" - On position for

suction only cleaning.

DO NOT pull vacuum cleaner

around by the hose.

DO NOT overextend the hose.

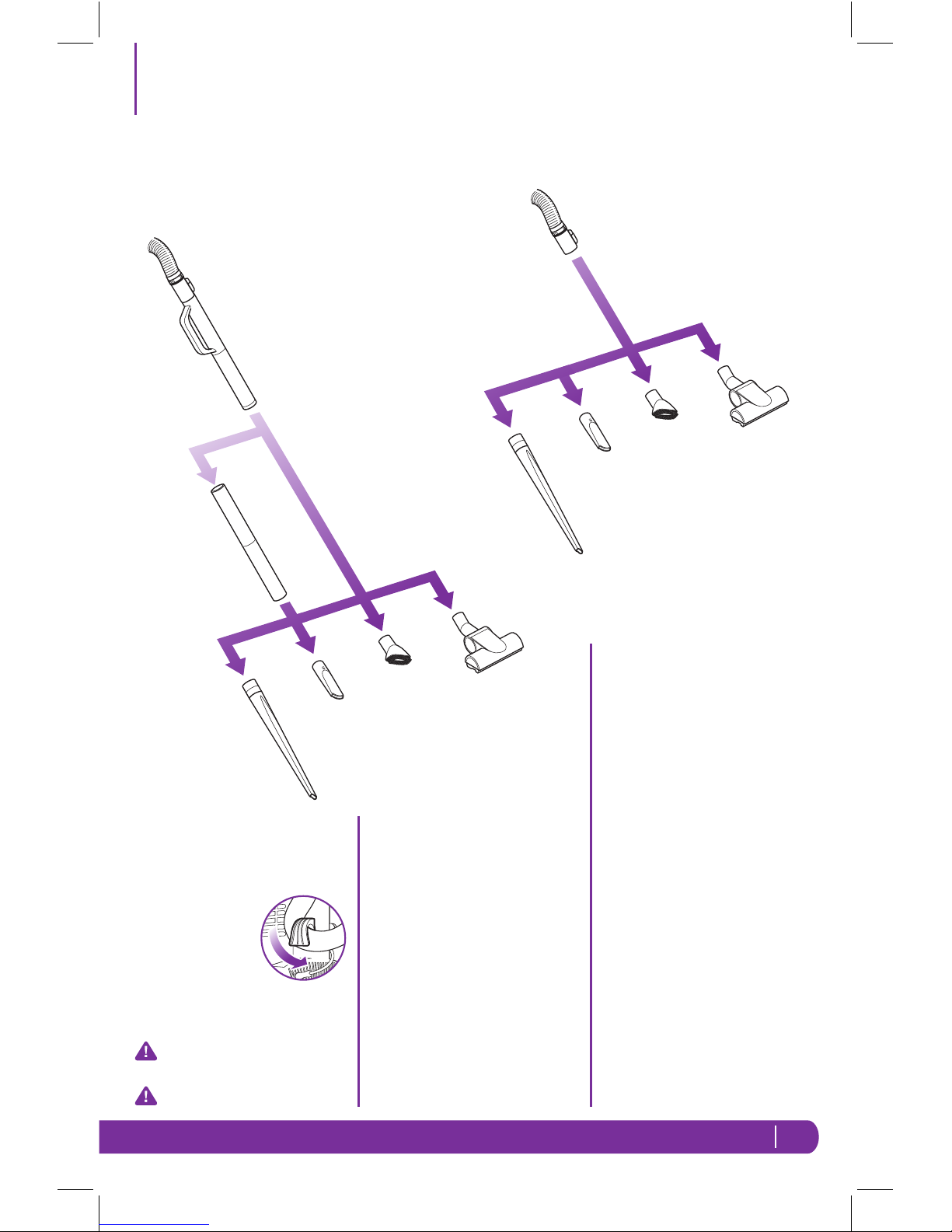

Vacuum Accessories

Your vacuum comes with a Super

Stretch Hose and Cleaning Wand

with handle. Use one or the other to

attach your cleaning accessories.

1Using the Super Stretch Hose:

Stand the vacuum into upright

position.

Remove the hose from the

Cleaning Wand with handle.

Push the selected tool into the

hose connector.

2Using the Cleaning Wand:

Stand the vacuum into upright

position.

Remove the Cleaning Wand with

handle (with hose attached)

from the unit.

Push the selected tool into the

end of the Cleaning Wand.

For a longer reach, add the extra

Cleaning Wand (7) and then

attach the various accessories.

3Pet Hair Power Brush

4Dusting Brush

5Crevice Tool

616” Crevice Tool

Note: Remove the crevice tool

from the Cleaning Wand to use.

7Extra Cleaning Wand

To order additional parts and accessories,

go to www.sharkclean.com or call

1-800-798-7398.

UV420_26_IB_E_120306_2.indd 7 12-03-06 9:53 AM

TOLL FREE: 1-800-798-7398

Maintenance

For best results empty the Dust Cup

Assembly after each use, as needed

during prolonged usage or when it

reaches the MAX ﬁll line.

DO NOT OVERFILL.

Turn vacuum off before emptying.

To empty the Dust Cup:

1Grip carry handle and press

the Dust Cup release button to

remove.

2Option A:ForQuickEmpty:

Insert Dust Cup deep inside

trash receptacle to contain dust

and debris.

Press the bottom Dust Cup

release button; tap container

gently to dislodge and release

dust and debris.

Snap door in place.

Important: If the Dust Cup

Door does not swing open after

pressing the release button,

push the door open using the

bottom door tabs.

CAUTION:

Unplug the vacuum;

failure to do so might

result in electric

shock.

3Option B: For Allergy Sufferers:

Wrap a trash bag around the

Dust Cup leaving space at the

bottom for the door to swing

open.

Locate the Dust Cup Door

release button within the trash

bag and press to release as you

shake the dust cup to empty

dust and debris.

Snap the bottom door in place.

Note: Option B can also be

performed outside of the home

to further minimize releasing

dust back into the air. Carry just

the Dust Cup and trash bag

outside.

Note: Some dust and debris

may remain in the top of your

dust cup on or near the metal

screen. It is not necessary to

completely remove this material

before continuing to vacuum;

Shark®advanced cyclonic

action will sweep the metal

screen clean once you begin to

reﬁll your dust cup.

UV420_26_IB_E_120306_2.indd 8 12-03-06 9:53 AM

Inhaltsverzeichnis

Andere Shark Staubsauger Handbücher

Shark

Shark Rotator ZU100 Series Bedienungsanleitung

Shark

Shark APEX ZS364Q Bedienungsanleitung

Shark

Shark NV44 Bedienungsanleitung

Shark

Shark Rocket ZS350 Series Bedienungsanleitung

Shark

Shark ION RV760 Series Bedienungsanleitung

Shark

Shark Powered Lift-Away NV751 Bedienungsanleitung

Shark

Shark Vertex DuoClean PowerFins IZ462H Bedienungsanleitung

Shark

Shark WANDVAC WS632SM Series Bedienungsanleitung

Shark

Shark NV355 Series Bedienungsanleitung

Shark

Shark NV500NZ Bedienungsanleitung

Shark

Shark DuoClean Powerfins IZ300EU Series Bedienungsanleitung

Shark

Shark Rocket AH450ANZ Bedienungsanleitung

Shark

Shark NP320QUK Bedienungsanleitung

Shark

Shark SK460 series Bedienungsanleitung

Shark

Shark Rotator NV680 Bedienungsanleitung

Shark

Shark Rocket HV320REF Bedienungsanleitung

Shark

Shark Navigator LIFT-AWAY ZERO-M ZU571 Series Bedienungsanleitung

Shark

Shark LA400 Bedienungsanleitung

Shark

Shark STRATOS CLEAN SENSE IQ MultiFLEX IZ800... Bedienungsanleitung

Shark

Shark Navigator UV725 Series Bedienungsanleitung

Shark

Shark STRATOS XL Pet Pro Powered Lift-Away AZ913ANZ... Bedienungsanleitung

Shark

Shark EP602RF Bedienungsanleitung

Shark

Shark Navigator Lift-Away Zero-M Speed R-ZU560 Bedienungsanleitung

Shark

Shark Rocket HV300REF Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung

Nobles

Nobles 608669 Produkthandbuch
