Shoprider GK10 Bedienungsanleitung



GK10

Instruction Manual

2



Table of Contents

Contents

Introduction.......................................................................................................................................3

EMI Warning.....................................................................................................................................4

Safety Guidelines............................................................................................................................6

Features............................................................................................................................................8

Free Wheel Mode..........................................................................................................................11

Operating Your Scooter................................................................................................................12

Battery Charging & Maintenance................................................................................................16

Disassembly / Re-Assembly........................................................................................................18

Inspection & Maintenance............................................................................................................19

Trouble Shooting...........................................................................................................................21

Warranty..........................................................................................................................................22

Specifications.................................................................................................................................23

Options...............................................................................................Error!Bookmarknotdefined.



3



Introduction

Congratulations on the purchase of your Shoprider scooter. Please carefully read this

owner’s manual before attempting to use your scooter. After reading the manual if you

still have any questions or concerns please feel free to contact your local authorized

dealer.

Before reading the rest of the manual please register your product online at

www.eclipsemedical.com.

You must keep your receipt as proof of purchase for the warranty to be valid: you

will need to present the receipt when you service or repair your product under

warranty.

Please fill in the information below for your records.

Model __________________________

Serial # __________________________

Date Purchased: __________________________

Dealer Name: __________________________

Dealer Telephone #: __________________________

4



EMI Warning

Electromagnetic Interface (EMI) From Radio Wave Sources

Powered motorized scooters may be susceptible to electromagnetic interference (EMI),

which is interfering electromagnetic energy (EM) emitted from sources such as radio

stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular

phones. The interference (from radio wave sources) can cause a powered scooter to

release its brakes, move by itself or move in unintended directions. It also can

permanently damage the powered scooter's control system.

The sources of radiated EMI can be classified broadly into three types:

1. Hand-held portable transceivers (transmitters-receivers) with an antenna

mounted directly on the transmitting unit. Examples include: citizens band (CB)

radios, "walkie-talkies", fire and police transceivers, cellular telephones and other

personal communication devices. **NOTE: some cellular telephones and similar

devices transmit signals while they are ON, even when not being used.

2. Medium-Range mobile transceivers, such as those used in police cars, fire

trucks, ambulances and taxis. These usually have the antenna mounted on the

outside of the vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast

transmitters (radio and TV antenna towers) and amateur (HAM) radios. **NOTE:

So far as we know, other types of hand-held devices, such as cordless phones,

laptop computers, AM/FM radios, TV sets, CD players, cassette players and small

appliances, such as electric shavers and hair dryers, are not likely to cause

problems to your powered scooter.

Powered Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio sources (transceivers)

are of special concern. It is possible, unintentionally, to bring high levels of EM energy

very close to the powered scooter's control system while using these devices. This can

affect powered scooter movement and braking.

Therefore, the warnings listed below are recommended to prevent possible interference

with the control system of the powered scooter.

5



Warnings

The warnings listed below should reduce the chance of unintended brake release or

powered scooter movement, which could result in serious injury.

1. Do not operate hand-held transceivers (transmitters-receivers) such as citizens band

(CB) radios, or turn on personal communication devices, such as cellular phones,

while the powered scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming

close to them.

3. If unintended movement or brake release occurs, turn the powered scooter OFF as

soon as it is safe to do so.

4. Be aware that adding accessories or components, or modifying the powered scooter,

may make it more susceptible to EMI (NOTE: There is no easy way to evaluate the

overall immunity of the powered scooter.)

5. Report all incidents of unintended movement or brake to the powered scooter dealer,

and note whether there are sources of EMI nearby.

6



Safety Guidelines

You will need to be familiar with the operation of your scooter before using it. Please read

the following notes carefully to ensure safety at all times. Always make certain your

scooter is in full working order before use.

1. Do not ride your scooter without reading this instruction manual first.

2. Do not exceed the maximum gradient outline for your scooter.

3. Do not carry passengers or exceed the maximum weight.

4. Do not mount or dismount your scooter, unless it has come to a full stop and is

turned off.

5. Do not switch your scooter on with the forward/reverse lever depressed.

6. Do not mount or dismount your scooter unless the speed adjustment dial is set to

minimum.

7. Do not backup your scooter onto uneven inclines or surfaces. Be cautious when

traveling on slopes.

8. Do not drive your scooter in a confined space unless the speed adjustment dial is

set to minimum.

9. Do not turn suddenly at full speed, especially on uneven or hilly ground. Failure to

observe this may result in tipping of your scooter.

10.Do not drive your scooter unless the seat is locked into driving position.

11.Do not drive your scooter over deep, soft terrain (Loose gravel, soft dirt).

12.Do not operate your scooter when under the influence of alcohol or medication,

which may impair your safety.

13.Do not climb curb cut outs that exceed your scooter's capacity. Do not turn when

negotiating curbs. Always approach curb cut outs at low speed and straight.

14.Always stop fully before changing direction (forward / reverse)

7



15.Always keep your feet on the scooter when driving.

16.Always proceed carefully while riding your scooter, especially when approaching a

ramp or hill.

17.Always proceed carefully while riding on uneven surfaces.

18.Do not sit on your scooter while being transported in a moving vehicle. Always tie-

down your scooter and transfer yourself to a vehicle seat.

19.Do not drive your scooter in deep water or clean with a high-pressure hose.

Features

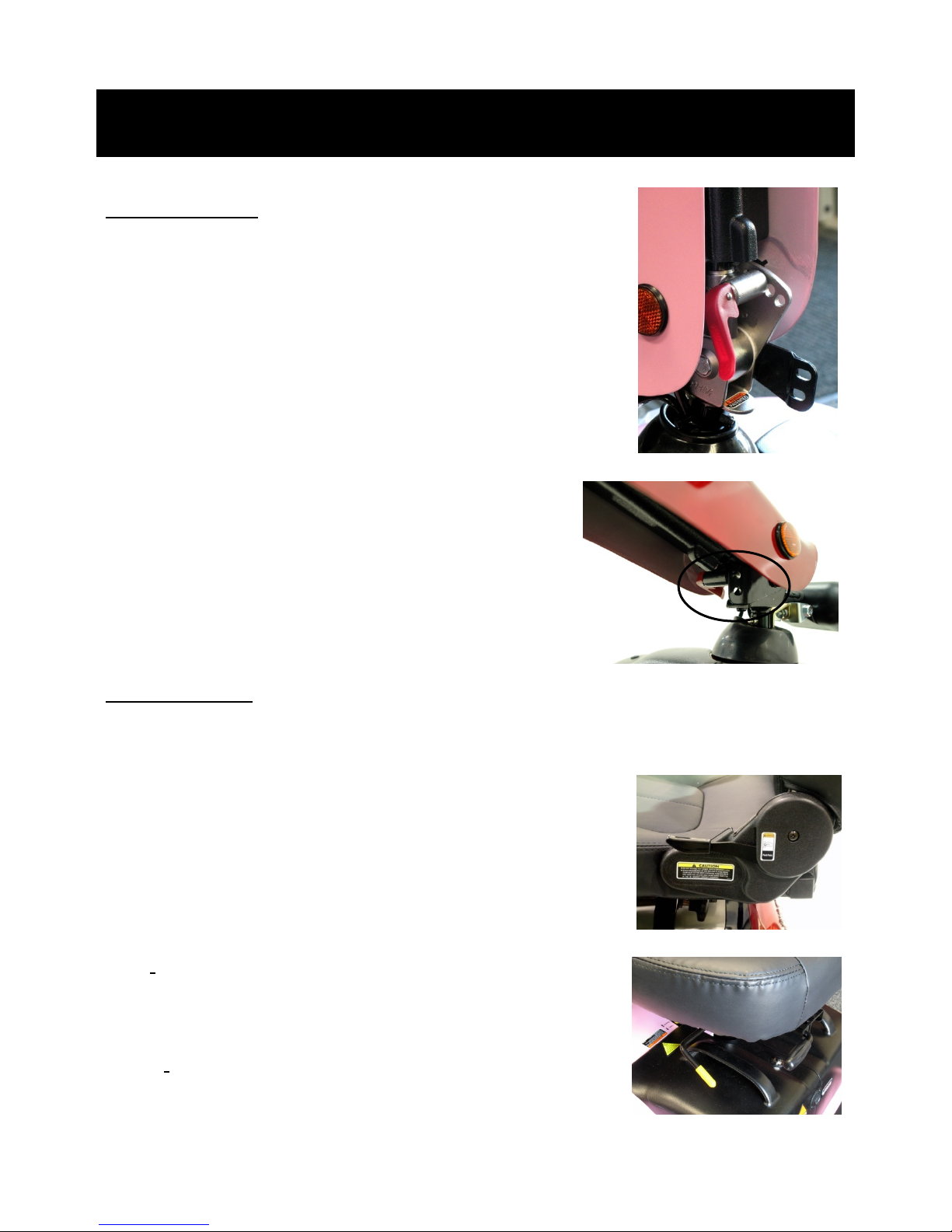

Tiller Adjustment

The tiller of your scooter is uniquely designed to allow you to

position it to a comfortable driving position. Your scooter’s tiller

is very versatile, and can be adjusted to five different

positions. To decide which position best fits your needs,

carefully pull the red lever that is located on the left side, at the

base of tiller, and gently lower or raise the tiller. Once you are

satisfied with the position of the tiller, simply push the lever

back into the hole and the tiller will automatically lock for your

safety.

The tiller may also be locked for transport. You must

first remove the seat and follow the above instructions

for unlocking the tiller. Once this has been completed,

carefully lower the tiller towards the seat post and lock

the tiller into one of the 2 additional tiller lock holes. By

doing this, it will help protect and hold the tiller in place

during transportation.

Seat Adjustment

Your scooter has a fully adjustable seat for your comfort. Your deluxe captain seat will

recline, slide up and back, and will swivel for your

convenience.

Recline - To manually recline your seat, simply pull your lever

located on the lower left side of the seat and

you will be able to

djust it to fit your desired convenience.a

Slide - To move closer or farther away from the tiller, pull up

the black lever located under th

e front right of the seat and

slide to your desired position.

Swivel - To turn your seat left or right, pull up the yellow lever

located under the right side of the seat and you

will easily be

e seat to the desired position.able to adjust th

8



9



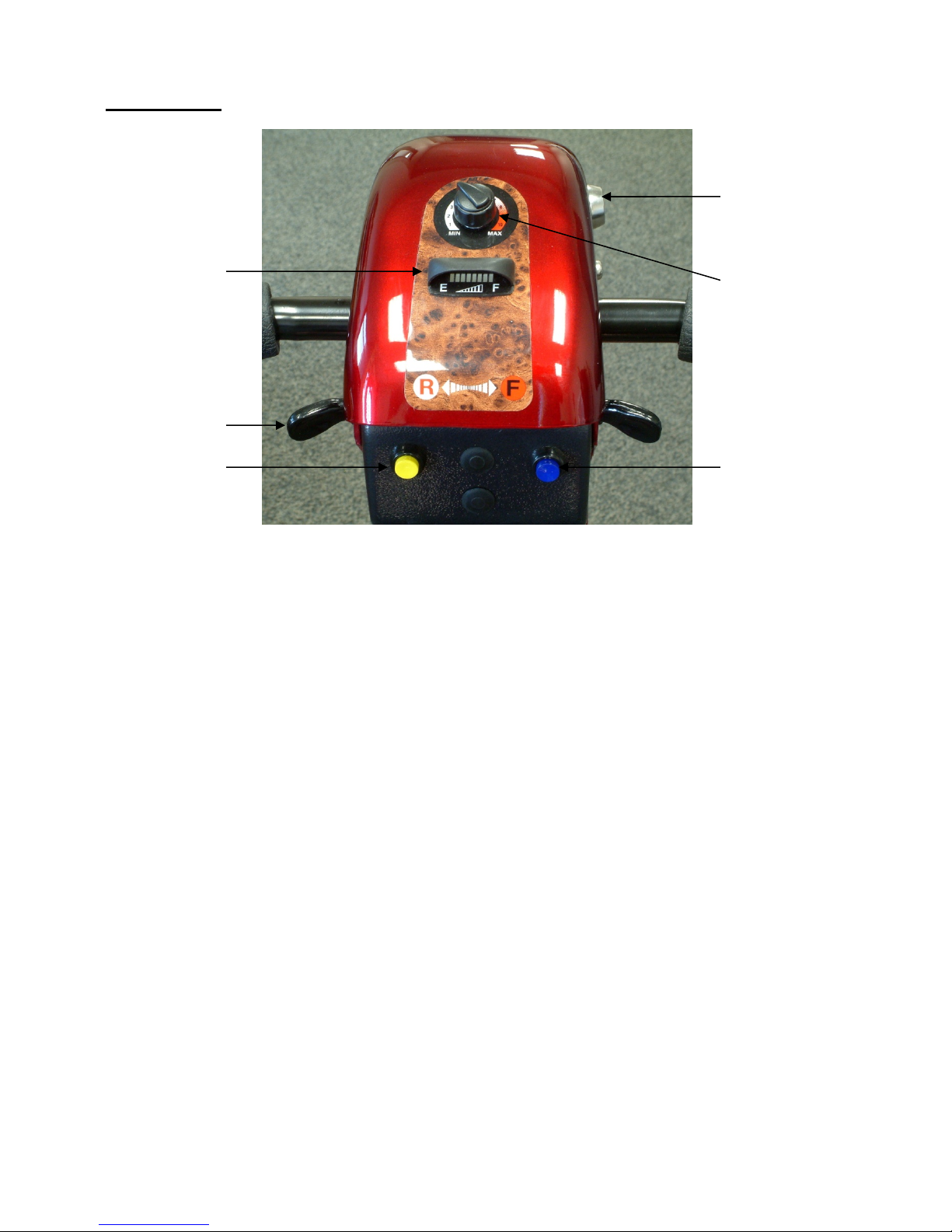

Tiller Control

turn on and off your front headlight, simply press the round blue

under your forward lever. To shut off the headlight, press

tor moves towards the

To switch off your machine, turn the key counter clockwise. Make sure to remove the key

CAUTION lt

it upright in your seat or your scooter may become less stable.

Your controls are located on the handle bar console, and they are:

(1) Front Headlight: To

utton located on the tiller, justb

the blue button again.

(2) On-Off Key Switch: Located right side of the tiller console. Insert the key and turn it

clockwise. You will notice the digital bar on the battery state indica

right. Your scooter is ready to drive.

when the vehicle is unattended.

: Do not switch to ‘off’ when scooter is moving. Failure to observe this will resu

in the motor brake being applied suddenly, and placing you in a dangerous situation.

You should only switch ‘off’ when in motion in the case of an emergency.

Continual use in this mode may cause undue stress to the drive system, and

damage the main electronic speed control unit. Be extremely cautious on slopes.

3 4

10



(5) Battery Indicator Gauge: Located at the top of your console. When your scooter is

switched on the bar on the gauge will move across the scale from the left towards the

right, indicating fully charged batteries. As the power is used up in your batteries the red

bars will move towards the left indicating the state of charge at the precise time. When

the red bars are completely over to the right, the batteries are fully charged. When the red

bars start to disappear, your batteries are losing power. It is wise to recharge your

batteries when the two red bars remain. (See Batteries and Battery Charging section

of this manual)

(4) Speed Adjustment Dial: This allows you to pre-select your desired speed. The dial is

proportional to speed, and can be set anywhere between 1 and 10 increments. Turn the

dial knob counter-clockwise to "minimum" to decrease speed, and clockwise towards

"maximum" to increase your speed.

NOTE: When attempting to climb slopes, you will need to set the dial to "high" setting.

Remember the higher the number you set your speed dial to, the faster your scooter will

travel.

(5) Horn: located between the thumb lever controls. Press the yellow button to activate

the horn, release when no longer needed.

(6) Thumb Lever Control: located on the right and left side of the tiller, your speed for

forward and reverse motion is controlled here. The right thumb lever moves your scooter

in a forward motion, and also controls the rate of speed by the proportional amount of

pressure applied.

The left thumb lever moves the scooter in a reverse motion and controls the rate of speed

by the amount of pressure applied. Releasing the lever will return itself to the neutral

position, and you will stop gently.

CAUTION: If you are not an accomplished outdoors powered vehicle driver, we

strongly recommend that you first practice in an open, safe area, free from traffic,

preferably with a companion who can assist you.

Andere Handbücher für GK10

Inhaltsverzeichnis

Andere Shoprider Roller Handbücher

Shoprider

Shoprider LITTLE BEAUTY Bedienungsanleitung

Shoprider

Shoprider 778 Series Bedienungsanleitung

Shoprider

Shoprider ROCKY 8 Bedienungsanleitung

Shoprider

Shoprider mobility scooter Bedienungsanleitung

Shoprider

Shoprider Rocky 6 Bedienungsanleitung

Shoprider

Shoprider 888SE Explorer Bedienungsanleitung

Shoprider

Shoprider Mikra TE-7A Bedienungsanleitung

Shoprider

Shoprider Grande TE-9AS Bedienungsanleitung

Shoprider

Shoprider Valencia Bedienungsanleitung

Shoprider

Shoprider Capri S787M Bedienungsanleitung

Shoprider

Shoprider Traveso 889XLSBN/CAN Bedienungsanleitung

Shoprider

Shoprider TE-787M Bedienungsanleitung

Shoprider

Shoprider SUNRUNNER 3 888B-3 Bedienungsanleitung

Shoprider

Shoprider FS777 GETABOUT Bedienungsanleitung

Shoprider

Shoprider TE-889NRS Bedienungsanleitung

Shoprider

Shoprider VIKING 3 Bedienungsanleitung

Shoprider

Shoprider SPRINTER XL4 Bedienungsanleitung

Shoprider

Shoprider QT-8 LITTLE BEAUTY Bedienungsanleitung

Shoprider

Shoprider Perrero S-888SLR Bedienungsanleitung

Shoprider

Shoprider 889xlsn Bedienungsanleitung

Shoprider

Shoprider Cooper Bedienungsanleitung

Shoprider

Shoprider S-889NR Bedienungsanleitung

Shoprider

Shoprider Recreational Scooter GR889 Bedienungsanleitung

Shoprider

Shoprider eclipse 778EL Bedienungsanleitung

Beliebte Roller Handbücher anderer Marken

TEKTRO

TEKTRO CHEETAH Bedienungsanleitung

Douglas

Douglas Vespa Sprint Installationsanleitung

PLAYTIVE

PLAYTIVE AS-2448 Bedienungsanleitung

Ebinger

Ebinger DONKEY XL Bedienungsanleitung

Flyer

Flyer Mountain Benutzerhandbuch

BackCountry eBikes

BackCountry eBikes Storm Bedienungsanleitung

equipmed

equipmed FreeRoam II Bedienungsanleitung

Yoto

Yoto Lion Bedienungsanleitung

WESTHILL BIKES

WESTHILL BIKES LINK Bedienungsanleitung

BAnff

BAnff eProdigy series Bedienungsanleitung

Winther

Winther 475 Bedienungsanleitung

Jetson

Jetson JBZL17 Bedienungsanleitung

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Bedienungsanleitung

Carrera

Carrera impel Bedienungsanleitung

Afikim

Afikim Superlight SL-3 Bedienungsanleitung

CareCo

CareCo ZOOM Bedienungsanleitung

Douglas

Douglas Vespa G.S. Bedienungsanleitung

Gazelle

Gazelle with BOSCH System Bedienungsanleitung
