SICK GTE2 Flat Bedienungsanleitung

OPERATING INSTRUCTION

GTE2 Flat

Miniature photoelectric sensors

OPERATING INSTRUCTION

GTE2 Flat

Miniature photoelectric sensors

Described product

G2F

GTE2F

Manufacturer

SICK AG

Erwin-Sick-Str. 1

79183 Waldkirch

Germany

Production location

SICK Product Center Asia Pte. Ltd.

Singapore

www.sick.com.sg

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be

reserved for SICK AG. Reproduction of this document or parts of this document is only

permissible within the limits of the legal determination of Copyright Law. Any modifica‐

tion, abridgment or translation of this document is prohibited without the express writ‐

ten permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

Original document

This document is an original document of SICK AG.

2006/42/EC

SAFETY

8025415 | SICK

Subject to change without notice 3

Contents

1 General safety notes......................................................................... 5

2 Notes on UL approval........................................................................ 5

3 Intended use...................................................................................... 5

4 Operating and status indicators...................................................... 5

5 Mounting............................................................................................. 6

6 Electrical installation........................................................................ 6

7 Commissioning.................................................................................. 7

8 Troubleshooting................................................................................. 8

9 Disassembly and disposal............................................................... 9

10 Maintenance...................................................................................... 9

11 Technical specifications................................................................... 10

11.1 Dimensional drawing................................................................................ 10

11.2 Light spot diameter................................................................................... 11

CONTENTS

48025415 | SICK

Subject to change without notice

1 General safety notes

■Read the operating instructions before commissioning.

■

Connection, mounting, and configuration may only be performed by trained

specialists.

■

2006/42/EC

SAFETY

Not a safety component in accordance with the EU Machinery Directive.

■

When commissioning, protect the device from moisture, contamination and

UV radiation (sun light).

■These operating instructions contain information required during the life cycle of

the sensor.

2 Notes on UL approval

The device must be supplied by a Class 2 source of supply.

UL Environmental Rating: Enclosure type 1

3 Intended use

The GTE2F is an opto-electronic photoelectric proximity sensor (referred to as “sensor”

in the following) for the optical, non-contact detection of objects, animals, and persons.

If the product is used for any other purpose or modified in any way, any warranty claim

against SICK AG shall become void.

4 Operating and status indicators

Energetic photoelectric proximity sensor.

Figure 1: Dimensional drawing

GENERAL SAFETY NOTES 1

8025415 | SICK

Subject to change without notice 5

1LED indicator green: supply voltage active

2LED indicator yellow: status of received light beam

5 Mounting

Mount the sensor using a suitable mounting bracket (see the SICK range of acces‐

sories).

Note the sensor's maximum permissible tightening torque of 0.1 Nm.

6 Electrical installation

The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐

tion must be observed, depending on the connection type:

– Plug connection: note pin assignment: when the lid is open, the male connector

can be swiveled horizontally and vertically.

– Cable: wire color

Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐

tions have been established.

Explanation of the connection diagram (Tables pin assignment):

Q = switching outputs

n. c. = not connected

DC: 10 ... 30 V DC

Table 1: Pin assignment

GXX2F(S)

-X14xx

-X54xx

1BN + (L+) + (L+)

2- - -

3BU - (M) - (M)

4BK Q Q

BK: 0.1 mm2, AWG30

BU+BN: 0.127 mm2, AWG28

5 MOUNTING

68025415 | SICK

Subject to change without notice

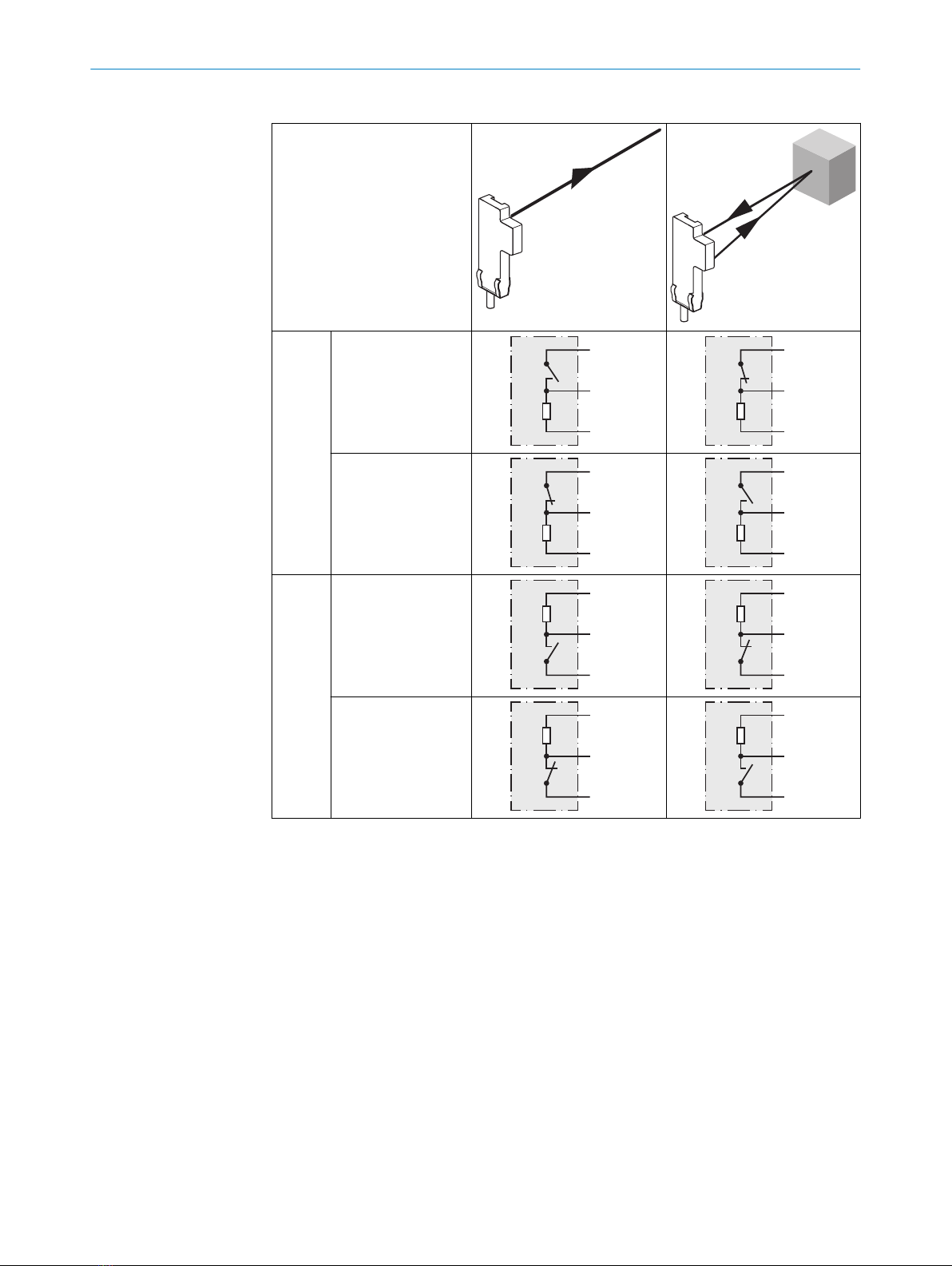

Table 2: Switching output

PNP Q

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

NPN Q

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

(≤ 50 mA)

+ (L+)

– (M)

+ (L+)

– (M)

7 Commissioning

1Alignment

Align sensor on object. Select the position so that the red emitted light beam hits the cen‐

ter of the object. You must ensure that the optical opening (front screen) of the sensor is

completely clear.

ELECTRICAL INSTALLATION 6

8025415 | SICK

Subject to change without notice 7

Figure 2: Alignment

Figure 3: Alignment 2

2Sensing range

Sensing range

Sensing range typ. max.

(0.16) 8

(0.31) 12

(0.47)

311

Distance in mm (inch)

12.5

1.5

3.5

(0.63)

763.5/4.5

Figure 4: Sensing range 15 mm

Sensing range

Sensing range typ. max.

(0.39)

(0.20) 15

(0.59) 20

(0.79) 25

(0.98)

220

Distance in mm (inch)

2512

(1.18)

151154

Figure 5: Sensing range 30 mm

1Sensing range on white, 90 % remission

2Sensing range on gray, 18 % remission

3Sensing range on black, 6 % remission

Use see table 2, page 7 to check the function. If the switching output fails to behave in

accordance with the table, check the application conditions. See section Fault diagnosis.

3Sensing range setting

Sensor which it is not possible to set: The sensor is adjusted and ready for operation.

8 Troubleshooting

The Troubleshooting table indicates measures to be taken if the sensor stops working.

Table 3: Troubleshooting

LED indicator/fault pattern Cause Measures

Yellow LED does not light up

even though the light beam is

aligned to the object and the

object is within the set sensing

range

No voltage or voltage below

the limit values

Check the power supply,

check all electrical connec‐

tions (cables and plug connec‐

tions)

Voltage interruptions Ensure there is a stable power

supply without interruptions

8 TROUBLESHOOTING

88025415 | SICK

Subject to change without notice

LED indicator/fault pattern Cause Measures

Sensor is faulty If the power supply is OK,

replace the sensor

Yellow LED lights up, no object

in the path of the beam

Excessive background remis‐

sion

Check changes to the back‐

ground. Reduce the sensitivity

of the sensor or use sensors

with background suppression

Object is in the path of the

beam, yellow LED does not

light up

Sensitivity is set too low or dis‐

tance between the sensor and

the object is too long

Increase the sensing range,

take note of the distance

between the sensor and the

background

Object is in the path of the

beam, yellow LED does not

light up

Remission capability of the

object is insufficient

Increase the sensing range,

take note of the distance

between the sensor and the

background

9 Disassembly and disposal

The sensor must be disposed of according to the applicable country-specific regula‐

tions. Efforts should be made during the disposal process to recycle the constituent

materials (particularly precious metals).

NOTE

Disposal of batteries, electric and electronic devices

•According to international directives, batteries, accumulators and electrical or

electronic devices must not be disposed of in general waste.

•The owner is obliged by law to return this devices at the end of their life to the

respective public collection points.

•

WEEE: This symbol on the product, its package or in this document, indi‐

cates that a product is subject to these regulations.

10 Maintenance

SICK sensors are maintenance-free.

We recommend doing the following regularly:

•Clean the external lens surfaces

•Check the screw connections and plug-in connections

No modifications may be made to devices.

Subject to change without notice. Specified product properties and technical data are

not written guarantees.

DISASSEMBLY AND DISPOSAL 9

8025415 | SICK

Subject to change without notice 9

11 Technical specifications

GTE2F-Xxx11 GTE2F-Xxx31

Sensing range 2 ... 12.5 mm 2 ... 25 mm

Sensing range max. 1.5 ... 15 mm1) 1 ... 30 mm1)

Light spot diameter/distance 7.5 mm / 10 mm 5.5 mm / 15 mm

Supply voltage UBDC 10 ... 30 V2) DC 10 ... 30 V2)

Output current Imax.≤ 50 mA ≤ 50 mA

Switching frequency 800 Hz3) 800 Hz3)

Max. response time ≤ 0.625 ms4) ≤ 0.625 ms4)

Enclosure rating IP67 IP67

Protection class III III

Circuit protection A, C, D5) A, C, D5)

Ambient operating temperature -20 °C ... +50 °C -20 °C ... +50 °C

1) Object with 90 % remission (based on standard white DIN 5033)

2) Limit value; residual ripple max. 5 Vss

3) With light / dark ratio 1:1

4) Signal transit time with resistive load

5) A = UB-connections reverse polarity protected

C = Interference suppression

D = outputs overcurrent and short-circuit protected

11.1 Dimensional drawing

24 (0.94)

4.5 (0.18)

11 (0.43)1 (0.04)

14 (0.55)

1 (0.04)5.5 (0.22) 3.5 (0.14)

Ø 2.2

(0.09)

2.2

(0.09)

Ø 2.3

(0.09)

Figure 6: Dimensional drawing GTE2F

11 TECHNICAL SPECIFICATIONS

10 8025415 | SICK

Subject to change without notice
